HappyModel ES24TX Pro 1000mW 2.4G ExpressLRS TX Module w/Cooling Fan & RGB LED, Long Range for FPV Drone, Airplane, RC
2000 orders (reference)
Description
HappyModel ES24TX Pro 1000mW 2.4G ExpressLRS TX Module w/Cooling Fan & RGB LED, Long Range for FPV Drone, Airplane, RC ============================================================ HappyModel ES24TX Pro 1000mW 2.4G ExpressLRS ELRS Micro TX Module with Cooling Fan RGB LED Module for RC Airplane FPV Drone The ES24TX Pro Micro ExpressLRS TX module is a upgrade version of ES24TX module. Max output up to 1000mw, reserved Cooling Fan and RGB LED module. This Micro TX module support most of the OpenTX radio transmitter that with Micro JR bay. And this time the ES24TX Pro module comes completely assembled before out of factory. Specifications: Regulatory Domain: ISM2400 MCU:ESP32(main),ESP8285(aux,as espbackpack) RF chip: SX1281IMLTRT JR standard 5pin socket Frequency Range: 2400 MHz to 2500 MHz Maximum receive refresh rate: 500Hz Minimum receiver refresh rate: 25Hz RF Output Power: >30dBm Power supply voltage: 5v~10v Weight: 51gram(without antenna) Dimension: 70mm*49mm*32.5mm Antenna gain: 4.18dBi Firmware target: HappyModel_ES24TX_Pro_Series_2400_TX Package include: ES24TX Pro *1 Happymodel 2.4GHz Moxon antenna *1 TECHNICAL SPECIFICATIONS • MCU:ESP32(main),ESP8285(aux,as espbackpack) • Weight: 51gram(without antenna) • Dimension: 70mm*49mm*32.5mm • Package include: AVAILABLE OPTIONS Black Silver Gray PRODUCT INFORMATION Brand: HappyModel Category: TX / RF Module Wholesale Price: US $24.16 ————————————————————————————————————————
Specifications
| Attribute | Value |
|---|---|
| High-concerned chemical | None |
| Is Electric | No Battery |
| Quantity | 1 pcs |
| Wheelbase | Bottom Plate |
| Is it battery/power supply | N |
| Is it charger/adapter | N |
| Is Batteries Included | No |
| Size | AS SHOW |
| Technical parameters | KV1100 |
| Model Number | HappyModel ES24TX Pro |
| For Vehicle Type | Helicopters |
| Tool Supplies | Assembled class |
| Four-wheel Drive Attributes | Assemblage |
| Remote Control Peripherals/Devices | RECEIVERS |
| Upgrade Parts/Accessories | Module |
| RC Parts & Accs | Module |
| Material | Composite Material |
| Origin | Mainland China |
| Recommend Age | 14+y |
| Use | Vehicles & Remote Control Toys |
Product Details
HappyModel ES24TX Pro 1000mW 2.4G ExpressLRS ELRS Micro TX Module with Cooling Fan RGB LED Module for RC Airplane FPV Drone

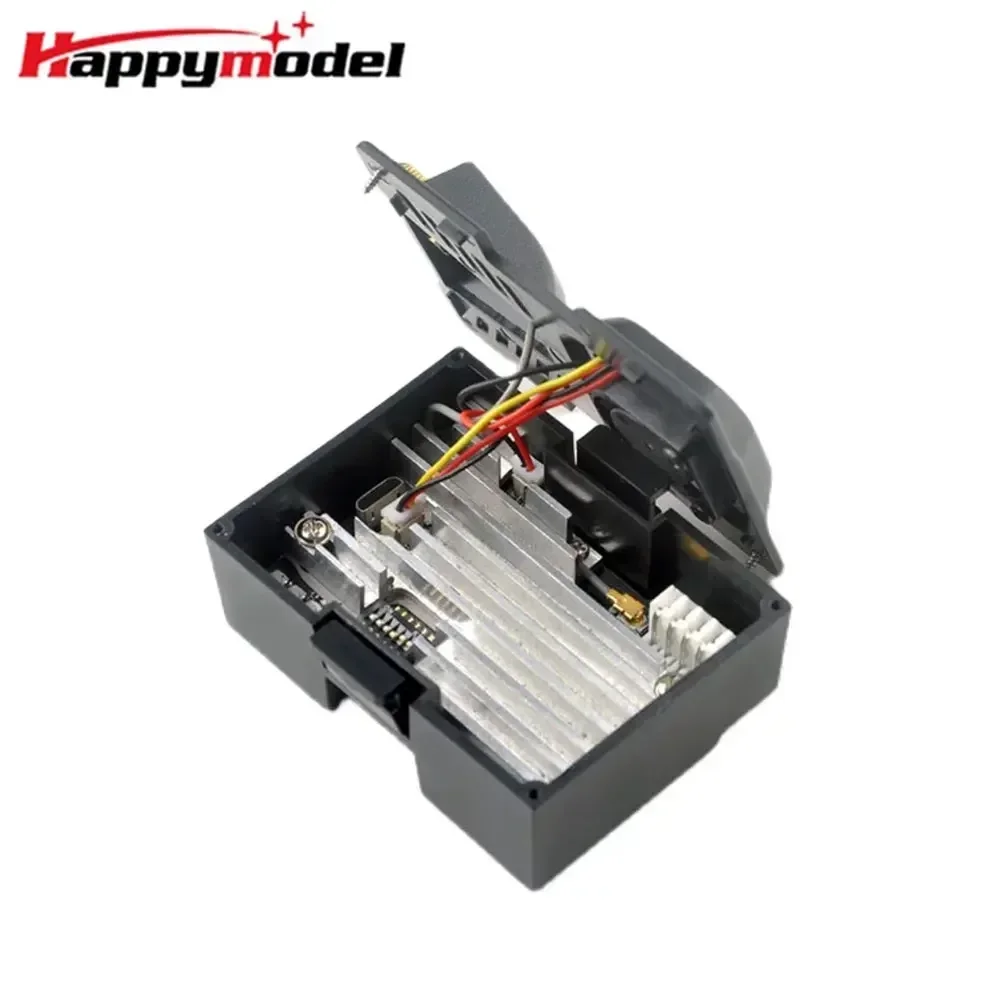

The ES24TX Pro Micro ExpressLRS TX module is a upgrade version of ES24TX module.

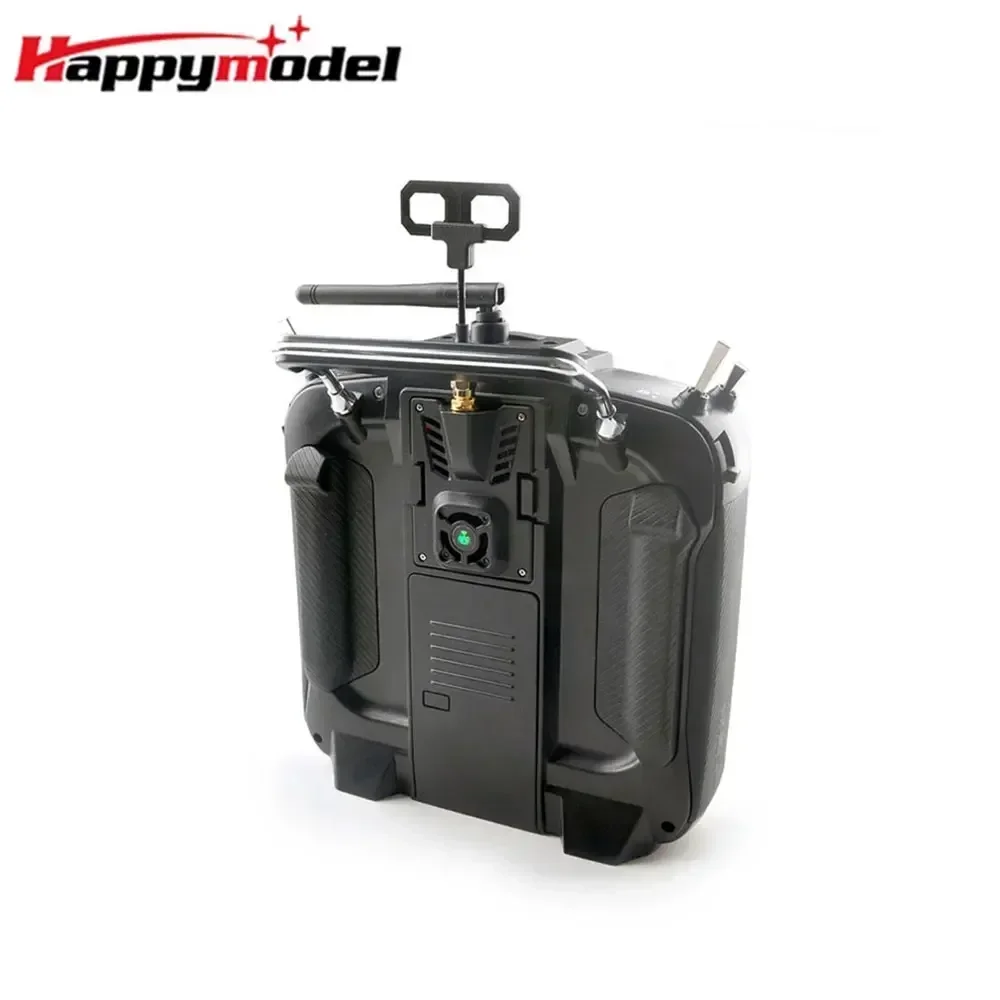

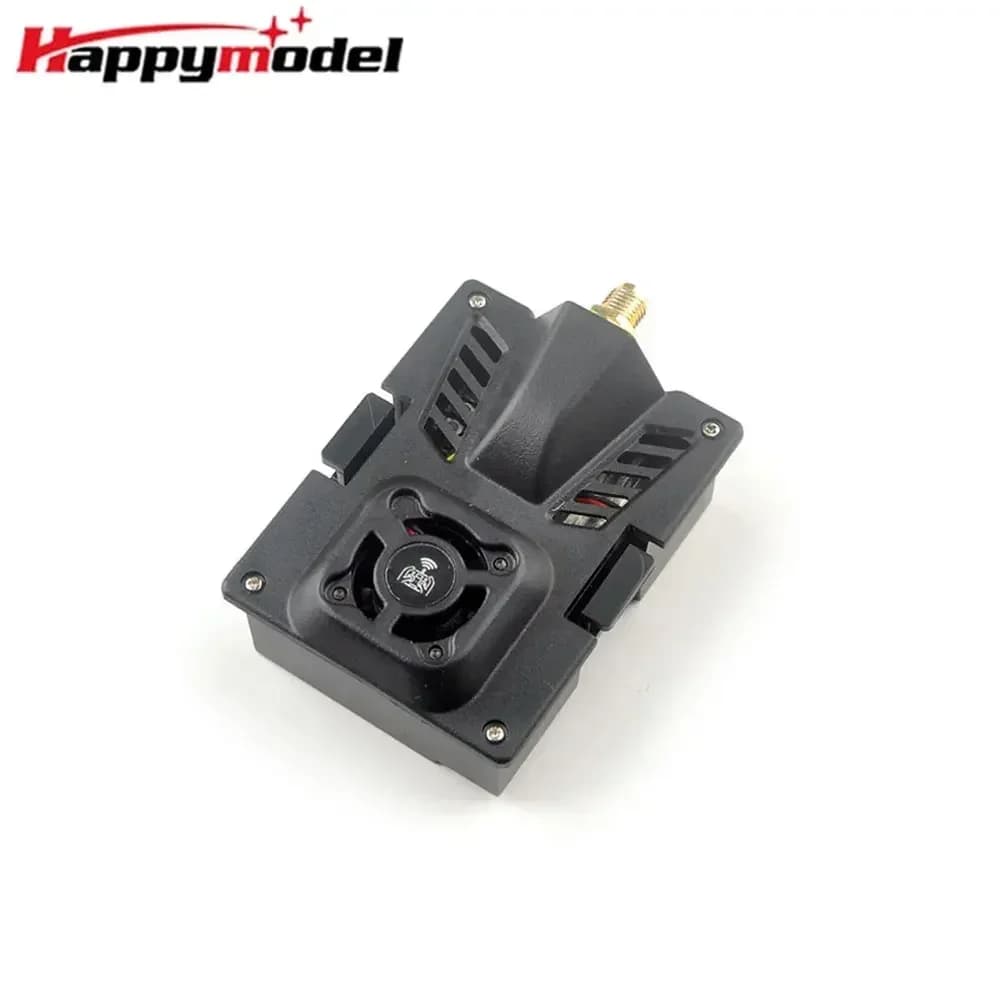

Max output up to 1000mw, reserved Cooling Fan and RGB LED module. This Micro TX module support most of the OpenTX radio transmitter that with Micro JR bay. And this time the ES24TX Pro module comes completely assembled before out of factory.
Specifications:
Regulatory Domain: ISM2400
MCU:ESP32(main),ESP8285(aux,as espbackpack)
RF chip: SX1281IMLTRT
JR standard 5pin socket
Frequency Range: 2400 MHz to 2500 MHz
Maximum receive refresh rate: 500Hz
Minimum receiver refresh rate: 25Hz
RF Output Power: >30dBm
Power supply voltage: 5v~10v
Weight: 51gram(without antenna)
Dimension: 70mm*49mm*32.5mm
Antenna gain: 4.18dBi
Firmware target: HappyModel_ES24TX_Pro_Series_2400_TX

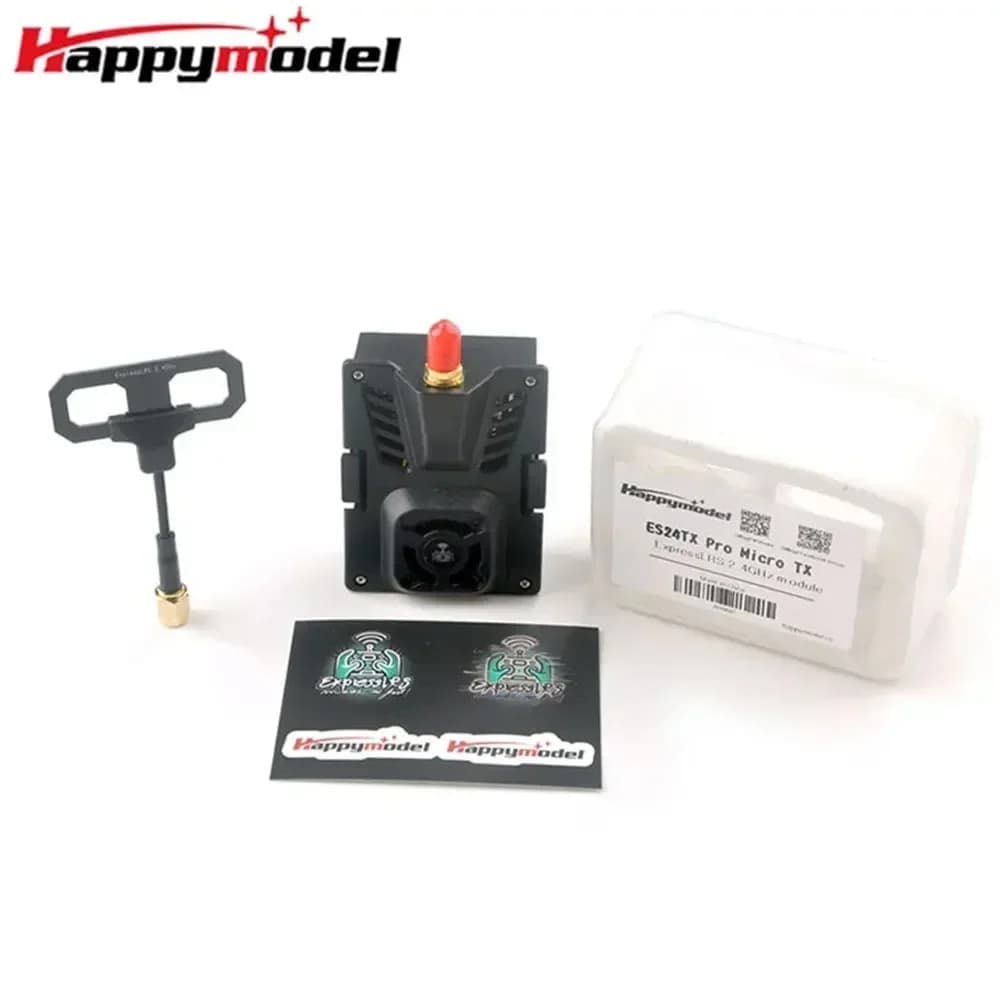

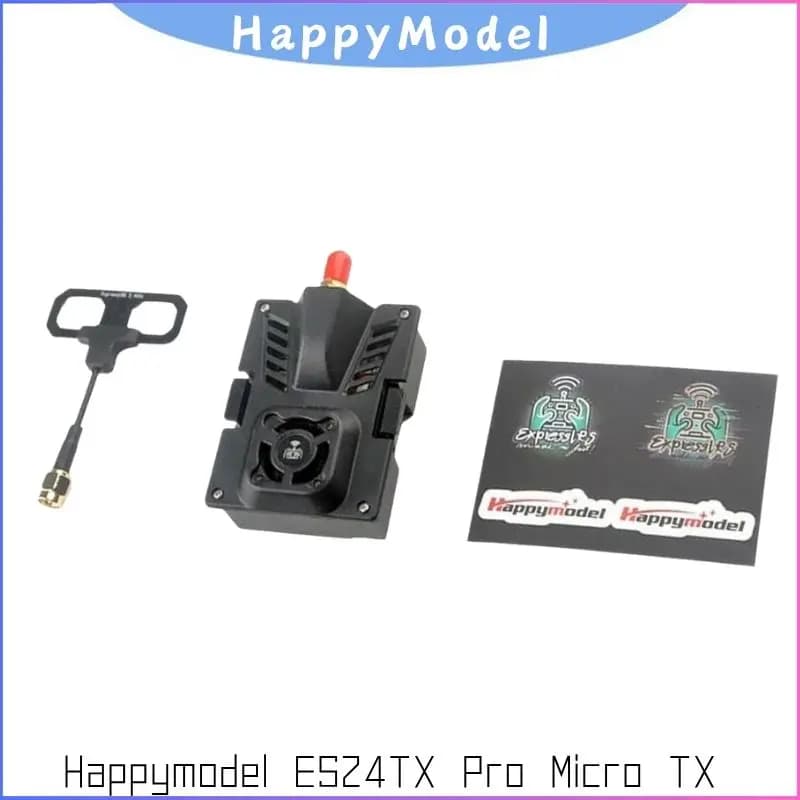

Package include:
ES24TX Pro *1
Happymodel 2.4GHz Moxon antenna *1
