HGLRC SPECTER F722 Lite ICM42688 Gyro Integrated ELRS 2.4G Receiver Flight Controller
Description
HGLRC SPECTER F722 Lite ICM42688 Gyro Integrated ELRS 2.4G Receiver Flight Controller ============================================================ Selling point: * Minimal integration: The flight control comes with an onboard ELRS 2.4G receiver, and an external receiver is also available. The 4g ultra-featherweight design greatly saves installation space, and the small fuselage can be installed without pressure * F722 main control: double-precision floating point acceleration, millisecond-level delay processing flight instructions, and 40% increase in response speed (compared to the F4 series); support high-frequency PID refresh, suitable for violent freestyle and extreme speed racing scenes. * Full scene adaptation: wide voltage power supply 8.4V-25.2V (2-6S), compatible with light 3-inch whoop to 7-inch long-range drone, eliminating the external BEC module, and the wiring is simpler. Support 5V\BAT voltage output, compatible with most analog/ HD image transmission. Flight control parameters: FC name: HGLRC F722 Lite Firmware: HGLRCF722MINI_4.5.1 MCU: STM32F722 Gyroscope: ICM42688P Barometer: dps310 Operating voltage: 8.4V-25.2V (2-6S lipo) BEC: 5V 2A Black box: 16MB Serial UARTS: 5 Built-in receiver: ELRS 2.4Ghz R2 OSD: Supported Mounting holes: 20×20mm, M3 Size: 28×28mm Weight: 4g Delivery list: 1x SPECTER F722 Lite flight controller 1x 25mm 8Pin flight control cable 1x 90mm 2.4G T-type antenna 1x 40mm 2.4G T-type antenna 4x M3*8 shock absorber TECHNICAL SPECIFICATIONS • MCU: STM32F722 • Barometer: dps310 • OSD: Supported • Size: 28×28mm • Weight: 4g • Firmware: HGLRCF722MINI_4.5.1 AVAILABLE OPTIONS ICM42688 PRODUCT INFORMATION Brand: HGLRC Category: Radio Receiver Wholesale Price: US $39.99 ————————————————————————————————————————
Specifications
| Attribute | Value |
|---|---|
| High-concerned chemical | None |
| Is Electric | No Battery |
| Is it battery/power supply | N |
| Is it charger/adapter | N |
| Is Batteries Included | No |
| For Vehicle Type | Helicopters |
| Material | Composite Material |
| Brand Name | HGLRC |
| Origin | Mainland China |
| Recommend Age | 14+y |
| Use | Vehicles & Remote Control Toys |
Product Details
Selling point:
* Minimal integration: The flight control comes with an onboard ELRS 2.4G receiver, and an external receiver is also available. The 4g ultra-featherweight design greatly saves installation space, and the small fuselage can be installed without pressure
* F722 main control: double-precision floating point acceleration, millisecond-level delay processing flight instructions, and 40% increase in response speed (compared to the F4 series); support high-frequency PID refresh, suitable for violent freestyle and extreme speed racing scenes.
* Full scene adaptation: wide voltage power supply 8.4V-25.2V (2-6S), compatible with light 3-inch whoop to 7-inch long-range drone, eliminating the external BEC module, and the wiring is simpler. Support 5V\BAT voltage output, compatible with most analog/ HD image transmission.
Flight control parameters:
FC name: HGLRC F722 Lite
Firmware: HGLRCF722MINI_4.5.1

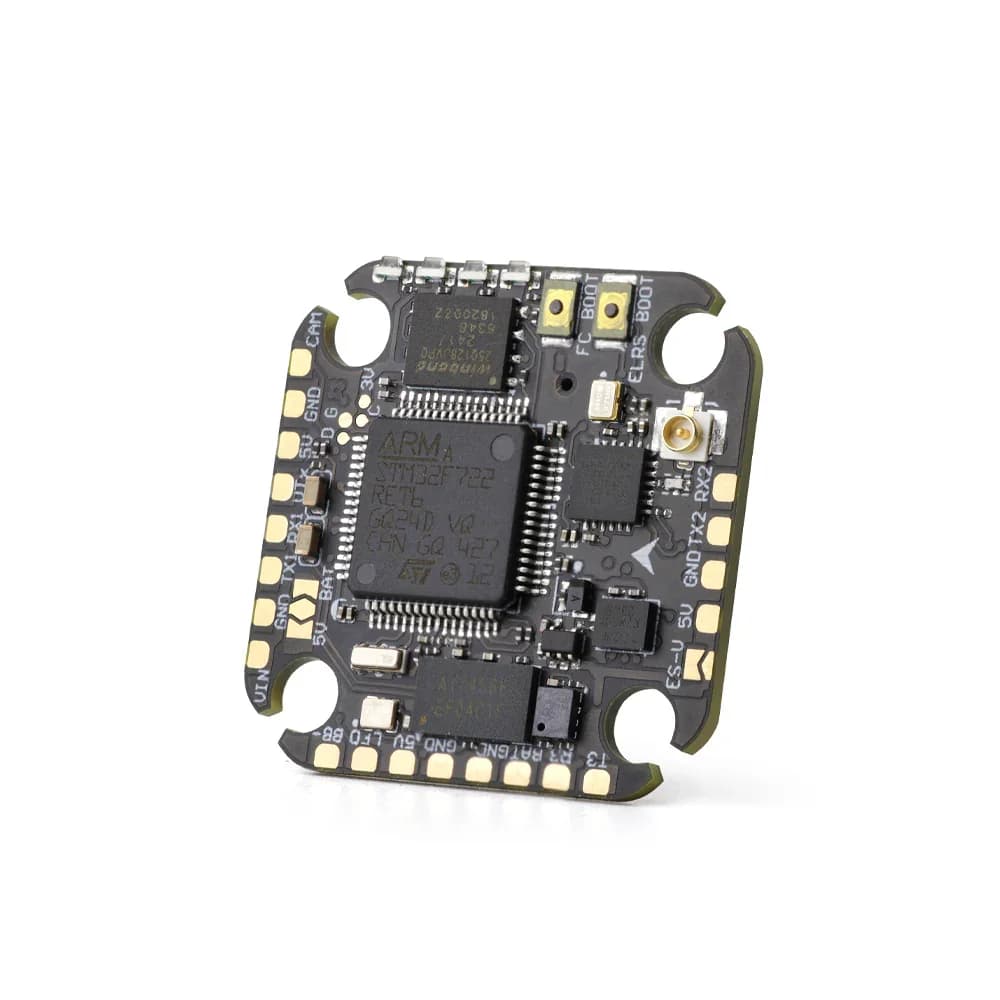

MCU: STM32F722
Gyroscope: ICM42688P
Barometer: dps310
Operating voltage: 8.4V-25.2V (2-6S lipo)
BEC: 5V 2A
Black box: 16MB
Serial UARTS: 5
Built-in receiver: ELRS 2.4Ghz R2
OSD: Supported

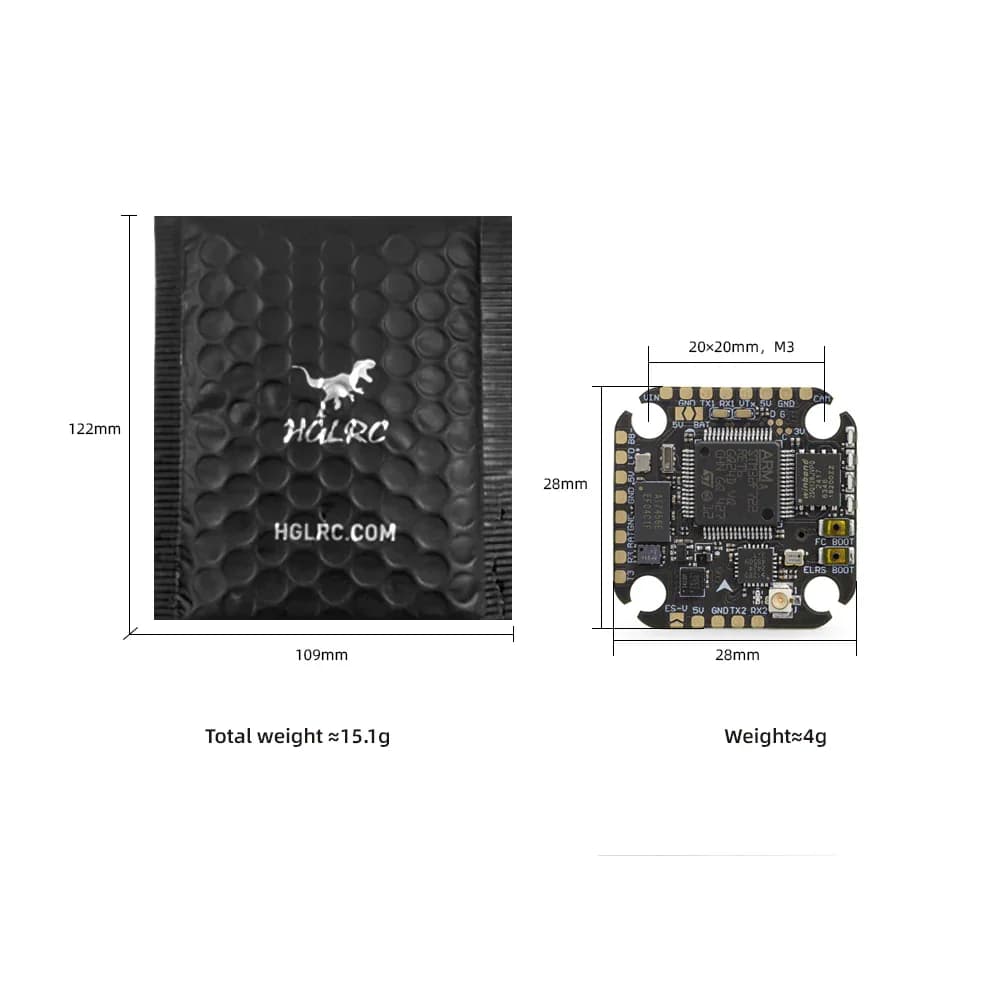

Mounting holes: 20×20mm, M3
Size: 28×28mm
Weight: 4g

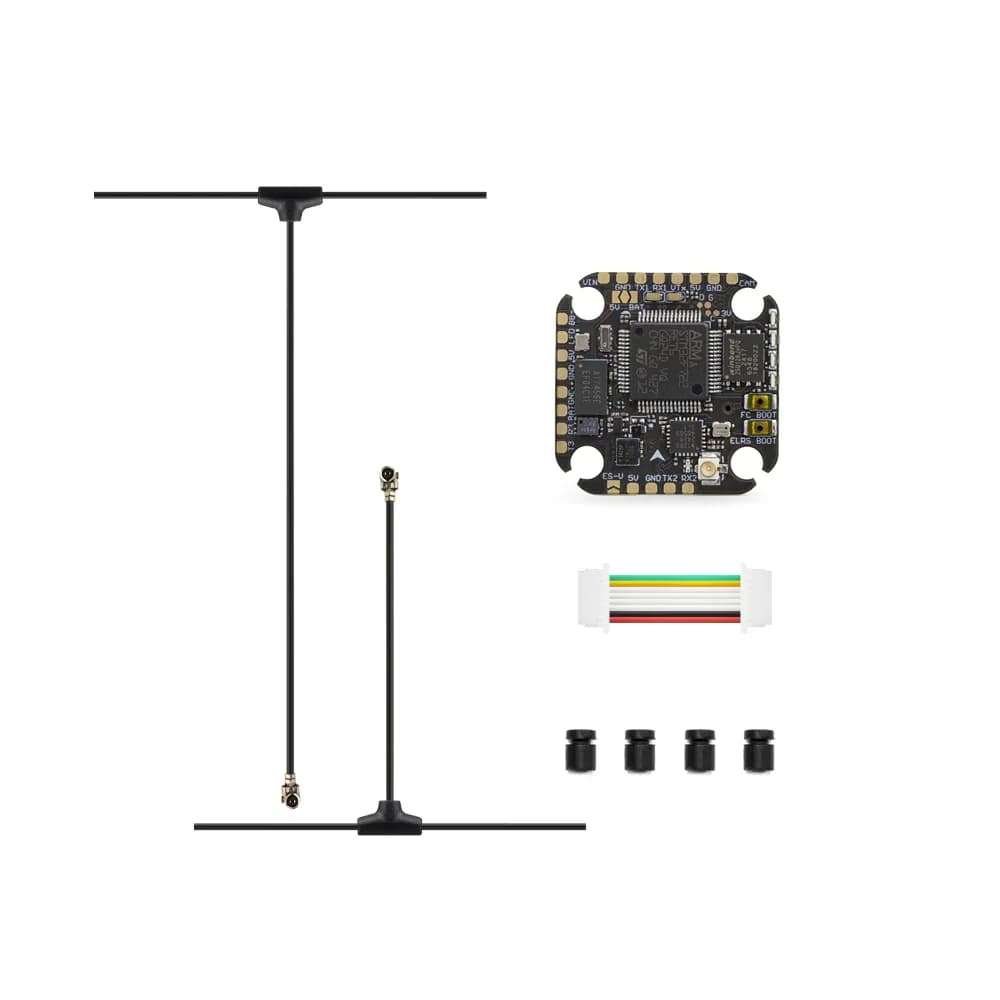

Delivery list:
1x SPECTER F722 Lite flight controller
1x 25mm 8Pin flight control cable
1x 90mm 2.4G T-type antenna
1x 40mm 2.4G T-type antenna
4x M3*8 shock absorber
