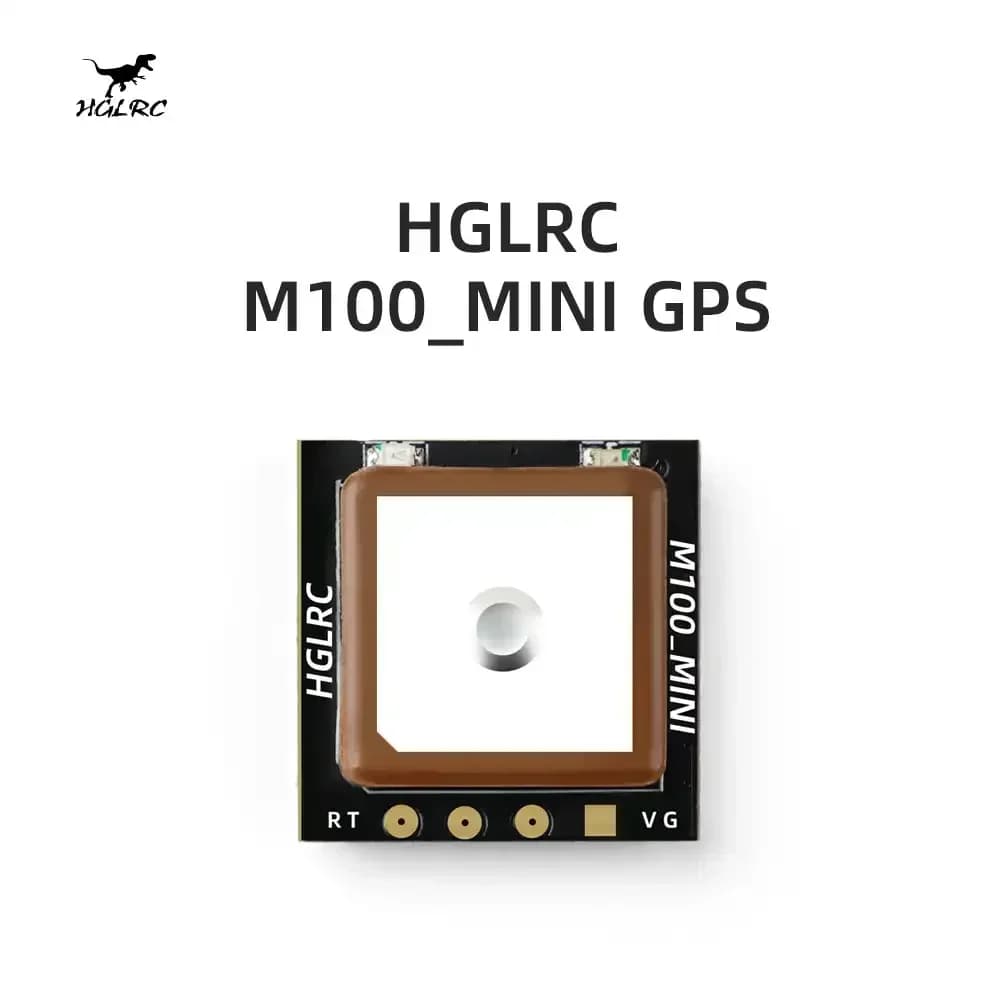

HGLRC M100 MINI M10 GPS Module Built-in Ceramic Antenna 15x15mm

Description

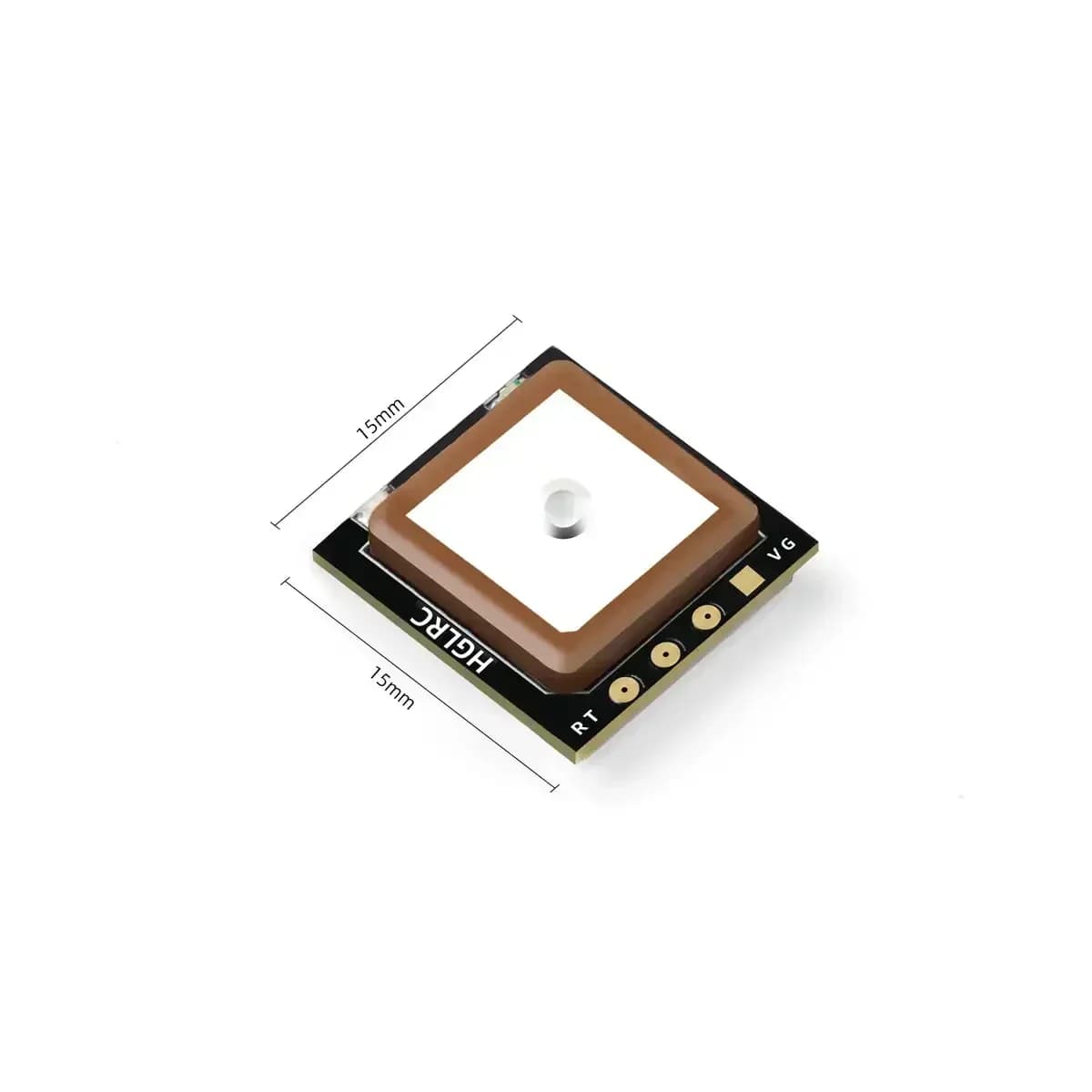

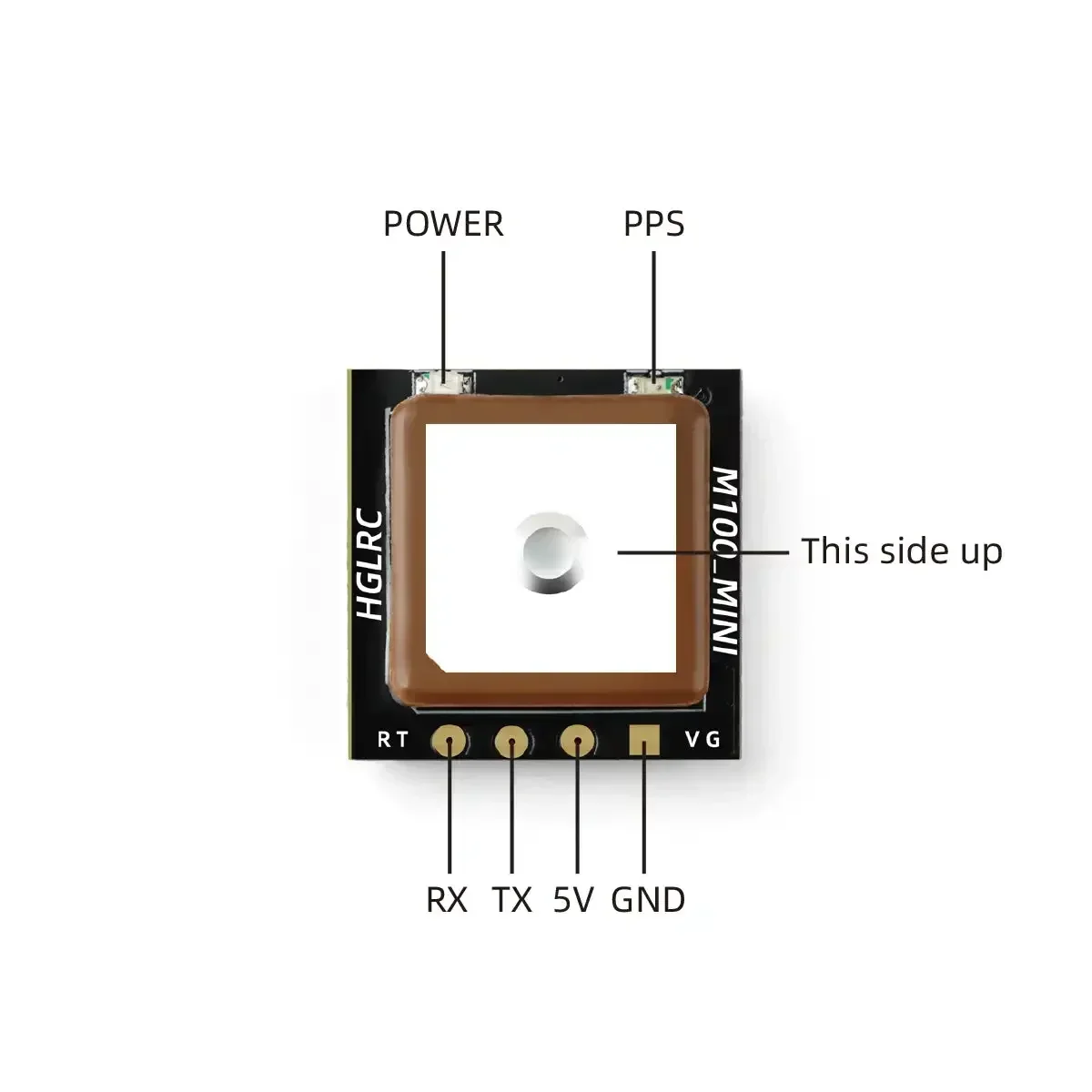

HGLRC M100 MINI M10 GPS Module Built-in Ceramic Antenna 15x15mm ============================================================ Summary : Hello everyone, our M80 PRO gps has been well-received and loved by everyone in the past two years. Beginning in the new 2023, HGLRC will bring you the newly developed M100_MINI GPS. Using the new 10th generation UBX chip design, the positioning is fast and accurate. In the test of our HGLRC laboratory, it takes less than 1 minute for GPS to reach the 8 satellites required for take-off. The small and exquisite 15mmx15mm Size can be loaded on 2-7 inch traversing Drone. Selected ceramic antenna and externally expanded PCB design allow M100_MINI GPS to receive satellite signals effectively. At the same time, it supports receiving GPS, Galileo, and BDS three satellite signals, allowing you to quickly locate in any area. For the convenience of everyone, we have designed onboard LED indicators, including power indicator and positioning PPS indicator, so that you can know the working status of GPS well. Features : Using the new 10th generation UBX chip design, fast and accurate positioning.. Small size, compatible with 2-7 inch traversal Drone on the market Selected ceramic antenna and externally expanded PCB design to effectively receive satellite signals Support GPS, Galileo, BDS three-mode positioning, fast positioning in any area Onboard POWER and PPS indicator lights, the working status is clear at a glance Compatible power supply, support 3.3V-5V DC power input Using UBX output protocol and 10Hz output frequency Specification : Chip: M10(10th Generation Chip) Antenna: Ceramic Antenna Frequency: GPS L1,GLONASS L1,BDS B1,GALILEO E1,SBAS L1,OZSS L1 Receive Channel: 72ch Baud Rate: 115200bps Output Protocol: UBX Output Frequency: 10Hz Input: 3.3V-5V Size: 15x15x5.2mm Weight: 2.6g Speed Accuracy: 0.05m/s Horizontal positioning accuracy: 2D ACC2.0m(Outdoor) Receiver Sensitivity: Trace -166dBm Capture -160dBm Characteristics: High:50000m, Speed: 500m/s, acceleration 4G Operating temperature: -40°C - +85°C Storage temperature: -40°C - +105°C Include : HGLRC M100_MINI GPS X 1 Heat Shrink Tube (Φ12mm x 20mm) X 1 HGLRC sticker X 1 HGLRC Manual X 1 SH1.0-4Pin Cable X 1 TECHNICAL SPECIFICATIONS • Chip: M10(10th Generation Chip) • Size: 15x15x5.2mm • Weight: 2.6g • Frequency: GPS L1,GLONASS L1,BDS B1,GALILEO E1,SBAS L1,OZSS L1 • Input: 3.3V-5V • Antenna: Ceramic Antenna AVAILABLE OPTIONS 1PC PRODUCT INFORMATION Brand: HGLRC Category: GPS / Navigation Module Wholesale Price: US $11.49 ————————————————————————————————————————
