GEPRC TAKER F722 BT 32Bit 50A Stack GEP-BL32 50A 96K 4IN1 ESC Data Analyze Record Flight Barometer Racing FPV Drone

Description

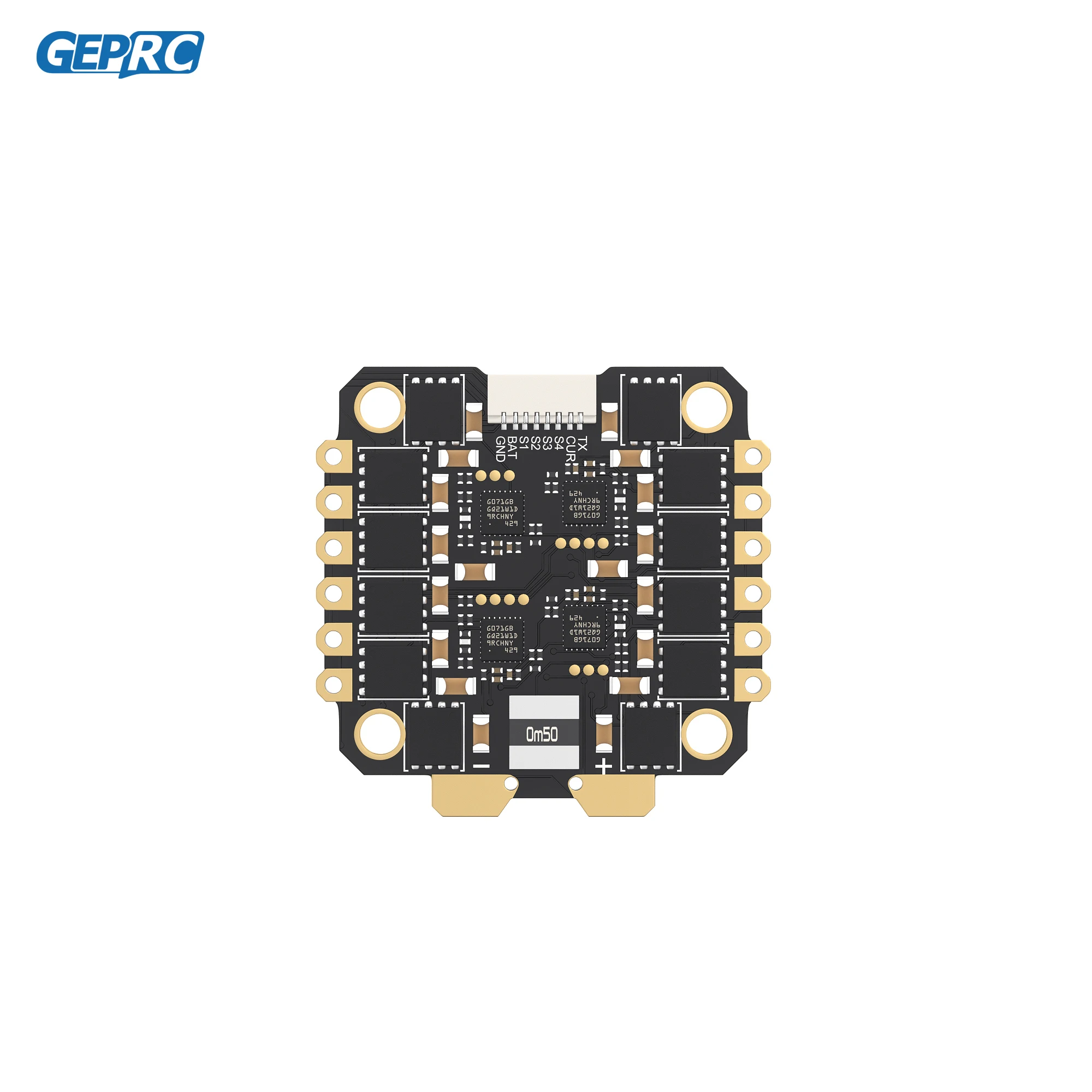

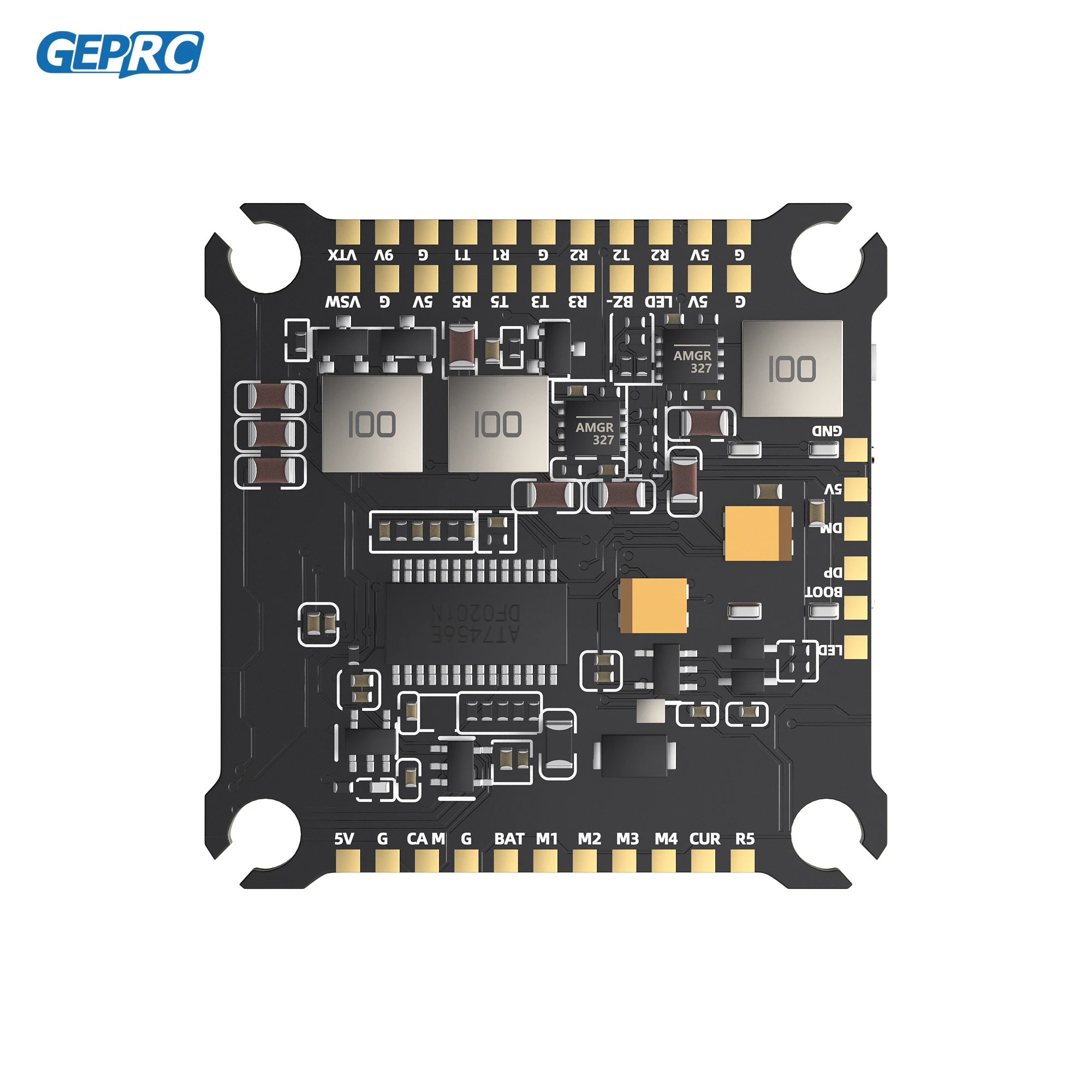

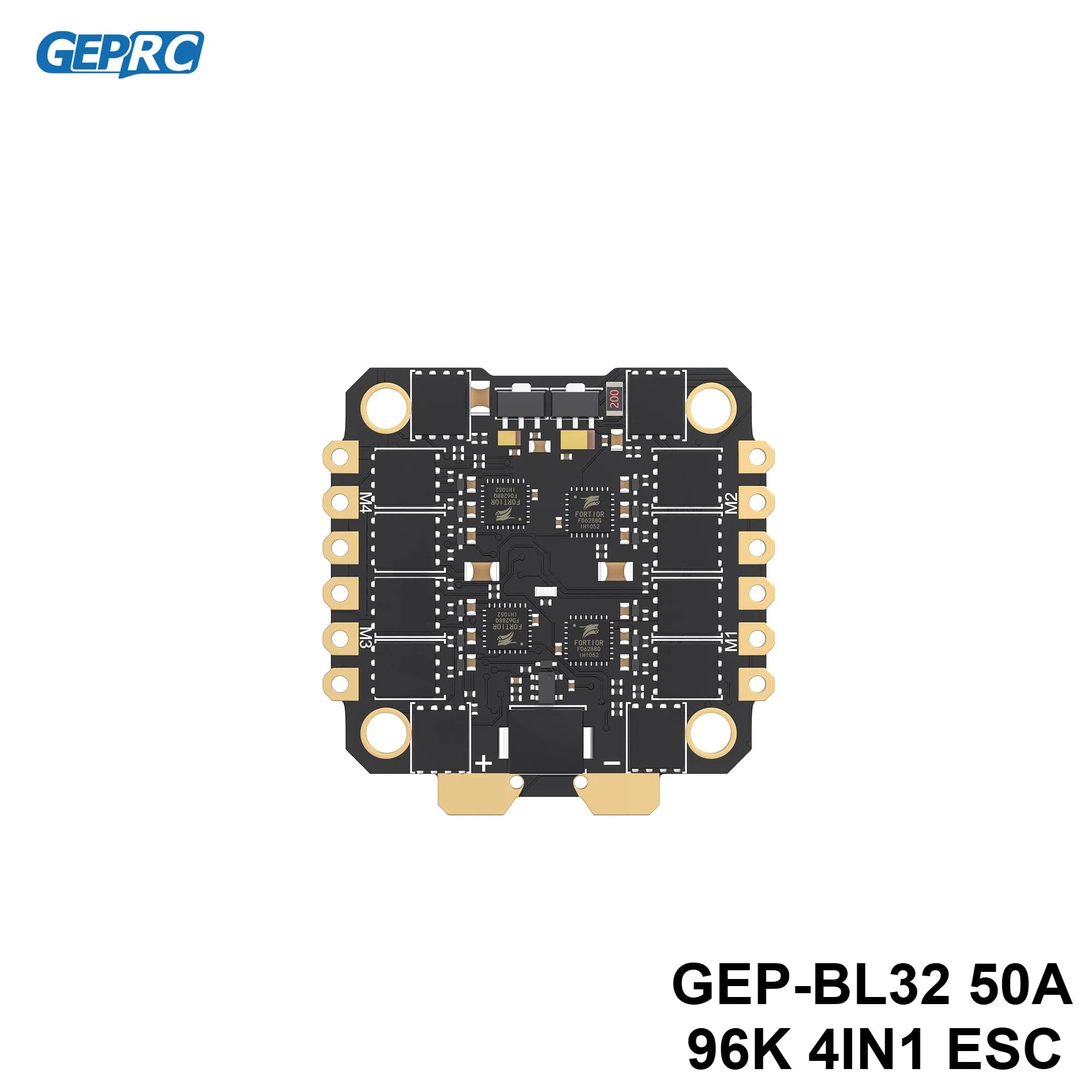

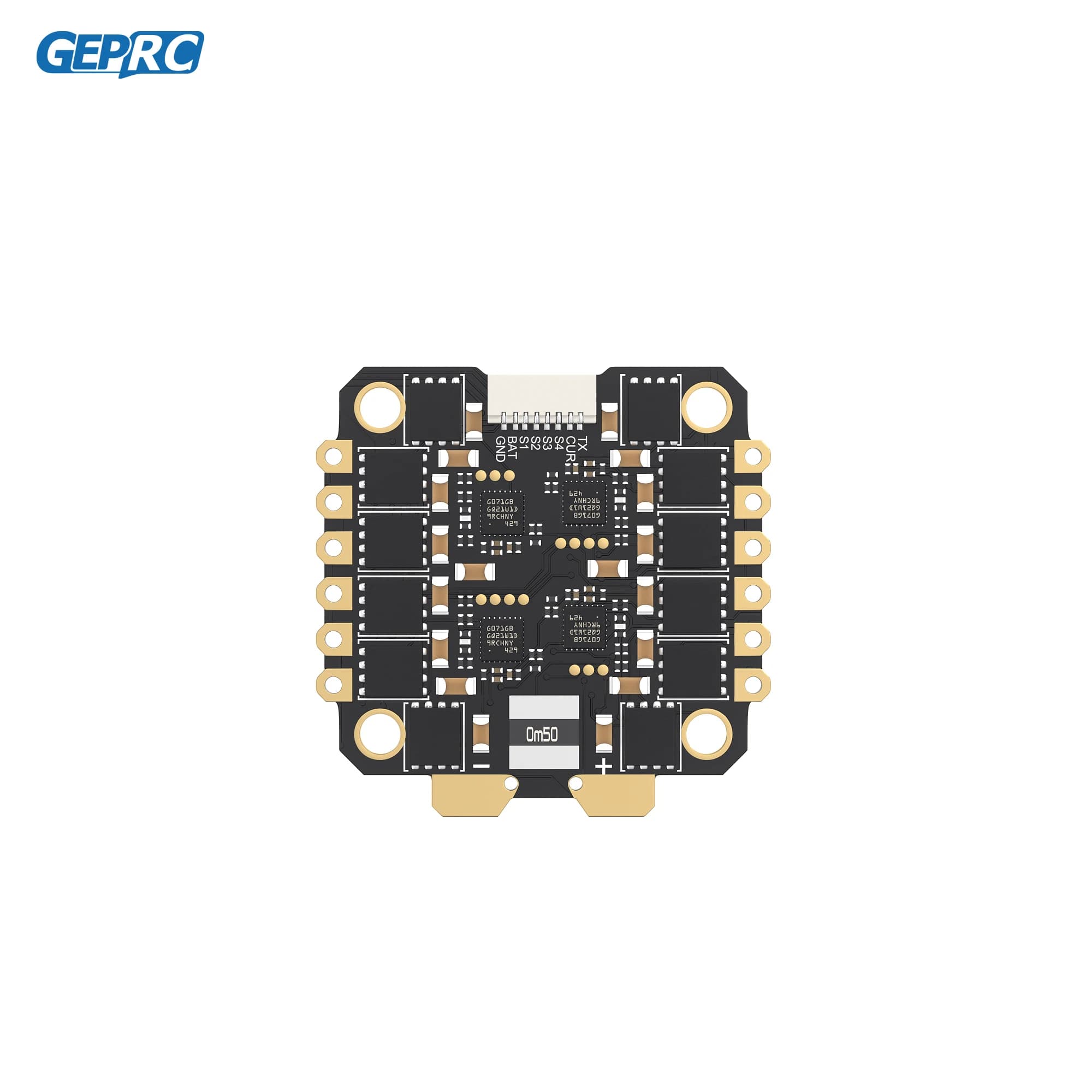

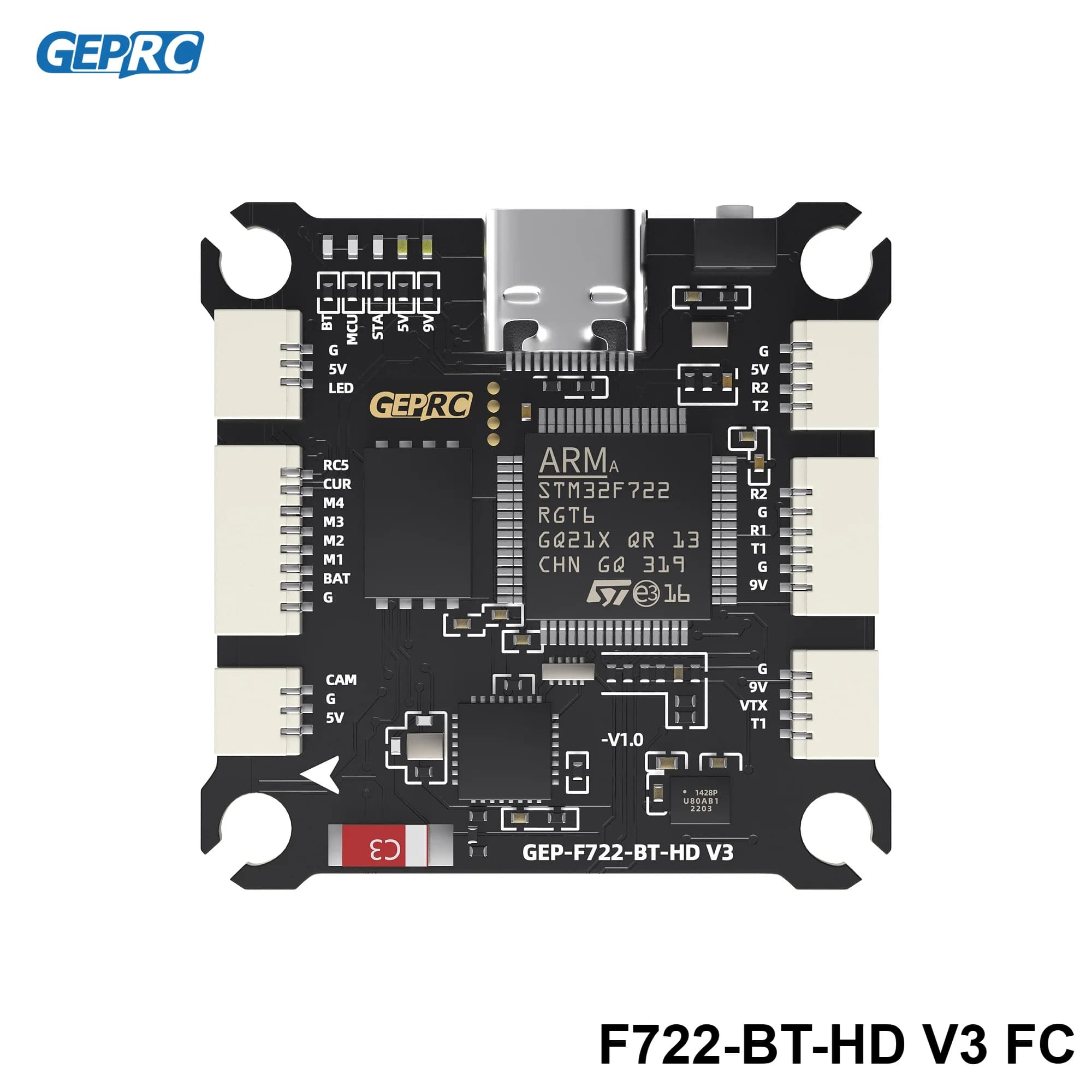

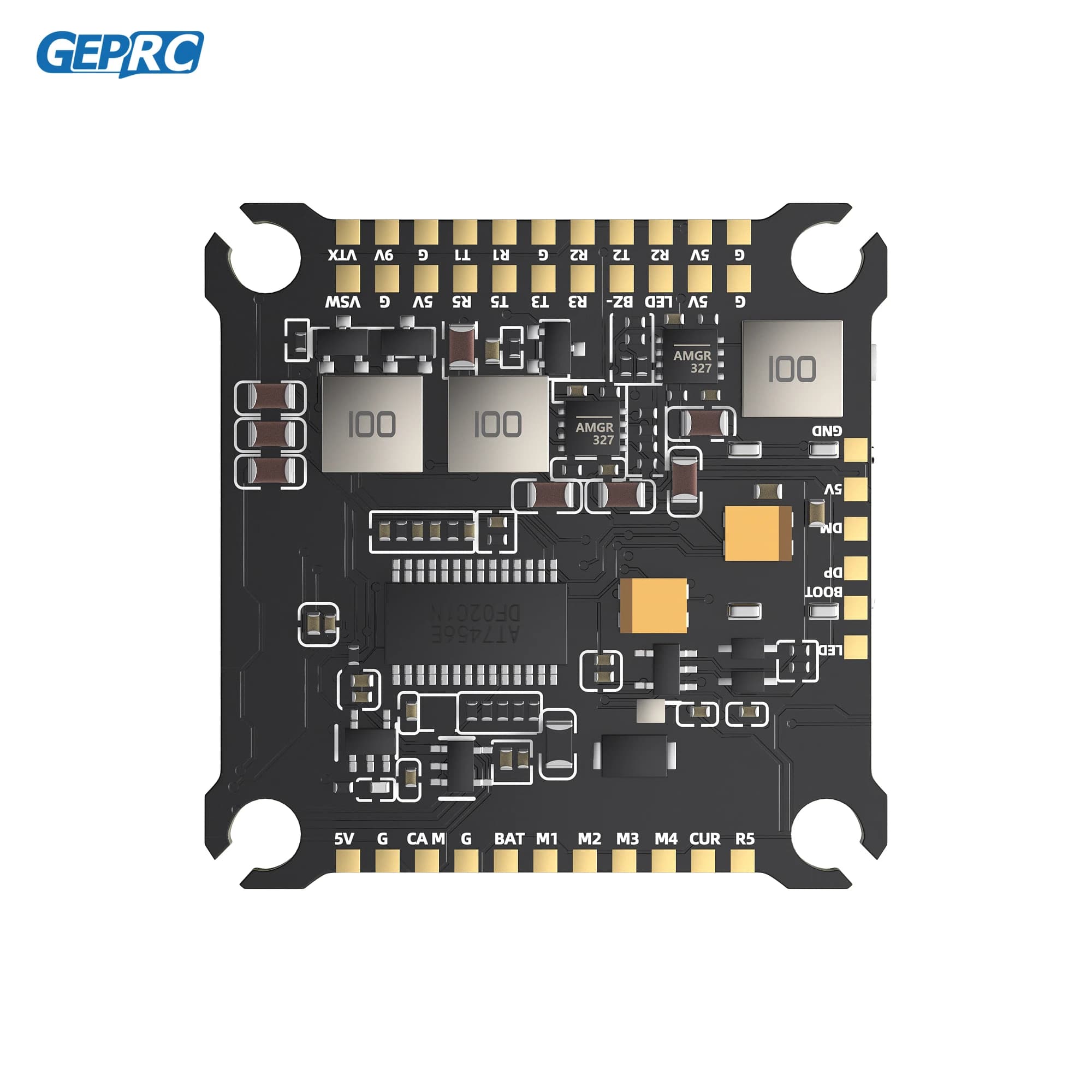

GEPRC TAKER F722 BT 32Bit 50A Stack GEP-BL32 50A 96K 4IN1 ESC Data Analyze Record Flight Barometer Racing FPV Drone ============================================================ Specifications--GEP-BL32 50A 96K 4IN1 ESC Model：GEP-BL32 50A 96K 4IN1 ESC Input Voltage：3-6S Lipo Continue Current：50A Burst Current：55A（5 second） Galvanometer：Support Telemetry: Support Support Protocol：Dshot 150/300/600 Size：42.5x42.1mm，hole30.5x30.5mm Weight：14g Target: ST_G0_05 - 31.92 Note: Pre-installed with BL32 test firmware, extensively tested for safety and reliability(AM32 also supported; customer flashing required.) Includes 1 x GEP-BL32 50A 96K 4IN1ESC 1 x electrolytic capacitor(50V 1000uF) 1 x FC adapter cable(SH1.0 8pin 30mm) 1 x XT60 Power cable(12AWG 110mm) 8 x Silicone anti-shake pads(M3) Feature 1. Use mainstream STM32F722 chip 2. Equipped with the latest 42688-P gyroscope 3. 512M black box storage 4. Support Bluetooth parameter tuning 5. Integrated LC filter 6. Upgrade type-C USB interface 7.With GEP-BL32 50A 96K 4IN1 32Bit ESC, silky flight 8. Directly plugs into the D JI Air Unit 9. Simple and effective installation with shock-absorbing mounts for stable gyroscope performance 10. Integrated Barometer 11.   9V@2.5A   + 5V@3A dual independent BEC Specifications GEP-F722-BT-HD V3 Flight Controller MCU: STM32F722 IMU：ICM42688-P(SPI) Air Unit Connection: Directly plugs into the D JI Air Unit Black Box: 512M onboard Bluetooth: Supported Barometer: Supported USB Interface: Type-C OSD: BetaFlight OSD w/ AT7456E chip BEC: 5V@3A,   9V@2.5A   dual BEC Firmware Target: GEPRCF722_BT_HD_V3 Size: 36.9×36.9mm, hole: 30.5×30.5mm, φ4mm hole becomes φ3mm after using a silicone shock-absorbing ring Input Voltage: 3-6S LiPo UART: 5 groups (UART4 fixed for Bluetooth) Power Filter: Integrated LC filter Weight: 8.2g GEP-BL32 50A 96K 4IN1 ESC Model: GEP-BL32 50A 96K 4IN1 ESC Input Voltage: 3-6S Lipo Continue Current：50A Burst Current: 55A (5 second) Galvanometer：Support Telemetry: Support Support Protocol: Dshot 150/300/600 Size：42.5×42.1mm，hole30.5×30.5mm Weight：14g Target: ST_G0_05 – 31.92 Note: Pre-installed with BL32 test firmware, extensively tested for safety and reliability (AM32 also supported; customer flashing required.) Includes 1 x FC board 1 x ESC board 1 x Capacitor 1 x O3 3-in-1 connection cable 1 x FC adapter cable 1 x sh1.0 4pin silicone cable 1 x Camera connection cable 1 x VTX connection cable 1 x XT60 power cable 4 x M3*30 screws 4 x M3*25 screws 8 x Nylon nuts 12 x Silicone anti-shake pads Specifications GEP-F722-BT-HD V3 Flight Controller MCU: STM32F722 IMU：ICM42688-P(SPI) Air Unit Connection: Directly plugs into the DJI Air Unit Black Box: 512M onboard Bluetooth: Supported Barometer: Supported USB Interface: Type-C OSD: BetaFlight OSD w/ AT7456E chip BEC: 5V@3A,   9V@2.5A   dual BEC Firmware Target: GEPRCF722_BT_HD_V3 Size: 36.9×36.9mm, hole: 30.5×30.5mm, φ4mm hole becomes φ3mm after using a silicone shock-absorbing ring Input Voltage: 3-6S LiPo UART: 5 groups (UART4 fixed for Bluetooth) Power Filter: Integrated LC filter Weight: 8.2g GEP-BL32 50A 96K 4IN1 ESC Model: GEP-BL32 50A 96K 4IN1 ESC Input Voltage: 3-6S Lipo Continue Current：50A Burst Current: 55A (5 second) Galvanometer：Support Telemetry: Support Support Protocol: Dshot 150/300/600 Size：42.5×42.1mm，hole30.5×30.5mm Weight：14g Target: ST_G0_05 – 31.92 TECHNICAL SPECIFICATIONS • Model：GEP-BL32 50A 96K 4IN1 ESC • MCU: STM32F722 • IMU：ICM42688-P(SPI) • Bluetooth: Supported • Barometer: Supported • OSD: BetaFlight OSD w/ AT7456E chip • Model: GEP-BL32 50A 96K 4IN1 ESC • Size：42.5x42.1mm，hole30.5x30.5mm • Weight：14g • Size: 36.9×36.9mm, hole: 30.5×30.5mm, φ4mm hole becomes φ3mm after using a silicone shock-absorbing ring • Weight: 8.2g • Size：42.5×42.1mm，hole30.5×30.5mm • UART: 5 groups (UART4 fixed for Bluetooth) AVAILABLE OPTIONS BL32 50A 96K 4IN1 F722 BT 32Bit 50A F722-BT-HD V3 FC China Mainland PRODUCT INFORMATION Brand:
