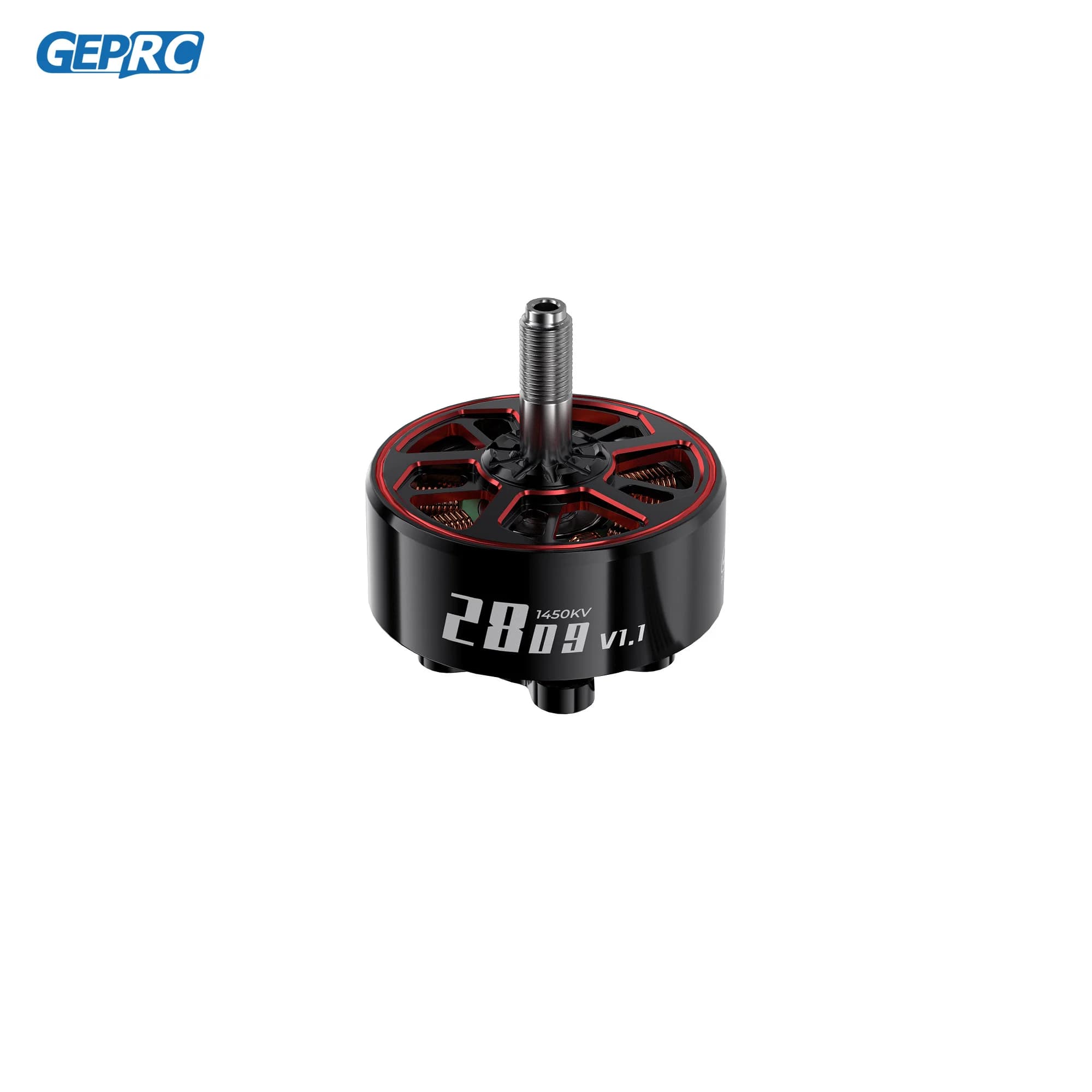

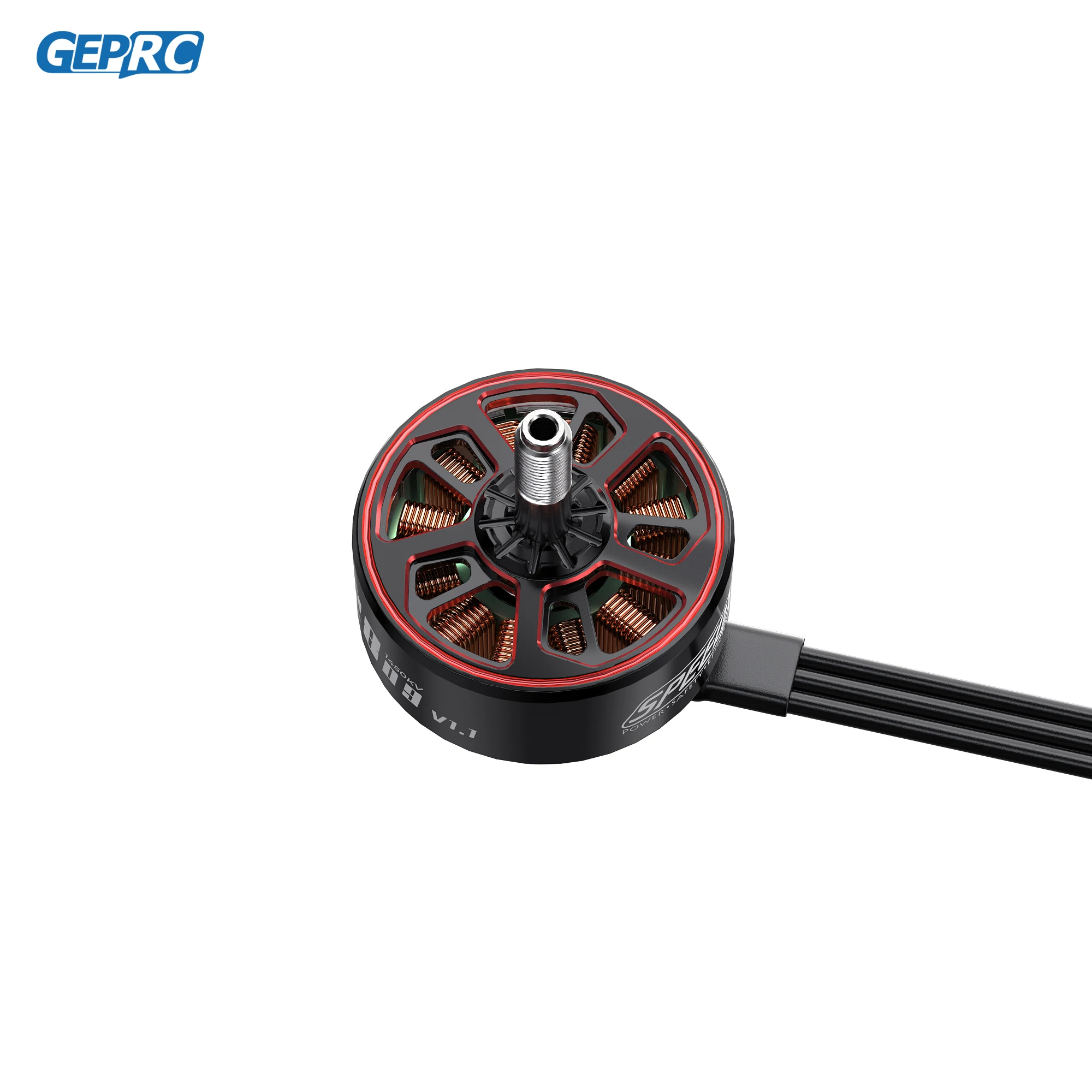

GEPRC SPEEDX2 2809 V1.1 Motor Brushless Black with 7/8 Inch MOZ7 RC FPV Racing Drone Multicopter Accessories
79 orders (reference)
Description
GEPRC SPEEDX2 2809 V1.1 Motor Brushless Black with 7/8 Inch MOZ7 RC FPV Racing Drone Multicopter Accessories ============================================================ Summary The GEPRC SPEEDX2 2809 V1.1 is built for 7–8 inch long-range FPV drones. The stator uses 0.2mm Kawasaki silicon steel for efficient magnetic flow, paired with high-temp N52H magnets that offer 30% better heat resistance. Finished in matte black with red accents, it looks as sharp as it performs. The motor mounting pattern is 19×19mm. Feature CNC-machined from 7075 aerospace aluminum. Clean black finish with red trim. Reinforced rotor edges for better impact resistance. N52H magnets reduce the risk of heat-related demagnetization. Specifications---1450KV Model: GEPRC SPEEDX2 2809 1450KV Motor KV: 1450KV Magnets: N52H Rotor Material: 7075-T6 aerospace-grade aluminum Stator Diameter: 28mm Stator Height: 9mm Shaft Diameter: Φ5mm Dimensions: Φ34.2mm × 36.7mm Wire: 18AWG, 250mm Input Voltage: 25.2V 6S (Lipo) Max Power (W): ≤1455.2W Max Current (A):60.88A Mounting Pattern: 19×19mm (M3) Color: reddish black Weight: 60.1g (with wire) Compatible Models: 7–7.5 inch long-range FPV drones / 7–7.5 inch X8 builds Specifications----1280KV Model: GEPRC SPEEDX2 2809 1280KV Motor KV: 1280KV Magnets: N52H Rotor Material: 7075-T6 aerospace-grade aluminum Stator Diameter: 28mm Stator Height: 9mm Shaft Diameter: Φ5mm Dimensions: Φ34.2mm * 36.7mm Wire: 18AWG, 250mm Input Voltage: 25.2V 6S (Lipo) Max Power (W): ≤1486.5W Max Current (A): 59.06A Mounting Pattern: 19×19mm (M3) Color: Reddish black Weight: 60.1g (with wire) Compatible Models: 7–8 inch long-range FPV drones / 7–8 inch X8 builds Product List 1 x GEPRC SPEEDX2 2809 motor 4 x M3*9 half-round head screws 1 x M5 anti-slip mut TECHNICAL SPECIFICATIONS • Model: GEPRC SPEEDX2 2809 1450KV Motor • Model: GEPRC SPEEDX2 2809 1280KV Motor • Weight: 60.1g (with wire) • KV: 1450KV • KV: 1280KV AVAILABLE OPTIONS 1450KV V1.1 1280KV V1.1 PRODUCT INFORMATION Brand: GEPRC Category: Brushless Motor Wholesale Price: US $36.44 ————————————————————————————————————————
Specifications
| Attribute | Value |
|---|---|
| High-concerned chemical | None |
| Is Electric | No Battery |
| Wheelbase | Screws |
| Is it battery/power supply | N |
| Is it charger/adapter | N |
| Is Batteries Included | No |
| Model Number | GEPRC SPEEDX2 2809 V1.1 Motor |
| For Vehicle Type | Helicopters |
| Tool Supplies | Assembly Category |
| Four-wheel Drive Attributes | Motors |
| Remote Control Peripherals/Devices | Motor |
| Upgrade Parts/Accessories | Gear |
| RC Parts & Accs | Motors |
| Material | Metal |
| Brand Name | GEPRC |
| Origin | Mainland China |
| Recommend Age | 14+y |
| Use | Vehicles & Remote Control Toys |
Product Details
Summary
The GEPRC SPEEDX2 2809 V1.1 is built for 7–8 inch long-range FPV drones. The stator uses 0.2mm Kawasaki silicon steel for efficient magnetic flow, paired with high-temp N52H magnets that offer 30% better heat resistance. Finished in matte black with red accents, it looks as sharp as it performs. The motor mounting pattern is 19×19mm.
Feature
CNC-machined from 7075 aerospace aluminum.
Clean black finish with red trim.
Reinforced rotor edges for better impact resistance.

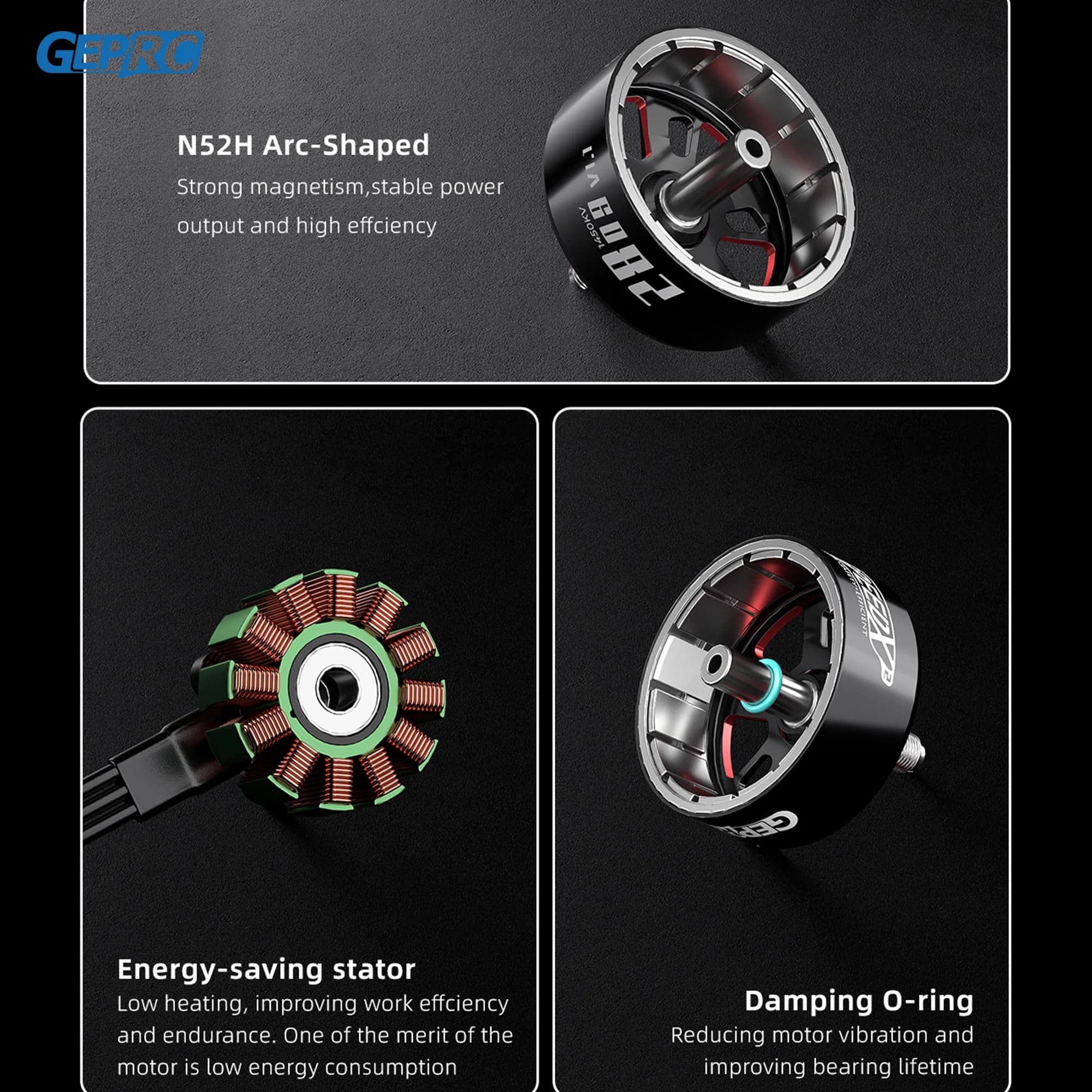

N52H magnets reduce the risk of heat-related demagnetization.
Specifications---1450KV
Model: GEPRC SPEEDX2 2809 1450KV Motor
KV: 1450KV
Magnets: N52H
Rotor Material: 7075-T6 aerospace-grade aluminum
Stator Diameter: 28mm
Stator Height: 9mm
Shaft Diameter: Φ5mm

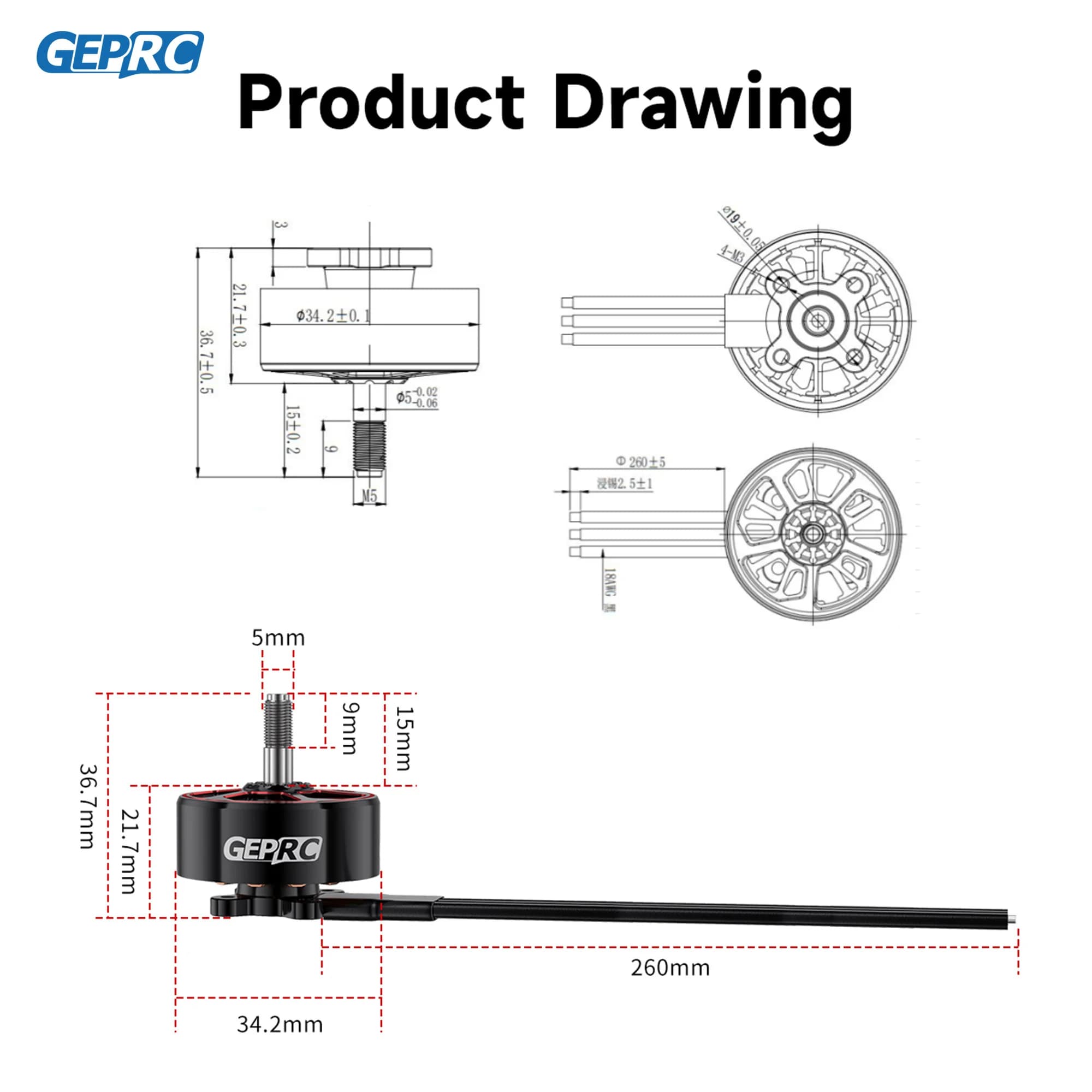

Dimensions: Φ34.2mm × 36.7mm
Wire: 18AWG, 250mm
Input Voltage: 25.2V 6S (Lipo)
Max Power (W): ≤1455.2W
Max Current (A):60.88A
Mounting Pattern: 19×19mm (M3)
Color: reddish black
Weight: 60.1g (with wire)
Compatible Models: 7–7.5 inch long-range FPV drones / 7–7.5 inch X8 builds
Specifications----1280KV
Model: GEPRC SPEEDX2 2809 1280KV Motor
KV: 1280KV
Magnets: N52H
Rotor Material: 7075-T6 aerospace-grade aluminum
Stator Diameter: 28mm
Stator Height: 9mm
Shaft Diameter: Φ5mm
Dimensions: Φ34.2mm * 36.7mm
Wire: 18AWG, 250mm
Input Voltage: 25.2V 6S (Lipo)
Max Power (W): ≤1486.5W
Max Current (A): 59.06A
Mounting Pattern: 19×19mm (M3)
Color: Reddish black
Weight: 60.1g (with wire)
Compatible Models: 7–8 inch long-range FPV drones / 7–8 inch X8 builds

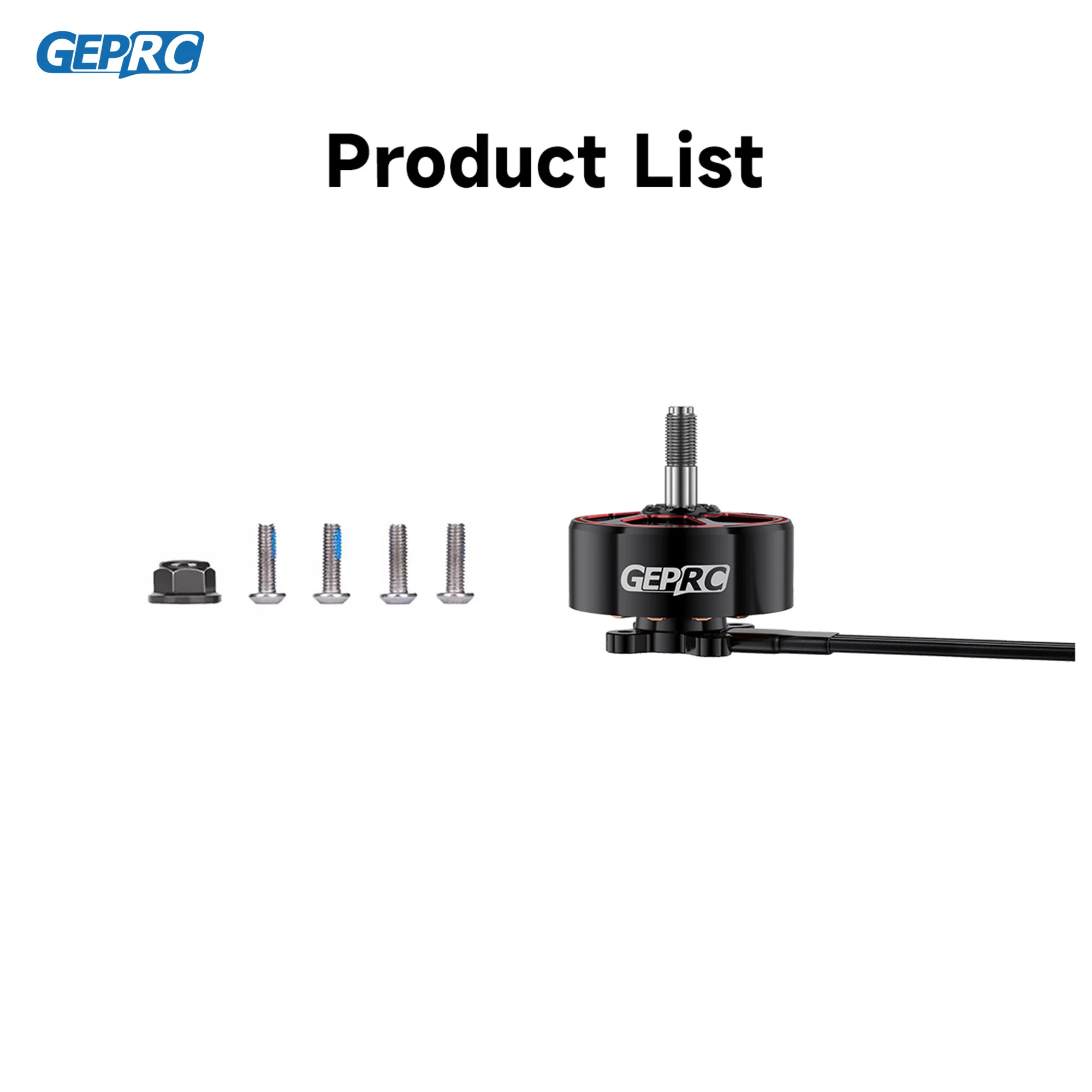

Product List
1 x GEPRC SPEEDX2 2809 motor
4 x M3*9 half-round head screws
1 x M5 anti-slip mut
