GEPRC TAKER F722 BT 8Bit 65A 60A 50A Stack 4IN1 ESC 512M Black Box 32Bit Data Analyze Record Flight Barometer Racing FPV Drone
73 orders (reference)
Description
GEPRC TAKER F722 BT 8Bit 65A 60A 50A Stack 4IN1 ESC 512M Black Box 32Bit Data Analyze Record Flight Barometer Racing FPV Drone ============================================================ Features-TAKER F722 BT 32Bit 50A STACK 1. Use mainstream STM32F722 chip 2. Equipped with the latest 42688-P gyroscope 3. 512M black box storage 4. Support Bluetooth parameter tuning 5. Integrated LC filter 6. Upgrade type-C USB interface 7.With GEP-BL32 50A 96K 4IN1 32Bit ESC, silky flight 8. Directly plugs into the Air Unit 9. Simple and effective installation with shock-absorbing mounts for stable gyroscope performance 10. Integrated Barometer 11. 9V@2.5A + 5V@3A dual independent BEC Specifications GEP-F722-BT-HD V3 Flight Controller MCU: STM32F722 IMU：ICM42688-P(SPI) Air Unit Connection: Directly plugs into the Air Unit Black Box: 512M onboard Bluetooth: Supported Barometer: Supported USB Interface: Type-C OSD：BetaFlight OSD w/ AT7456E chip BEC：5V@3A,9V@2.5A dual BEC Firmware Target: GEPRCF722_BT_HD_V3 Size：36.9x36.9mm, hole 30.5x30.5mm，φ4mm hole becomes φ3mm after using a silicone shock-absorbing ring Input Voltage: 3-6S LiPo UART: 5 groups (UART4 fixed for Bluetooth) Power Filter: Integrated LC filter Weight: 8.2g GEP-BL32 50A 96K 4IN1 ESC Input Voltage：3-6S Lipo Continue Current：50A Burst Current：55A（5 second） Galvanometer：Support Telemetry: Support Support Protocol：Dshot 150/300/600 Size：42.5x42.1mm，hole30.5x30.5mm Weight：14g Target: ST_G0_05 - 31.92 Includes 1 x FC board 1 x ESC board 1 x Capacitor 1 x O3 3-in-1 connection cable 1 x FC adapter cable 1 x sh1.0 4pin silicone cable 1 x Camera connection cable 1 x VTX connection cable 1 x XT60 power cable 4 x M3*30 screws 4 x M3*25 screws 8 x Nylon nuts 12 x Silicone anti-shake pads Features-TAKER F722 BT 8Bit 60A STACK 1. Use mainstream STM32F722 chip 2. Equipped with the latest 42688-P gyroscope 3. 512M black box storage 4. Support Bluetooth parameter tuning 5. Integrated LC filter 6. Upgrade type-C USB interface 7.With TAKER H60_BLS 60A 4IN1 ESC, silky flight 8. Directly plugs into the Air Unit 9. Simple and effective installation with shock-absorbing mounts for stable gyroscope performance 10. Integrated Barometer 11. 9V@2.5A + 5V@3A dual independent BEC Specifications GEP-F722-BT-HD V3 Flight Controller MCU: STM32F722 IMU：ICM42688-P(SPI) Air Unit Connection: Directly plugs into the Air Unit Black Box: 512M onboard Bluetooth: Supported Barometer: Supported USB Interface: Type-C OSD：BetaFlight OSD w/ AT7456E chip BEC：5V@3A,9V@2.5A dual BEC Firmware Target: GEPRCF722_BT_HD_V3 Size：36.9x36.9mm, hole 30.5x30.5mm，φ4mm hole becomes φ3mm after using a silicone shock-absorbing ring Input Voltage: 3-6S LiPo UART: 5 groups (UART4 fixed for Bluetooth) Power Filter: Integrated LC filter Weight: 8.2g TAKER H60_BLS 60A 4IN1 ESC Input Voltage: 3-6S Lipo Ammeter: Support Continue Current：60A Burst Current：65A（5 second） Support Protocol: Dshot 150/300/600 Size：42x45.7mm，hole30.5x30.5mm，φ4mm hole becomes φ3mm after using the silicone shock-absorbing ring. Weight: 14.9g Target: B_X_30 Includes 1 x FC board 1 x ESC board 1 x Capacitor 1 x O3 3-in-1 connection cable 1 x FC adapter cable 1 x sh1.0 4pin silicone cable 1 x Camera connection cable 1 x VTX connection cable 1 x XT90 power cable 4 x M3*30 screws 4 x M3*25 screws 8 x Nylon nuts 12 x Silicone anti-shake pads Features-TAKER F722 BT 8Bit 65A STACK 1. Use mainstream STM32F722 chip 2. Equipped with the latest 42688-P gyroscope 3. 512M black box storage 4. Support Bluetooth parameter tuning 5. Integrated LC filter 6. Upgrade type-C USB interface 7.With TAKER H65_8S_BLS 65A 4IN1 ESC, silky flight 8. Directly plugs into the Air Unit 9. Simple and effective installation with shock-absorbing mounts for stable gyroscope performance 10. Integrated Barometer 11. 9V@2.5A + 5V@3A dual independent BEC Specifications GEP-F722-BT-HD V3 Flight Controller MCU:STM32F722 IMU：ICM42688-P(SPI) Air Unit Connection: Directly plugs into the Air Unit Blac
Specifications
| Attribute | Value |
|---|---|
| High-concerned chemical | None |
| Is Electric | No Battery |
| Quantity | 1 pcs |
| Wheelbase | Screws |
| Is it battery/power supply | N |
| Is it charger/adapter | N |
| Is Batteries Included | No |
| Model Number | TAKER F722 BT 32Bit 50A 8Bit 60A 65A STACK |
| For Vehicle Type | Helicopters |
| Tool Supplies | Assembly Category |
| Four-wheel Drive Attributes | STACK |
| Remote Control Peripherals/Devices | ESC |
| Upgrade Parts/Accessories | STACK |
| RC Parts & Accs | STACK |
| Material | Composite Material |
| Brand Name | GEPRC |
| Origin | Mainland China |
| Recommend Age | 14+y |
| Use | Vehicles & Remote Control Toys |
Product Details
Features-TAKER F722 BT 32Bit 50A STACK
2. Equipped with the latest 42688-P gyroscope
3. 512M black box storage
4. Support Bluetooth parameter tuning
5. Integrated LC filter
6. Upgrade type-C USB interface
7.With GEP-BL32 50A 96K 4IN1 32Bit ESC, silky flight
8. Directly plugs into the Air Unit
9. Simple and effective installation with shock-absorbing mounts for stable gyroscope performance
10. Integrated Barometer
11. 9V@2.5A + 5V@3A dual independent BEC
Specifications
GEP-F722-BT-HD V3 Flight Controller
MCU: STM32F722
IMU：ICM42688-P(SPI)
Air Unit Connection: Directly plugs into the Air Unit
Black Box: 512M onboard
Bluetooth: Supported
Barometer: Supported
USB Interface: Type-C
OSD：BetaFlight OSD w/ AT7456E chip
BEC：5V@3A,9V@2.5A dual BEC
Firmware Target: GEPRCF722_BT_HD_V3
Size：36.9x36.9mm, hole 30.5x30.5mm，φ4mm hole becomes φ3mm after using a silicone shock-absorbing ring
Input Voltage: 3-6S LiPo
UART: 5 groups (UART4 fixed for Bluetooth)
Power Filter: Integrated LC filter
Weight: 8.2g

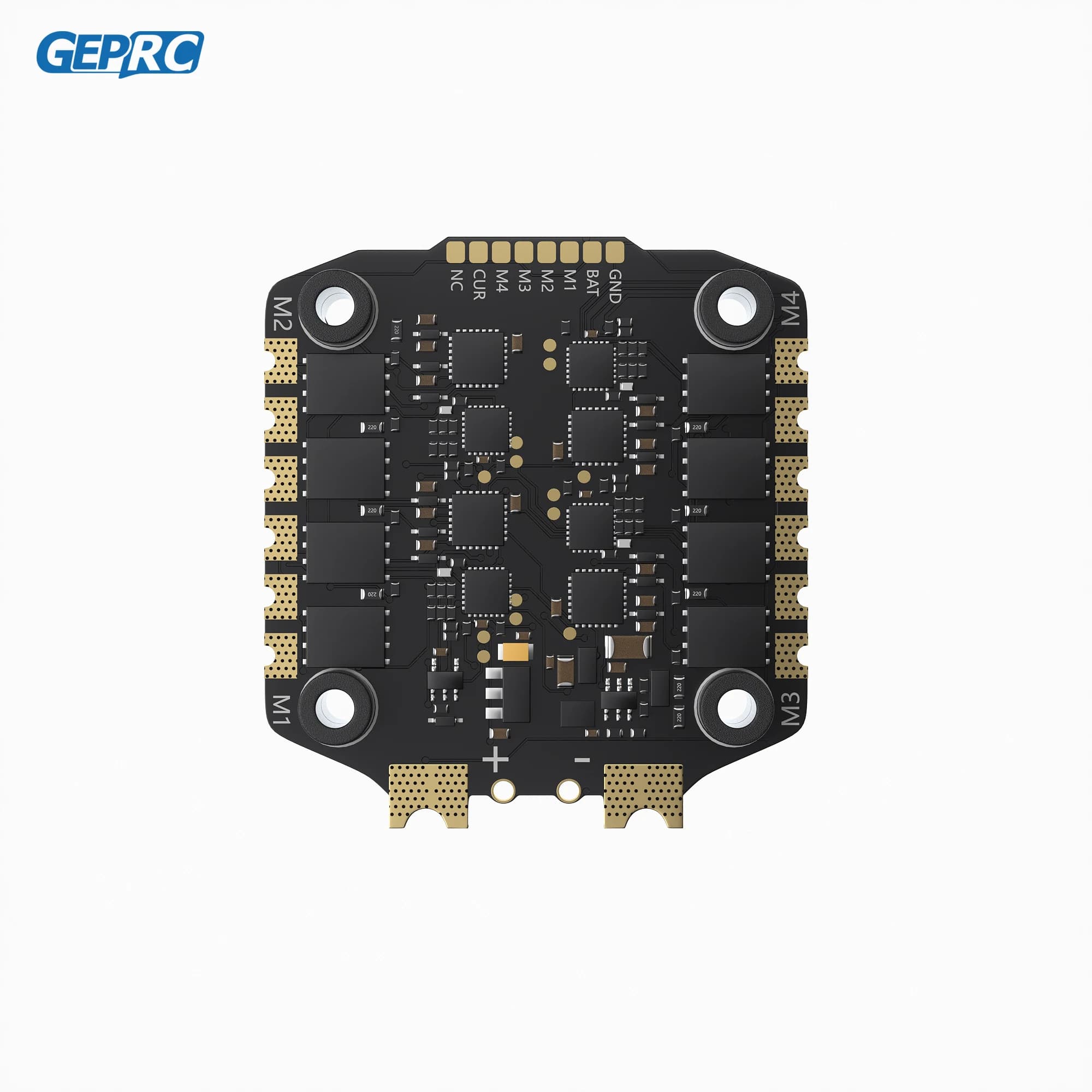

GEP-BL32 50A 96K 4IN1 ESC
Input Voltage：3-6S Lipo
Continue Current：50A
Burst Current：55A（5 second）
Galvanometer：Support
Telemetry: Support
Support Protocol：Dshot 150/300/600
Size：42.5x42.1mm，hole30.5x30.5mm
Weight：14g
Target: ST_G0_05 - 31.92

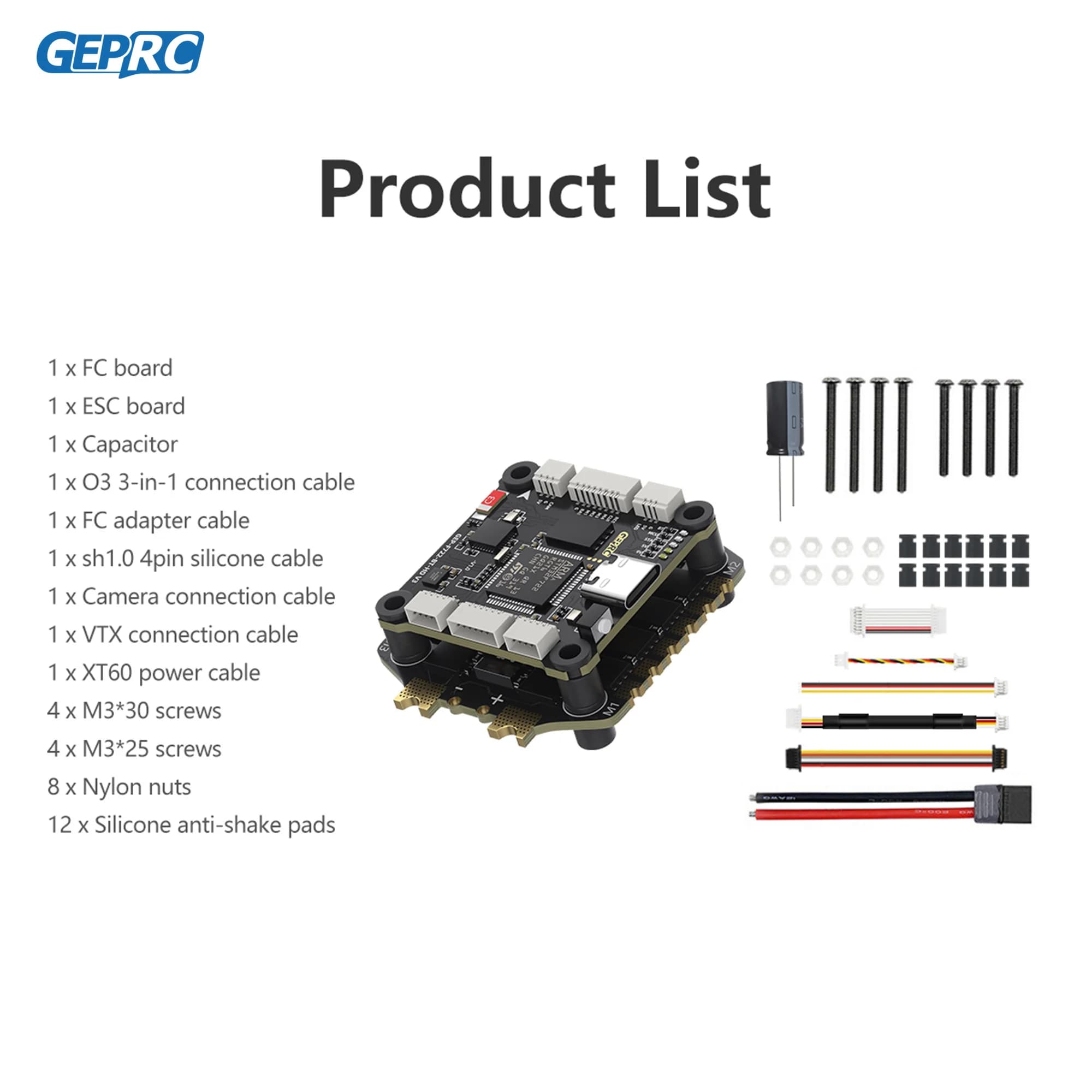

Includes
1 x FC board
1 x ESC board
1 x Capacitor
1 x O3 3-in-1 connection cable
1 x FC adapter cable
1 x sh1.0 4pin silicone cable
1 x Camera connection cable
1 x VTX connection cable
1 x XT60 power cable
4 x M3*30 screws
4 x M3*25 screws
8 x Nylon nuts
12 x Silicone anti-shake pads
Features-TAKER F722 BT 8Bit 60A STACK
2. Equipped with the latest 42688-P gyroscope
3. 512M black box storage
4. Support Bluetooth parameter tuning
5. Integrated LC filter
6. Upgrade type-C USB interface
7.With TAKER H60_BLS 60A 4IN1 ESC, silky flight
8. Directly plugs into the Air Unit
9. Simple and effective installation with shock-absorbing mounts for stable gyroscope performance
10. Integrated Barometer
11. 9V@2.5A + 5V@3A dual independent BEC
Specifications
GEP-F722-BT-HD V3 Flight Controller
MCU: STM32F722
IMU：ICM42688-P(SPI)
Air Unit Connection: Directly plugs into the Air Unit
Black Box: 512M onboard
Bluetooth: Supported
Barometer: Supported
USB Interface: Type-C
OSD：BetaFlight OSD w/ AT7456E chip
BEC：5V@3A,9V@2.5A dual BEC
Firmware Target: GEPRCF722_BT_HD_V3
Size：36.9x36.9mm, hole 30.5x30.5mm，φ4mm hole becomes φ3mm after using a silicone shock-absorbing ring
Input Voltage: 3-6S LiPo
UART: 5 groups (UART4 fixed for Bluetooth)
Power Filter: Integrated LC filter
Weight: 8.2g
TAKER H60_BLS 60A 4IN1 ESC
Input Voltage: 3-6S Lipo
Ammeter: Support
Continue Current：60A
Burst Current：65A（5 second）
Support Protocol: Dshot 150/300/600
Size：42x45.7mm，hole30.5x30.5mm，φ4mm hole becomes φ3mm after using the silicone shock-absorbing ring.
Weight: 14.9g
Target: B_X_30
Includes
1 x FC board
1 x ESC board
1 x Capacitor
1 x O3 3-in-1 connection cable
1 x FC adapter cable
1 x sh1.0 4pin silicone cable
1 x Camera connection cable
1 x VTX connection cable
1 x XT90 power cable
4 x M3*30 screws
4 x M3*25 screws
8 x Nylon nuts
12 x Silicone anti-shake pads
Features-TAKER F722 BT 8Bit 65A STACK
2. Equipped with the latest 42688-P gyroscope
3. 512M black box storage
4. Support Bluetooth parameter tuning
5. Integrated LC filter
6. Upgrade type-C USB interface
7.With TAKER H65_8S_BLS 65A 4IN1 ESC, silky flight
8. Directly plugs into the Air Unit
9. Simple and effective installation with shock-absorbing mounts for stable gyroscope performance
10. Integrated Barometer
11. 9V@2.5A + 5V@3A dual independent BEC
Specifications
GEP-F722-BT-HD V3 Flight Controller
MCU:STM32F722
IMU：ICM42688-P(SPI)
Air Unit Connection: Directly plugs into the Air Unit
Black Box: 512M onboard
Bluetooth: Supported
Barometer: Supported
USB Interface: Type-C
OSD：BetaFlight OSD w/ AT7456E chip
BEC：5V@3A,9V@2.5A dual BEC
Firmware Target: GEPRCF722_BT_HD_V3
Size：36.9x36.9mm, hole 30.5x30.5mm，φ4mm hole becomes φ3mm after using a silicone shock-absorbing ring
Input Voltage: 3-6S LiPo
UART: 5 groups (UART4 fixed for Bluetooth)
Power Filter: Integrated LC filter
Weight: 8.2g
TAKER H65_8S_BLS 65A 4IN1 ESC
Input Voltage: 3-8S Lipo
Ammeter: Support
Continue Current：65A
Burst Current：70A（5 second）
Support Protocol: Dshot 150/300/600
Size：42x45.7mm，hole30.5x30.5mm，φ4mm hole becomes φ3mm after using the silicone shock-absorbing ring.
Weight: 14.9g
Target: B_X_30
Includes
1 x FC board
1 x ESC board
1 x Capacitor
1 x O3 3-in-1 connection cable
1 x FC adapter cable
1 x sh1.0 4pin silicone cable
1 x Camera connection cable
1 x VTX connection cable
1 x XT60 power cable
4 x M3*30 screws
4 x M3*25 screws
8 x Nylon nuts
12 x Silicone anti-shake pads
Features-GEP-F722-BT-HD V3 Flight Controller
Specifications
MCU: STM32F722
IMU：ICM42688-P(SPI)
Air Unit Connection: Directly plugs into the DJI Air Unit
Black Box: 512M onboard
Bluetooth: Supported
Barometer: Supported
USB Interface: Type-C
OSD：BetaFlight OSD w/ AT7456E chip
BEC：5V@3A,9V@2.5A dual BEC
Firmware Target: GEPRCF722_BT_HD_V3
Size：36.9x36.9mm, hole 30.5x30.5mm，φ4mm hole becomes φ3mm after using a silicone shock-absorbing ring
Input Voltage: 3-6S LiPo
UART: 5 groups (UART4 fixed for Bluetooth)
Power Filter: Integrated LC
Weight: 8.2g
Includes
1 x Flight Controller
1 x D JI Air Unit Adapter Cable
1 x Flight Controller Adapter Cable
4 x Nylon nuts
4 x Silicone grommets
2 x sh1.0 4pinsilicone cable
1 x Camera connection cable
