GEPRC ELRS 915M 2.4G C3 Gemini Xrossband Receiver TX Module Dual-RF Chip 1000Hz for FPV Long Range Freestyle Drone

Description

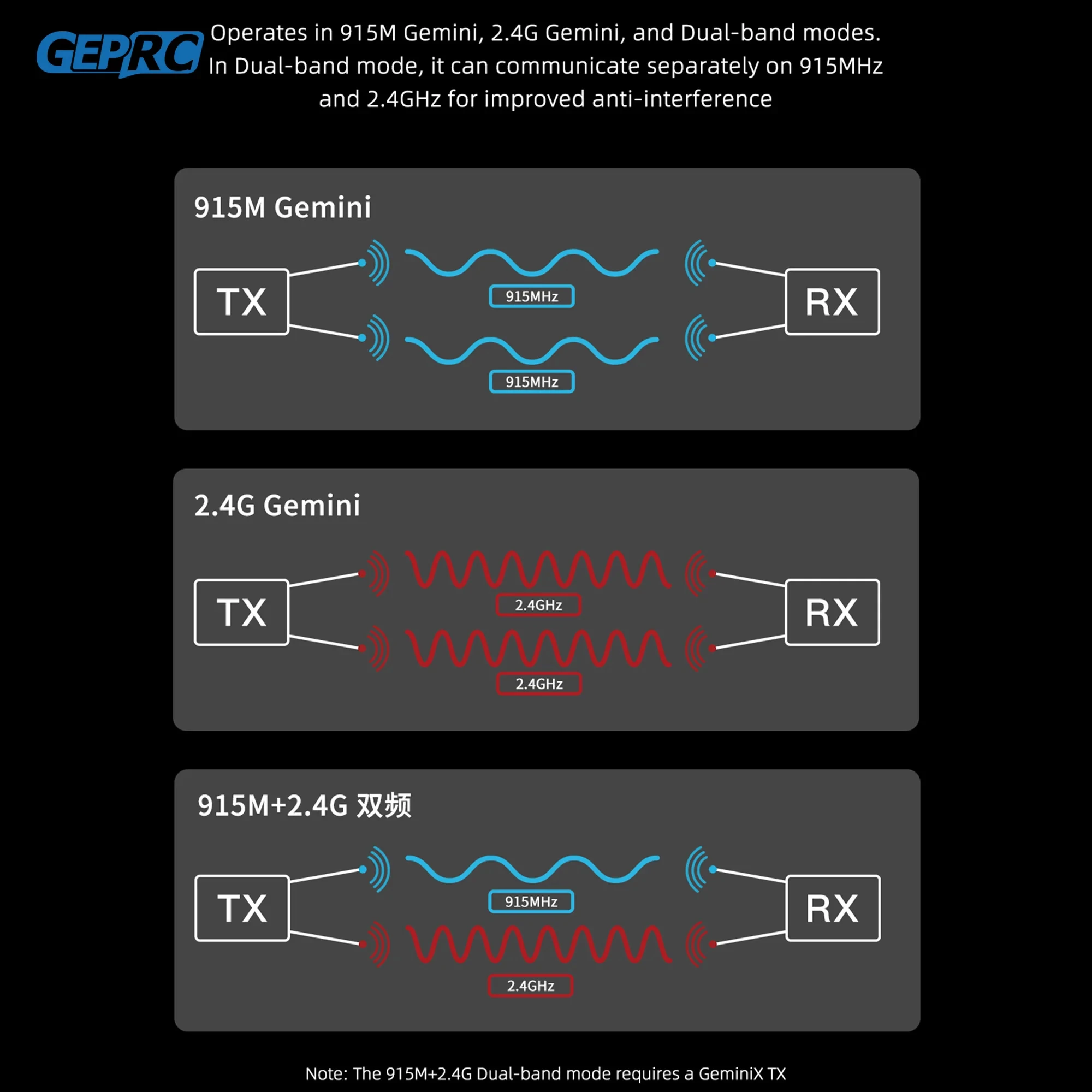

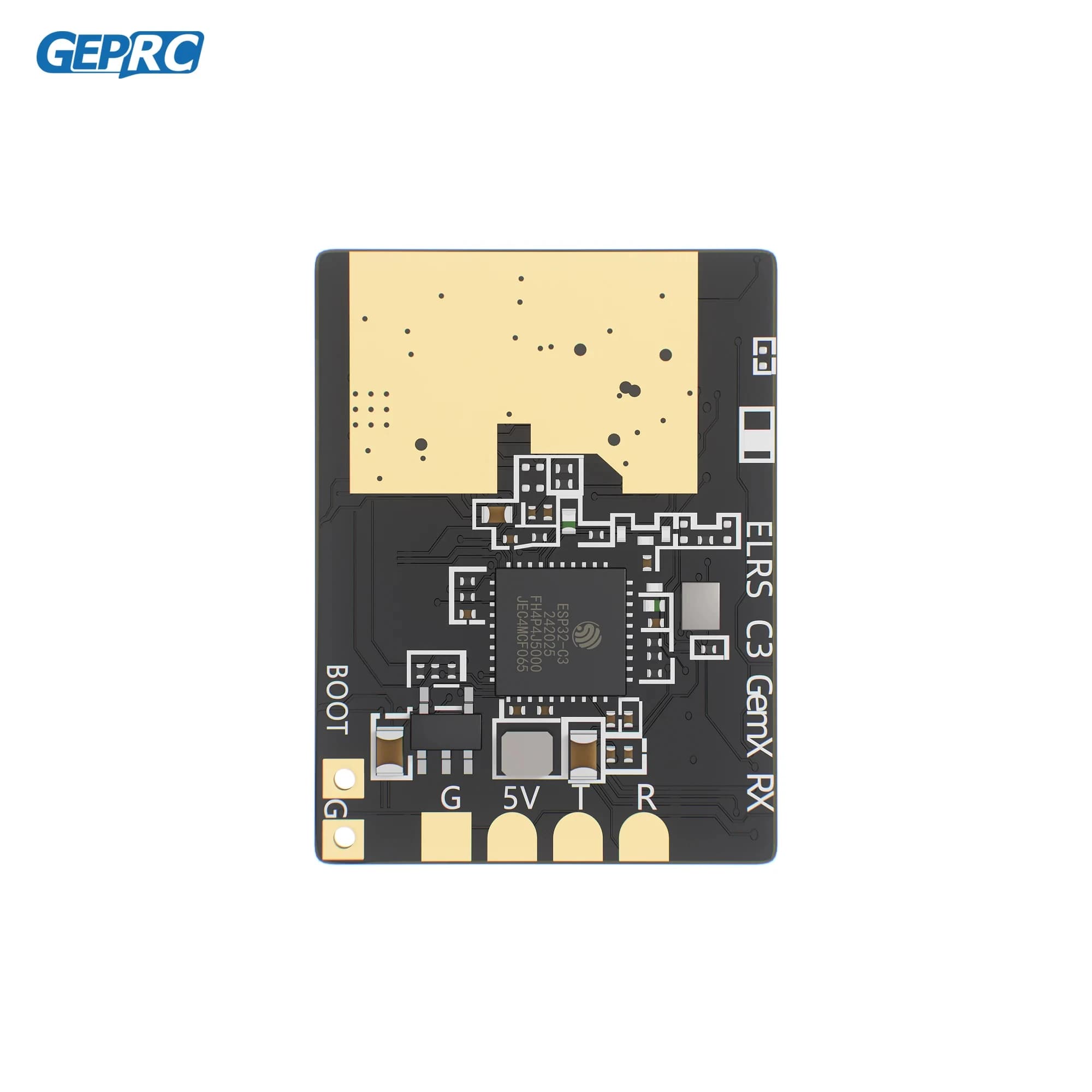

GEPRC ELRS 915M 2.4G C3 Gemini Xrossband Receiver TX Module Dual-RF Chip 1000Hz for FPV Long Range Freestyle Drone ============================================================ GEPRC Component — professional-grade component for FPV drone applications. GEPRC ELRS 915M 2.4G C3 Gemini Xrossband Receiver TX Module Dual-RF Chip 1000Hz for FPV Long Range Freestyle Drone Summary GEPRC ELRS 915M/2.4G C3 GemX Gemini Receiver is a new dual-band receiver system developed based on the ExpressLRS open-source project. It is designed with the Semtech LR1121 (3rd generation RF chip) and ESP32-C3 chip, supporting both 150960 MHz (sub-GHz) and 2.4 GHz bands, delivering advanced simultaneous dual-band transmission. It supports up to 1000 Hz (FSK) refresh rate and comes with 915M/2.4G dual-band antennas, allowing flexible switching between 915M Gemini, 2.4G Gemini, and 915M+2.4G Dual-Band modes (It requires the use of GemX TX). When operating in dual-band mode, the system achieves enhanced anti-interference performance and more stable connectivity, ensuring excellent results for both close-range racing and long-range flights. It is also fully compatible with single-band ELRS TX modules, offering outstanding versatility. Equipped with a TCXO, it maintains frequency stability under varying temperatures. The TLM power reaches up to 100 mW, and the receiver features a built-in WiFi antenna for easy firmware upgrades via WiFi. With the SH1.0 connector, installation is simple and efficient. Additionally, after flashing TX firmware, it can function as a Gemini Xrossband TX module. Feature Advanced ExpressLRS 915M/2.4G dual-frequency system Based on Semtechs third-generation LR1121 RF chip Compact at 18x23.6x5.7mm and weighing just 1.6g Supports 915M Gemini, 2.4G Gemini, 915M+2.4G dual-RF Features a temperature-compensated crystal oscillator (TCXO) for stable performance in varying temperatures Telemetry power up to 100mW Refresh rate up to 1000Hz Supports WiFi firmware updates Includes an SH1.0 connector for easy installation Specifications Model: GEPRC ELRS 915M/2.4G C3 Gemini Xrossband Receiver Dimension: 18x23.6x5.7mm Weight: 1.6g (only receiver) Chips: ESP32-C3, LR1121x2 Crystal Oscillator: TCXO Frequency Bands: 915MHz Gemini,2.4GHz Gemini,915M+2.4G Dual-Band Refresh Rate: 25Hz-1000Hz(LoRa,FSK) Serial Output Protocol: CRSF, SBUS, SUMD, D JI RS2 Pro, MAVLink Operating Voltage: 5V Antenna Connector: ipex1 TLM Power: 100mW Firmware: GEPRC C3 900/2400 Gemini Xrossband RX Product list 1 x GEPRC ELRS 915M/2.4G C3 Gemini Xrossband Receiver 2 x 915M/2.4G Dual-band T-Antennas(ipex1 80mm) 1 x Receiver silicone cable(SH1.0 4pin 100mm) 1 x Heat shrink tube 1 x User manual TECHNICAL SPECIFICATIONS • Model: GEPRC ELRS 915M/2.4G C3 Gemini Xrossband Receiver • Dimension: 18x23.6x5.7mm • Weight: 1.6g (only receiver) • Firmware: GEPRC C3 900/2400 Gemini Xrossband RX AVAILABLE OPTIONS China Mainland PRODUCT INFORMATION Brand: GEPRC Category: Radio Receiver Wholesale Price: US $39.05 ————————————————————————————————————————
