GEPRC GEP-M10 Series GPS Module Built-in Flash Chip QMC5883L MagnetomePS310 Barometer Accurate and Faerad Capacitor for FPV Dron

Description

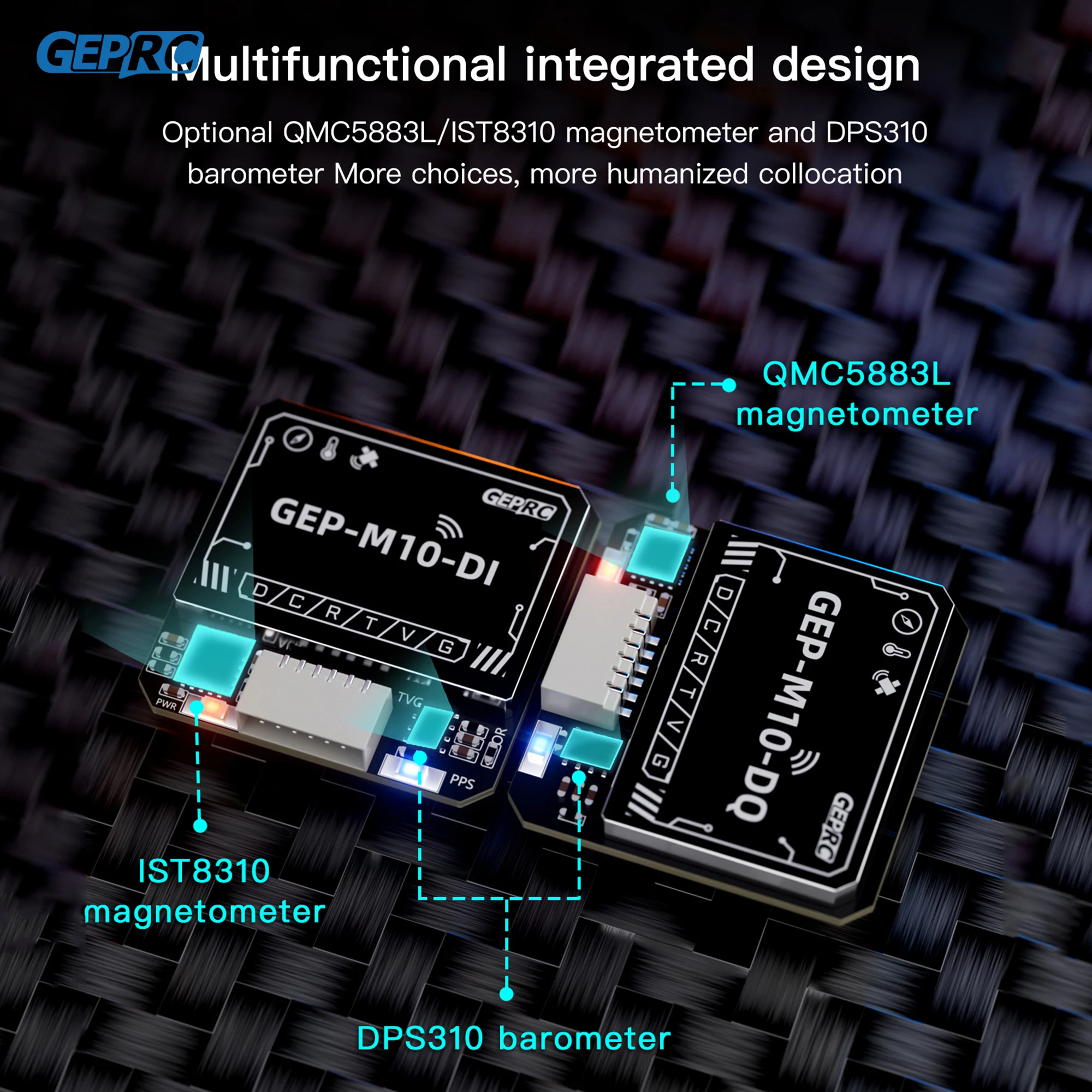

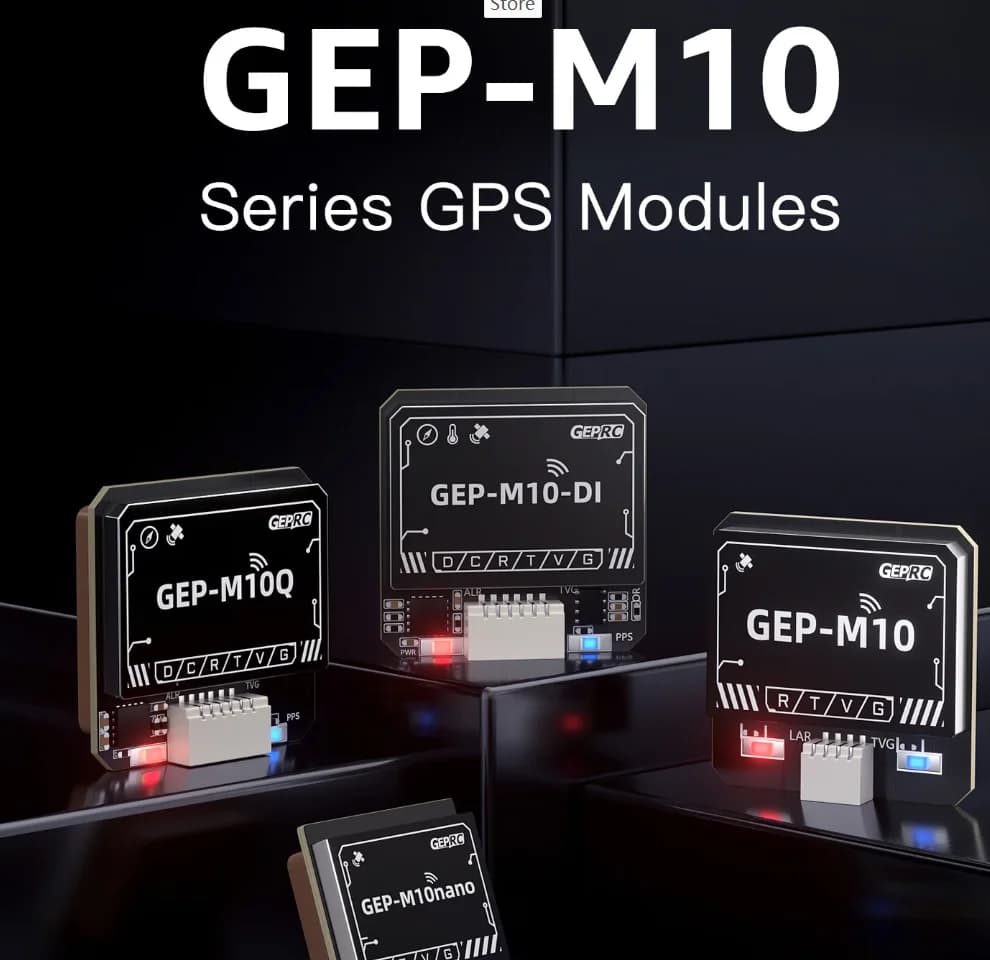

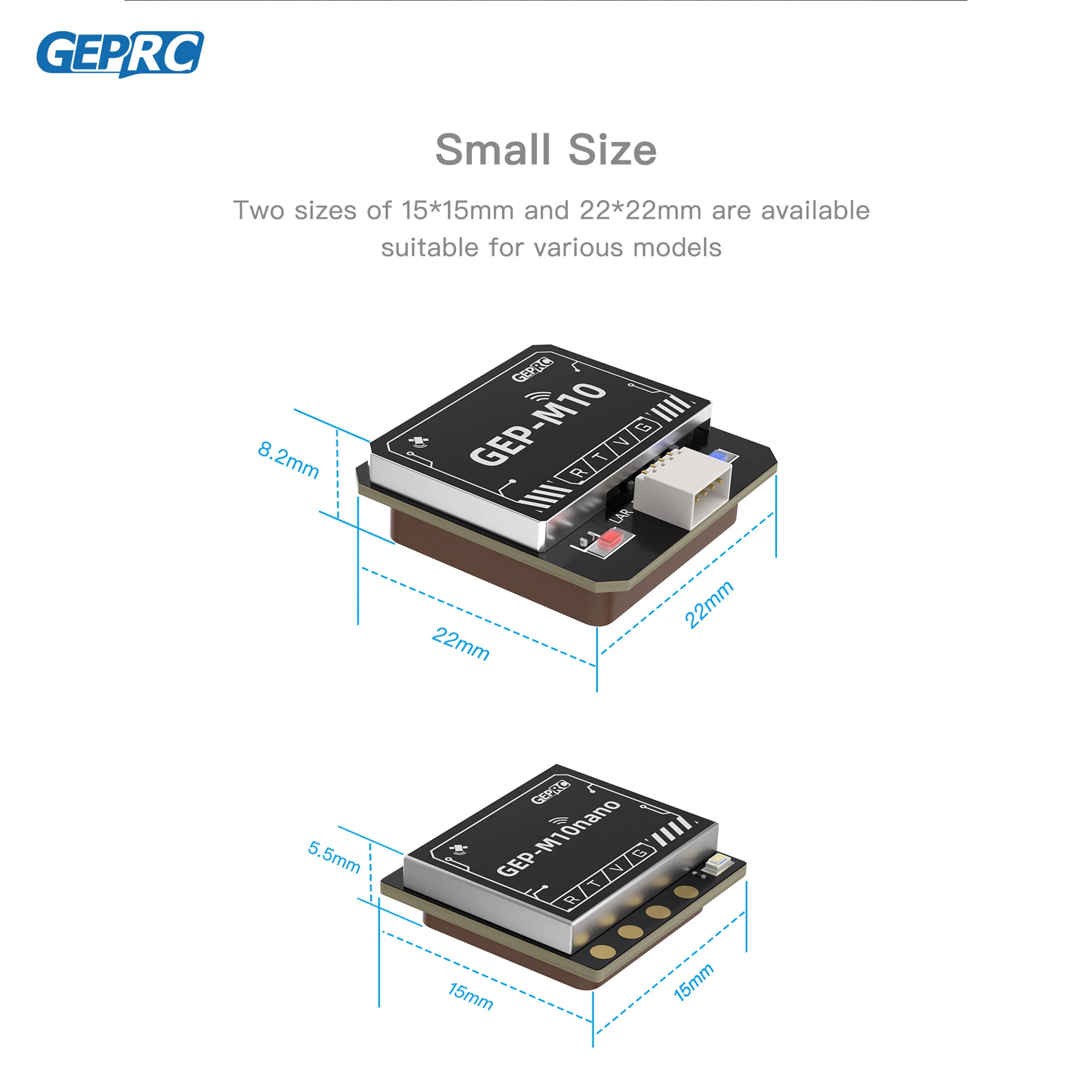

GEPRC GEP-M10 Series GPS Module Built-in Flash Chip QMC5883L MagnetomePS310 Barometer Accurate and Faerad Capacitor for FPV Dron ============================================================ GEPRC GPS / Navigation Module — professional-grade component for FPV drone applications. GEPRC GEP-M10 Series GPS Module Built-in Flash Chip QMC5883L Magnetometer DPS310 Barometer Farad Capacitor for FPV Drone Summary Hello all FPV enthusiasts, in order to improve customer experience, the GEPRC team has fully upgraded the GPS series product line and now launches GPS series products based onM10 chip: GEP-M10nano, GEP-M10, GEP-M10Q, GEP-M10-DQ. GEP-M10 series GPS positioning module has the features of small size, fast positioning, stable connection, and convenient use. Using the M10 chip solution of company, it supports GPS + BDS + Galileo + QZSS + SBAS joint positioning, the highest Up to 32 satellites. Built-in Flash chip and farad capacitor can save configuration parameters and fast hot start. Small volume ceramic antenna provides good receiving ability. Integrated QMC5883L magnetometer and DPS310 barometer (only GEP-M10-DQ) can provide accurate azimuth pointing and sensitive altitude change data. It can meet the needs of most FPV drones, multi-rotors, fixed-wing and other model products. Due to the current out-of-stock status of the DPS310 barometer, it will be replaced with the DPS368 barometer. There are no differences in performance or usage between the two barometers, and the old and new versions will be shipped randomly. Specifications Model: GEP-M10nano / GEP-M10 / GEP-M10-DQ GPS chip: M10 Magnetometer: GEP-M10nano: No / GEP-M10: No / GEP-M10Q: QMC5883L / GEP-M10-DQ: QMC5883L Barometer: GEP-M10nano: No / GEP-M10: No / GEP-M10Q: No / GEP-M10-DQ:DPS310 Input voltage: 3.3V-5V Receiving frequency: GPS L1,GLONASS L1,BDS B1,GALILEO E1,SBAS L1,QZSS L1 Operating mode: GPS+BDS+LALILEO+QZSS+SBAS joint positioning Channel: 72ch Navigation satellites: Up to 32 pieces Output protocol: GEP-M10nano: UART() / GEP-M10: UART() / GEP-M10Q: UART(),I2C / GEP-M10-DQ: UART(),I2C Baud rate: 115200bps Output Frequency: 10Hz Speed Accuracy: 0.05 m/s Horizontal positioning accuracy: 2D ACC1.5m(Weather) Timing accuracy: 30 ns Receiver sensitivity: Trace-162dBm, Capture-160dBm Dynamic characteristics: Max Height: 50000m, Max Speed: 500m/s Maximum acceleration: 4G Size: GEP-M10nano: 15x15x5.5mm / GEP-M10: 22*22*8.2mm / GEP-M10Q: 22*22*8.2mm / GEP-M10-DQ: 22*22*8.2mm Weight: GEP-M10nano: 2.5g / GEP-M10:7.8g  / GEP-M10Q: 7.9g / GEP-M10-DQ: 8.0g Features M10 series chip Fast positioning speed GPS+BDS+Galileo+QZSS+SBAS joint positioning Up to 32 satellites Stable connection quality Unique appearance design Small size and light weight Built-in Flash chip and Farad capacitor Onboard indicator light, easy to use Integrated magnetometer+barometer,integrated module (GEP-M10-DQ) Includes 1 x GPS module 1 x Terminal wire 1 x Instruction manual 1 x GEPRC sticker 1 x Heat shrink tubing TECHNICAL SPECIFICATIONS • Model: GEP-M10nano / GEP-M10 / GEP-M10-DQ • Barometer: GEP-M10nano: No / GEP-M10: No / GEP-M10Q: No / GEP-M10-DQ:DPS310 • Size: GEP-M10nano: 15x15x5.5mm / GEP-M10: 22*22*8.2mm / GEP-M10Q: 22*22*8.2mm / GEP-M10-DQ: 22*22*8.2mm • Weight: GEP-M10nano: 2.5g / GEP-M10:7.8g / GEP-M10Q: 7.9g / GEP-M10-DQ: 8.0g • Channel: 72ch AVAILABLE OPTIONS GEP-M10Q GEP-M10-DQ GEP-M10 GEP-M10nano GEP-M10I GEP-M10-DI China Mainland PRODUCT INFORMATION Brand: GEPRC Category: FPV Drone Wholesale Price: US $23.92 ————————————————————————————————————————
