GEPRC GEP-CL20 Frame Parts Propeller Accessory Base Quadcopter Frame FPV Freestyle RC Racing Drone CineLog20 HD O3

Description

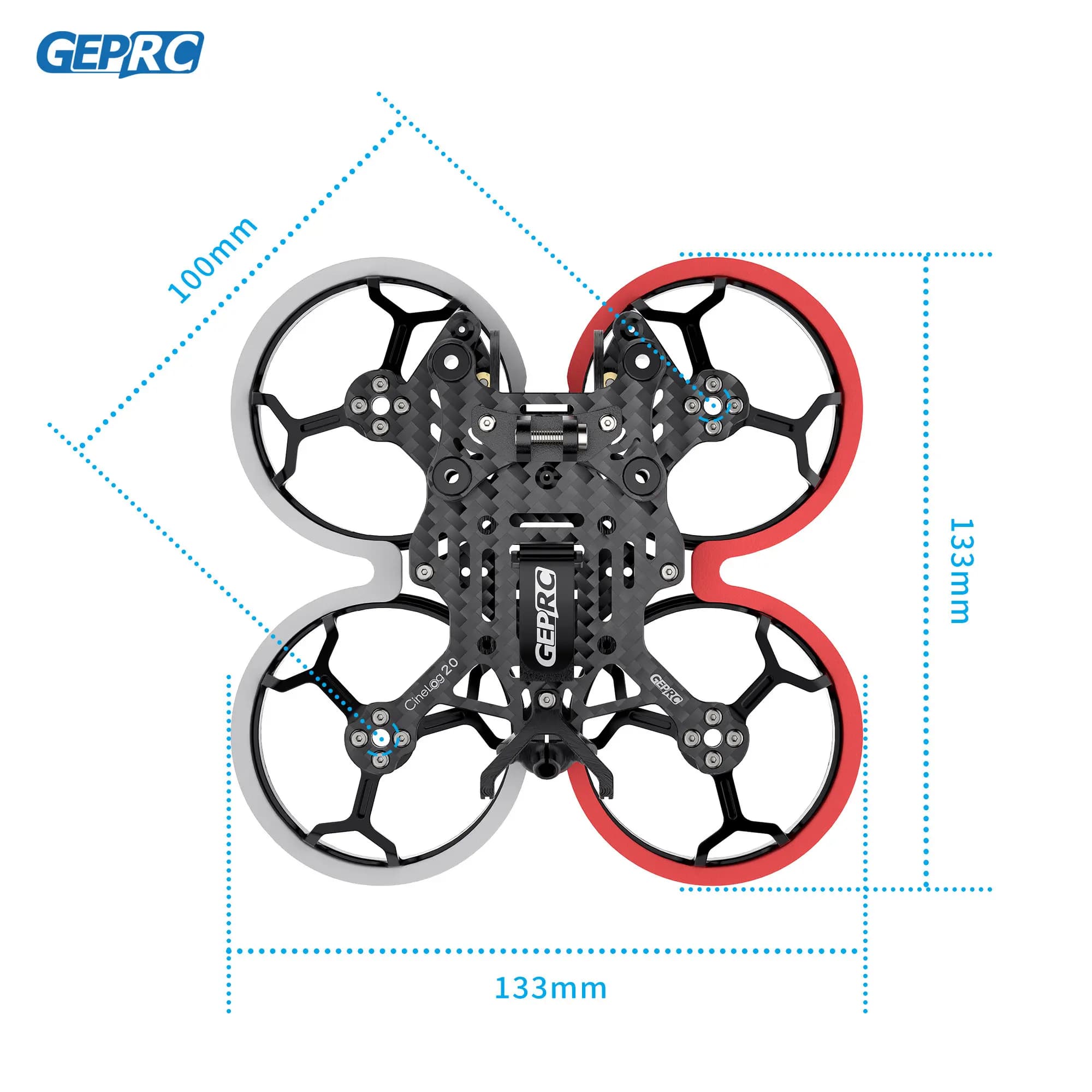

GEPRC GEP-CL20 Frame Parts Propeller Accessory Base Quadcopter Frame FPV Freestyle RC Racing Drone CineLog20 HD O3 ============================================================ Summary The GEPRC team has newly developed a 2-inch frame: GEP-CL20. The 2-inch frame can be shuttled in a narrow space, and can be adapted to O3 VTX, and can also shoot shocking effects in a narrow space. The under-mounted gimbal can easily eliminate the high-frequency vibration and jello problems of the camera. Soft connection damping design of the camera gimbal and can also be mounted with a naked base, which supports the installation of Naked 8, Naked 10, Insta360 Go2 and compatible for DJI Action2 cameras. The flight controller mouting hole spacing is 25.5mm*25.5mm, which is compatible with various VTX holes on the market with 20mm*20mm/25.5mm*25.5mm. The 9mm * 9mm motor mounting hole is used to install larger 12-13 series motors, and the compact body makes the flight more confident. Specification Model: GEP-CL20 Wheelbase: 100mm Main plate: 2.5mm Bottom plate: 1.5mm Camera gimbal plate: 2.0mm lens gimbal triangle plate : 1.5mm Motor plate gasket: 2.0mm FC mounting holes: 25.5mm x 25.5mm VTX mounting hole: 20mm x 20mm /25.5mm x 25.5mm Motor mounting hole: 9mm x9mm FPV camera spacing: 20mm Suitable propeller size: 2 inch propeller Weight: 53.4g Flight controller: GEP-F4-35A AIO (mounting hole: 25.5mm×25.5mm) Motor: 1303.5 (mounting hole: 9mm×9mm) ESC: 35A Propeller: 2 inch Recomended Battery: 4S 660mAh Feature 1. Combining aesthetics and engineering for compact design 2. Designed to mount a shock-absorbing gimbal under the independent FPV camera to reduce jello of FPV Goggles image. 3. 2 inch pusher design, small size and lightweight, more suitable for complex and narrow environments flight shooting. 4. SPEEDX2 1303.5 5500KV motor with Emax four-blade propellers make the flight shooting unhurried. 5. Design the outer EVA damping ring to effectively reduce the impact force. Includes Plate: 1 x Main plate: 2.5mm 1 x Bottom plate: 1.5mm 1 x Camera gimbal plate: 2.0mm 1 x lens gimbal triangle plate : 1.5mm 1 x Motor plate gasket: 2.0mm Screw package: 4 x M2*1.9-OD4.9 self-clinching nut-brass color M2 1 x 7075 Aluminum Column M2 3.5 28 1 x 7075 Aluminum Column M2 3.5 25 1 x Single-ended bright-edge aluminum column M2 3.5 28 1 x Single-ended bright-edge aluminum column M2 3.5 25 2 x Round head screw with pad M2*8 18 x Round head screw M2*8 4 x Round head screw M2*5 6 x Round head screw M2*4 X6 10 x Round head screw M2*12 4 x Round head screw M2*16 4 x Half-round head M1.6*8 X4 18 x Round head screw M2*7 10 x self-clinching nut M2 10 x Nylon nut M2 4 x Nylon column M2*5mm 4 x Camera head shock absorbing rubber ring 5 x Lens head vibration dampening rubber 4 x BEC silicone gasket 3D printed parts: 1 x VTX Antenna printout PJ000065 (large port) 1 x VTX Antenna printout GP105633 (small port) 1 x Receiver mount 3D printout (vertical) 1 x Receiver mount 3D printable (lying) 1 x TBS Antenna mount 1 x Lens printout (1 hole model) 1 x Lens printout (2 holes) Injection molded parts: 4 x Propeller guard Other accessories: 1 x Naked 8 base 1 x 4S Naked power cable (with balanced terminal head) 2 x Cinelog20 battery anti-slip pad (square) 2 x Cinelog20 tripod shock pad (square) 4 x EVA edge protection cotton CineLog20 protection cotton 2 x Receiver antenna wand 100mm 2 x Battery tie M15*150 1 x L-shaped screwdriver 1.5MM 2 x 3M double-sided adhesive 1 x Keychain TECHNICAL SPECIFICATIONS • Model: GEP-CL20 • Weight: 53.4g AVAILABLE OPTIONS Black Gray Blue Red PRODUCT INFORMATION Brand: GEPRC Category: FPV Drone Wholesale Price: US $39.38 ————————————————————————————————————————
