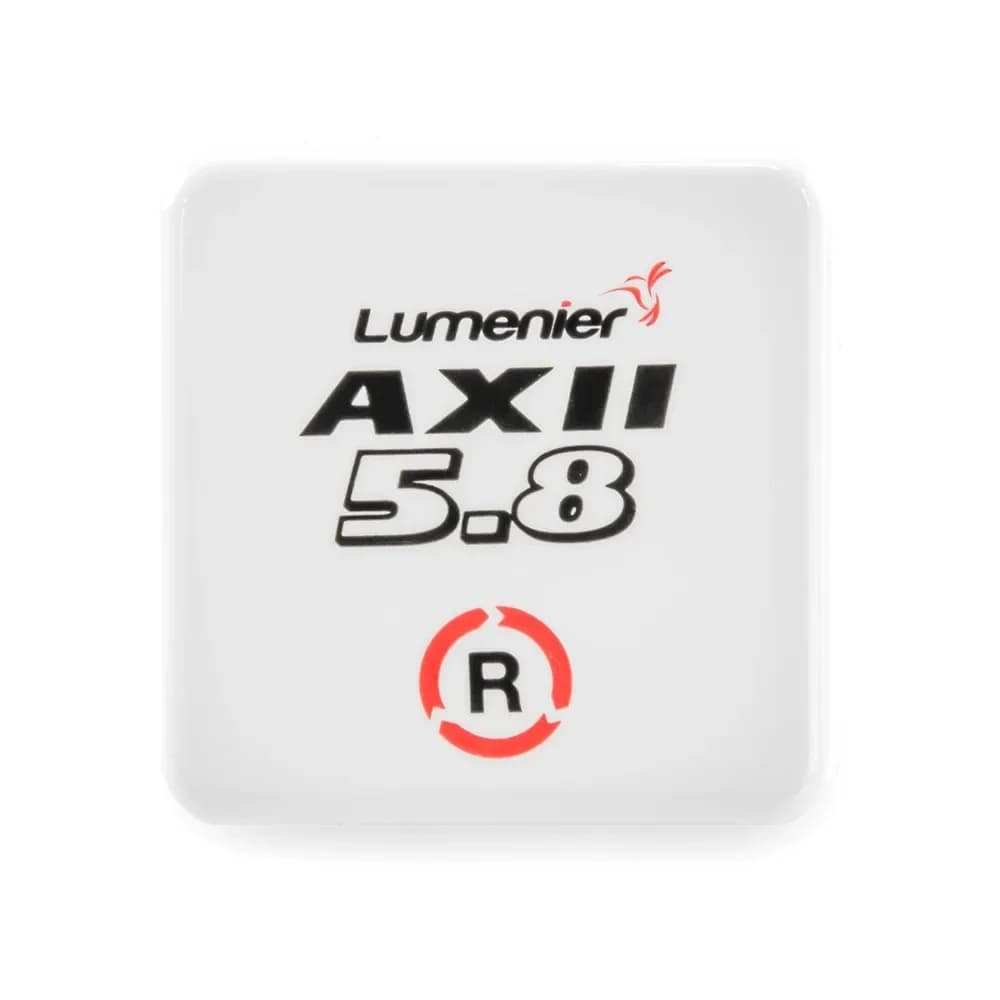

Lumenier AXII 5.8GHz FPV Patch Antenna RHCP for Fatshark Skyzone Goggles Receiver RC Racing Drone Models DIY Toys
10 orders (reference)
Description
Lumenier AXII 5.8GHz FPV Patch Antenna RHCP for Fatshark Skyzone Goggles Receiver RC Racing Drone Models DIY Toys ============================================================ The Lumenier AXII 5.8GHz Patch Antenna offers you the highest performance you can get from a mini patch antenna designed for FPV. The Lumenier AXII Patch has an industry leading 8.4 dBiC gain for long range flying and excellent penetration through objects compared to standard omnidirectional FPV antennas. It also features a best in class 95% efficiency (most mini patch antennas are below 75%), which means you get amazing performance and the best picture in your video goggles. Lumenier, designed in collaboration with renowned FPV antenna designer Hugo of TrueRC , brings you the Lumenier AXII 5.8GHz Patch Antenna. The Lumenier AXII Patch Antenna features an ultra-thin active element suspended above the reflector, which allows for a higher velocity factor and lowers losses. This technology along with precision manufacturing results in a top of the line receiving antenna. It works great on both video goggles or ground stations for 5.8GHz, and capabale of receiving signal up to many miles away. Features Circularly Polarized High 8.4 dBiC Incredible 95% efficient Wide 76 degree beam width Compact low profile design on your goggles Designed for goggles or base stations Specifications Frequency : 5.8GHz Bandwidth : 220 Mhz Gain : 8.4 dBiC Beam Width : 76° Right Hand Circularly Polarized SMA Connector (Fits Fat shark Goggles and others using SMA) Dimensions : 35mm x 35mm x 9mm (20mm with SMA) Weight : 10grams Includes 1x Lumenier AXII Patch Antenna 5.8GHz (RHCP) TECHNICAL SPECIFICATIONS • Weight : 10grams • Frequency : 5.8GHz • Gain : 8.4 dBiC AVAILABLE OPTIONS AXII Patch PRODUCT INFORMATION Brand: Foxeer Category: FPV Goggles Wholesale Price: US $33.84 ————————————————————————————————————————
Specifications
| Attribute | Value |
|---|---|
| High-concerned chemical | None |
| Is Electric | No Battery |
| Quantity | 1 pcs |
| Is it battery/power supply | N |
| Is it charger/adapter | N |
| Is Batteries Included | No |
| For Vehicle Type | Airplanes |
| Remote Control Peripherals/Devices | RECEIVERS |
| RC Parts & Accs | Antennas |
| Material | Composite Material |
| Brand Name | Foxeer |
| Origin | Mainland China |
| Recommend Age | 14+y |
| Use | Vehicles & Remote Control Toys |
Product Details
The Lumenier AXII 5.8GHz Patch Antenna offers you the highest performance you can get from a mini patch antenna designed for FPV. The Lumenier AXII Patch has an industry leading 8.4 dBiC gain for long range flying and excellent penetration through objects compared to standard omnidirectional FPV antennas. It also features a best in class 95% efficiency (most mini patch antennas are below 75%), which means you get amazing performance and the best picture in your video goggles. Lumenier, designed in collaboration with renowned FPV antenna designer Hugo of TrueRC, brings you the Lumenier AXII 5.8GHz Patch Antenna.
The Lumenier AXII Patch Antenna features an ultra-thin active element suspended above the reflector, which allows for a higher velocity factor and lowers losses. This technology along with precision manufacturing results in a top of the line receiving antenna. It works great on both video goggles or ground stations for 5.8GHz, and capabale of receiving signal up to many miles away.
Features
-
Circularly Polarized
-
High 8.4 dBiC
-
Incredible 95% efficient
-
Wide 76 degree beam width
-
Compact low profile design on your goggles
-
Designed for goggles or base stations
Specifications
-
Frequency: 5.8GHz
-
Bandwidth: 220 Mhz
-
Gain: 8.4 dBiC
-
Beam Width: 76°
-
Right Hand Circularly Polarized
-

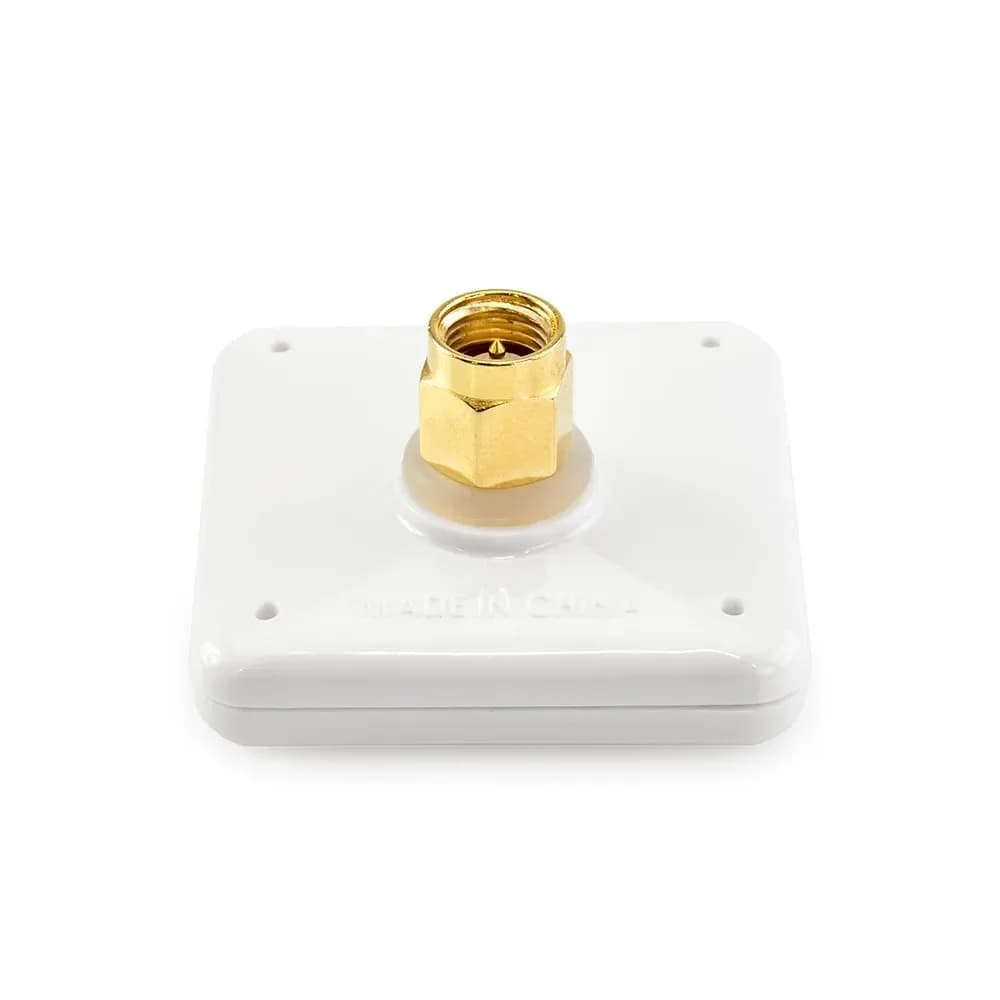

SMA Connector (Fits Fat shark Goggles and others using SMA)
-

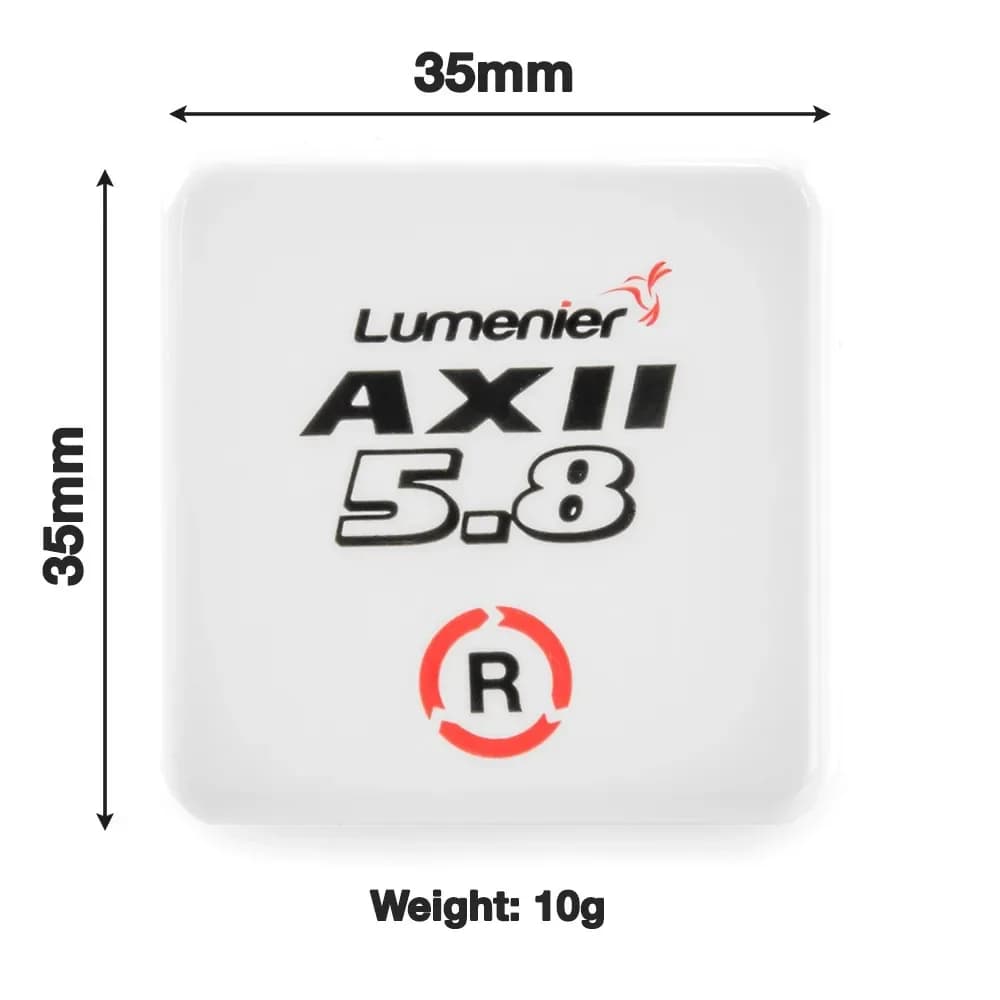

Dimensions: 35mm x 35mm x 9mm (20mm with SMA)
-
Weight: 10grams
Includes
-

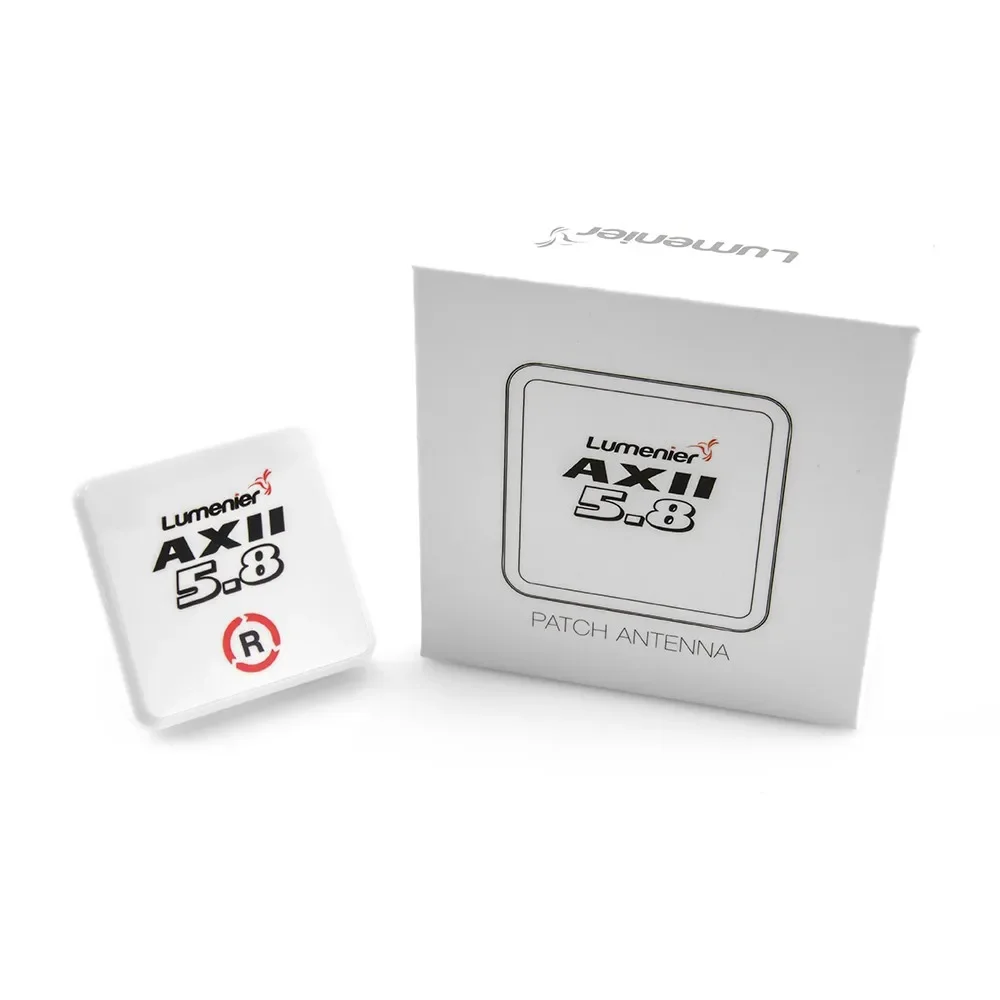

1x Lumenier AXII Patch Antenna 5.8GHz (RHCP)
