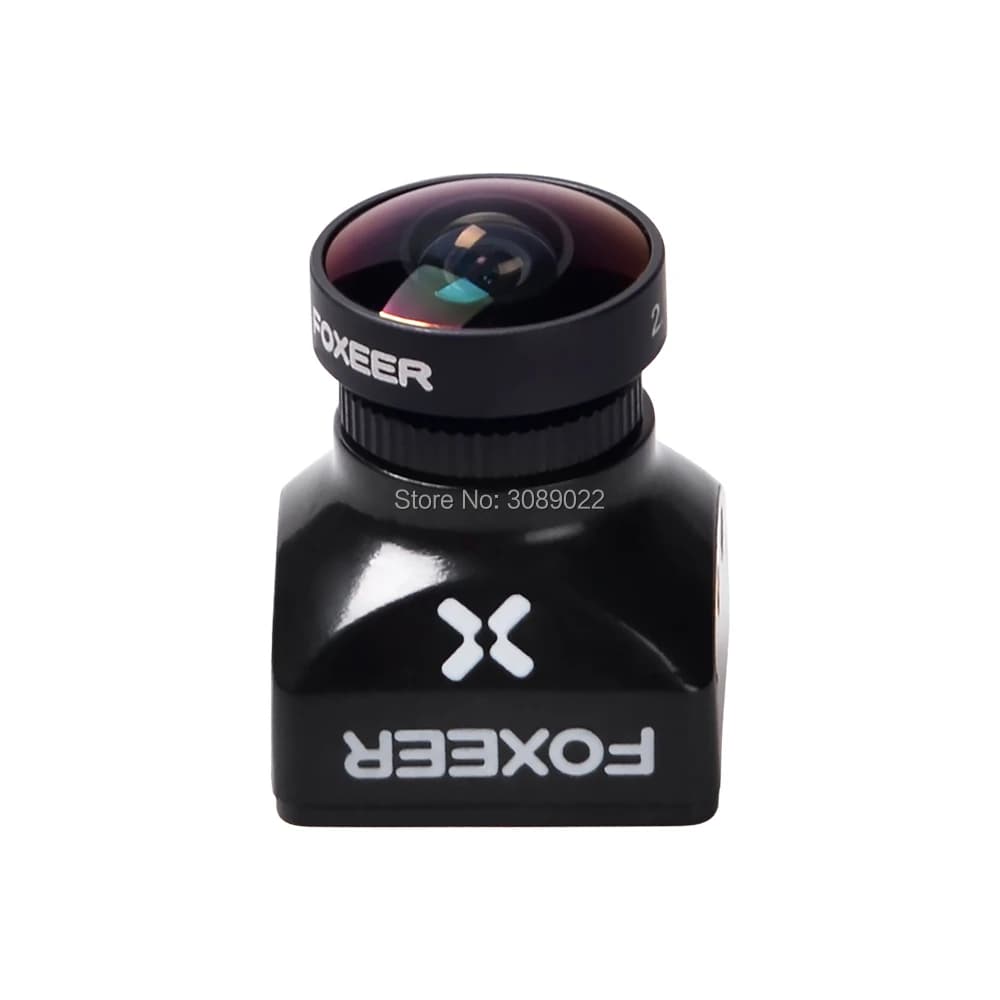

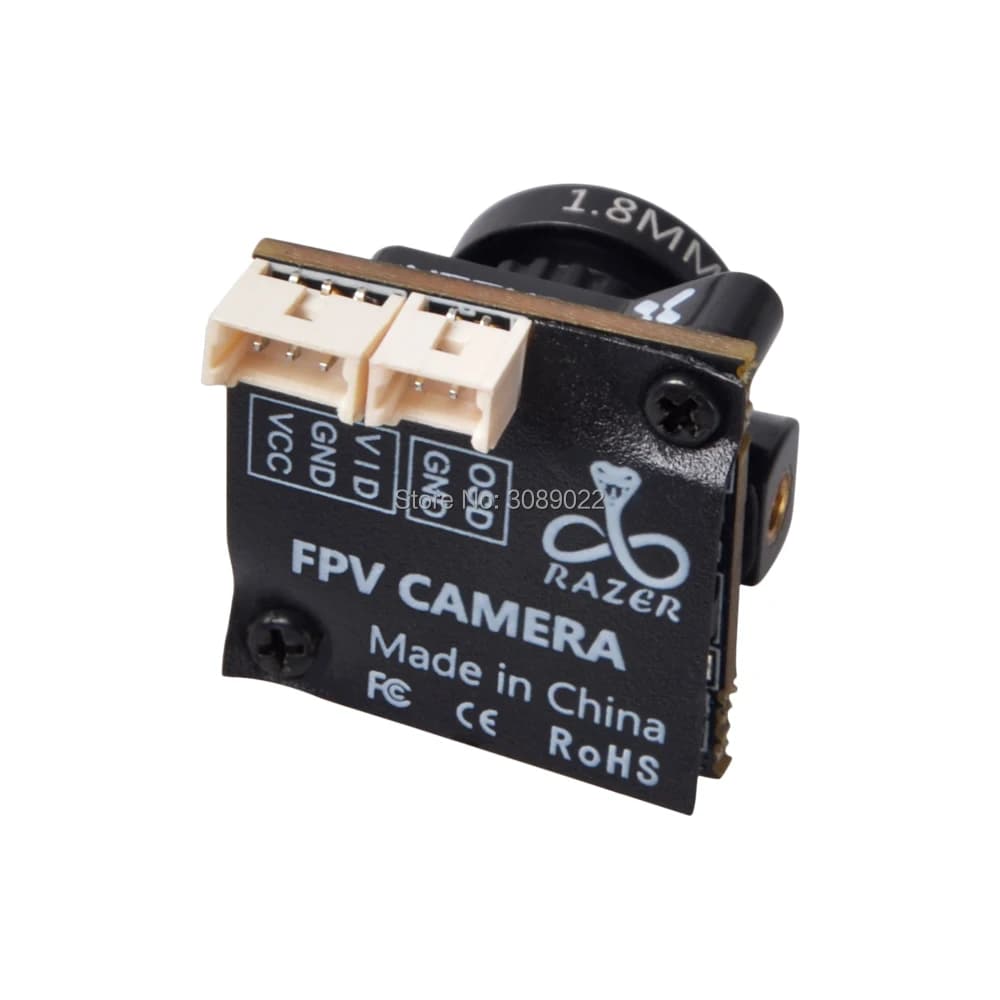

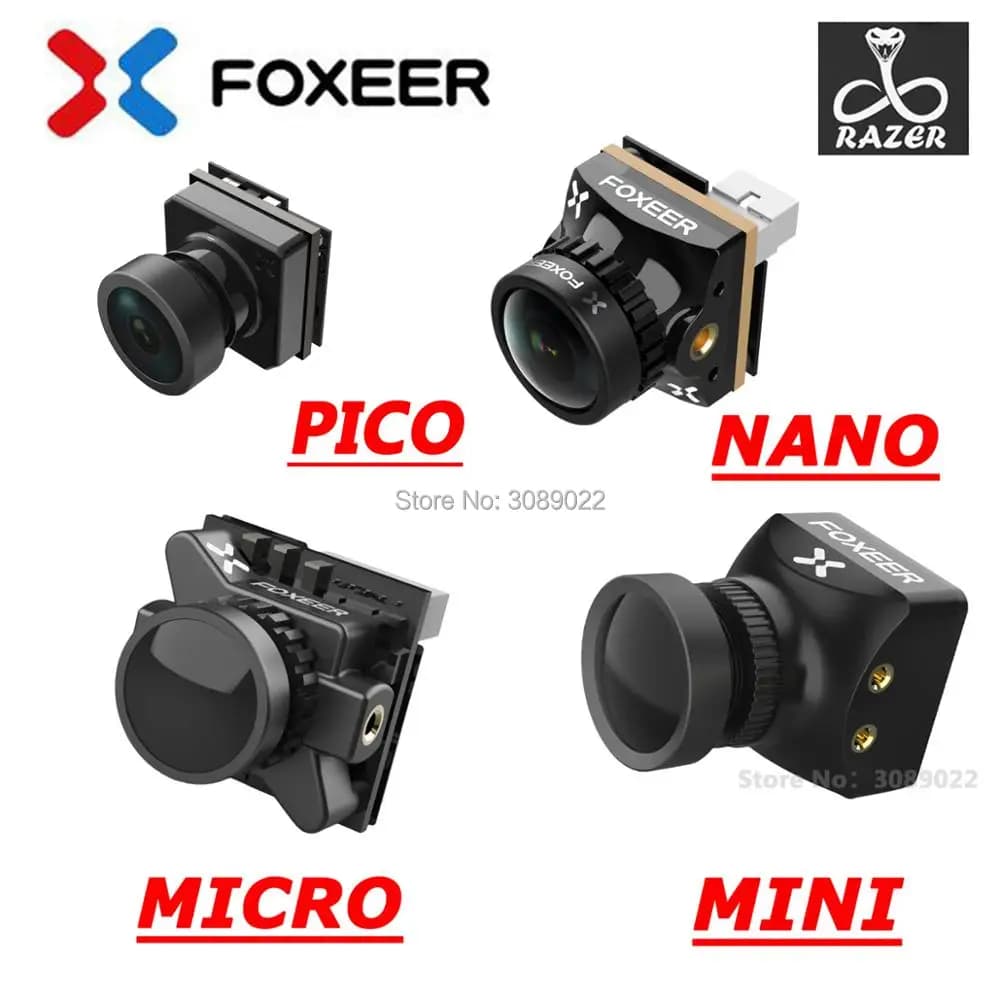

Foxeer Razer Mini V3 / Razer Micro/ Razer NANO 1200TVL PAL/NTSC Switchable 4:3 16:9 FPV Camera For FPV Racing Drone

Description

Foxeer Razer Mini V3 / Razer Micro/ Razer NANO 1200TVL PAL/NTSC Switchable 4:3 16:9 FPV Camera For FPV Racing Drone ============================================================ Specifications can be selected: (does not come with a bracket) Razer mini V2 2.1 lens 125° Razer mini V3 2.1 lens 98° FOXEER cost-effective FPV camera, 1200 line ultra clear lens. 1200TVL has supernatural image quality and restores FPV flight pictures. Low latency, high speed, high speed flight without card. Low illumination, can see the picture in low light conditions. Wide voltage input, wiring is more convenient. Features: - 1200TVL definition with advanced natural image. - Advanced quality 1.8mm M8 lens. - 4:3/16:9 optional, PAL/NTSC switchable. - Supports 4.5~25V input voltage. The video system can be switched, and the P system/N system can be switched through the menu to show better adaptability. The difference between the two cameras: The micro-rare snake installation width is 19mm. The mini Razer has a mounting width of 22mm or a widened bracket of 28mm. Other properties are the same except for the installation width. Razer NANO Description: Brand Name: Foxeer Item Name: Razer NANO Color: Black (optional) Scale: 4:3 / 16:9 (optional) Sensor Type: 1/3 CMOS TV System: PAL Resolution: 1200TVL FOV: 4:3 FOV-H 125°, FOV-D 150° / 16:9 FOV-H 125°, FOV-D 140° Shutter Speed: PAL: 1/25~1/10000 sec; NTSC: 1/30~1/10000 sec Video Out: CVBS Min. Illumination: 0.01Lux White Balance: Auto DNR: 3DNR WDR: 90db Day / Night Shift: EXT / Auto / Color / B&W Power Requirement: DC 4.5V~25V Language: English / Chinese / Pyccknn / Espanol / Francais / Polski / Italiano / Portugues / Japanese / Korean / Eaahnika Working Temperature: -10℃ ~ +50℃ RH90% MAX Working Humidity: 20~80% Storage Temperature: -20℃ ~ +70℃ Storage Humidity: 20~95% Dimension: 14x15mm (without bracket) Weight: 3.9g Razer Micro Description: Brand Name: Foxeer Item Name: Razer Micro Color: Black, Red (optional) Scale: 4:3 / 16:9 (optional) Sensor Type: 1/3 CMOS TV System: PAL / NTSC Switchable Resolution: 1200TVL FOV: 4:3 FOV-H 125°, FOV-D 150° / 16:9 FOV-H 125°, FOV-D 140° Shutter Speed: PAL: 1/25~1/10000 sec; NTSC: 1/30~1/10000 sec Video Out: CVBS Min. Illumination: 0.01Lux White Balance: Auto DNR: 3DNR WDR: 90db Day / Night Shift: EXT / Auto / Color / B&W Power Requirement: DC 4.5V~25V Language: English / Chinese / Pyccknn / Espanol / Francais / Polski / Italiano / Portugues / Japanese / Korean / Eaahnika Working Temperature: -10℃ ~ +50℃ RH90% MAX Working Humidity: 20~80% Storage Temperature: -20℃ ~ +70℃ Storage Humidity: 20~95% Dimension: 19x18.7mm (without bracket) Weight: 4.5g Razer Mini Sensor Type Sony 1/3" CMOS Sensor Tv System Resolution 1200TVL Shutter Speed PAL 1/25~1/10000 sec Video Output CVBS Analog Signal FOV-H:98° Shutter Speed Minimum Illumination 0.01Lux White Balance DAY/NIGHT EXT/Auto/Color/B&W Flight OSD Input Voltage 5V~25V Language ENGLISH / 中文 / 繁体 / PYCCKNN / ESPANOL / FRANCAIS / POLSKI / ITALIANO / PORTUGUES / 日本语 / 한국어 / EAAHNIKA Working Temperature -10°~50°C RH90% MAX Working Humidity 20~80% Storage Temperature -20°~70°C Dimension 22*22mm Consumption 140mA@5V / 64mA@12V Weight 12g(Exclude cable) Package Includes 1 x Camera; 1 x Silicon Cable; M2*4mm screws Razer PICO Description: Brand Name: Foxeer Item Name: Razer PICO Color: Black (optional) Scale: 4:3 / 16:9 (optional) TV System: PAL / NTSC Switchable Resolution: 1200TVL FOV: 4:3 FOV-H 125°, FOV-D 160° / 16:9 FOV-H 125°, FOV-D 145° Shutter Speed: PAL: 1/25~1/10000 sec; NTSC: 1/30~1/10000 sec Video Out: CVBS Min. Illumination: 0.01Lux White Balance: Auto DNR: 3DNR WDR: 90db Day / Night Shift:  Auto Power Requirement: DC 4.5V~25V Language: English / Chinese / Pyccknn / Espanol / Francais / Polski / Italiano / Portugues / Japanese / Korean / Eaahnika Working Temperature: -20℃ ~ +50℃ RH90% MAX Working Humidity: 20~80% Storage Temperature: -20℃ ~ +70℃ Storage Humidity: 20~95% Dimension: 12*12*13(H)mm (without b
