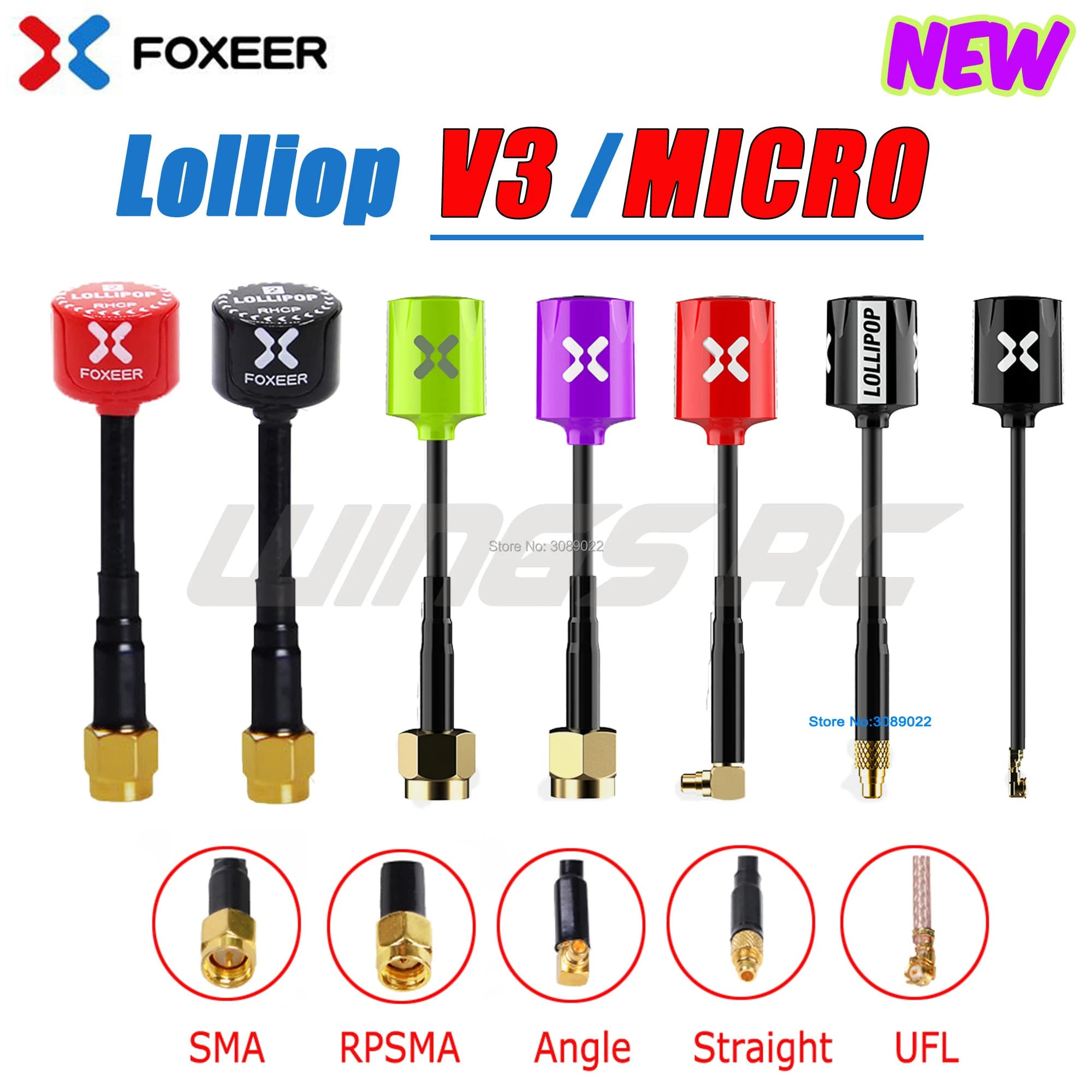

Upgraded Version Foxeer Antenna MICRO Lollipop V4 / V3 FPV Antenna 5.8G 2.3Dbi Omni RHCP SMA RPSMA UFL MMCX For FPV Racing Drone
56 orders (reference)
Description

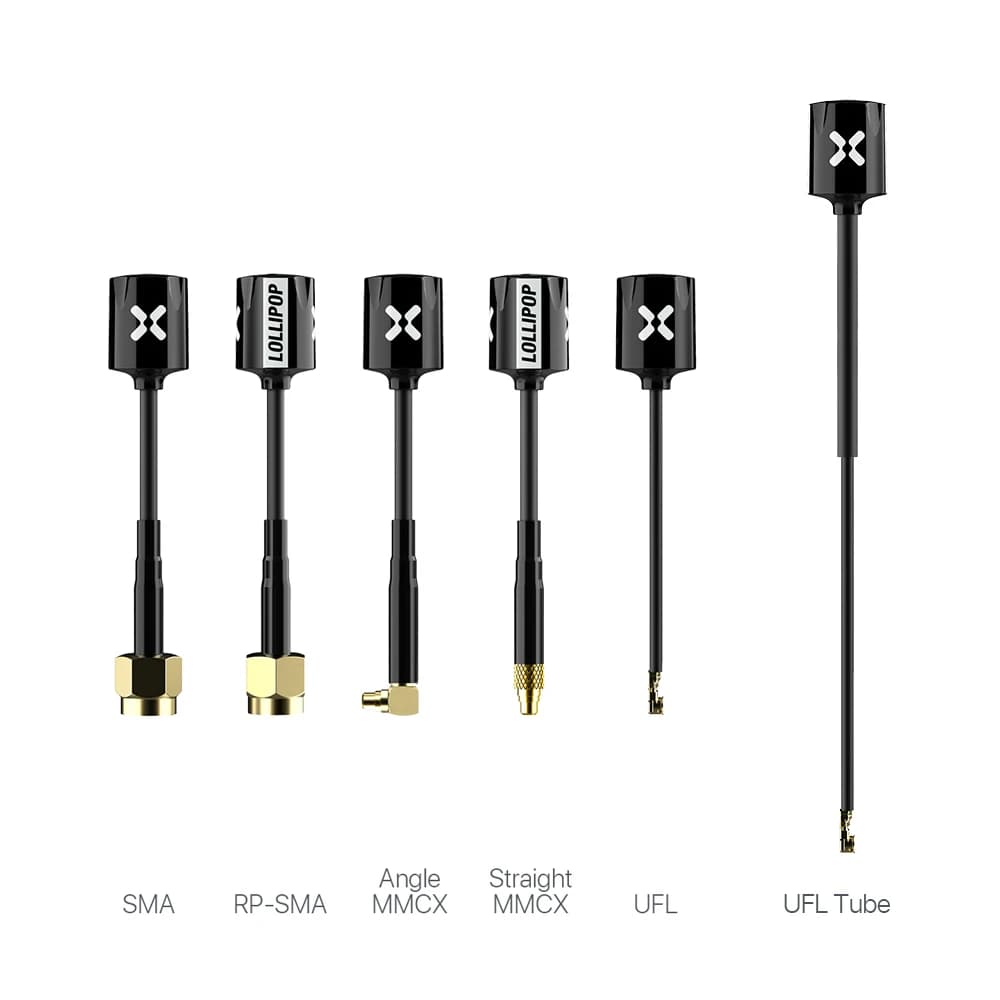

Upgraded Version Foxeer Antenna MICRO Lollipop V4 / V3 FPV Antenna 5.8G 2.3Dbi Omni RHCP SMA RPSMA UFL MMCX For FPV Racing Drone ============================================================ Description: Brand name: Foxeer Item number: Micro Lollipop Center frequency: 5.8 GHz Gain: 2.5 Dbi Axial ratio: Close to 1 Bandwidth: 5.5-6 GHz Radiation efficiency: 98% V.SWR: 1.07 in center frequency Connector: SMA/RP-SMA/Angle MMCX/Straight MMCX/U.FL Weight: SMA & RP-SMA 4.7g/Angle MMCX 3.2g/Straight MMCX 3.1g/U.FL 1.6g (Optional) Dimension(mm): Ф11*65 Cable length(mm): 51 Polarization: RHCP Shell material: PC + ABS Color: Purple,Black,Green, Red (Optional) Cable: RG178,SFX086 Package includes: 2pcs/pack Features: * Body adopt imported PC+ABS material, can withstand high strength impact. * IRoot reinfircement design 360° protection. *Flexible cable,easy to bent and install. *Customed MMCX angle connector,compatible with DJI AIR Unit. Note: 1PCS selection of friends,Because the factory packaging is 2PCS, the antenna you receive may not have foxeer box. If it is acceptable then you can choose to buy it.thanks Package Included: 1PCS or 2PCS Foxeer Lolliop V3 or MICRO 5.G Antenna (according to buyer's choice) Send according to your choice Package Included: 1PCS or 2PCS Foxeer Antenna (according to buyer's choice) Note: 1PCS selection of friends,Because the factory packaging is 2PCS, the antenna you receive may not have foxeer box. If it is acceptable then you can choose to buy it.thanks Specification: Brand: Foxeer Item name: Foxeer Lollipop 3 V3 5.8G RHCP FPV Antenna Gain: 2.5DBi Shell Material:imported PC+ABS Center frequency:5.8GHz Polarization: RHCP Color:Black,Red,Purple,Green Bandwidth:500 MHz(5.5 - 6.0 GHz) Matching:VSWR<1.2(at center frequency) Axial Ration:<3db Center Frequency:5750MHz Radiation efficiency:98% Connector: RP-SMA / SMA/UFL/straight MMCX/ angle MMCX Length: straightMMCX / AngleMMCX:60mm SMA, RPSMA:60mm UFL :85.5mm Weight: straightMMCX :3.7g AngleMMCX:3.7g SMA, RPSMA:7.3g UFL :2.6g TECHNICAL SPECIFICATIONS • Weight: SMA & RP-SMA 4.7g/Angle MMCX 3.2g/Straight MMCX 3.1g/U.FL 1.6g (Optional) • Length: • Weight: • Connector: SMA/RP-SMA/Angle MMCX/Straight MMCX/U.FL • Connector: RP-SMA / SMA/UFL/straight MMCX/ angle MMCX • Gain: 2.5 Dbi • Gain: 2.5DBi • Package includes: 2pcs/pack AVAILABLE OPTIONS 1pcs Red SMA V4 2pcs Red SMA V4 1pcs Red RPSMA V4 2pcs Red RPSMA V4 1pcs Black SMA V4 2pcs Black SMA V4 1pcs BLACK UFL LONG 2pcs BLACK UFL LONG 1pcs Red SMA LONG 2pcs Red SMA LONG 2pcs Red UFL V4 2pcs Black UFL V4 2pcs Red MMCX A V4 2pcs Red MMCX S V4 2pcs Black MMCX A V4 PRODUCT INFORMATION Brand: Foxeer Category: FPV Drone Wholesale Price: US $18.89 ————————————————————————————————————————
Specifications
| Attribute | Value |
|---|---|
| High-concerned chemical | None |
| Is Electric | No Battery |
| Quantity | 1 pcs |
| Wheelbase | Bottom Plate |
| Is it battery/power supply | N |
| Is it charger/adapter | N |
| Is Batteries Included | No |
| Size | 59MM |
| Technical parameters | value 3 |
| Model Number | Foxeer Lollipop 5.8G RHCP FPV Antenna |
| For Vehicle Type | Airplanes |
| Tool Supplies | Antenna |
| Four-wheel Drive Attributes | Antenna |
| Remote Control Peripherals/Devices | Antenna |
| Upgrade Parts/Accessories | Antenna |
| RC Parts & Accs | Antennas |
| Material | Composite Material |
| Brand Name | Foxeer |
| Origin | Mainland China |
| Recommend Age | 14+y |
| Use | Vehicles & Remote Control Toys |
