Flashhobby D3542EVO 3542 2820 1000KV 1250KV 1450KV RC Brushless Motor for UAV Aircraft Multicopters RC Plane Helicopter
77 orders (reference)
Description
Flashhobby D3542EVO 3542 2820 1000KV 1250KV 1450KV RC Brushless Motor for UAV Aircraft Multicopters RC Plane Helicopter ============================================================ FLASHHOBBY D3542EVO(2820) RC Brushless Motor for UAV Aircraft Multicopters RC Plane Helicopter Brushless Motor for Fixed-Wing 3D RC Drone Helicopter Airplane Parts Accessories Features: 48H Level Magnet Precision Balanced Rotor Test 14P12N High Torque Motor Design CNC 6061-T6 Aluminum Bell High RPM Imported(NSK/NMB) Bearing High Temperature Resistant Copper Wire Winding Weight: 136g(Including wires) Motor Size: 35.3 x42mm Shaft Size: 5.0*61.5mm Motor Mount: 19*25mm(M3*4) Configuration: 12N14P KV Value: 1000KV, 1250KV,1400KV or customed KV Working Temperature Range:-0℃~+80℃ Control Method:Use ESC And Adjust PWM signal For Control,PWM Adjustment Range 900- 2100US Motor Type: Outrunner Brushless Motor,Three-phase Motor KV: 1000KV Max watts: 585.2W Max Current: 50.28A No Load current: 2.05A/10V Resistance: 34.4mΩ Battery: 3-4S Lipo Suggested Prop: 13 inch prop KV: 1250KV Max watts: 961.7W Max Current: 62.94A No Load current: 2.66A/10V Resistance: 24.0mΩ Battery: 3-4S Lipo Suggested Prop: 10 inch prop KV: 1400KV Max watts: 613.4W Max Current: 53.02A No Load current: 3.34A/10V Resistance: 19.0mΩ Battery: 3-4S Lipo Suggested Prop: 10 inch prop TECHNICAL SPECIFICATIONS • Weight: 136g(Including wires) • Battery: 3-4S Lipo • Motor Type: Outrunner Brushless Motor,Three-phase Motor • KV: 1000KV • KV: 1250KV • KV: 1400KV AVAILABLE OPTIONS 1000KV 1250KV 1400KV PRODUCT INFORMATION Brand: FlashHobby Category: Brushless Motor Wholesale Price: US $27.52 ————————————————————————————————————————
Specifications
| Attribute | Value |
|---|---|
| High-concerned chemical | None |
| Is Electric | No Battery |
| Wheelbase | Screws |
| Is it battery/power supply | N |
| Is it charger/adapter | N |
| Is Batteries Included | No |
| Model Number | D3542EVO |
| For Vehicle Type | Airplanes |
| Tool Supplies | Battery |
| Four-wheel Drive Attributes | Motors |
| Remote Control Peripherals/Devices | Motor |
| Upgrade Parts/Accessories | Frame |
| RC Parts & Accs | Motors |
| Material | Metal |
| Origin | Mainland China |
| Recommend Age | 14+y |
| Use | Vehicles & Remote Control Toys |
| Brand Name | FLASHHOBBY |
| Weight: | 136g(Including wires) |
| Motor Size: | 35.3 x42mm |
| Shaft Size: | 5.0*61.5mm |
| Motor Mount: | 19*25mm(M3*4) |
| Configuration: | 12N14P |
| KV Value: | 1000KV, 1250KV,1400KV |
Product Details
FLASHHOBBY D3542EVO(2820) RC Brushless Motor for UAV Aircraft Multicopters RC Plane Helicopter
Brushless Motor for Fixed-Wing 3D RC Drone Helicopter Airplane Parts Accessories
Features:
48H Level Magnet
Precision Balanced Rotor Test
14P12N High Torque Motor Design
CNC 6061-T6 Aluminum Bell
High RPM Imported(NSK/NMB) Bearing
High Temperature Resistant Copper Wire Winding

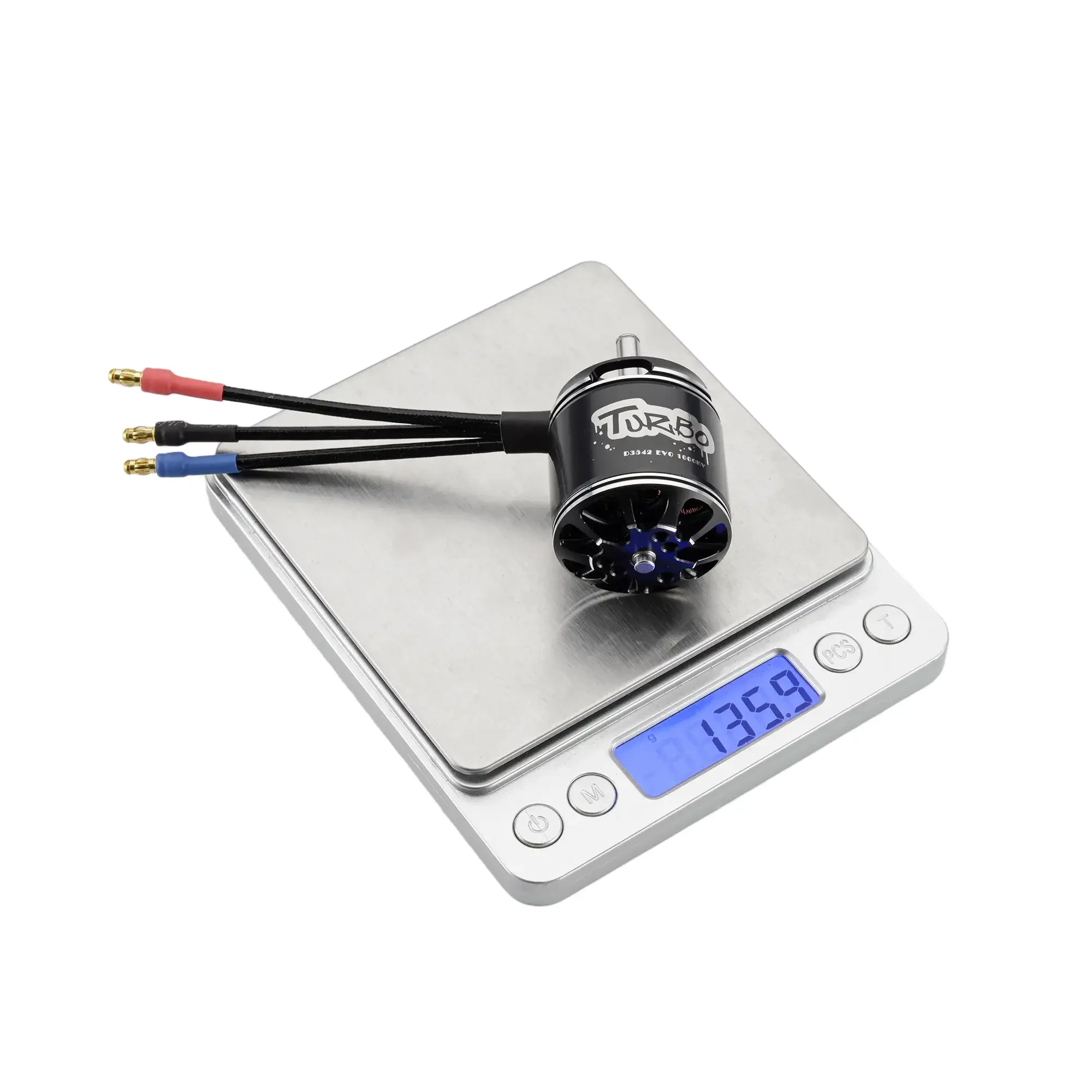

Weight: 136g(Including wires)

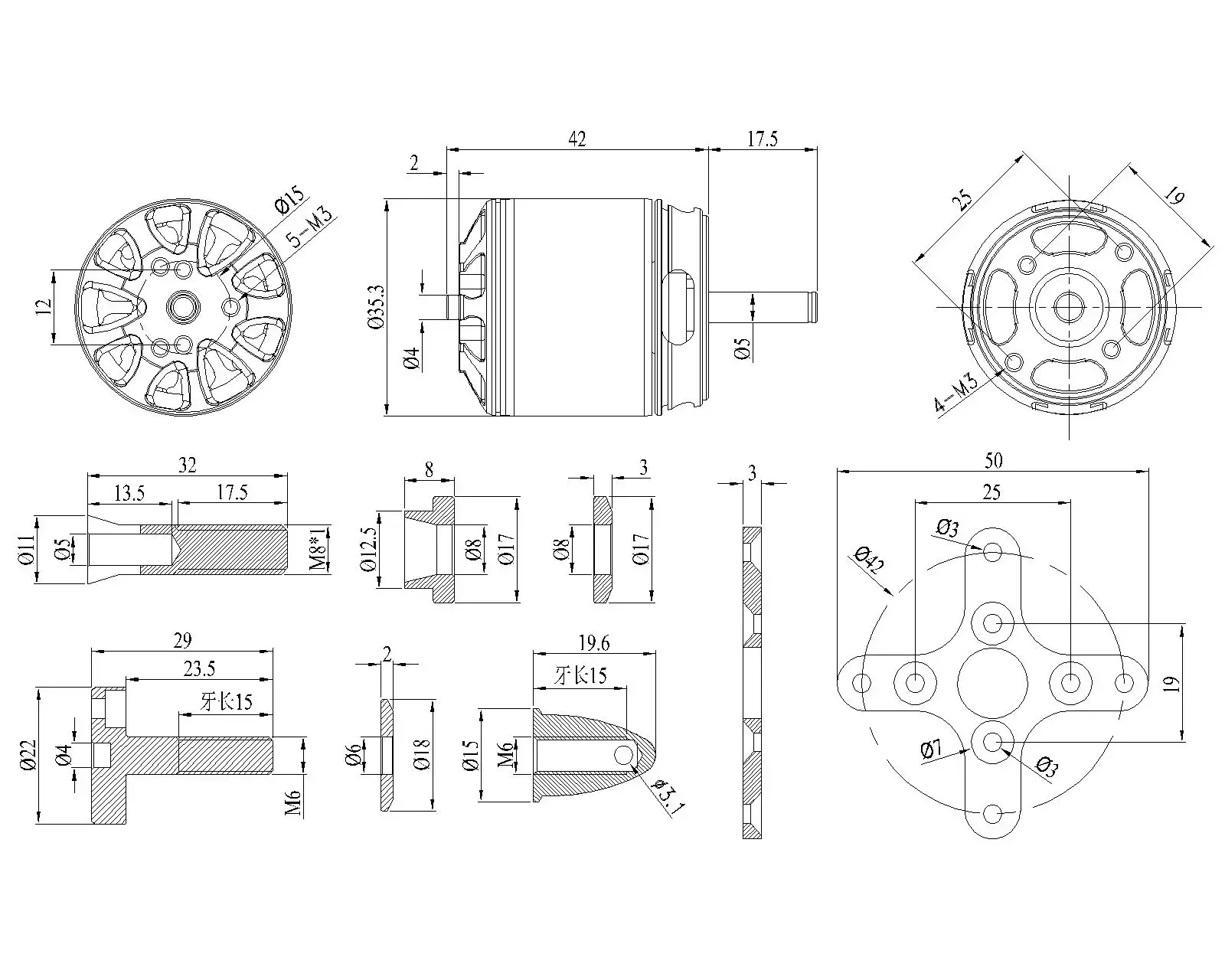

Motor Size: 35.3 x42mm
Shaft Size: 5.0*61.5mm
Motor Mount: 19*25mm(M3*4)
Configuration: 12N14P
KV Value: 1000KV, 1250KV,1400KV or customed KV
Working Temperature Range:-0℃~+80℃
Control Method:Use ESC And Adjust PWM signal For Control,PWM Adjustment Range 900- 2100US
Motor Type: Outrunner Brushless Motor,Three-phase Motor
KV: 1000KV
Max watts: 585.2W
Max Current: 50.28A
No Load current: 2.05A/10V
Resistance: 34.4mΩ
Battery: 3-4S Lipo
Suggested Prop: 13 inch prop
KV: 1250KV
Max watts: 961.7W
Max Current: 62.94A
No Load current: 2.66A/10V
Resistance: 24.0mΩ
Battery: 3-4S Lipo
Suggested Prop: 10 inch prop
KV: 1400KV
Max watts: 613.4W
Max Current: 53.02A
No Load current: 3.34A/10V
Resistance: 19.0mΩ
Battery: 3-4S Lipo
Suggested Prop: 10 inch prop
