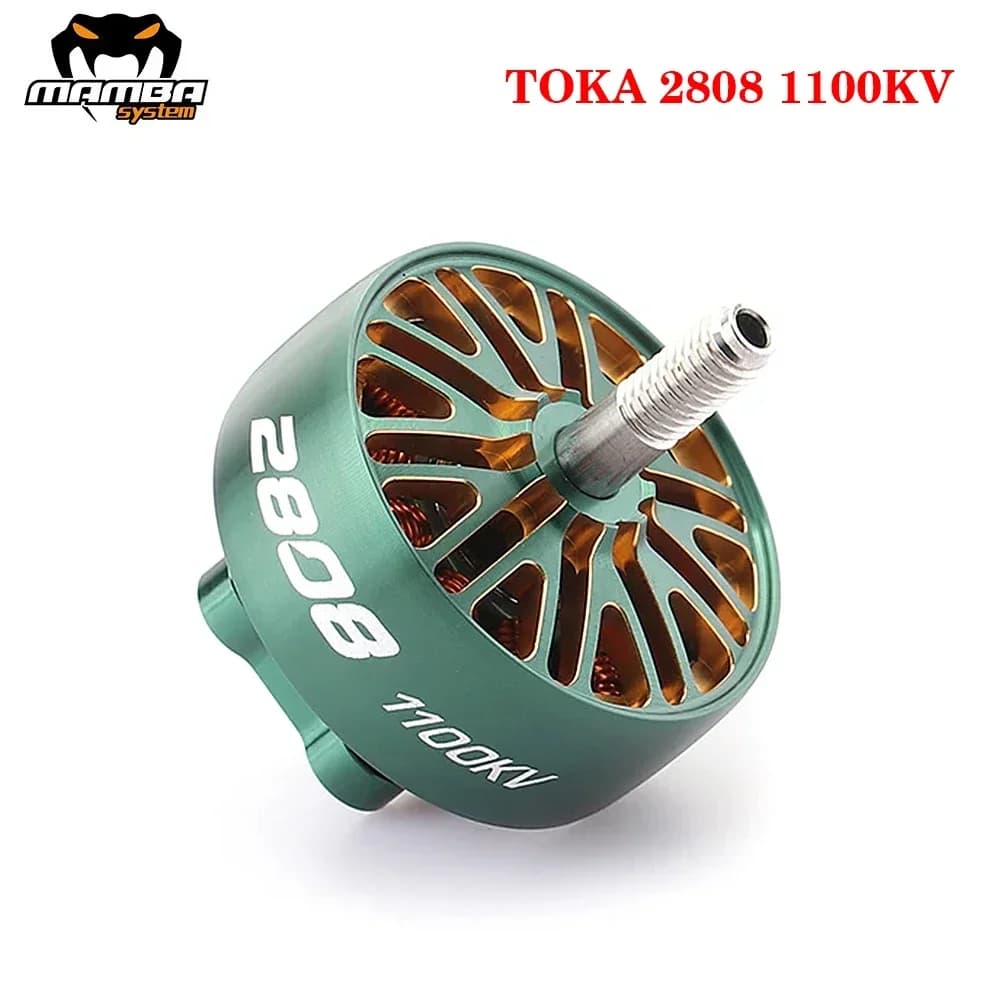

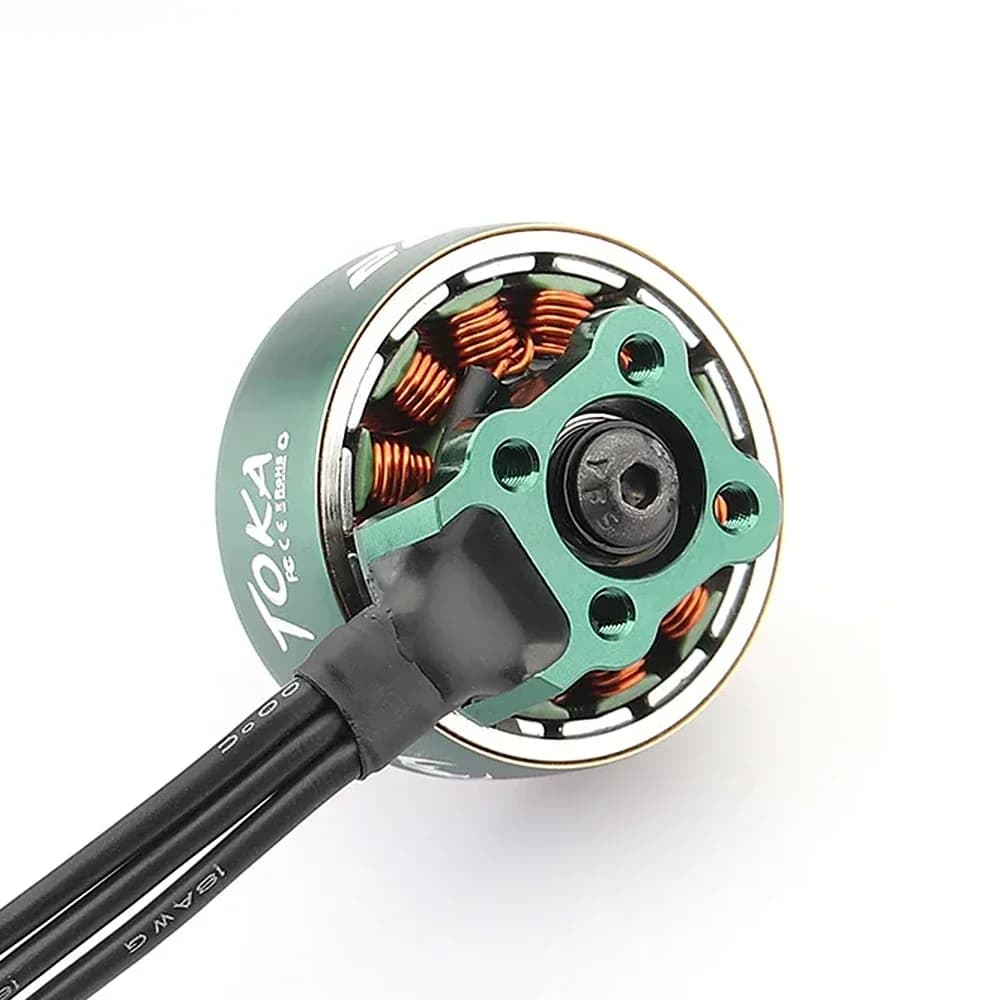

DIATONE MAMBA TOKA 2808 1100KV Brushless Motor W/ 6mm titanium alloy shaft Compatible 7inch Propeller 4-6S for FPV Racing Drone - image 1 of 4
1 / 4

DIATONE MAMBA TOKA 2808 1100KV Brushless Motor W/ 6mm titanium alloy shaft Compatible 7inch Propeller 4-6S for FPV Racing Drone

Diatone

From US $17.57
Est. US $17.57 / unit (1-9 pcs)
$16 @ 10+ pcs$15 @ 100+ pcs

84 orders (reference)

Description

DIATONE MAMBA TOKA 2808 1100KV Brushless Motor W/ 6mm titanium alloy shaft Compatible 7inch Propeller 4-6S for FPV Racing Drone ============================================================ DIATONE MAMBA TOKA 2808 1100KV Brushless Motor 6mm titanium alloy shaft Compatible 7inch Propeller 4-6S for FPV Racing Drone Name: TOKA 2808 1100KV Motor Color: Green Overall Dimension:Φ35.1×40.3mm prop mounting shaft diameter:5mm Installation hole position:16×16mm,M3 Prop: 7 inch Bottom Bearing:13*6*5 Top Bearing:10*6*4 Shaft Diameter:6.0mm Lead Wire Size:18AWG×190mm slots/poles:12N14P Magnet Wire: 240℃ Enameled Wire Stator Diamter:28mm Stator Height:8mm Rated Voltage:4~6S (16.8V~25.2V) Peak Current:38.7A ldle Current:1.2A Maximum Power: 862.5W Internal Resistance:68mΩ AVAILABLE OPTIONS Titanium 7" Black Gray Blue Red PRODUCT INFORMATION Brand: Diatone Category: Brushless Motor Wholesale Price: US $17.57 ————————————————————————————————————————

Share this product
Select options
Variant

Specifications

AttributeValue
High-concerned chemicalNone
Is ElectricNo Battery
Quantity1 pcs
WheelbaseBottom Plate
Is it battery/power supplyN
Is it charger/adapterN
Is Batteries IncludedNo
SizeNA
Technical parametersKV1100
Model NumberDIATONE MAMBA TOKA 2808 1100KV Brushless Motor
For Vehicle TypeAirplanes
Tool SuppliesAssembled class
Four-wheel Drive AttributesAssemblage
Remote Control Peripherals/DevicesMotor
Upgrade Parts/AccessoriesMAMBA TOKA 2808
RC Parts & Accs1100KV Brushless Motor
MaterialMetal
OriginMainland China
Recommend Age14+y
UseVehicles & Remote Control Toys
CertificationCE

Product Details

DIATONE MAMBA TOKA 2808 1100KV Brushless Motor 6mm titanium alloy shaft Compatible 7inch Propeller 4-6S for FPV Racing Drone

  • Name: TOKA 2808 1100KV Motor

  • Color: Green

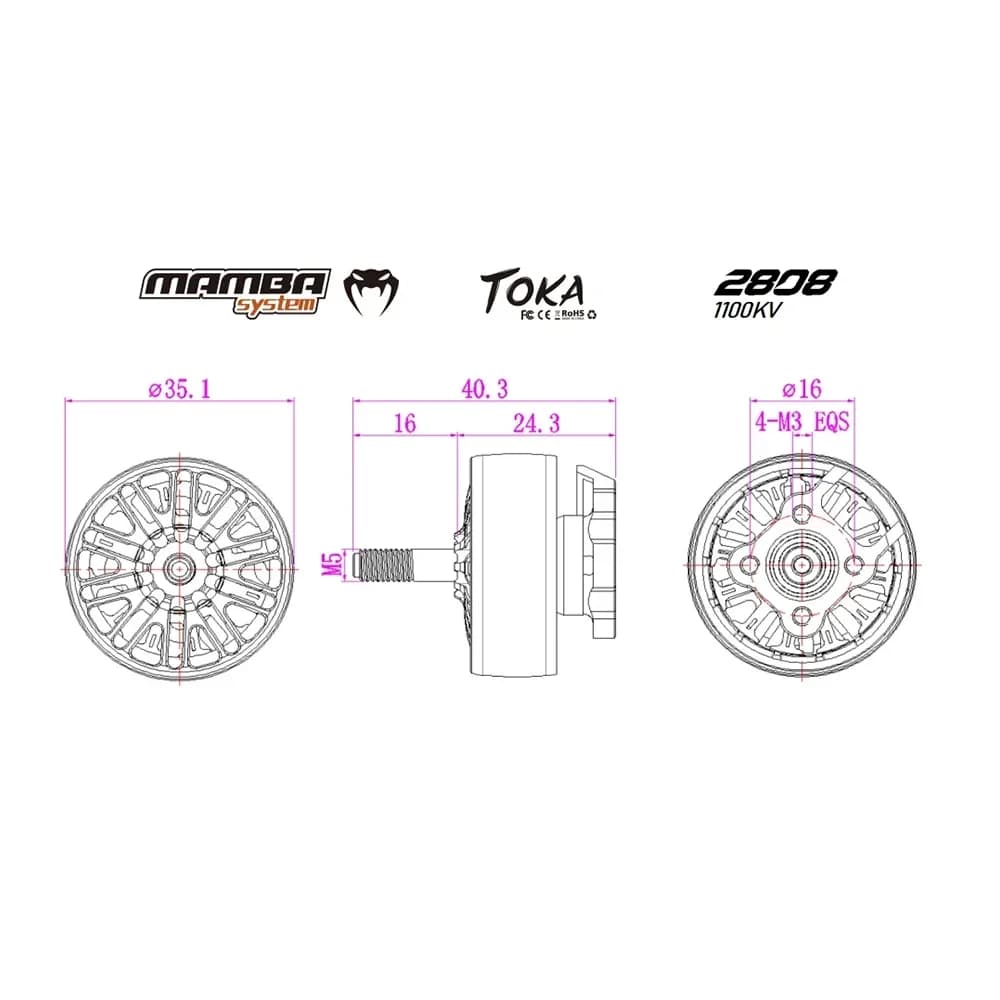

  • Overall Dimension:Φ35.1×40.3mm

  • prop mounting shaft diameter:5mm

  • Installation hole position:16×16mm,M3

  • Prop: 7 inch

  • Bottom Bearing:13*6*5

  • Top Bearing:10*6*4

  • Shaft Diameter:6.0mm

  • Lead Wire Size:18AWG×190mm

  • slots/poles:12N14P

  • Magnet Wire: 240℃ Enameled Wire

  • Stator Diamter:28mm

  • Stator Height:8mm

  • Rated Voltage:4~6S (16.8V~25.2V)

  • Peak Current:38.7A

  • ldle Current:1.2A

  • Maximum Power: 862.5W

  • Internal Resistance:68mΩ
