Diatone MAMBA TOKA 1606 3750KV 2700KV 3-6s Lipo Brushless Motor 12x12mm/M2 For RC FPV Racing Freestyle Taycan MXC Drones
9 orders (reference)
Description
Diatone MAMBA TOKA 1606 3750KV 2700KV 3-6s Lipo Brushless Motor 12x12mm/M2 For RC FPV Racing Freestyle Taycan MXC Drones ============================================================ Item: Diatone MAMBA TOKA 1606 Brushless Motor Parameters: MAMBA TOKA 1606 2700KV MOTOR Overall Dimension:Φ22.2×15mm Shaft Diameter:1.5mm Installation hole position :12×12mm,M2 Prop: 3inch~4inch Bearing: 5*2*2.5 Diameter:2mm Lead Wire Size:24AWG ×150mm Configuration:9N12P Magnet Wire: Class H,220℃ Enameled Wire Stator Diamter:16mm Stator Height:6mm Rated Voltage: 3~6S (12.6V~25.2V) Peak Current: 17.6A ldle Current:10V/0.5A Maximum Power: 409W Internal Resistance:164Ω ------------------------------------------------------------------------ MAMBA TOKA 1606 3750KV MOTOR Overall Dimension: Φ22.2×15mm Shaft Diameter:1.5mm Installation hole position:12×12mm,M2 Prop: 3inch~4inch Bearing: 5*2*2.5 Diameter:2mm Lead Wire Size:24AWG ×150mm Configuration:9N12P Magnet Wire: Class H,220℃ Enameled Wire Stator Diamter:16mm Stator Height:6mm Rated Voltage: 3~4S (12.6V~16.8V) Peak Current: 21.1A ldle Current:9v/0.8A Maximum Power: 338W Internal Resistance:114Ω Package Included: Diatone MAMBA TOKA 1606 2700KV Brushless Motor x1 or Diatone MAMBA TOKA 1606 3750KV Brushless Motor x1 or Diatone MAMBA TOKA 1606 2700KV Brushless Motor x4 or Diatone MAMBA TOKA 1606 3750KV Brushless Motor x4 TECHNICAL SPECIFICATIONS • Diameter:2mm AVAILABLE OPTIONS 1PC 1606 2700KV 4PCS 1606 2700KV 1PC 1606 3750KV 4PCS 1606 3750KV PRODUCT INFORMATION Brand: Diatone Category: LiPo Battery Wholesale Price: US $80.31 ————————————————————————————————————————
Specifications
| Attribute | Value |
|---|---|
| High-concerned chemical | None |
| Is Electric | No Battery |
| Quantity | 1 pcs |
| Is it battery/power supply | N |
| Is it charger/adapter | N |
| Is Batteries Included | No |
| Size | 22.2X15mm |
| Model Number | TOKA 1606 3100KV 4300KV |
| For Vehicle Type | Airplanes |
| Tool Supplies | Assembled class |
| Four-wheel Drive Attributes | Motors |
| Remote Control Peripherals/Devices | Motor |
| RC Parts & Accs | Motors |
| Material | Metal |
| Origin | Mainland China |
| Recommend Age | 14+y,6-12Y |
| Use | Vehicles & Remote Control Toys |
| Brand Name | ALPSRC |
Product Details

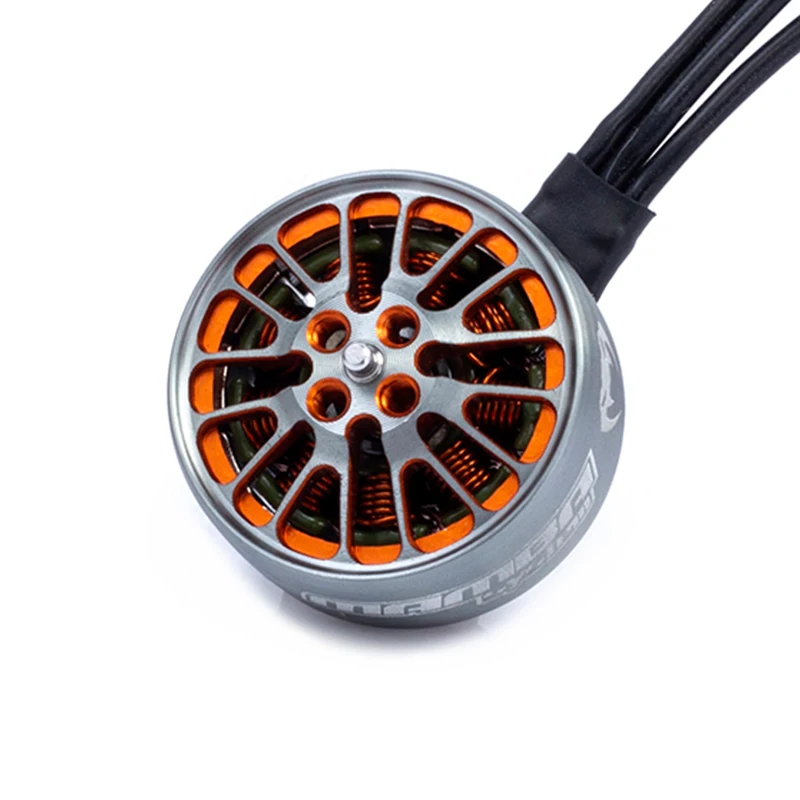

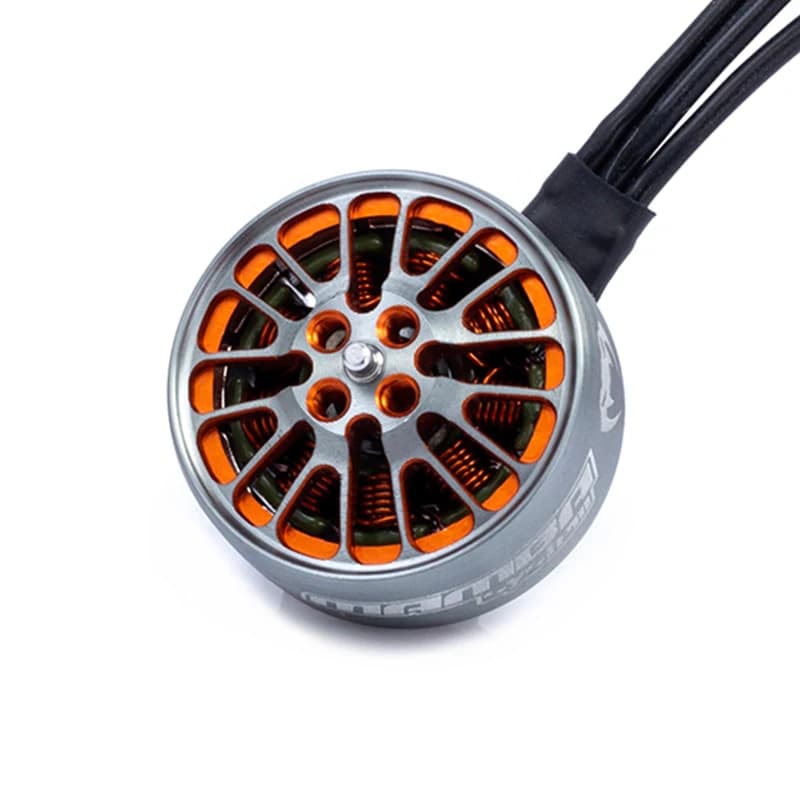

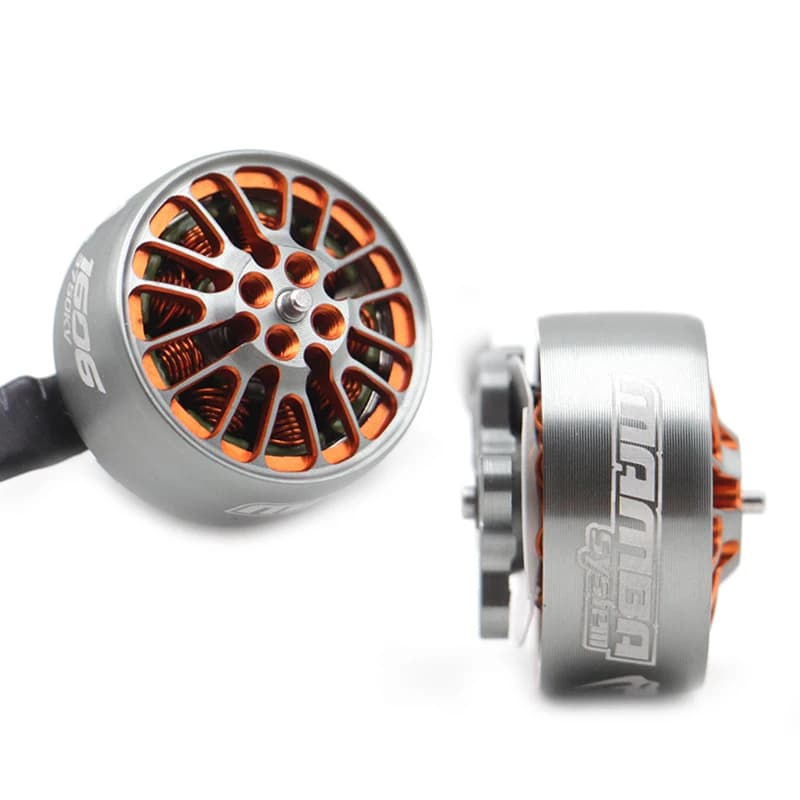

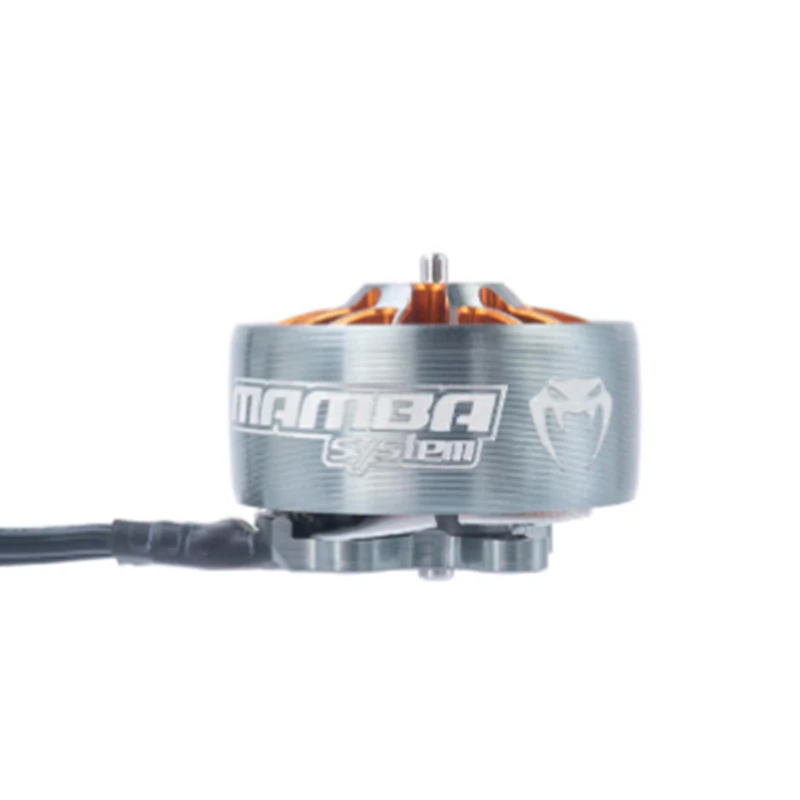

Item: Diatone MAMBA TOKA 1606 Brushless Motor
Parameters:
MAMBA TOKA 1606 2700KV MOTOR
Overall Dimension:Φ22.2×15mm
Shaft Diameter:1.5mm
Installation hole position :12×12mm,M2
Prop: 3inch~4inch
Bearing: 5*2*2.5
Diameter:2mm

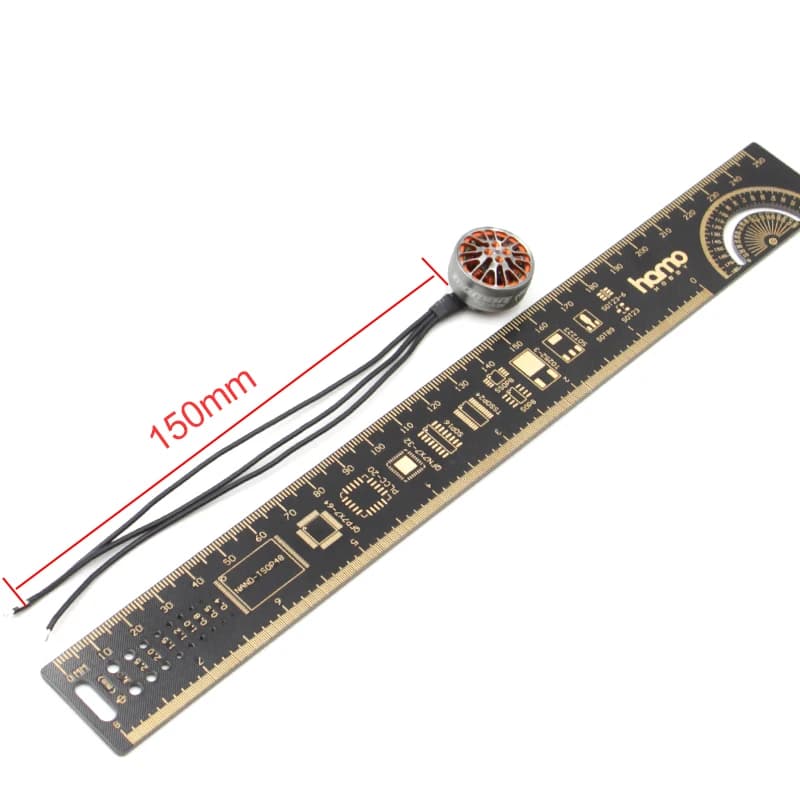

Lead Wire Size:24AWG ×150mm
Configuration:9N12P
Magnet Wire: Class H,220℃ Enameled Wire
Stator Diamter:16mm
Stator Height:6mm
Rated Voltage: 3~6S (12.6V~25.2V)
Peak Current: 17.6A
ldle Current:10V/0.5A
Maximum Power: 409W
Internal Resistance:164Ω
------------------------------------------------------------------------
MAMBA TOKA 1606 3750KV MOTOR
Overall Dimension: Φ22.2×15mm
Shaft Diameter:1.5mm
Installation hole position:12×12mm,M2
Prop: 3inch~4inch
Bearing: 5*2*2.5
Diameter:2mm
Lead Wire Size:24AWG ×150mm
Configuration:9N12P
Magnet Wire: Class H,220℃ Enameled Wire
Stator Diamter:16mm
Stator Height:6mm
Rated Voltage: 3~4S (12.6V~16.8V)
Peak Current: 21.1A
ldle Current:9v/0.8A
Maximum Power: 338W
Internal Resistance:114Ω
Package Included:
Diatone MAMBA TOKA 1606 2700KV Brushless Motor x1
or Diatone MAMBA TOKA 1606 3750KV Brushless Motor x1
or Diatone MAMBA TOKA 1606 2700KV Brushless Motor x4
or Diatone MAMBA TOKA 1606 3750KV Brushless Motor x4
