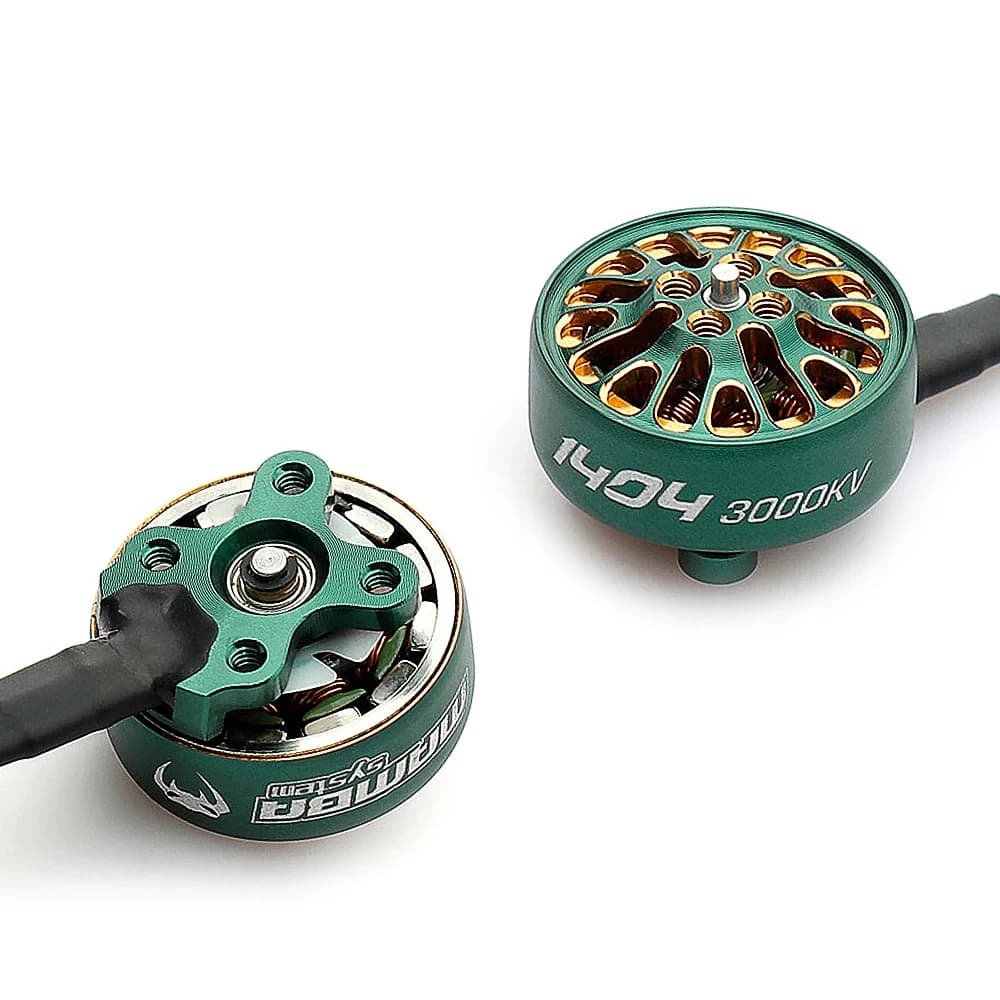

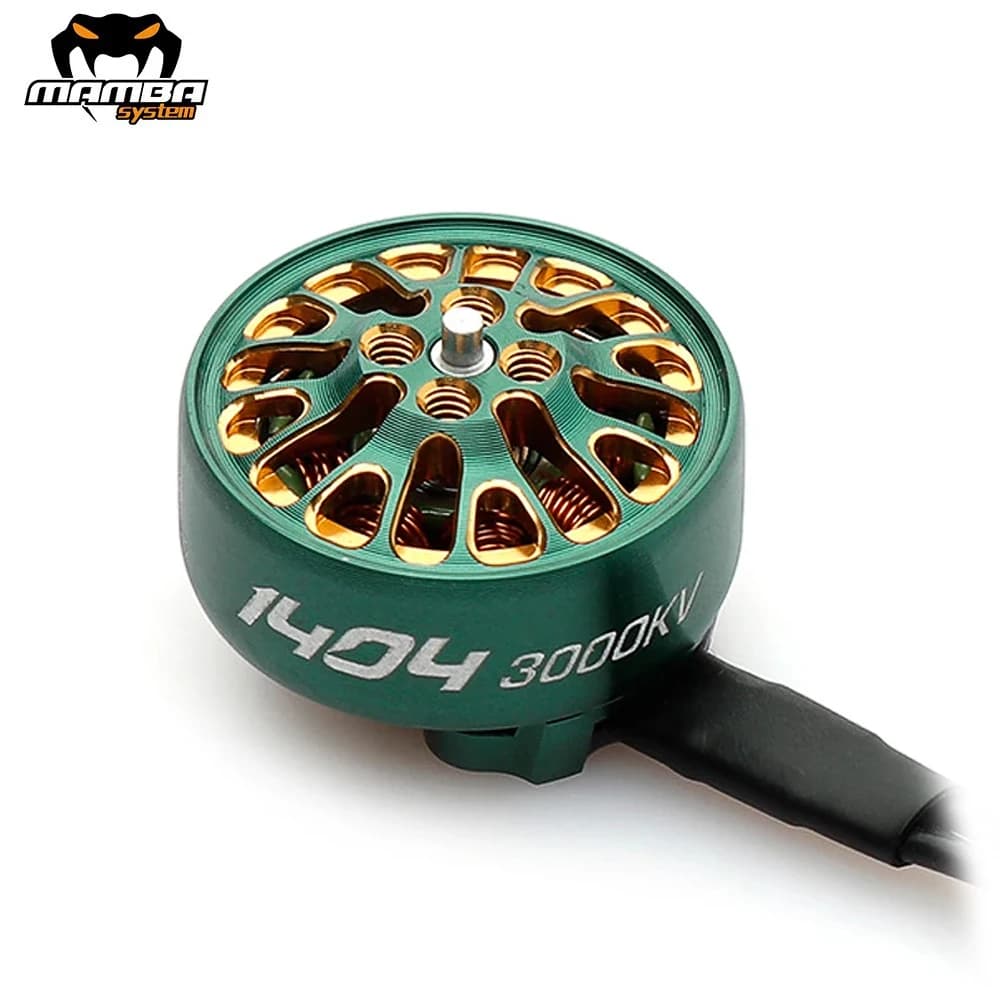

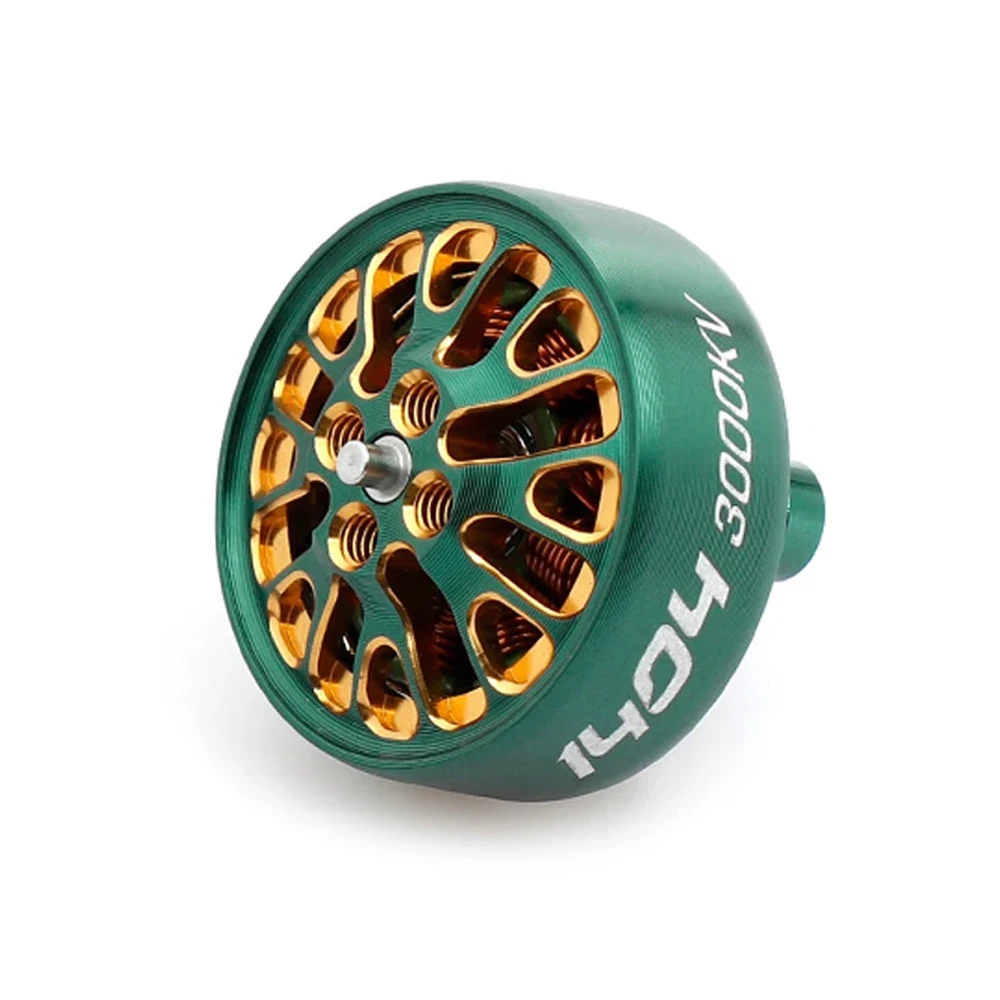

DIATONE MAMBA TOKA 1404 3000KV / 4000KV 3-6S Brushless Motor W/ 1.5mm Titanium Alloy Shaft 2.5-4inch Propeller for RC FPV Drone
4 orders (reference)
Description
DIATONE MAMBA TOKA 1404 3000KV / 4000KV 3-6S Brushless Motor W/ 1.5mm Titanium Alloy Shaft 2.5-4inch Propeller for RC FPV Drone ============================================================ DIATONE MAMBA TOKA 1404 3000KV/4000KV 3-6S Brushless Motor W/ 1.5mm Titanium Alloy Shaft 2.5-4inch Propeller for RC FPV Drone MAMBA TOKA 1404 3000KV / 4 000KV Overall Dimension:Φ20.5×15mm prop mounting shaft diameter:1.5mm Installation hole position:12×12mm,M2 Prop: 2.5inch~4inch(Toothpick) Bearing:5*2*2.5 Shaft Diameter:2mm Lead Wire Size:24AWG×150mm slots/poles:9N12P Magnet Wire: 240℃Enameled Wire Stator Diamter:14mm Stator Height:4mm Rated Voltage:(KV3000 3S~6S (12.6V~25.2V)) / (KV4000 3S~4S (12.6V~16.8V)) Peak Current: 11.95A / 13.48A ldle Current:10V/0.3~1.0A / 10V/0.5~1.2A Maximum Power: 286.8W / 215.6W Internal Resistance:310Ω / 175Ω Weight: 10.5g TECHNICAL SPECIFICATIONS • Weight: 10.5g AVAILABLE OPTIONS 1Pcs 3000KV 1Pcs 4000KV PRODUCT INFORMATION Brand: Diatone Category: Brushless Motor Wholesale Price: US $13.29 ————————————————————————————————————————
Specifications
| Attribute | Value |
|---|---|
| High-concerned chemical | None |
| Is Electric | No Battery |
| Quantity | 1 pcs |
| Wheelbase | Bottom Plate |
| Is it battery/power supply | N |
| Is it charger/adapter | N |
| Is Batteries Included | No |
| Size | N |
| Technical parameters | KV1100 |
| Model Number | DIATONE MAMBA TOKA 1404 |
| For Vehicle Type | Airplanes |
| Tool Supplies | Assembled class |
| Four-wheel Drive Attributes | Assemblage |
| Remote Control Peripherals/Devices | Remote Controller |
| Upgrade Parts/Accessories | TOKA 1404 Brushless Motor |
| RC Parts & Accs | Brushless Motor |
| Material | Metal |
| Origin | Mainland China |
| Recommend Age | 14+y |
| Use | Vehicles & Remote Control Toys |
| Certification | CE |
Product Details
- MAMBA TOKA 1404 3000KV / 4000KV
- Overall Dimension:Φ20.5×15mm
- prop mounting shaft diameter:1.5mm
- Installation hole position:12×12mm,M2
- Prop: 2.5inch~4inch(Toothpick)
- Bearing:5*2*2.5
- Shaft Diameter:2mm
- Lead Wire Size:24AWG×150mm
- slots/poles:9N12P
- Magnet Wire: 240℃Enameled Wire
- Stator Diamter:14mm
- Stator Height:4mm
- Rated Voltage:(KV3000 3S~6S (12.6V~25.2V)) / (KV4000 3S~4S (12.6V~16.8V))
- Peak Current: 11.95A / 13.48A
- ldle Current:10V/0.3~1.0A / 10V/0.5~1.2A
- Maximum Power: 286.8W / 215.6W
- Internal Resistance:310Ω / 175Ω

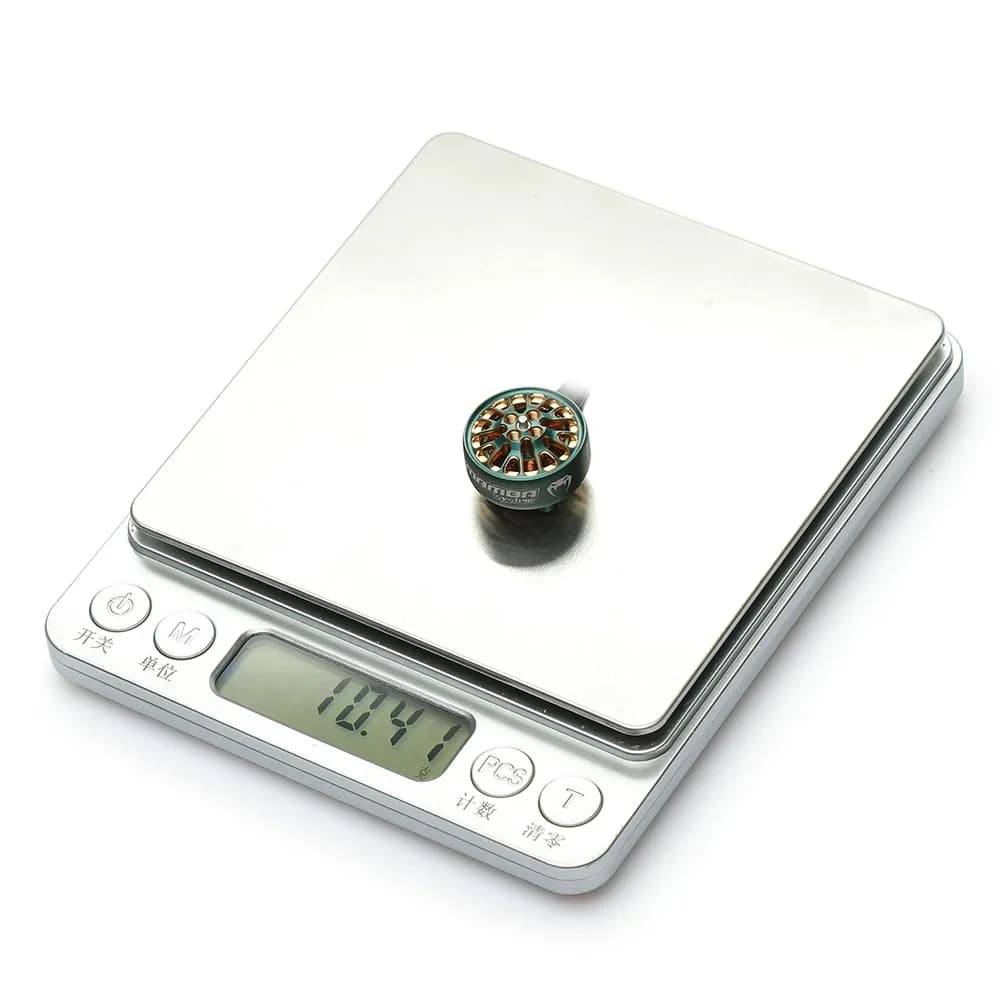

- Weight: 10.5g
