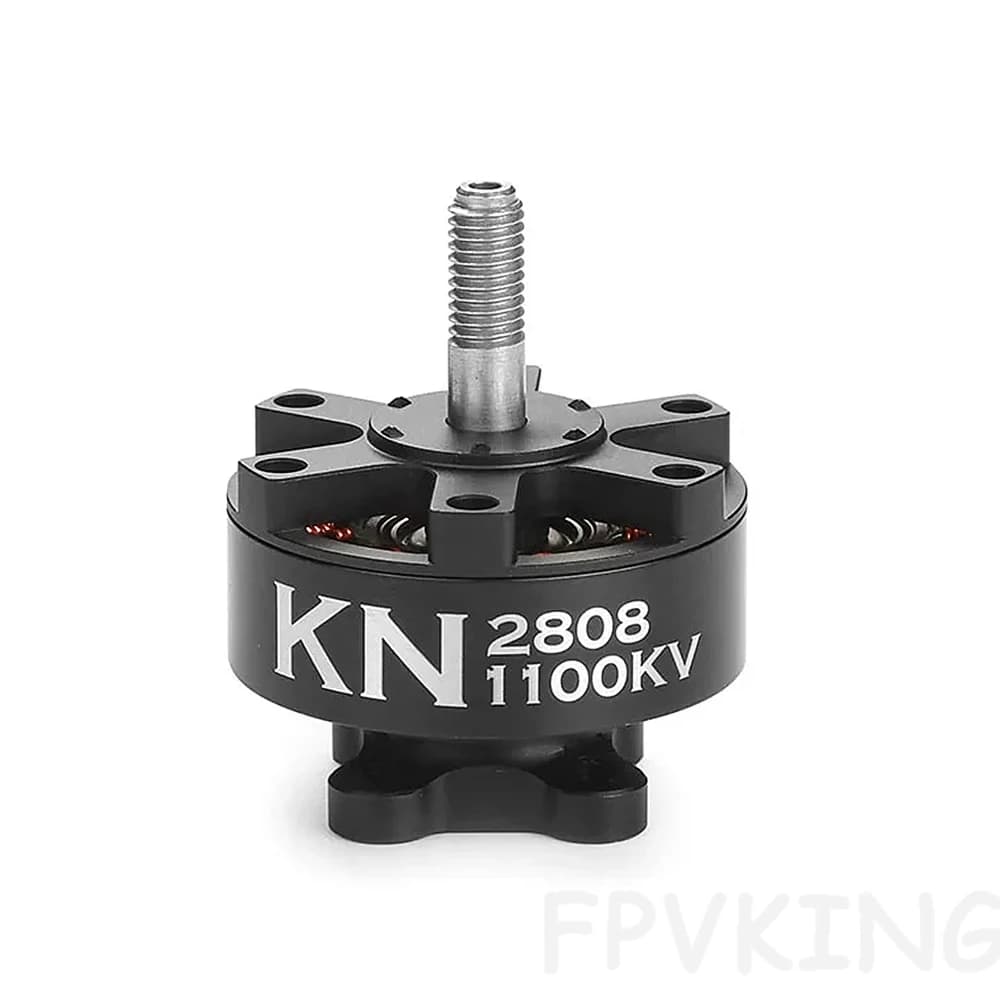

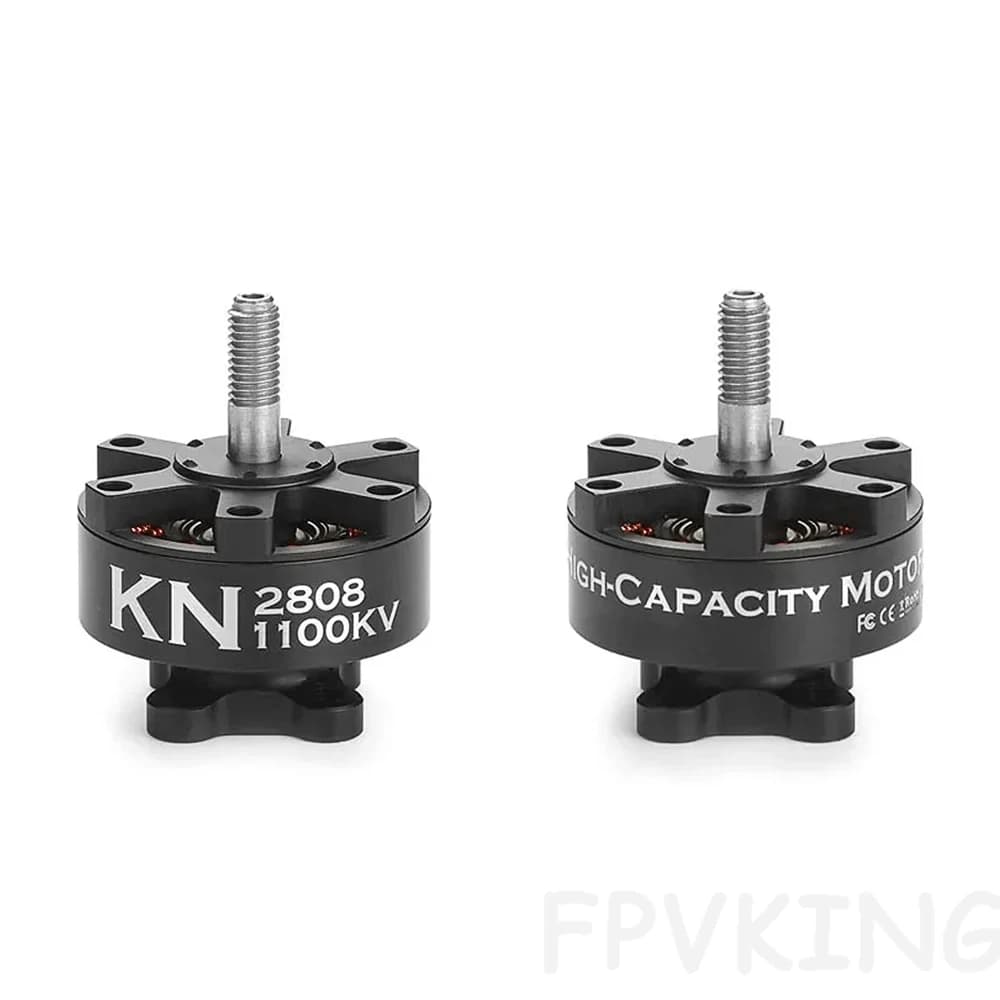

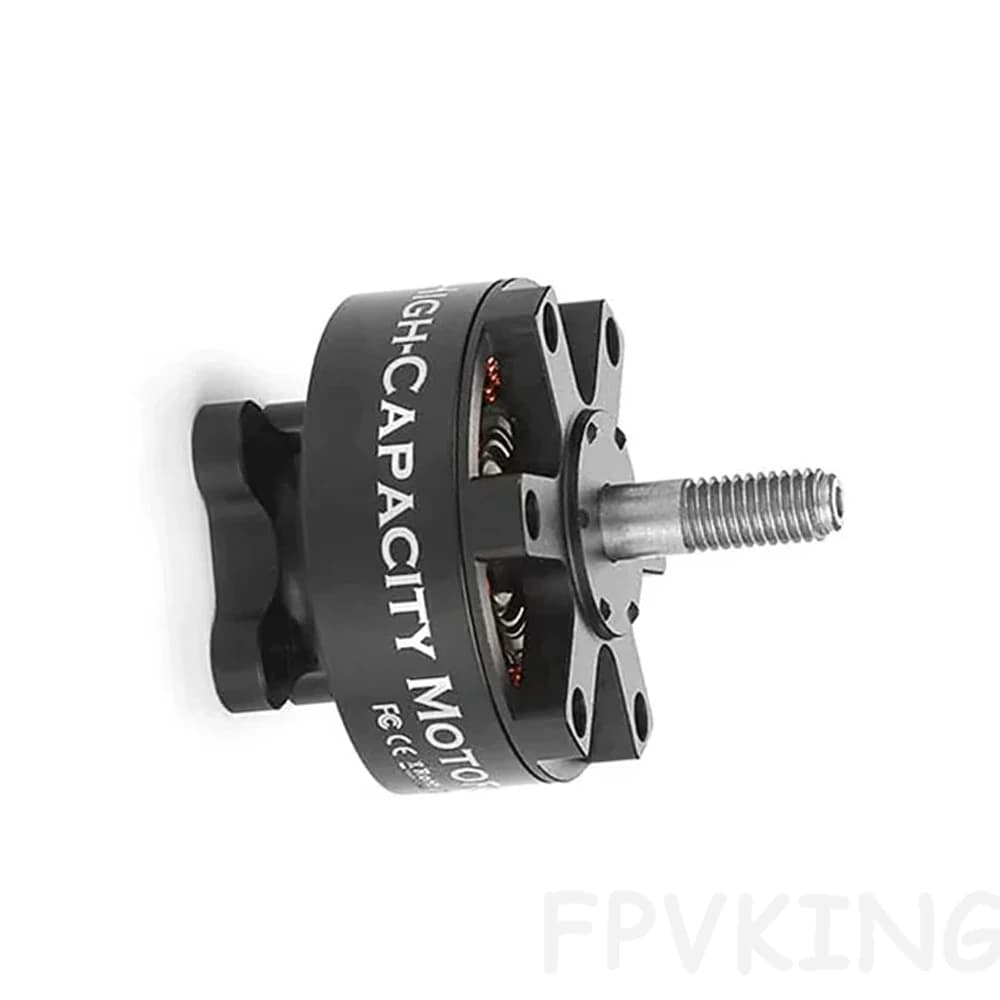

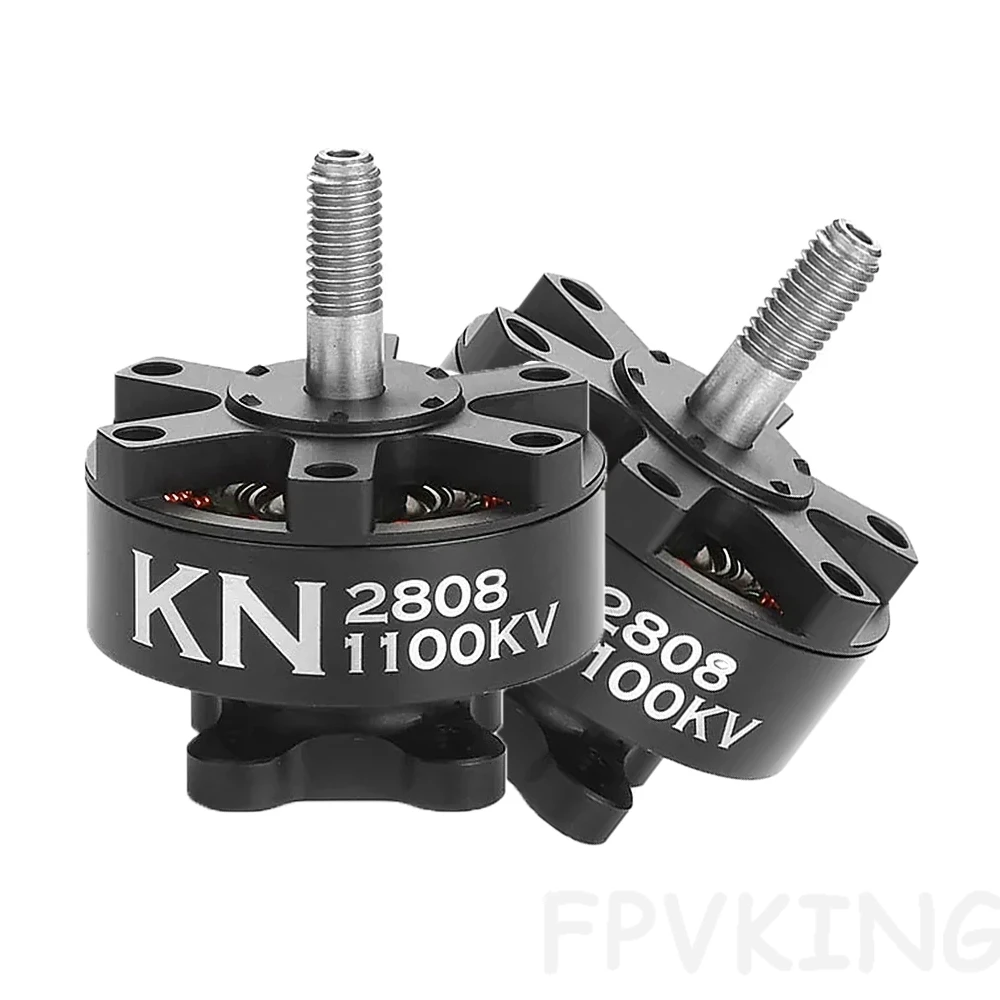

DIATONE MAMBA KN2808 1100KV Brushless Motor - 6mm Titanium Shaft for 7inch 4-6S RC FPV Racing Drone - image 1 of 6
1 / 6

DIATONE MAMBA KN2808 1100KV Brushless Motor - 6mm Titanium Shaft for 7inch 4-6S RC FPV Racing Drone

Diatone

From US $19.83
Est. US $19.83 / unit (1-9 pcs)
$18 @ 10+ pcs$17 @ 100+ pcs

1 orders (reference)

Description

DIATONE MAMBA KN2808 1100KV Brushless Motor - 6mm Titanium Shaft for 7inch 4-6S RC FPV Racing Drone ============================================================ DIATONE MAMBA KN2808 1100KV Brushless Motor W/ 6mm titanium alloy shaft Compatible 7inch Propeller 4-6S for FPV Racing Drone Description MAMBA KN 2808 1100KV Color: black Overall Dimension:Φ35.1×40.3mm prop mounting shaft diameter:5mm Installation hole position:19×19mm,M3 Prop: 7 inch Bottom Bearing:13*6*5 Top Bearing:10*6*4 slots/poles:12N14P Shaft Diameter:6.0mm Magnet Wire: 240℃ Enameled Wire Stator Diamter:28mm Stator Height:8mm Rated Voltage:4~6S (16.8V~25.2V) Peak Current:38.7A ladle Current:1.2A Maximum Power: 862.5W Internal Resistance:68mΩ Weight 63.5g AVAILABLE OPTIONS 1pcs 1100KV China Mainland PRODUCT INFORMATION Brand: Diatone Category: Brushless Motor Wholesale Price: US $19.83 ————————————————————————————————————————

Share this product
Select options
Variant

Specifications

AttributeValue
High-concerned chemicalNone
Is ElectricNo Battery
Quantity1 pcs
WheelbaseBottom Plate
Is it battery/power supplyN
Is it charger/adapterN
Is Batteries IncludedNo
SizeNA
Technical parametersKV1100
Model NumberMAMBA KN 2808 1100KV
For Vehicle TypeAirplanes
Tool SuppliesAssembled class
Four-wheel Drive AttributesAssemblage
Remote Control Peripherals/DevicesRemote Controller
MaterialMetal
OriginMainland China
Recommend Age14+y
UseVehicles & Remote Control Toys
CertificationNONE
RC Parts & AccsMotors

Product Details

DIATONE MAMBA KN2808 1100KV Brushless Motor W/ 6mm titanium alloy shaft Compatible 7inch Propeller 4-6S for FPV Racing Drone

Description

  • MAMBA KN 2808 1100KV

  • Color: black

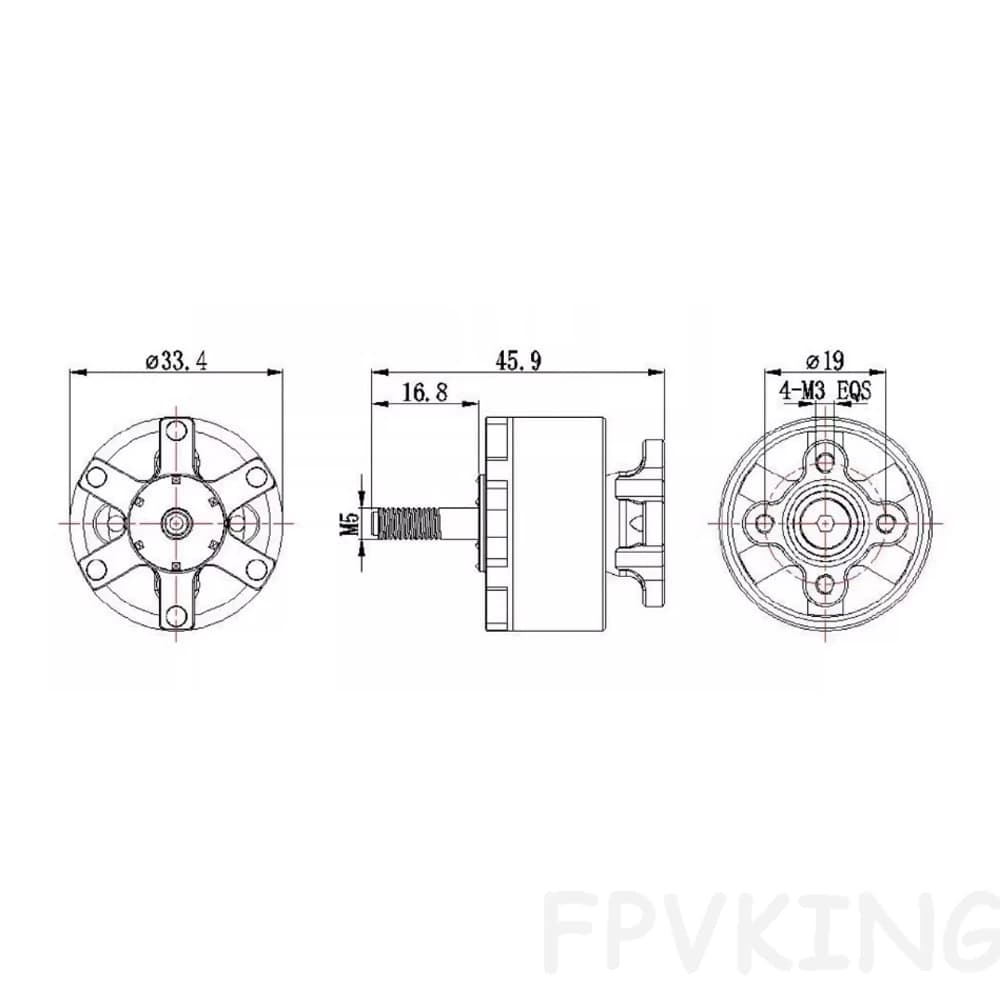

  • Overall Dimension:Φ35.1×40.3mm

  • prop mounting shaft diameter:5mm

  • Installation hole position:19×19mm,M3

  • Prop: 7 inch

  • Bottom Bearing:13*6*5

  • Top Bearing:10*6*4

  • slots/poles:12N14P

  • Shaft Diameter:6.0mm

  • Magnet Wire: 240℃ Enameled Wire

  • Stator Diamter:28mm

  • Stator Height:8mm

  • Rated Voltage:4~6S (16.8V~25.2V)

  • Peak Current:38.7A

  • ladle Current:1.2A

  • Maximum Power: 862.5W

  • Internal Resistance:68mΩ

  • Weight 63.5g
