DIATONE MAMBA MK4 F405 MINI (MPU6000) Flight Controller W/ F30/ F40_BLS/ Reactor 44 ESC Dshot 300/600/1200 3-6S For RC FPV Drone
10 orders (reference)
Description

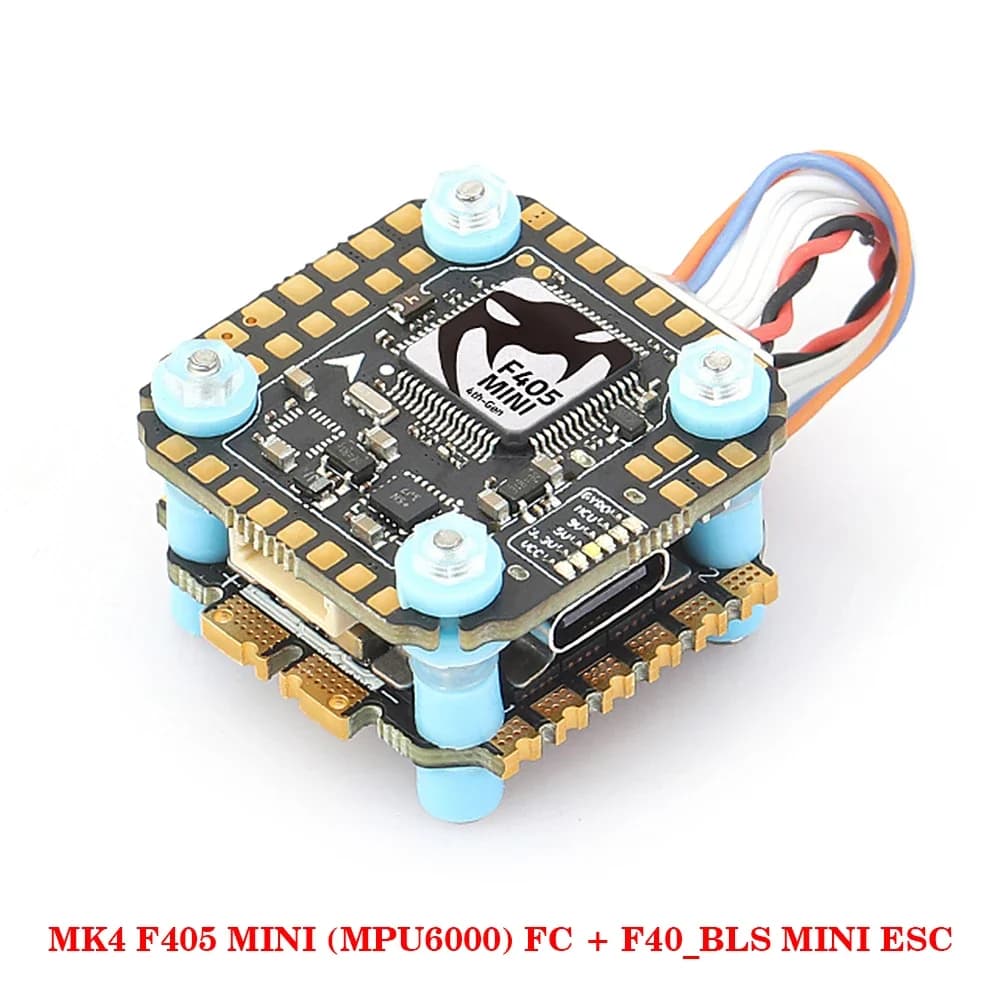

DIATONE MAMBA MK4 F405 MINI (MPU6000) Flight Controller W/ F30/ F40_BLS/ Reactor 44 ESC Dshot 300/600/1200 3-6S For RC FPV Drone ============================================================ DIATONE MAMBA MK4 F405 MINI (MPU6000) Flight Controller W/F30/ F40_BLS ESC Dshot 300/600/1200 Stack 3-6S For RC FPV Racing Drone MAMBA MK4 F405 MINI (MPU6000) ESC MCU: 168MHz STM32F405 Gyro: MPU6000 OSD: Yes Black box: 16M Flash Memory Ben: SPL06 Number of serial ports: 6SET I2C: Yes F.Port: Yes RSSI: NO Beekee: Yes Circuit: Yes ESC signal interface: 6 set ESC program: DSHOT300/600/1200 ESC Return: Yes Flying control status indicator: yes LED control switch: BF LED Sky end interface: yes Wifi: NO Picture transmission power control: yes Short -circuit protection of receiving machine: yes TVS Power Protection: Yes BEC: 3.3V 0.5A & 5V 2.5A & 9V 2A Input voltage: 3 ~ 6s Lipo (12.6 ~ 25.2V) Install holes: 20mm, m2/m3 MAMBA F30 MINI ESC Input voltage: 2 ~ 5S LIPO (8.4V ~ 21V) Rated current: 30A × 4 Peak current: 40A (10S) BEC: NO Firmware: BLHELI_S CH40 Program: DSHOT300/600 TVS Power Protection: Yes Install holes: 20mm, m2 Shipping: 8pin SH1.0 × 2 AmAss Original XT30 High -frequency capacitor 330UF/25V MAMBA F40_BLS MINI ESC Input voltage: 2 ~ 5s Lipo (8.4V ~ 25.2V) Rating current: 40A × 4 Peak current: 45A (10S) BEC: NO Firmware BLHELI_S CH40 Program: DSHOT300/600 TVS Power Protection: Yes Install holes: 20mm, m2/m3 Size: 29 × 29 × 5.5mm Shipping: 8pin SH1.0 × 2 AmAss Original XT60 High -frequency capacitor 470UF/35V MAMBA 5 Reactor 44 ESC Working voltage: 4 ~ 6S Lipo (16.8V ~ 25.2V) Work current: 44A × 4 Peak current: 54A (10S) BEC output: NO Firmware: blHELI_32 mamba5_reactor_44 Protocol: DSHOT300/600/1200/MAX2400 (FETTEC) PWM: 24 ~ 128K Installation size: 20mm, m2 Accessories: High -frequency filter capacitor 470UF/35V × 1 8Pin SH1.0 Flying Control Electrocontonal Connection × 2 AMASS XT60 power plug × 1 TECHNICAL SPECIFICATIONS • MCU: 168MHz STM32F405 • Gyro: MPU6000 • OSD: Yes • Size: 29 × 29 × 5.5mm • Firmware: BLHELI_S CH40 • Firmware: blHELI_32 mamba5_reactor_44 • Protocol: DSHOT300/600/1200/MAX2400 (FETTEC) • I2C: Yes AVAILABLE OPTIONS MK4 F405MINI MPU6000 Reactor 44 ESC PRODUCT INFORMATION Brand: Diatone Category: FPV Drone Wholesale Price: US $64.00 ————————————————————————————————————————
Specifications
| Attribute | Value |
|---|---|
| High-concerned chemical | None |
| Is Electric | No Battery |
| Quantity | 1 pcs |
| Wheelbase | Bottom Plate |
| Is it battery/power supply | N |
| Is it charger/adapter | N |
| Is Batteries Included | No |
| Size | NA |
| Technical parameters | KV1100 |
| Model Number | MAMBA MK4 F405 MINI (MPU6000) |
| For Vehicle Type | Airplanes |
| Tool Supplies | Assembled class |
| Four-wheel Drive Attributes | Assemblage |
| Remote Control Peripherals/Devices | Remote Controller |
| RC Parts & Accs | Radio Systems |
| Material | Composite Material |
| Origin | Mainland China |
| Recommend Age | 14+y |
| Use | Vehicles & Remote Control Toys |
| Certification | CE |
Product Details
-

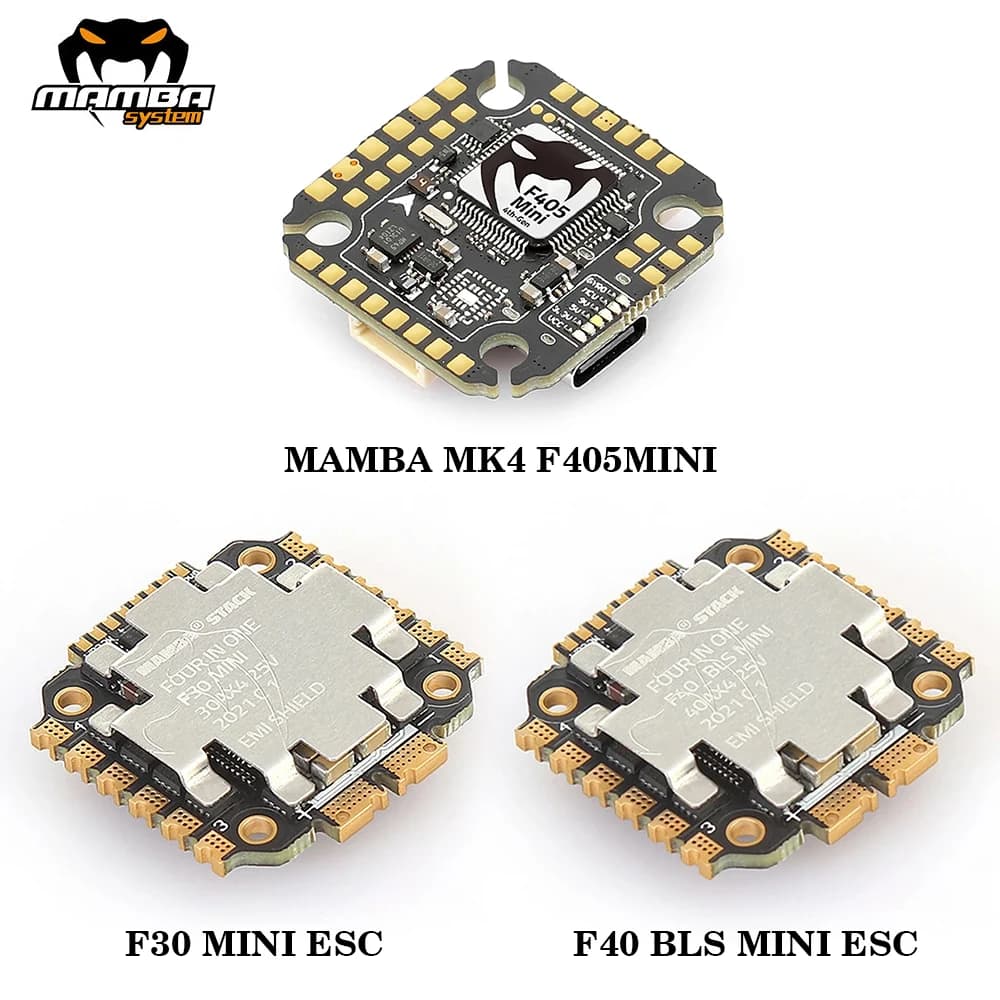

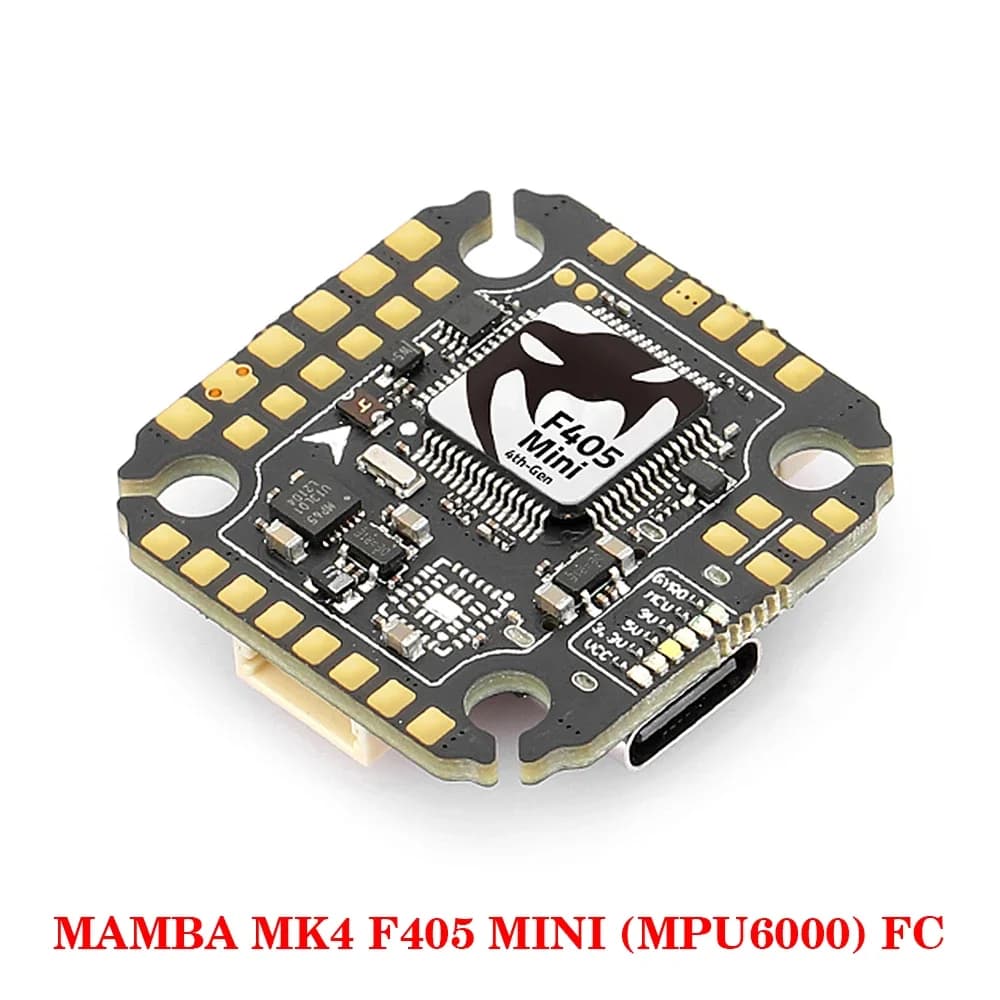

MCU: 168MHz STM32F405
-
Gyro: MPU6000
-
OSD: Yes
-
Black box: 16M Flash Memory
-
Ben: SPL06
-
Number of serial ports: 6SET
-
I2C: Yes
-
F.Port: Yes
-
RSSI: NO
-
Beekee: Yes
-
Circuit: Yes
-
ESC signal interface: 6 set
-
ESC program: DSHOT300/600/1200
-
ESC Return: Yes
-
Flying control status indicator: yes
-
LED control switch: BF LED
-
Sky end interface: yes
-
Wifi: NO
-
Picture transmission power control: yes
-
Short -circuit protection of receiving machine: yes
-
TVS Power Protection: Yes
-
BEC: 3.3V 0.5A & 5V 2.5A & 9V 2A
-
Input voltage: 3 ~ 6s Lipo (12.6 ~ 25.2V)
-
Install holes: 20mm, m2/m3
-

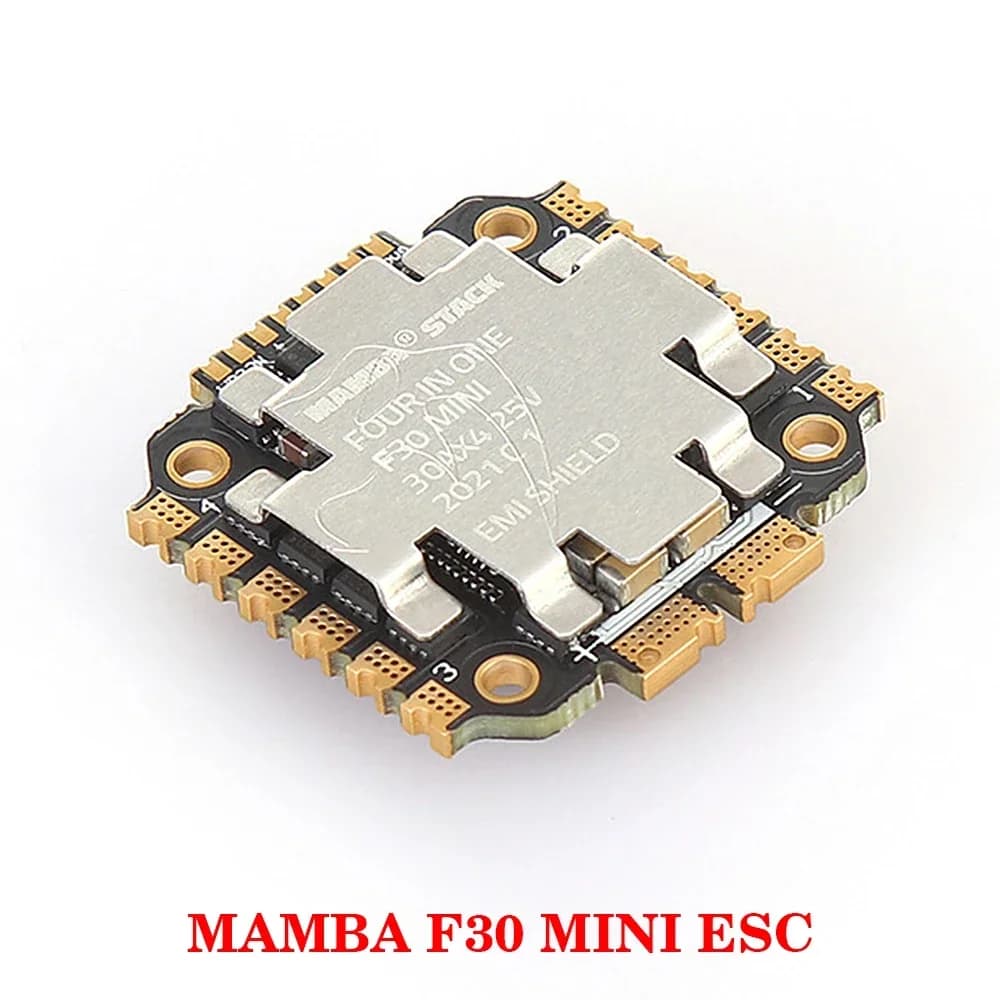

Input voltage: 2 ~ 5S LIPO (8.4V ~ 21V)
-
Rated current: 30A × 4
-
Peak current: 40A (10S)
-
BEC: NO
-
Firmware: BLHELI_S CH40
-
Program: DSHOT300/600
-
TVS Power Protection: Yes
-
Install holes: 20mm, m2
-
Shipping:
-
8pin SH1.0 × 2
-
AmAss Original XT30
-
High -frequency capacitor 330UF/25V
-

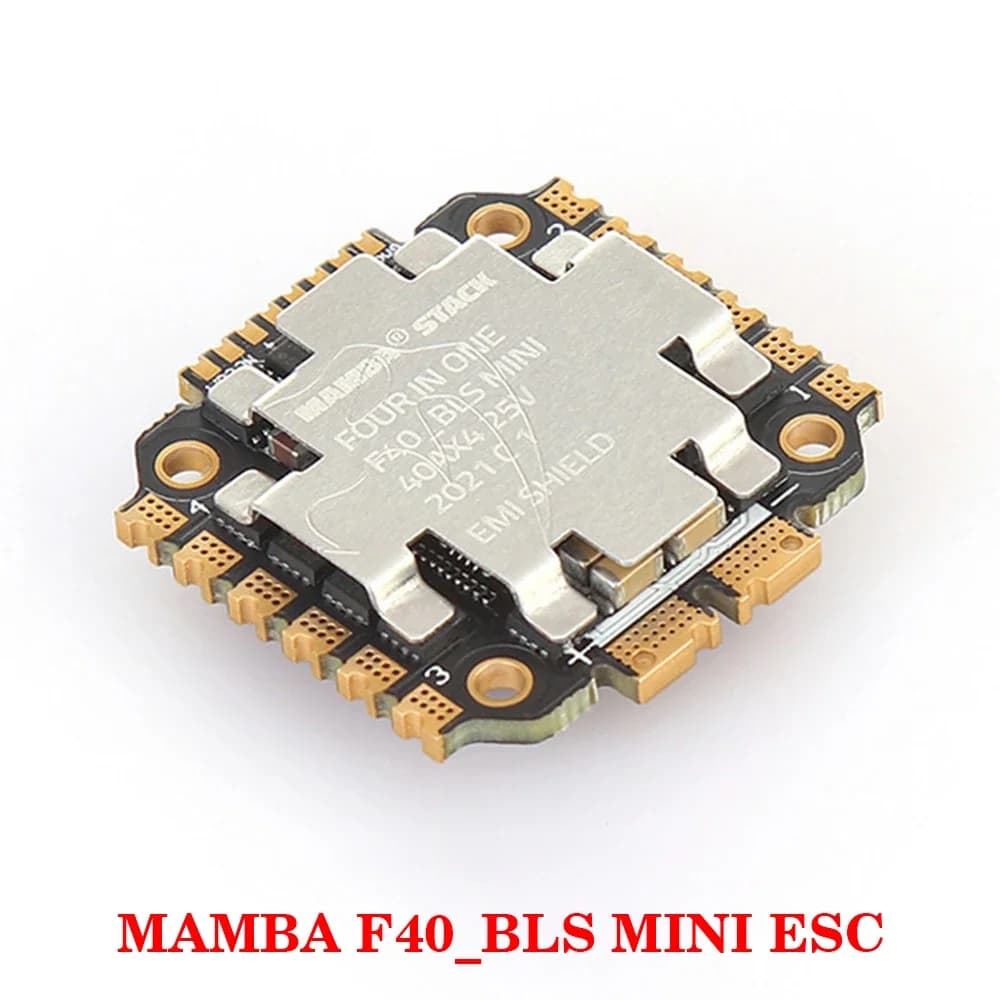

Input voltage: 2 ~ 5s Lipo (8.4V ~ 25.2V)
-
Rating current: 40A × 4
-
Peak current: 45A (10S)
-
BEC: NO
-
Firmware BLHELI_S CH40
-
Program: DSHOT300/600
-
TVS Power Protection: Yes
-
Install holes: 20mm, m2/m3
-
Size: 29 × 29 × 5.5mm
-
Shipping:
-
8pin SH1.0 × 2
-
AmAss Original XT60
-
High -frequency capacitor 470UF/35V
MAMBA 5 Reactor 44 ESC
-
Working voltage: 4 ~ 6S Lipo (16.8V ~ 25.2V)
-
Work current: 44A × 4
-
Peak current: 54A (10S)
-
BEC output: NO
-
Firmware: blHELI_32 mamba5_reactor_44
-
Protocol: DSHOT300/600/1200/MAX2400 (FETTEC)
-
PWM: 24 ~ 128K
-
Installation size: 20mm, m2
Accessories:
-
High -frequency filter capacitor 470UF/35V × 1
-
8Pin SH1.0 Flying Control Electrocontonal Connection × 2
-
AMASS XT60 power plug × 1
