DarwinFPV Waterproof Cement Series Ultra-Durable F4 60A Flight Controller Stack F435 30A / 45A AM32 AIO F4 60A MPU6000
10 orders (reference)
Description
DarwinFPV Waterproof Cement Series Ultra-Durable F4 60A Flight Controller Stack F435 30A / 45A AM32 AIO F4 60A MPU6000 ============================================================ Equipped with a 60A ESC and F4 Flight Controller, it boasts powerful performance and precise control. The optimized PCB design features a redefined layout for all connectors and soldering points, making the assembly and wiring process more convenient and compact. Additionally, with an IP67 dust and waterproof rating, it ensures stable flight performance in various harsh environments. If you're a DIY newcomer to the FPV world, overwhelmed by the myriad of similar products on the market and unsure of what to choose, consider this stack with its unique characteristics. It offers a reasonable price, low chance of later damage, and emphasizes peace of mind. Don't miss out—join the ride now! Features: 1.Our Cement series adopts the highest production and testing standards, resulting in a qualitative difference in post-use failure rates compared to similarly configured products in the market. Fans who have genuinely purchased and used it for a period all praise it. 2.With an IP67 dust and water resistance rating, it remains intact after being submerged in 0.5 meters of water for 30 minutes; 3. Operating at a frequency of up to 288MHz, roviding unparalleled computational prowess to ensure smooth and effortless full-configuration performance; 4. Integrated with multiple protection mechanisms such as TVS surge protection, soft-start protection, reverse connection protection, short-circuit overcurrent protection, and over-temperature protection, ensuring doubled safety; 5. Two gyroscopes, MPU6000 and ICM42688, are available; 6.. Onboard multi-level LED indicators for quick inspection of the flight controller's working status; 7. Rated at 60A with a peak of up to 80A, this ESC effortlessly drives any of the most powerful motors under 7 inches; 8. Featuring up to 38 onboard ceramic capacitors, models under 5 inches do not require electrolytic capacitors, resulting in a clean and compact installation; 9. Compared to the previous generation of Cement ESCs, the soldering pad area has been increased by 51%, making soldering easier and more reliable. Packing List(Only for Waterproof Stack ) : 1 × Cement Super Durable F4 60A Waterproof Stack 1 × 30mm ESC Wire(8P) 1 × 65mm Analog VTX Wire (4P) 1 × 65mm HD VTX Wire (6P) 1 × 65mm Receiver Wire (4P) 1 × 65mm GPS Wire (6P) 1 × XT60 1 × Power Wire 1 × 35V/1000uF Electrolytic Capacitors 4 × M3*30 Hexagon Round Head Black 304 Screws 4 × M3 Nylon Nut 1 × Stickers AVAILABLE OPTIONS F4 60A ESC F4 60A F435 45A AM32 AIO F4 60A ICM426880 F4 60A MPU6000 PRODUCT INFORMATION Brand: DarwinFPV Category: FPV Drone Wholesale Price: US $36.18 ————————————————————————————————————————
Specifications
| Attribute | Value |
|---|---|
| High-concerned chemical | None |
| Is Electric | No Battery |
| Quantity | 1 pcs |
| Is it battery/power supply | N |
| Is it charger/adapter | N |
| Is Batteries Included | No |
| Model Number | Cement Series Ultra-Durable F4 60A |
| Material | Metal |
| Origin | Mainland China |
| Recommend Age | 14+y |
| Use | Vehicles & Remote Control Toys |
Product Details
Equipped with a 60A ESC and F4 Flight Controller, it boasts powerful performance and precise control. The optimized PCB design features a redefined layout for all connectors and soldering points, making the assembly and wiring process more convenient and compact. Additionally, with an IP67 dust and waterproof rating, it ensures stable flight performance in various harsh environments.
If you're a DIY newcomer to the FPV world, overwhelmed by the myriad of similar products on the market and unsure of what to choose, consider this stack with its unique characteristics. It offers a reasonable price, low chance of later damage, and emphasizes peace of mind. Don't miss out—join the ride now!
Features:
1.Our Cement series adopts the highest production and testing standards, resulting in a qualitative difference in post-use failure rates compared to similarly configured products in the market. Fans who have genuinely purchased and used it for a period all praise it.
2.With an IP67 dust and water resistance rating, it remains intact after being submerged in 0.5 meters of water for 30 minutes;
3. Operating at a frequency of up to 288MHz, roviding unparalleled computational prowess to ensure smooth and effortless full-configuration performance;
4. Integrated with multiple protection mechanisms such as TVS surge protection, soft-start protection, reverse connection protection, short-circuit overcurrent protection, and over-temperature protection, ensuring doubled safety;
5. Two gyroscopes, MPU6000 and ICM42688, are available;
6.. Onboard multi-level LED indicators for quick inspection of the flight controller's working status;
7. Rated at 60A with a peak of up to 80A, this ESC effortlessly drives any of the most powerful motors under 7 inches;
8. Featuring up to 38 onboard ceramic capacitors, models under 5 inches do not require electrolytic capacitors, resulting in a clean and compact installation;
9. Compared to the previous generation of Cement ESCs, the soldering pad area has been increased by 51%, making soldering easier and more reliable.

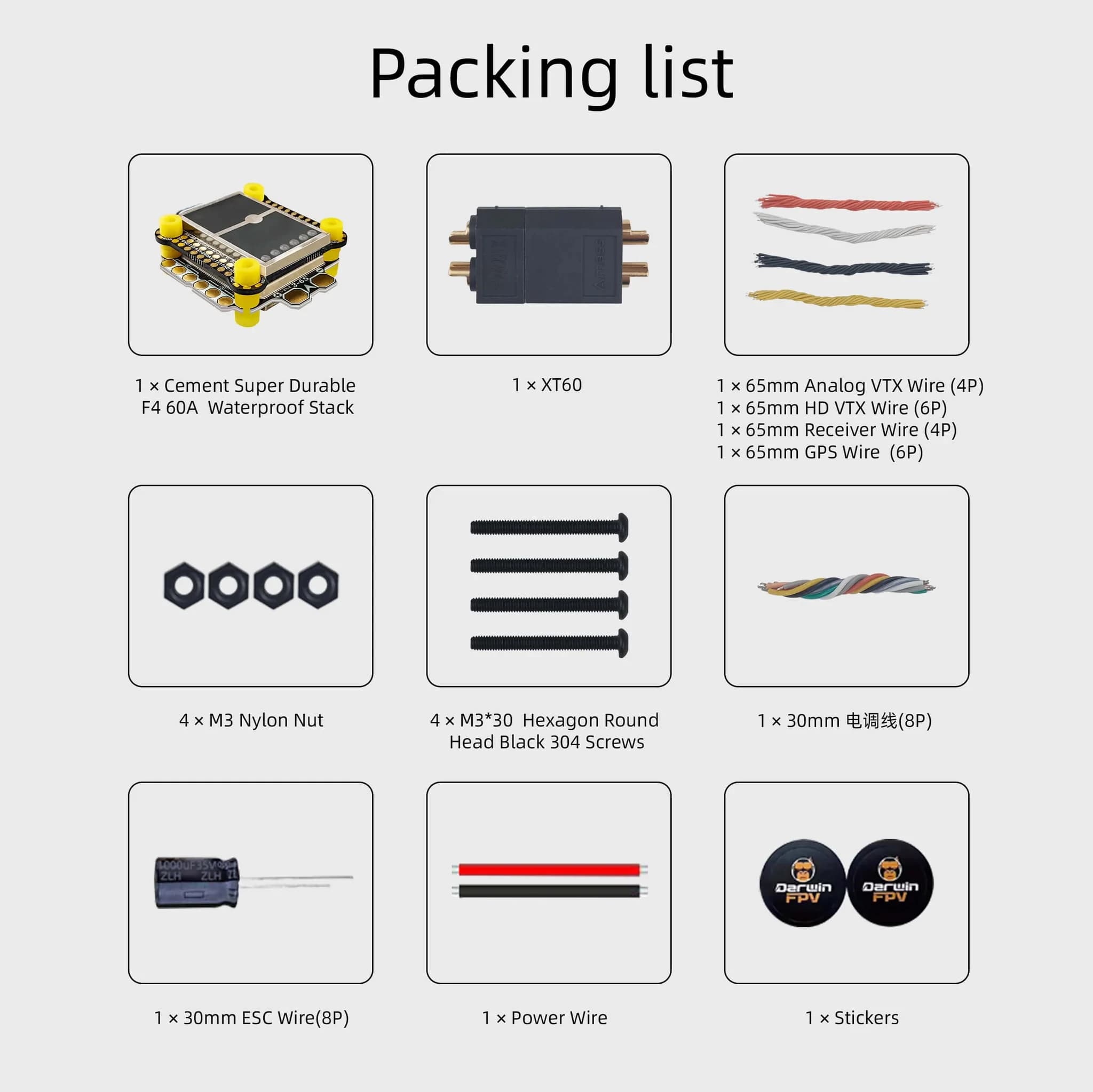

Packing List(Only for Waterproof Stack):
1 × Cement Super Durable F4 60A Waterproof Stack
1 × 30mm ESC Wire(8P)
1 × 65mm Analog VTX Wire (4P)
1 × 65mm HD VTX Wire (6P)
1 × 65mm Receiver Wire (4P)
1 × 65mm GPS Wire (6P)
1 × XT60
1 × Power Wire
1 × 35V/1000uF Electrolytic Capacitors
4 × M3*30 Hexagon Round Head Black 304 Screws
4 × M3 Nylon Nut
1 × Stickers
