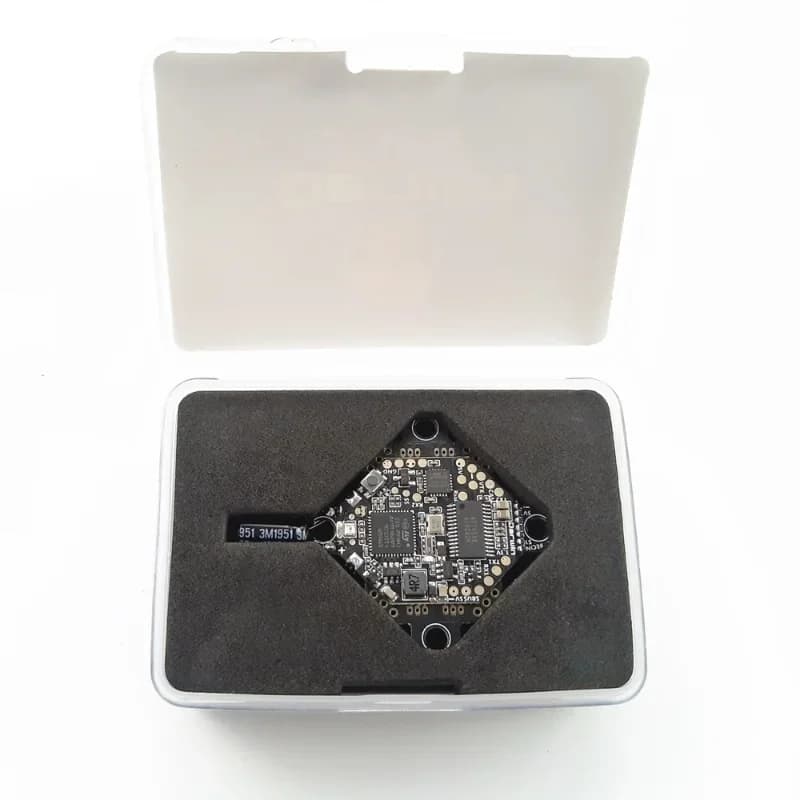

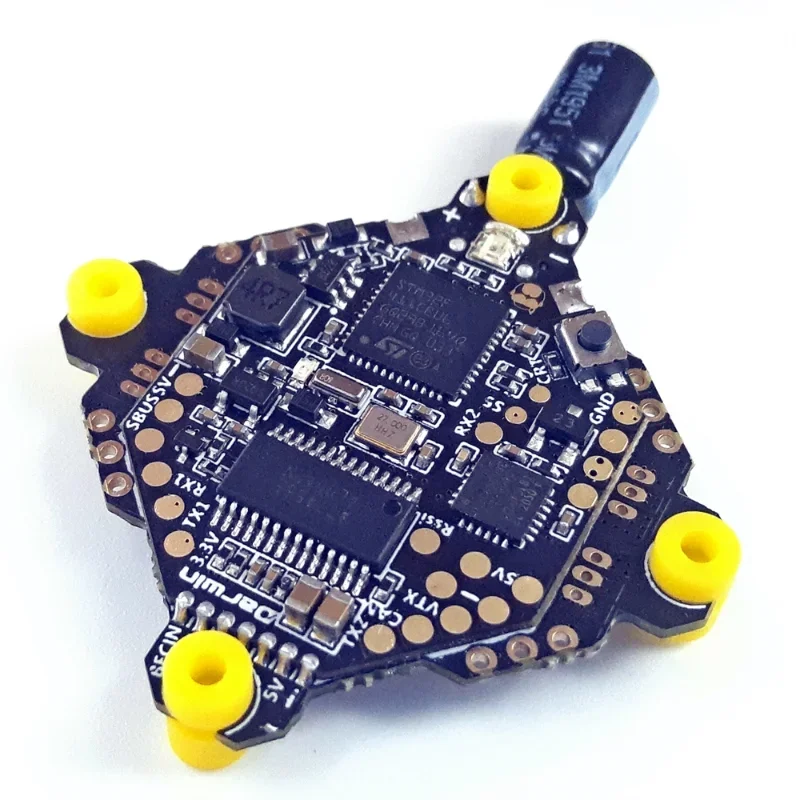

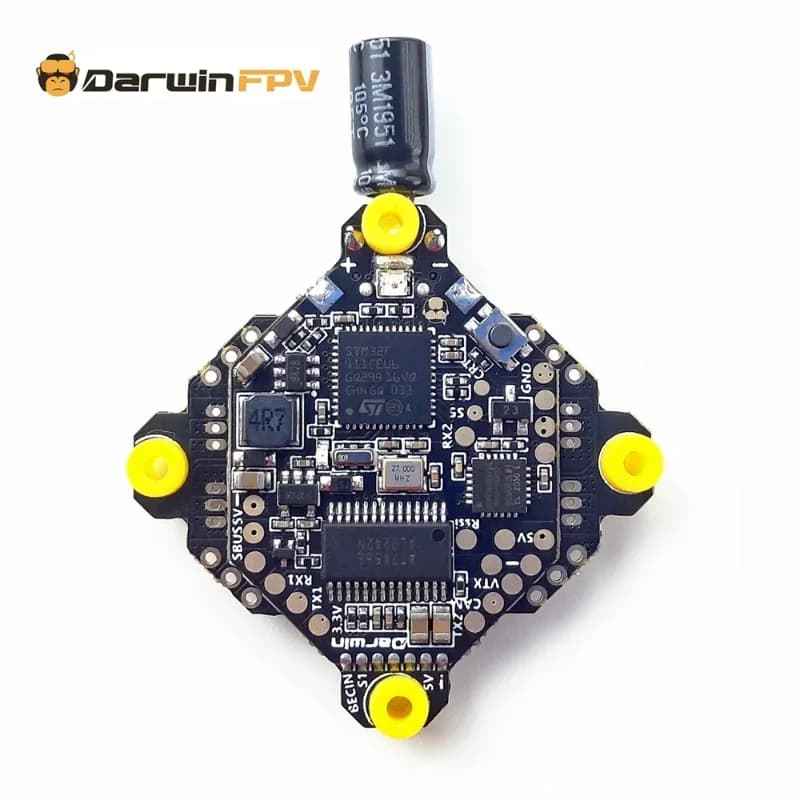

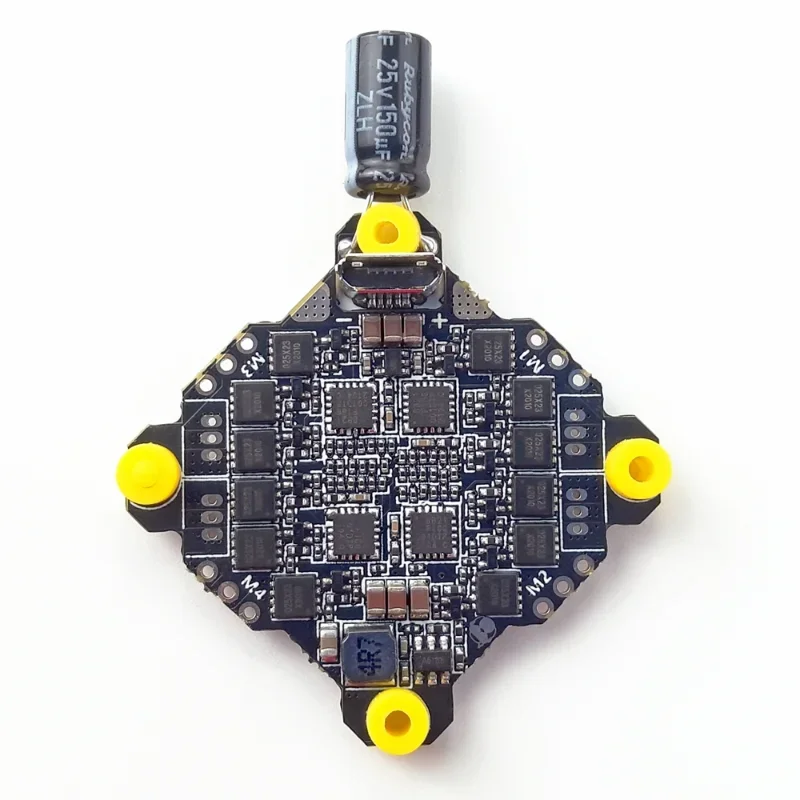

DarwinFPV F411 AIO Flight Controller Whoop Blheli_S Betaflight F4 15A OSD BEC BL_S 1-3S 4In1 ESC for RC Drone FPV Racing
42 orders (reference)
Description
DarwinFPV F411 AIO Flight Controller Whoop Blheli_S Betaflight F4 15A OSD BEC BL_S 1-3S 4In1 ESC for RC Drone FPV Racing ============================================================ Welcome to DarwinFPV shop.We are the design team from China with rich design experience in the field of FPV racing drone. We aim to provide low-cost and high-performance products for every friend in the world who loves flying. Thank you for choosing our products and wish you a happy and safe flight. F411-15A AIO ESC Specifications Input Voltage: 3.7~13V DCIN(1~3SLiPo) Constant Current: 15A Peak Current: 17A BEC Ouput: No MCU: 48MHz EFM8BB21F16G Protocol:DSHOT/Oneshot/MultiShot BLHeli_S Firmware target: S-H-50 Telemetery:No Current Sensor:No FC Specifications MCU: 100MHz STM32F411CEU6 IMU: MPU6000 or ICM20689 Baro: No Blackbox: No OSD:AT7456E 2xUarts(1,2) Built in inverter for SBUS input (UART1-RX) 1xSoftserial supported(S5) 3.7~13V DCIN(1~3SLiPo) BEC:5V 2A cont.(Max 2.5A) LDO3.3V:Max 200mA Battery Voltage Sensor: 1:10(Scale110) BetaFlight target:MATEKF411 TECHNICAL SPECIFICATIONS • MCU: 48MHz EFM8BB21F16G Protocol:DSHOT/Oneshot/MultiShot • MCU: 100MHz STM32F411CEU6 • IMU: MPU6000 or ICM20689 • OSD:AT7456E AVAILABLE OPTIONS China Mainland PRODUCT INFORMATION Brand: DarwinFPV Category: FPV Drone Wholesale Price: US $42.94 ————————————————————————————————————————
Specifications
| Attribute | Value |
|---|---|
| High-concerned chemical | None |
| Is Electric | No Battery |
| Quantity | 1 pcs |
| Is it battery/power supply | N |
| Is it charger/adapter | N |
| Is Batteries Included | No |
| Remote Control Peripherals/Devices | ESC |
| Material | Composite Material |
| Origin | Mainland China |
| Recommend Age | 14+y |
| Use | Vehicles & Remote Control Toys |
Product Details
Welcome to DarwinFPV shop.We are the design team from China with rich design experience in the field of FPV racing drone. We aim to provide low-cost and high-performance products for every friend in the world who loves flying. Thank you for choosing our products and wish you a happy and safe flight.
F411-15A AIO
ESC Specifications
Input Voltage: 3.7~13V DCIN(1~3SLiPo)
Constant Current: 15A
Peak Current: 17A
BEC Ouput: No
MCU: 48MHz EFM8BB21F16G Protocol:DSHOT/Oneshot/MultiShot
BLHeli_S Firmware target: S-H-50
Telemetery:No
Current Sensor:No
FC Specifications
MCU: 100MHz STM32F411CEU6
IMU: MPU6000 or ICM20689
Baro: No
Blackbox: No
OSD:AT7456E
2xUarts(1,2)
Built in inverter for SBUS input (UART1-RX) 1xSoftserial supported(S5)
3.7~13V DCIN(1~3SLiPo)
BEC:5V 2A cont.(Max 2.5A)
LDO3.3V:Max 200mA
Battery Voltage Sensor: 1:10(Scale110)
BetaFlight target:MATEKF411
