Description

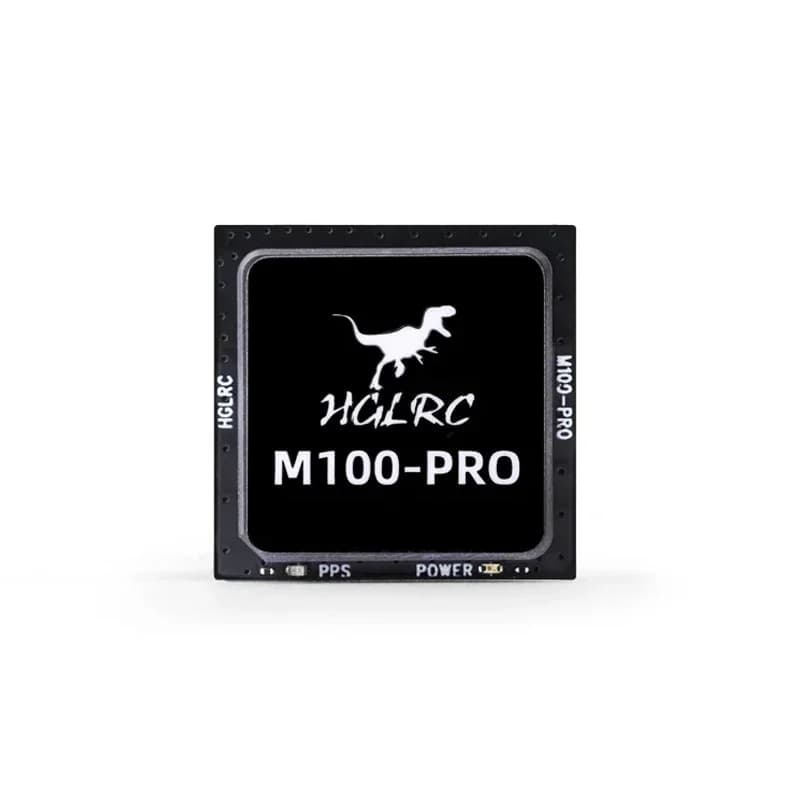

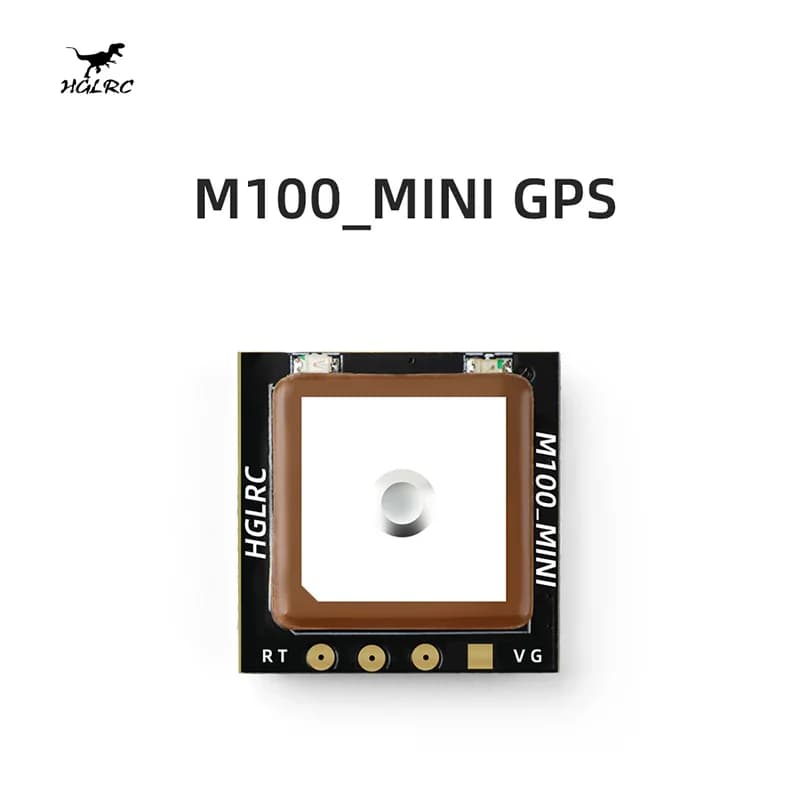

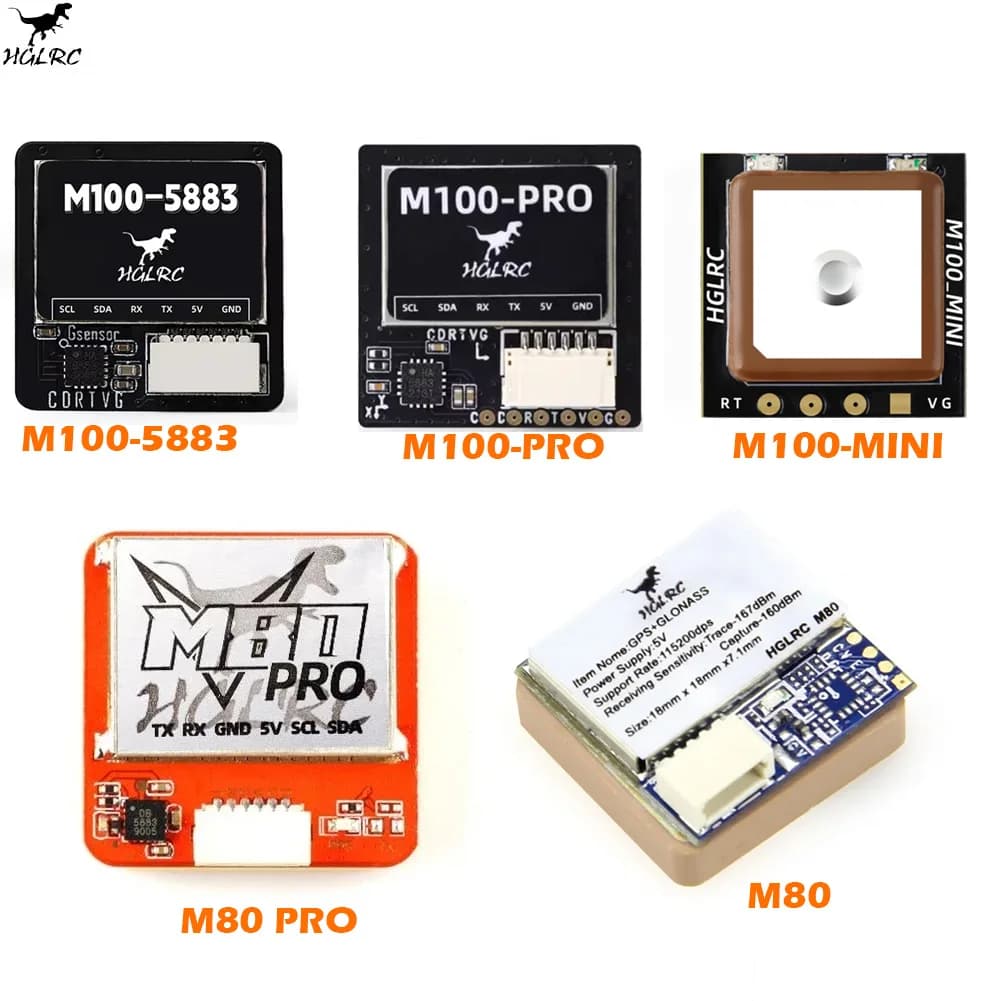

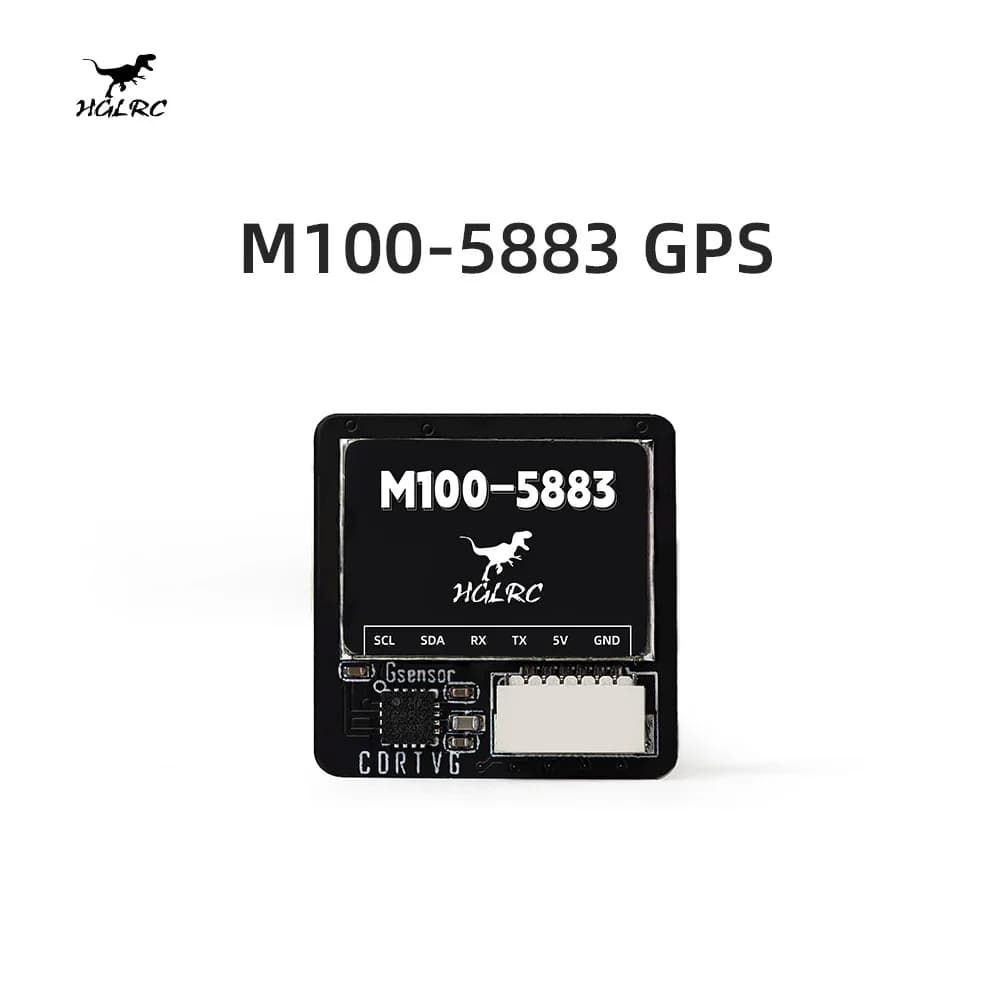

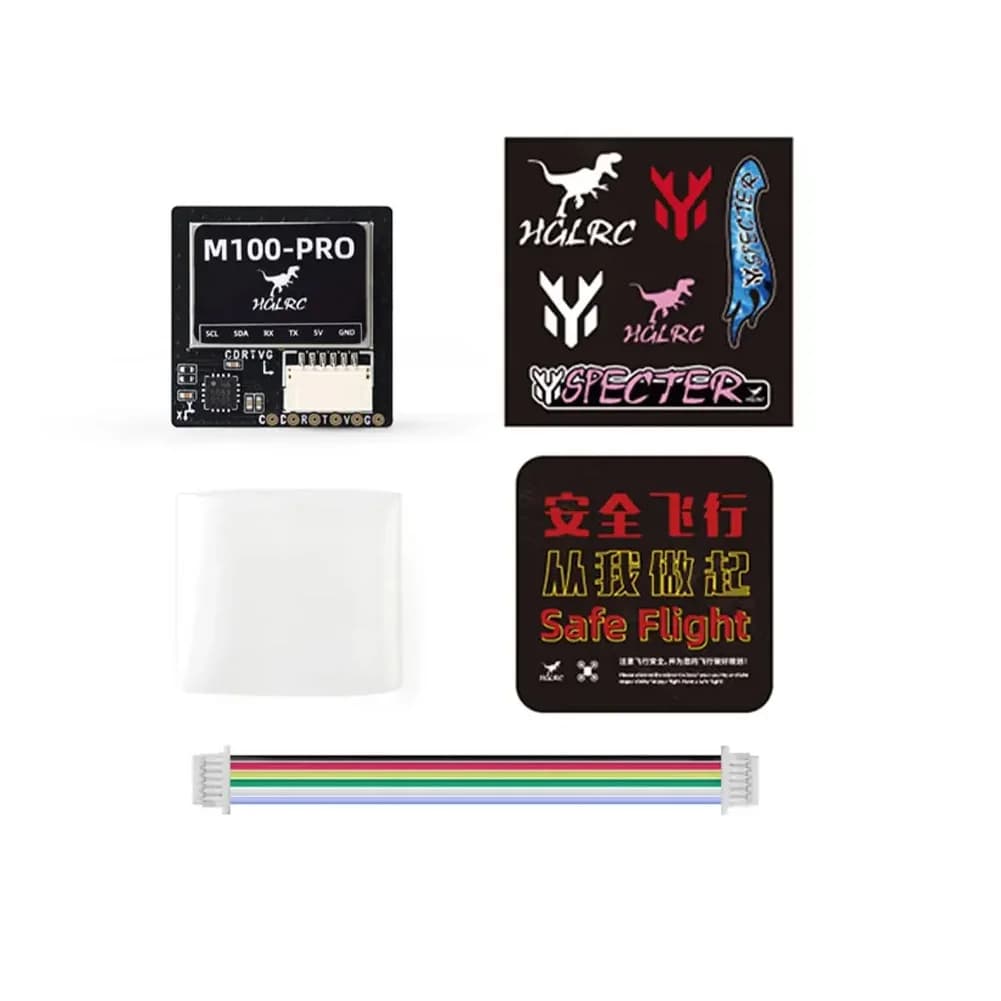

HGLRC M100-5883 GPS/ M100-PRO GPS / M100 MINI GPS /M80 PRO /M80 GPS for FPV Racing Drone Quadcopter Freestyle Fancy Flight Drone ============================================================ HGLRC M100-PRO GPS Adopting the new 10th generation chip, the number of satellite searches is 50+ QMC5883L compass, more accurate pointing The receiving channel is expanded to 120ch, and the satellites can search more and faster into the chip. Five-mode positioning, strong and stable signal to protect you. Product parameters: Chip: B101 (10th generation chip) Receiving channel: 120 Baud rate: 115200 Protocol: UBX Antenna: ceramic antenna Output frequency: 10Hz Frequency: GPS L1, GLONASS G1, BDS B1, GALILEO E1, QZSS L1, SBAS L1, IRNSS Power input: 3.6-5.5V Weight: 7.9g Acceleration 4G Speed: 500m/s Size: 21.2×21.2×8.2mm Operating temperature: -40℃~+85℃ Storage temperature: -40℃~+105℃ Product List HGLRC M100 PRO GPS x 1 Heat shrink tube (φ18mm x 25mm) x 1 HGLRC sticker x 1 HGLRC manual x 1 SH1.0-6pin cable x 1 HGLRC M100-5883 GPS New upgraded 10th generation chip with compass Suitable for FPV fixed-wing UAV Technical Parameters: 1. Chip: M10 (tenth generation chip) 2. Antenna: ceramic antenna 3. Frequency: GPS/QZSS L1C/A, SBAS EGNOS, GAGAN, MSAS and WAAS GLONASS L1OF, BDS B1I, Galileo E1B/C 4. Receive channel: 72ch 5. Baud rate: 115200bps. 7. Output frequency: 10Hz 8. Power input: 3.3-5V 9. Size: 21x21x8.02mm 10. Weight: 7.73g HGLRC M100 MINI GPS Chip: M10(10th Generation Chip) Antenna: Ceramic Antenna Frequency: GPS L1,GLONASS L1,BDS B1,GALILEO E1,SBAS L1,OZSS L1 Receive Channel: 72ch Baud Rate: 115200bps Output Frequency: 10Hz Input: 3.3V-5V Size: 15x15x5.2mm Weight: 2.6g Speed Accuracy: 0.05m/s Horizontal positioning accuracy: 2D ACC2.0m(Outdoor) Receiver Sensitivity: Trace -166dBm Capture -160dBm Characteristics: High:50000m, Speed: 500m/s, acceleration 4G Operating temperature: -40°C - +85°C Storage temperature: -40°C - +105°C HGLRC M80 PRO GLONASS GALILEO QZSS SBAS BDS GPS Module QMC5883 Compass Gain Antenna for RC Airplane FPV Long Range Drones Item Name:HGLRC M80PRO GPS Chip:M8030 Power Supply:5V Antenna: Ceramic Antenna Receiving Format:GPS,GLONASS,GALILEO,QZSS,SBAS,BDS Receiving Channel:72 Searching Channel Compass:QMC5883 Support Rate:115200dps Output Frequency:1Hz-10Hz,Default 10Hz Speed Precison:0.05 m/s Level Positioning Precison:2D ACC1.5m(ln Open Sky) Receiving Sensitivity:Trace -162dBm Capture-160dBm Dynamic Characteristics:Max Height:50000m Max Speed:500m/s Max Acceleration:4G Working Temperature:-40℃-+85℃ Storage Temperature:-40℃-+105℃ Size:25mm x 25mm x 8.3mm Weight:12.5g TECHNICAL SPECIFICATIONS • Chip: B101 (10th generation chip) • Chip: M10(10th Generation Chip) • Chip:M8030 • Weight: 7.9g Acceleration 4G • Size: 21.2×21.2×8.2mm • Size: 15x15x5.2mm • Weight: 2.6g • Size:25mm x 25mm x 8.3mm • Weight:12.5g • Frequency: GPS L1, GLONASS G1, BDS B1, • Frequency: GPS L1,GLONASS L1,BDS B1,GALILEO E1,SBAS L1,OZSS L1 • Input: 3.3V-5V • Antenna: ceramic antenna Output frequency: 10Hz • Antenna: Ceramic Antenna AVAILABLE OPTIONS M100 MINI GPS M100 5883 GPS M100-PRO GPS M80 GPS M80 PRO GPS PRODUCT INFORMATION Brand: HGLRC Category: FPV Drone Wholesale Price: US $13.33 - $59.21 ————————————————————————————————————————
