2PCS Foxeer Lollipop 4 Plus 4+ FPV Antenna 5.8G 2.6Dbi Omni Antenna RHCP LHCP SMA MMCX UFL For RC FPV Long Range Racing Drone - image 1 of 6
1 / 6

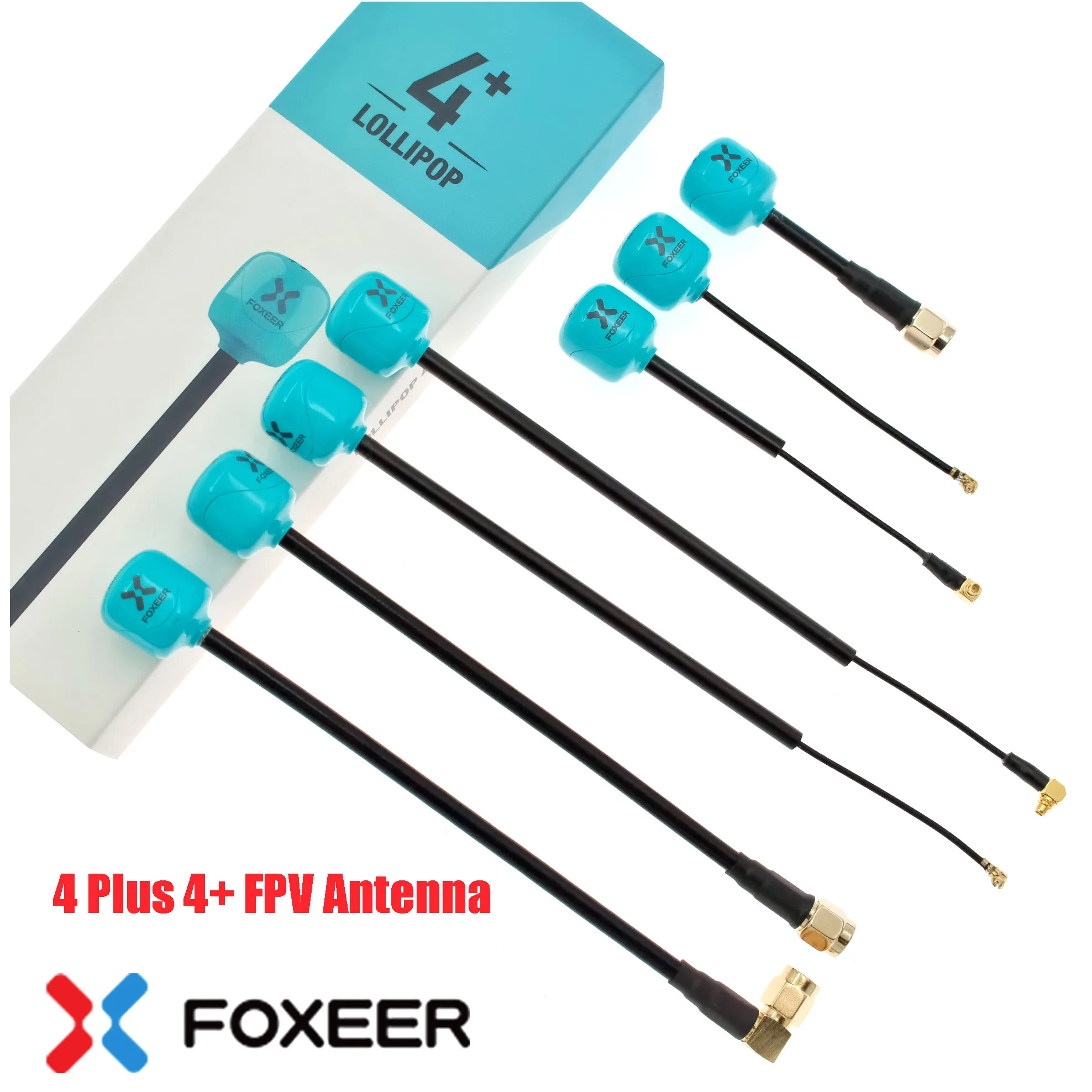

2PCS Foxeer Lollipop 4 Plus 4+ FPV Antenna 5.8G 2.6Dbi Omni Antenna RHCP LHCP SMA MMCX UFL For RC FPV Long Range Racing Drone

Foxeer

From US $32.48 - $90.64
Est. US $32.48 - $90.64 / unit (1-9 pcs)
$30 @ 10+ pcs$28 @ 100+ pcs

Description

2PCS Foxeer Lollipop 4 Plus 4+ FPV Antenna 5.8G 2.6Dbi Omni Antenna RHCP LHCP SMA MMCX UFL For RC FPV Long Range Racing Drone ============================================================ Center Frequency 5.75GHz 2.6dBi Axial Ratio Close to 1 Band Width 5.5G~6GHz Radiation Efficiency 1.07 at Center Frequency Polarization Case Material PC+ABS Weight SMA/RPSMA: 7.8g Straight MMCX: 4.4g Angle MMCX: 4.7g SMA-10CM: 9.7g Angle SMA-15CM: 13.9g UFL : 2.8g UFL Tube: 2.9g UFL Tube Long: 3.8g Angle MMCX Tube: 4.8g Angle MMCX Tube Long: 6.8g Connector & Length SMA/RPSMA/Straight MMCX/Angle MMCX: Φ11*60mm UFL/ UFL Tube Short/ Angle MMCX Tube Short: Φ11*85mm SMA-10CM: Φ11*100mm SMA 15CM Angle/ UFL Tube Long/ Angle MMCX Tube Long: Φ11*150mm Quantity 4+ Antennas Package Included: 2 x Foxeer Lolliop 4 PLUS Antenna( RHCP or LHCP ) AVAILABLE OPTIONS Color PRODUCT INFORMATION Brand: Foxeer Category: FPV Drone Wholesale Price: US $32.48 - $90.64 ————————————————————————————————————————

Share this product
Select options
Variant

Specifications

AttributeValue
High-concerned chemicalNone
Is ElectricNo Battery
Is it battery/power supplyN
Is it charger/adapterN
Is Batteries IncludedNo
MaterialComposite Material
OriginMainland China
Recommend Age14+y
UseVehicles & Remote Control Toys

Product Details


Center Frequency

5.75GHz

Gain

2.6dBi

Axial Ratio

Close to 1

Band Width

5.5G~6GHz

Radiation Efficiency

98%

SWR

1.07 at Center Frequency

Polarization

RHCP

Case Material

PC+ABS

Weight

SMA/RPSMA: 7.8g

Straight MMCX: 4.4g

Angle MMCX: 4.7g

SMA-10CM: 9.7g

Angle SMA-15CM: 13.9g

UFL : 2.8g

UFL Tube: 2.9g

UFL Tube Long: 3.8g

Angle MMCX Tube: 4.8g

Angle MMCX Tube Long: 6.8g

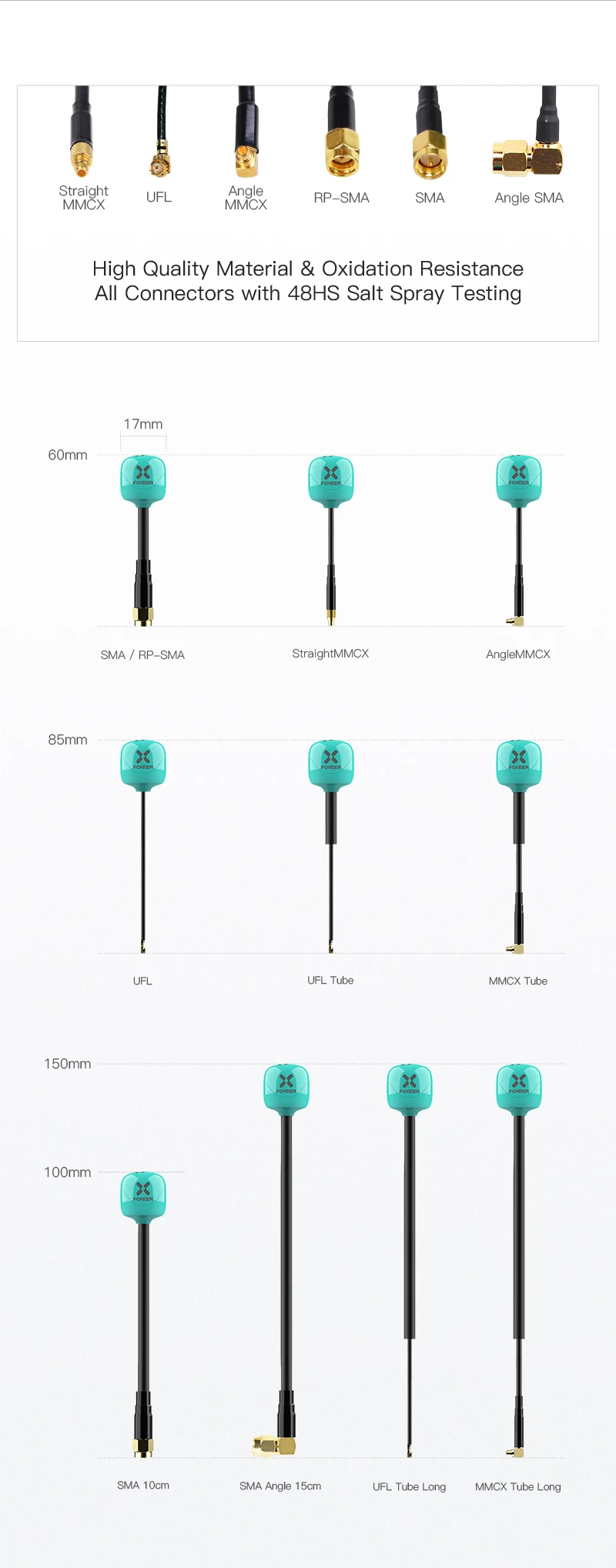

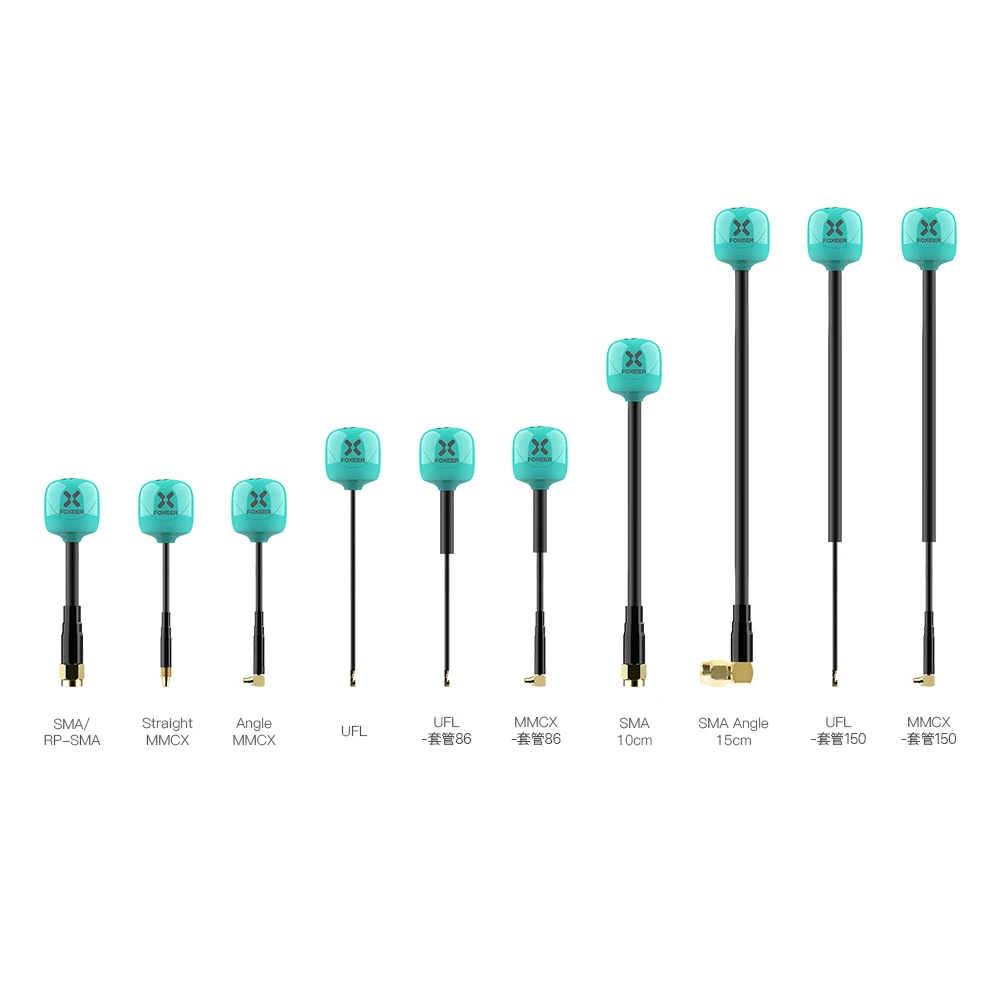

Connector & Length

SMA/RPSMA/Straight MMCX/Angle MMCX: Φ11*60mm

UFL/ UFL Tube Short/ Angle MMCX Tube Short: Φ11*85mm

SMA-10CM: Φ11*100mm

SMA 15CM Angle/ UFL Tube Long/ Angle MMCX Tube Long: Φ11*150mm

Quantity

4+ Antennas

Package Included:
2 x Foxeer Lolliop 4 PLUS Antenna( RHCP or LHCP )
