SKYZONE Cobra X V4 FPV Goggles 5.8GHz 48CH Receiver 1280x720 Head Tracker Video Glasses for RC Cars FPV Drones Fixed-wing - image 1 of 5
1 / 5

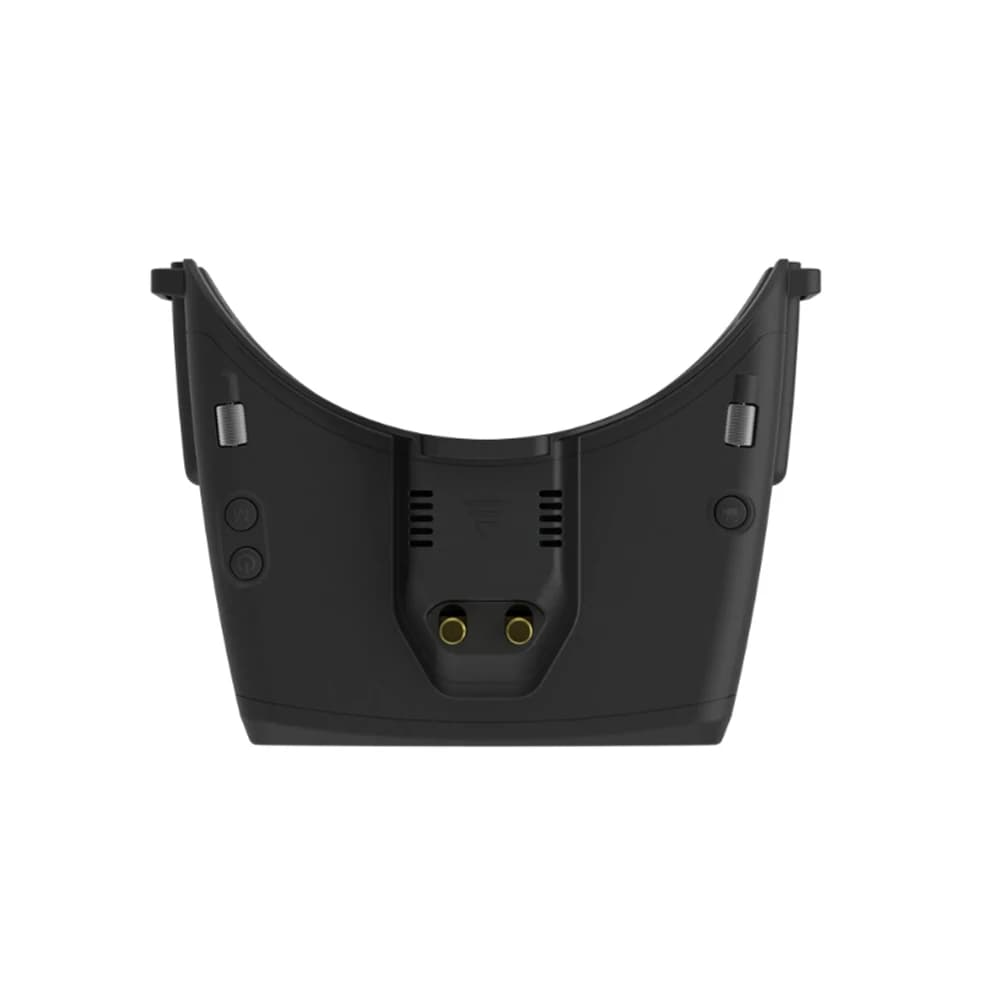

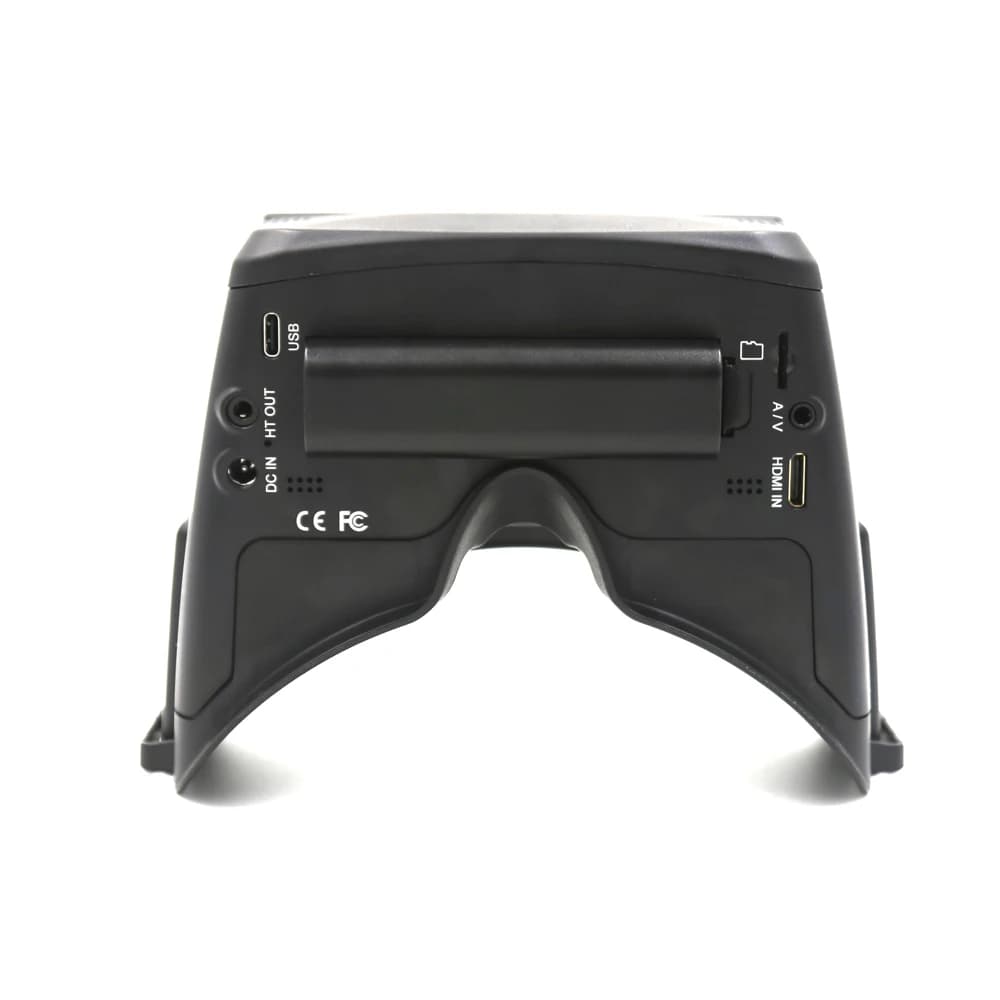

SKYZONE Cobra X V4 FPV Goggles 5.8GHz 48CH Receiver 1280x720 Head Tracker Video Glasses for RC Cars FPV Drones Fixed-wing

Skyzone

From US $277.58
Est. US $277.58 / unit (1-9 pcs)
$258 @ 10+ pcs$244 @ 100+ pcs

1000 orders (reference)

Description

SKYZONE Cobra X V4 FPV Goggles 5.8GHz 48CH Receiver 1280x720 Head Tracker Video Glasses for RC Cars FPV Drones Fixed-wing ============================================================ V1 is original, V2 is support 60FPS DVR so we named it V2, and hardware is also V2 V3 is new CHIP due to global chip shortage, but user experience is same, so hardware is V3, we still name it V2 V4 is new screen due to old screen is discontinued, we change the screen, hardware is V4, but user experience is same as V2, we still called it V2, the reaseon put model on box is that user can flash different firmware, they must flash the correct the firmware to the hardware >>>Features The SKYZONE Cobra X * is a FPV goggle with 1280*720 high resolution LCD screen , the screen have vivid color and high Luminance , pilot can see more details in the racing . With SteadyView receiver ,the receiver merge two signal to one, avoid image tearing and rolling when signal is weak, make image more stable and clear in challenging condition. The goggle support pilot wear glass while fling. The new OS with 10 languages* to set select, pilot have no trouble with the menu system, with shuttle wheel and new user interface, pilot can set all the setting just by rolling the wheel without take off the goggle. the goggles can power by 1 cell 18650 battery or 2~6s lipo battery, the USB charging and DC charging make goggle simple to use in the filed. >>>Quick Start Guide 1.Install the receiver and antenna. 2.Plug the battery into battery bay or use power cables to connect battery to the goggle, goggle can power by 2~6cells lipo battery, hold the power button to turn on. >>>Specifications Model:Cobra X V2 Screen:LCD Resolution:1280X720 FOV(Diagonal):50° Aspect Ratio:4:3/16:9 Receiver:5.8Ghz 48 CH SteadyView Receiver Language:10 Language Power Supply:1Cell 18650/DC 6.5-25.2V/USB 5V Power Consumption:12V 0.63A 5V 1.5A DVR:H264, 60fps,MOV 6Mbps, SD up to 128Gb Head Tracker:3-axis Accelerometer, 3-axis gyroscope Dimentions:122*165*100mm Weight:332g >>>Package Included 1. Goggles*1 2. Receiver Module*1 3. Head Strap *1 4. Power Cable*1 5. Headtracker cable*1 6. 5.8GHz 2dD antennas*2 7. Video/Audio Cable*1 8. USB-C Cable*1 9. User Manual*1 TECHNICAL SPECIFICATIONS • Model:Cobra X V2 • Weight:332g • Resolution:1280X720 AVAILABLE OPTIONS 5.8G Antenna Set COBRA X V4 5.0G COBRA X V4 5.8G China Mainland PRODUCT INFORMATION Brand: Skyzone Category: FPV Goggles Wholesale Price: US $277.58 ————————————————————————————————————————

Share this product
Select options
Variant

Specifications

AttributeValue
High-concerned chemicalNone
Is ElectricNo Battery
Quantity1 pcs
Is it battery/power supplyN
Is it charger/adapterN
Is Batteries IncludedNo
Technical parametersValue 10
Model NumberCOBRA X V4
For Vehicle TypeAirplanes
RC Parts & AccsTransmitters
MaterialComposite Material
Brand NameSkyzone
OriginMainland China
Recommend Age14+y
UseVehicles & Remote Control Toys

Product Details



V1 is original,
V2 is support 60FPS DVR so we named it V2, and hardware is also V2
V3 is new CHIP due to global chip shortage, but user experience is same, so hardware is V3, we still name it V2
V4 is new screen due to old screen is discontinued, we change the screen, hardware is V4, but user experience is same as V2, we still called it V2, the reaseon put model on box is that user can flash different firmware, they must flash the correct the firmware to the hardware

>>>Features

The SKYZONE Cobra X * is a FPV goggle with 1280*720 high resolution LCD screen , the screen have vivid color and high Luminance , pilot can see more details in the racing . With SteadyView receiver ,the receiver merge two signal to one, avoid image tearing and rolling when signal is weak, make image more stable and clear in challenging condition. The goggle support pilot wear glass while fling. The new OS with 10 languages* to set select, pilot have no trouble with the menu system, with shuttle wheel and

new user interface, pilot can set all the setting just by rolling the wheel without take off the goggle. the goggles can power by 1 cell 18650 battery or 2~6s lipo battery, the USB charging and DC charging make goggle simple to use in the filed.



>>>Quick Start Guide

1.Install the receiver and antenna.

2.Plug the battery into battery bay or use power cables to connect battery to the goggle, goggle can

power by 2~6cells lipo battery, hold the power button to turn on.


>>>Specifications

Model:Cobra X V2

Screen:LCD

Resolution:1280X720

FOV(Diagonal):50°

Aspect Ratio:4:3/16:9

Receiver:5.8Ghz 48 CH SteadyView Receiver

Language:10 Language

Power Supply:1Cell 18650/DC 6.5-25.2V/USB 5V

Power Consumption:12V 0.63A 5V 1.5A

DVR:H264, 60fps,MOV 6Mbps, SD up to 128Gb

Head Tracker:3-axis Accelerometer, 3-axis gyroscope

Dimentions:122*165*100mm

Weight:332g

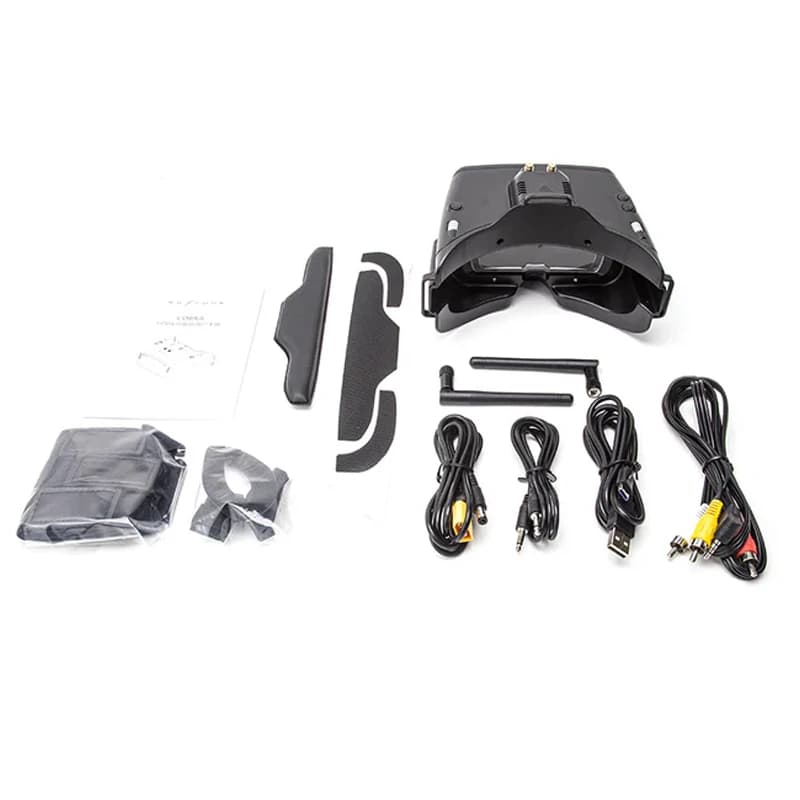

>>>Package Included

1. Goggles*1

2. Receiver Module*1

3. Head Strap *1

4. Power Cable*1

5. Headtracker cable*1

6. 5.8GHz 2dD antennas*2

7. Video/Audio Cable*1

8. USB-C Cable*1

9. User Manual*1
