CUAV CAN PMU/UAVCAN Bus Digital High Precision Voltage And Current Detection APM/PX4 Open Source

CUAV

From US $247.73
Est. US $247.73 / unit (1-9 pcs)
$230 @ 10+ pcs$217 @ 100+ pcs

Description

CUAV CAN PMU/UAVCAN Bus Digital High Precision Voltage And Current Detection APM/PX4 Open Source ============================================================ CUAV CAN PMU/UAVCAN Bus Digital High Precision Voltage And Current Detection APM/PX4 Open Source Non-professional players please purchase and use with caution CAN PMU power module V5/X7 version dedicated (other flight control needs to change the line) CAN PMU Introduction CAN PMU is a power management module, running self-developed ITT algorithm, can accurately measure UAV voltage, current, output in real time, the maximum support 6-62V voltage and 110A current, support output 5.4V/5A to the flight controller power supply, the use of CAN digital communication protocol, reduce data error problems. CAN PMU Features: 1：0.05V 0.1A accuracy 2：5V/5A regulated output 3：Maximum support 62V voltage input, 110A current measurement 4：Self-developed ITT algorithm AVAILABLE OPTIONS V5 X7 Version PRODUCT INFORMATION Brand: CUAV Category: FPV Drone Wholesale Price: US $247.73 ————————————————————————————————————————

Share this product
Select options
Variant

Product Details

CUAV CAN PMU/UAVCAN Bus Digital High Precision Voltage And Current Detection APM/PX4 Open Source



Non-professional players please purchase and use with caution

CAN PMU power module V5/X7 version dedicated (other flight control needs to change the line)

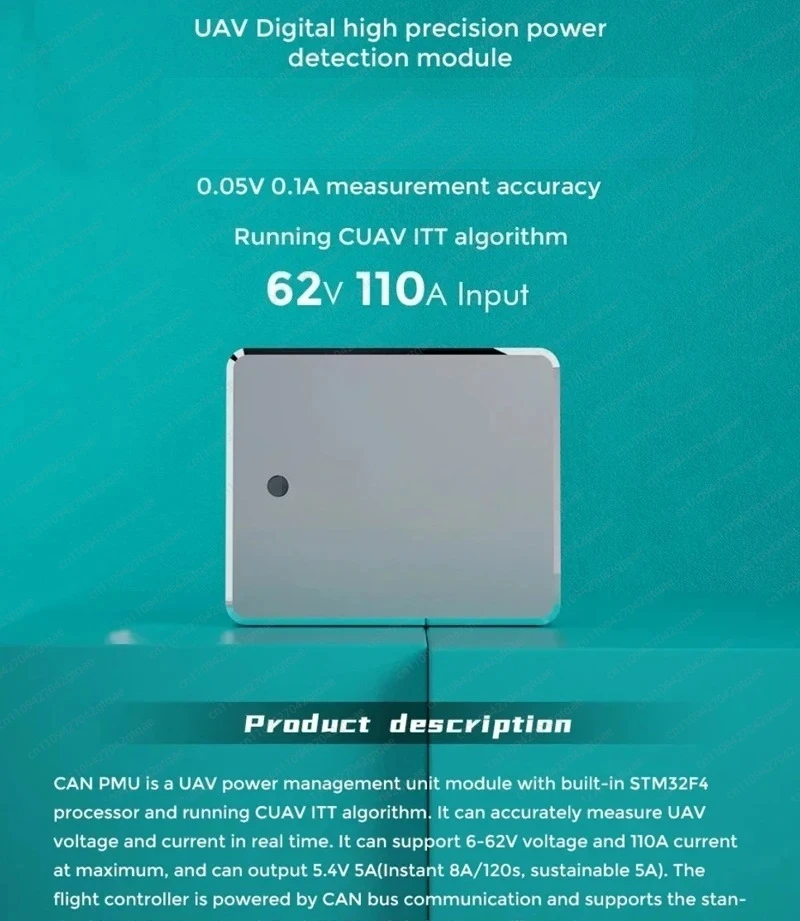

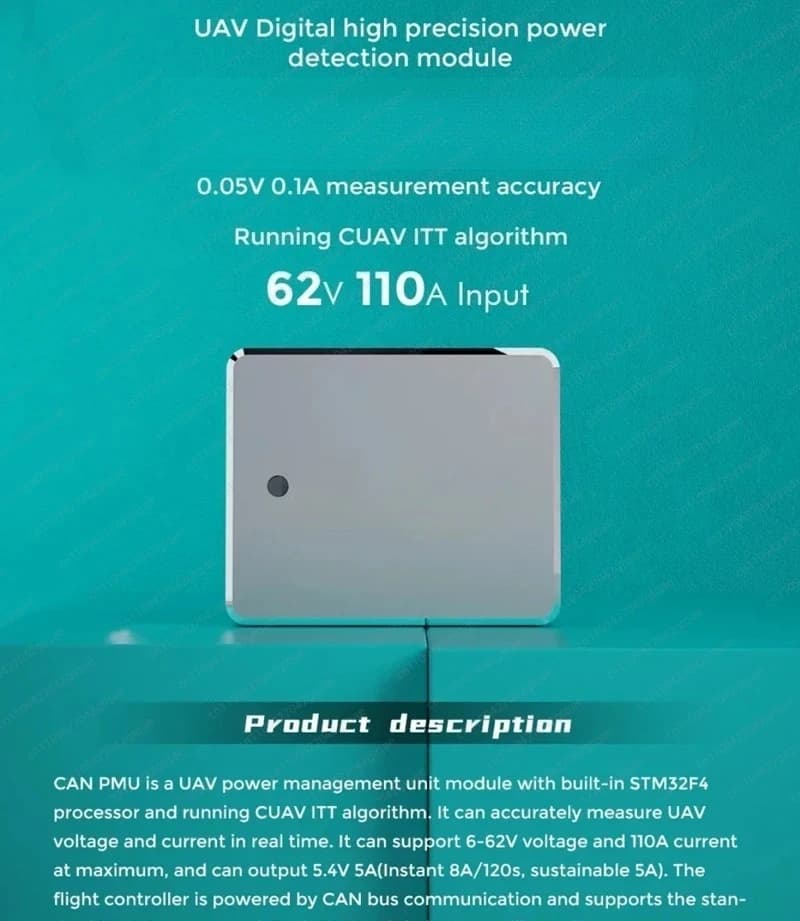

CAN PMU Introduction

CAN PMU is a power management module, running self-developed ITT algorithm, can accurately measure UAV voltage, current, output in real time, the maximum support 6-62V voltage and 110A current, support output 5.4V/5A to the flight controller power supply, the use of CAN digital communication protocol, reduce data error

problems.

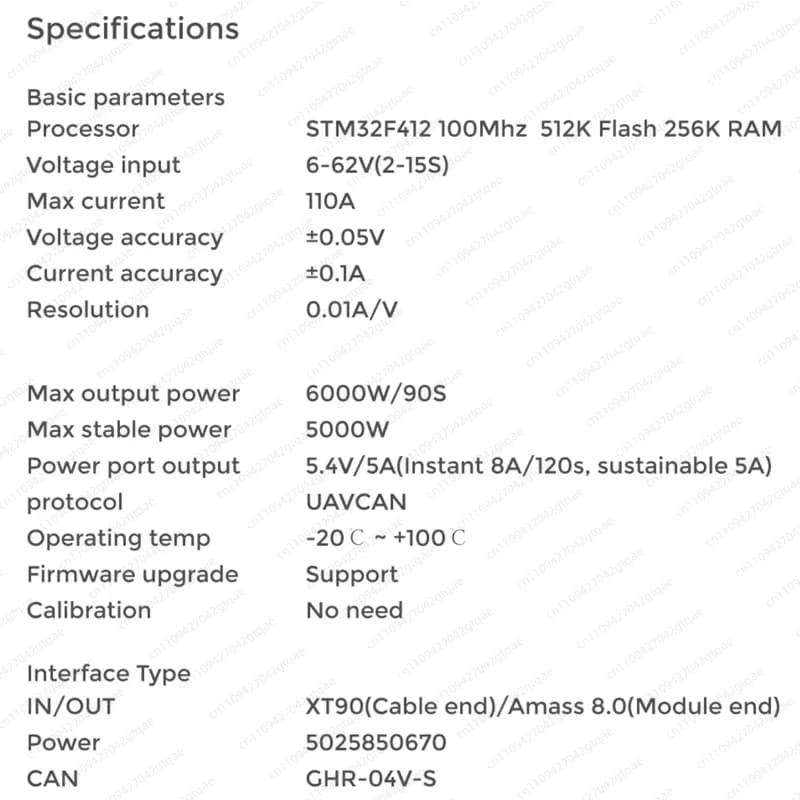

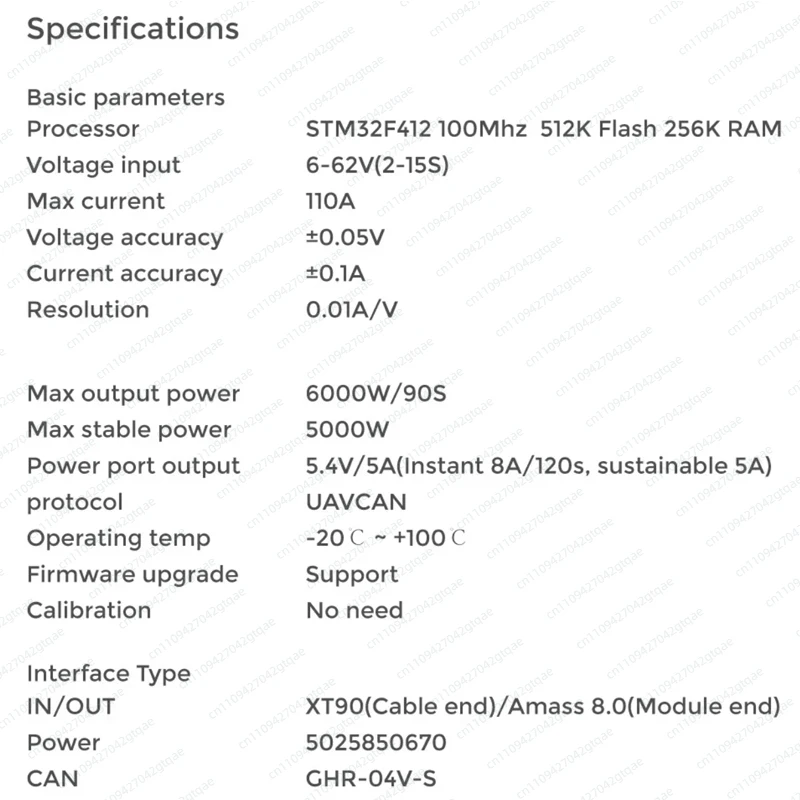

CAN PMU Features:

1：0.05V 0.1A accuracy

2：5V/5A regulated output

3：Maximum support 62V voltage input, 110A current measurement

4：Self-developed ITT algorithm
