Holybro DroneCAN PM08-CAN Power Module 2-14S 200A Dual Step Down UBEC Output With 2x Independent 5V Out For RC FPV Drone

Holybro

From US $117.59
Est. US $117.59 / unit (1-9 pcs)
$109 @ 10+ pcs$103 @ 100+ pcs

Description

Holybro DroneCAN PM08-CAN Power Module 2-14S 200A Dual Step Down UBEC Output With 2x Independent 5V Out For RC FPV Drone ============================================================ Holybro DroneCAN PM08-CAN Power Module 2-14S 200A Dual Step Down UBEC Output With 2x Independent 5V Out For RC FPV Drone Feature Supports 2-14S & 200A Cont, 400A Burst DroneCAN Communication Protocol Small & Compact Design Two 5V Output with Independent BEC IC and Circuitry Separated Sensor and BEC Board to Minimize Electrical Noise Interference Galvanically Isolated Current Sensor IC (AEC-Q100 Grade 1 qualified) High Accuracy Temperature Sensor for Temperature Monitor High-Efficiency Aluminum Heat Dissipation Shell Specifications Processor:STM32F405RG 168MHz 1024KB Flash 196KB RAM Voltage input: 7~60V (2S~14S) Continuous current:200A Burst current 400A @ 25℃ 1 sec 1000A @ 25℃ < 1 sec Max current sensing: 376A Voltage accuracy: ±0.1V Current accuracy: ±5% Temperature accuracy:±1℃ Power port output: 5.3V/3A each port Protocol: DroneCAN Operating temperature :-25℃~105℃ Firmware upgrade: Support Calibration: Support Pinout Interface Type Power & CAN Port: Molex CLIK-Mate 2mm 6Pin Battery IN/OUT Options: XT90 Connectors Tinned Wires XT90 & Ring Terminals Status LED Flashing quickly continuously: MCU is in the bootloader stage, waiting for firmware to be flash Flashing quickly for 3 seconds, and then on for 1 second: Waiting for CAN connection Flashing slowly (one-second intervals): CAN is successfully connected Mechanical Spec Size: 45mm×41mm×26mm (Not Include Cable) Weight: 185g (Include Cable) Reference Links PX4 & Autopilot Setup Instruction PM08CAN 3D CAD File Download Power Module Dimension TECHNICAL SPECIFICATIONS • Processor:STM32F405RG 168MHz 1024KB Flash 196KB RAM • Size: 45mm×41mm×26mm (Not Include Cable) • Weight: 185g (Include Cable) • Protocol: DroneCAN AVAILABLE OPTIONS XT90 Connectors Tinned Wires XT90 Ring Terminal PRODUCT INFORMATION Brand: Holybro Category: FPV Drone Wholesale Price: US $117.59 ————————————————————————————————————————

Share this product
Select options
Variant

Product Details

Holybro DroneCAN PM08-CAN Power Module 2-14S 200A Dual Step Down UBEC Output With 2x Independent 5V Out For RC FPV Drone

Feature

  • Supports 2-14S & 200A Cont, 400A Burst

  • DroneCAN Communication Protocol

  • Small & Compact Design

  • Two 5V Output with Independent BEC IC and Circuitry

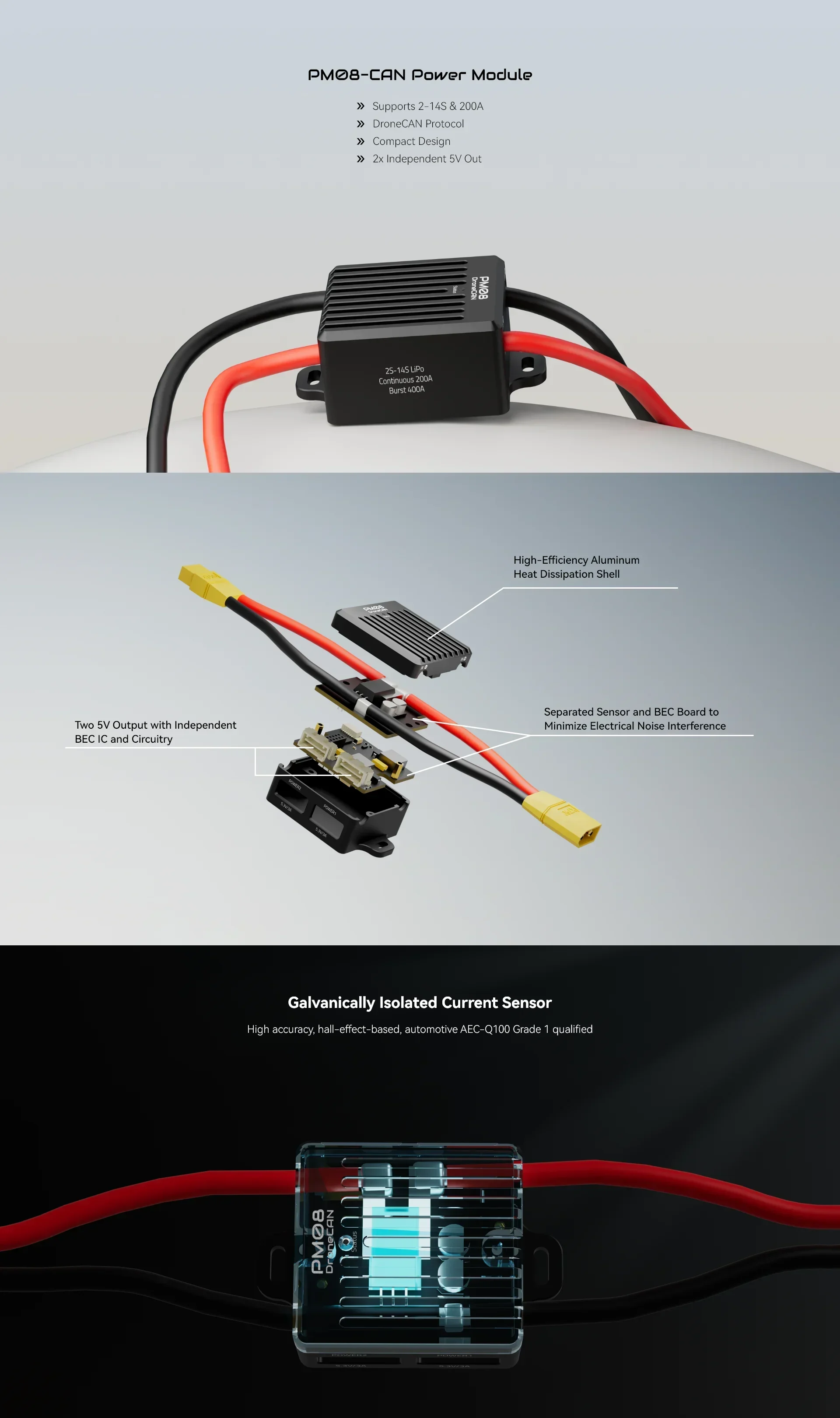

  • Separated Sensor and BEC Board to Minimize Electrical Noise Interference

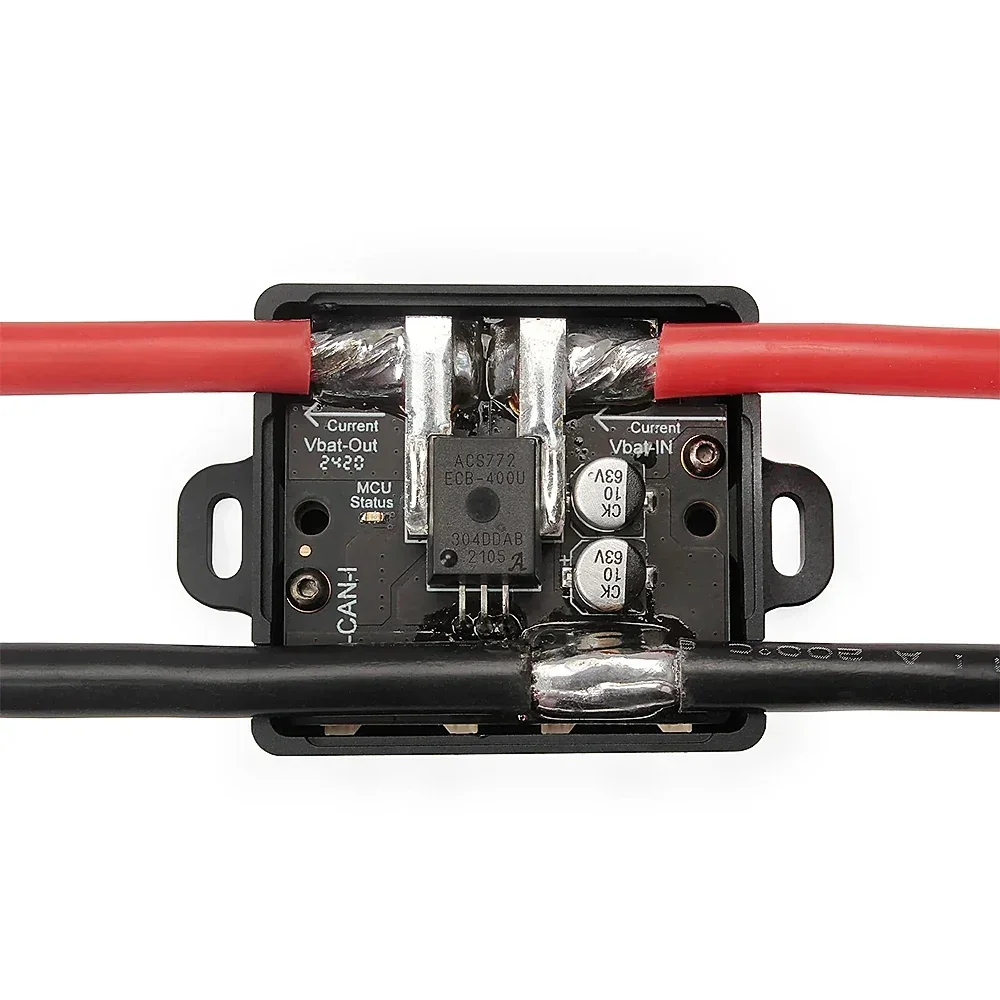

  • Galvanically Isolated Current Sensor IC (AEC-Q100 Grade 1 qualified)

  • High Accuracy Temperature Sensor for Temperature Monitor

  • High-Efficiency Aluminum Heat Dissipation Shell

Specifications

  • Processor:STM32F405RG 168MHz 1024KB Flash  196KB RAM

  • Voltage input: 7~60V (2S~14S)

  • Continuous current:200A

  • Burst current

    • 400A @ 25℃ 1 sec

    • 1000A @ 25℃ < 1 sec

  • Max current sensing: 376A

  • Voltage accuracy: ±0.1V

  • Current accuracy: ±5%

  • Temperature accuracy:±1℃

  • Power port output: 5.3V/3A each port

  • Protocol: DroneCAN

  • Operating temperature :-25℃~105℃

  • Firmware upgrade: Support

  • Calibration:  Support

Pinout

Interface Type

  • Power & CAN Port: Molex CLIK-Mate 2mm 6Pin

  • Battery IN/OUT Options:

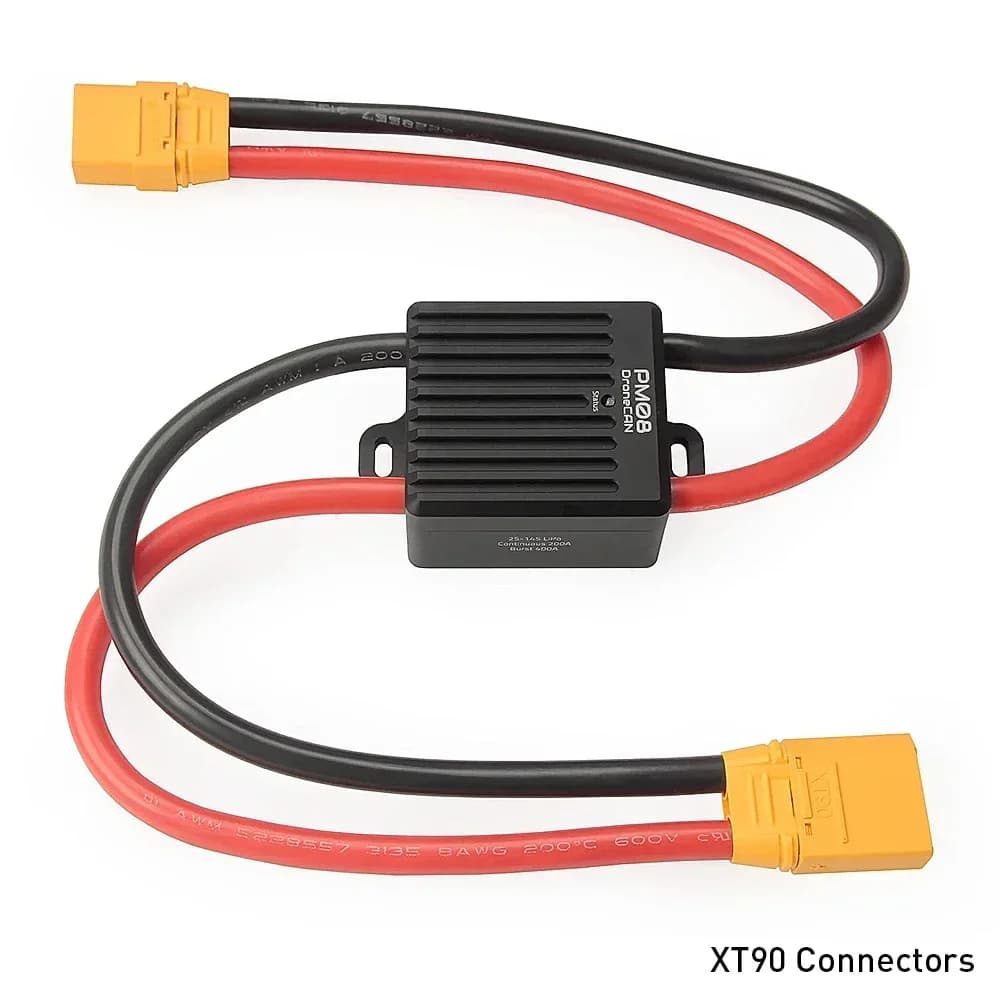

    • XT90 Connectors

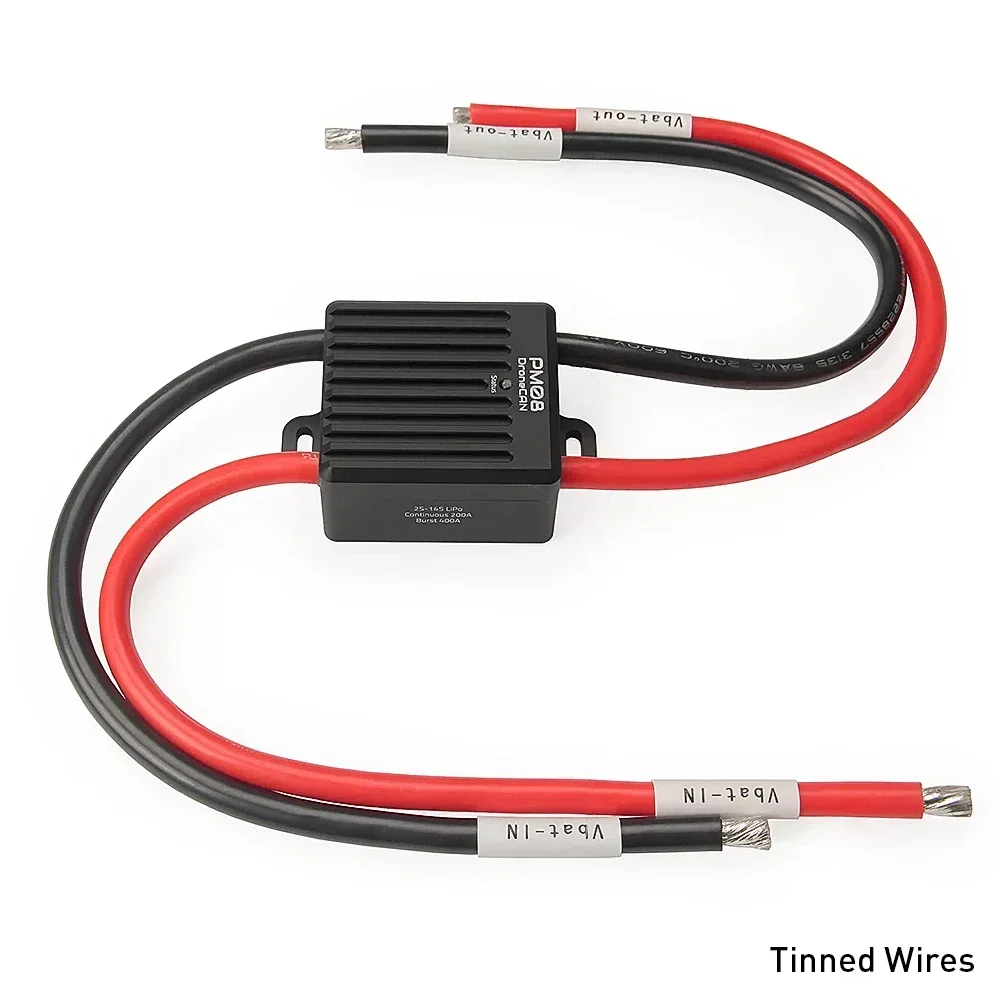

    • Tinned Wires

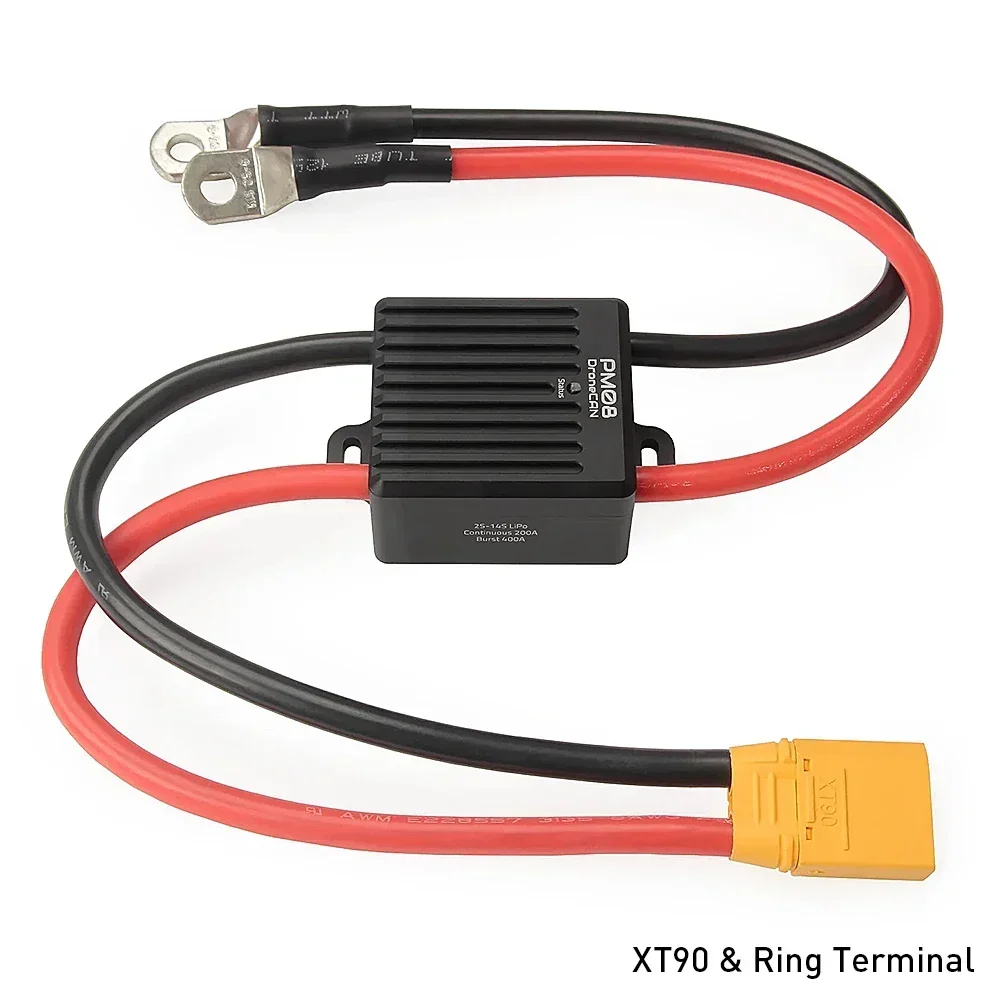

    • XT90 & Ring Terminals

Status LED

  • Flashing quickly continuously: MCU is in the bootloader stage, waiting for firmware to be flash

  • Flashing quickly for 3 seconds, and then on for 1 second: Waiting for CAN connection

  • Flashing slowly (one-second intervals): CAN is successfully connected

Mechanical Spec

  • Size: 45mm×41mm×26mm (Not Include Cable)

  • Weight: 185g (Include Cable)
