HappyModel X12 ELRS Pro 5in1 AIO Flight Controller Built-in 2.4G ELRS V3.0 OPENVTX 400mW 1-2S LiPo 25.5X25.5mm for FPV Drones

Description

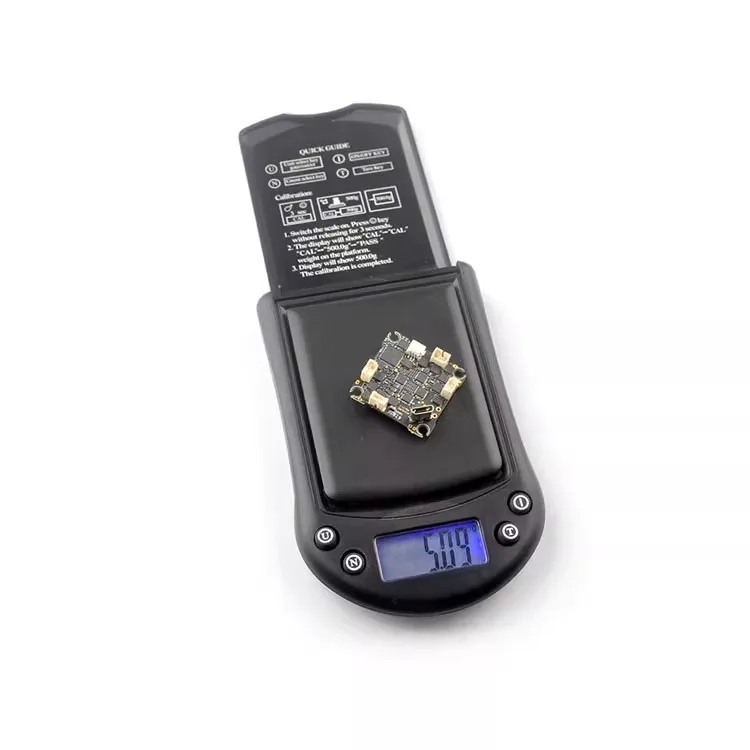

HappyModel X12 ELRS Pro 5in1 AIO Flight Controller Built-in 2.4G ELRS V3.0 OPENVTX 400mW 1-2S LiPo 25.5X25.5mm for FPV Drones ============================================================ Specifications: Brand Name: Happymodel Item Name: X12 ELRS Pro AIO 5-IN-1 Flight controller built-in 12A ESC and OPENVTX Betaflight firmware target: betaflight_4.4.0_STM32F411 VTX antenna: U.FL Weight: 5.1g Size: 30mm*30mm*8mm controller X12 ELRS Pro v1.1 AIO 5-IN-1 Flight controller MCU:STM32F411CEU6 (100MHZ, 512K FLASH) ,ESP32-PICO-D4 Sensor: ICM42688P(SPI connection) Mount hole size: 25.5mm*25.5mm Power supply: 1-2S battery input (DC 2.9V-8.7V) Built-in 12A(each) Blheli_S 4in1 ESC Built-in Betaflight OSD(SPI Control) Built-in 5.8G OpenVTX 0mw~400mw (MSP control) Built-in UART ExpressLRS v3.0.0 Built-in voltage meter sensor , voltage meter scale 110 Built-in current meter sensor , current meter scale 470 Onboard 4in1 ESC Power supply: 1-2S LiPo/LiPo HV Current: 12A continuous peak 15A (3 seconds) Support BLHeliSuite programmable Factory firmware: Bluejay v0.19.2 Default protocol: DSHOT300 Recommend ESC Startup power value to min1100/max1200 Onboard UART ExpressLRS 2.4GHz Receiver Packet Rate option: 50Hz/150Hz/250Hz/500Hz ExpressLRS Firmware version: V3.0 RF Frequency: 2.4GHz Antenna : SMD antenna Telemetry output Power: <12dBm Receiver protocol: Serial_based CRSF Compatible with ExpressLRS V3.x.x TX Module Could flash single ELRS receiver firmware by Wifi ExpressLRS firmware target: HappyModel AIO 2.4GHz RX+VTX (ExpressLRS web flasher) Available from Expresslrs version 3.4.0 RC2 Onboard 5.8g OPENVTX Firmware version: OPENVTX MSP VTX PIT Mode support Channels:40ch Transmitting Power: 0/RCE/25mw/100mw/400mw Power supply: DC 5V Current (5v): <650ma (400mw) Antenna connector: U.FL TECHNICAL SPECIFICATIONS • MCU:STM32F411CEU6 (100MHZ, 512K FLASH) ,ESP32-PICO-D4 • Sensor: ICM42688P(SPI connection) • Weight: 5.1g • Size: 30mm*30mm*8mm • Current: 12A continuous peak 15A (3 seconds) • Antenna : SMD antenna AVAILABLE OPTIONS Black Gray Blue Red PRODUCT INFORMATION Brand: HappyModel Category: FPV Drone Wholesale Price: US $141.99 ————————————————————————————————————————
