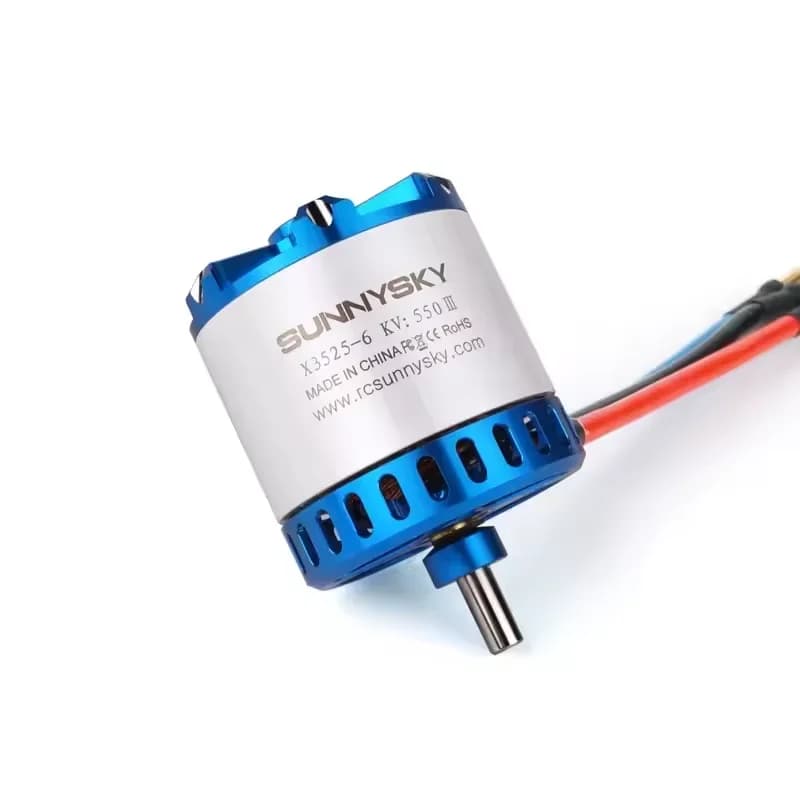

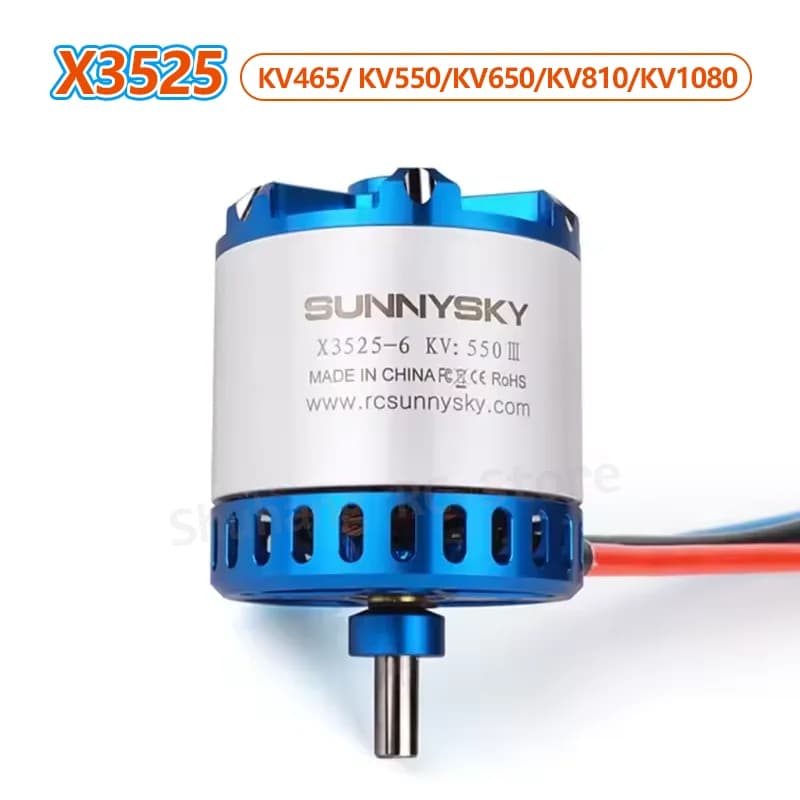

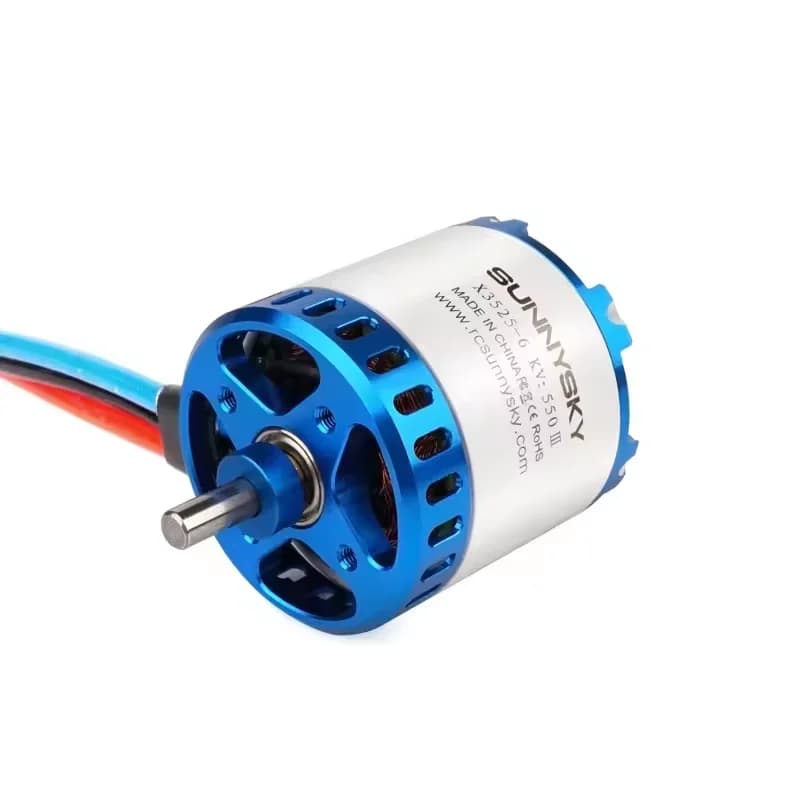

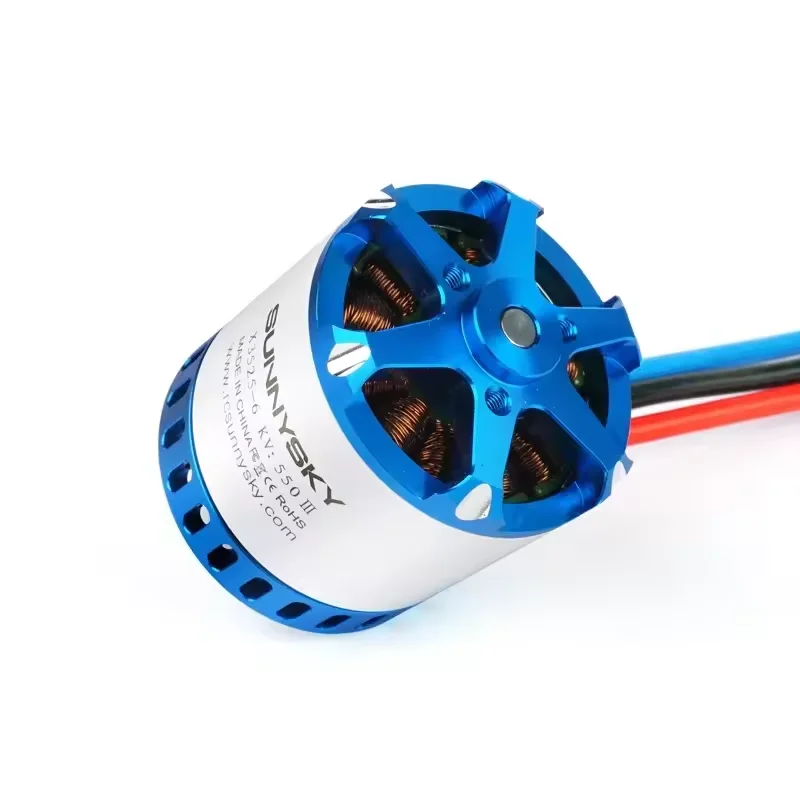

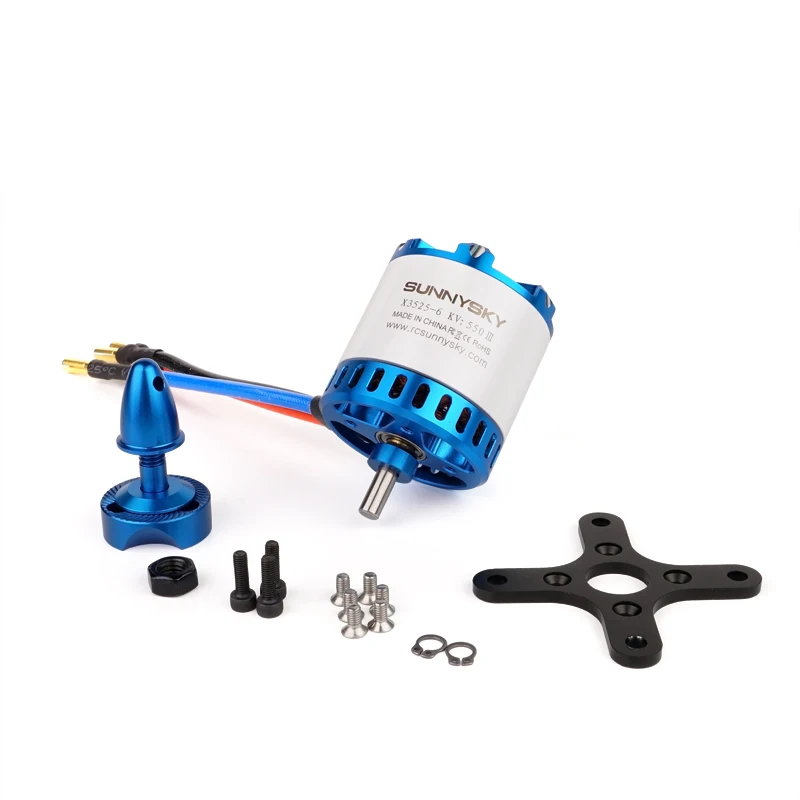

SUNNYSKY X3525 III KV465 KV550 KV650 KV810 KV1080 Brushless Motor for RC Drone

Description

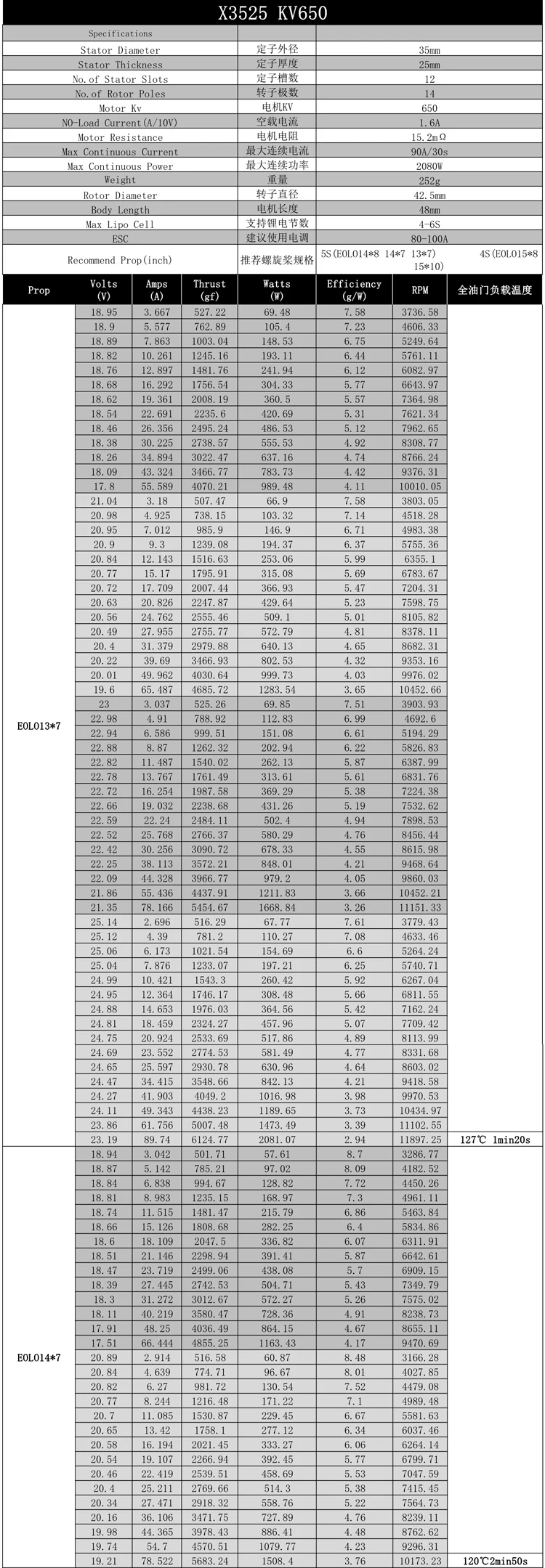

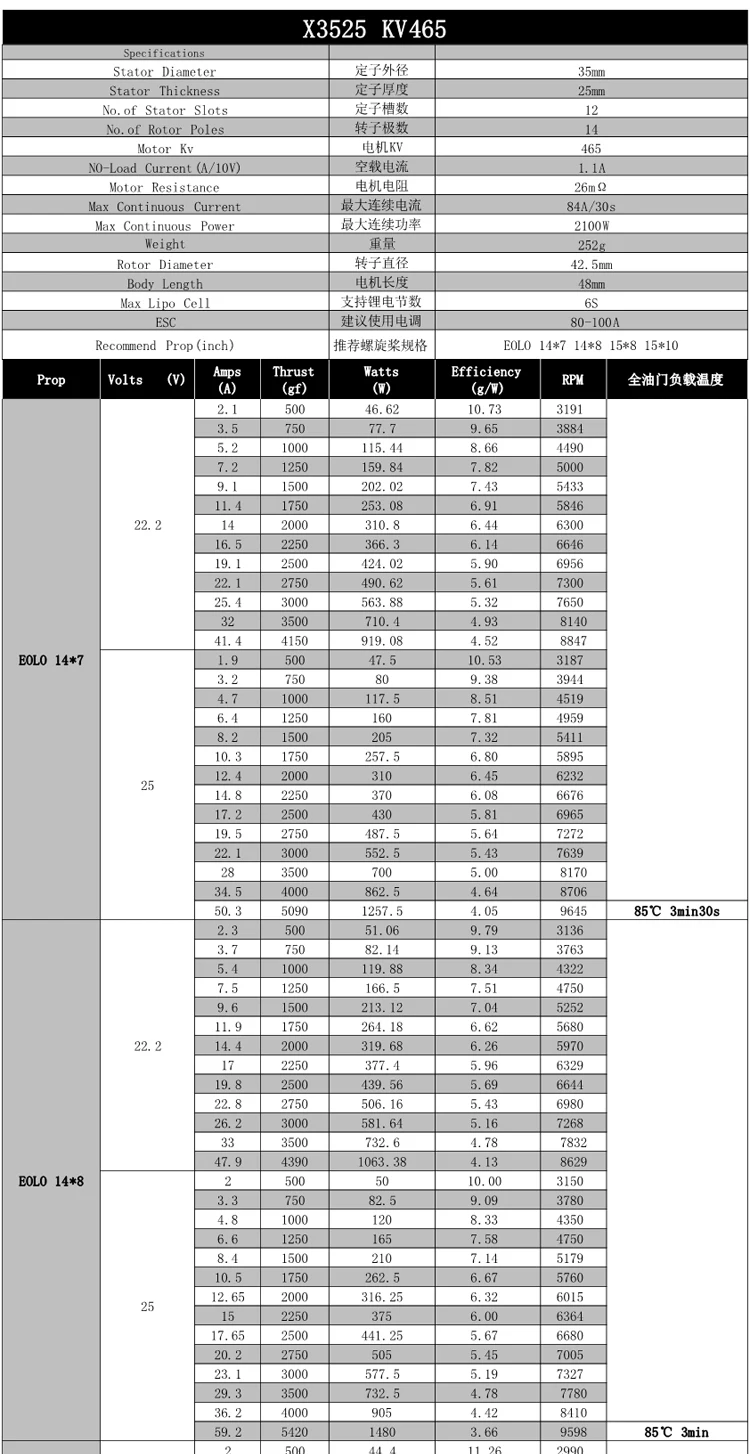

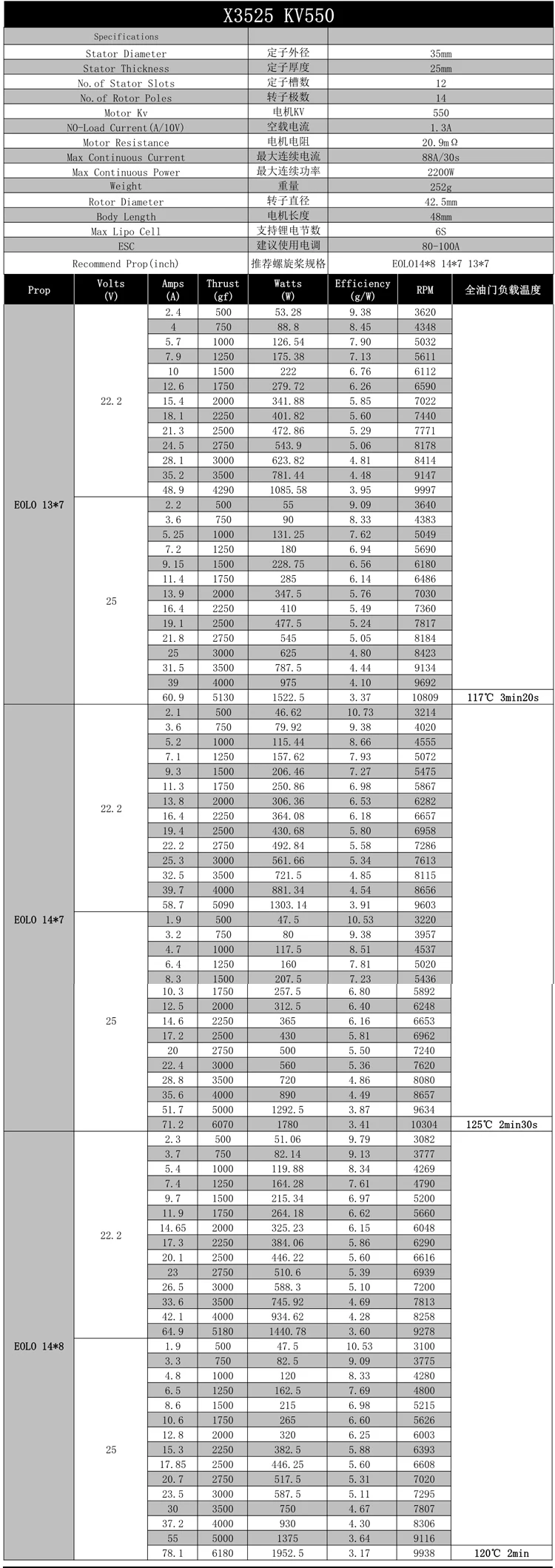

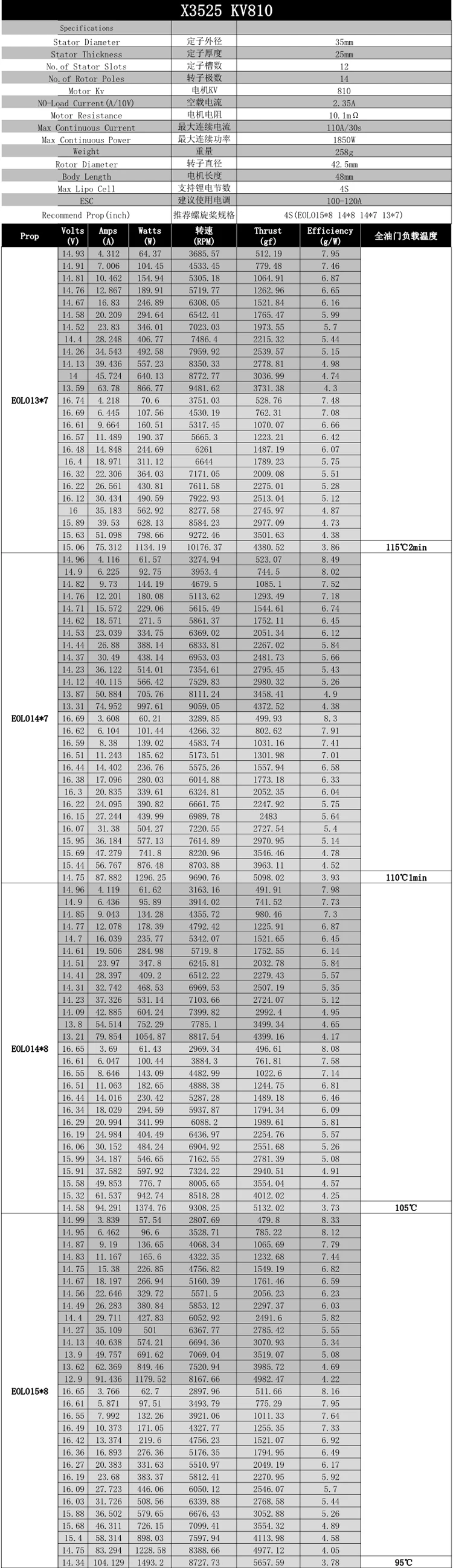

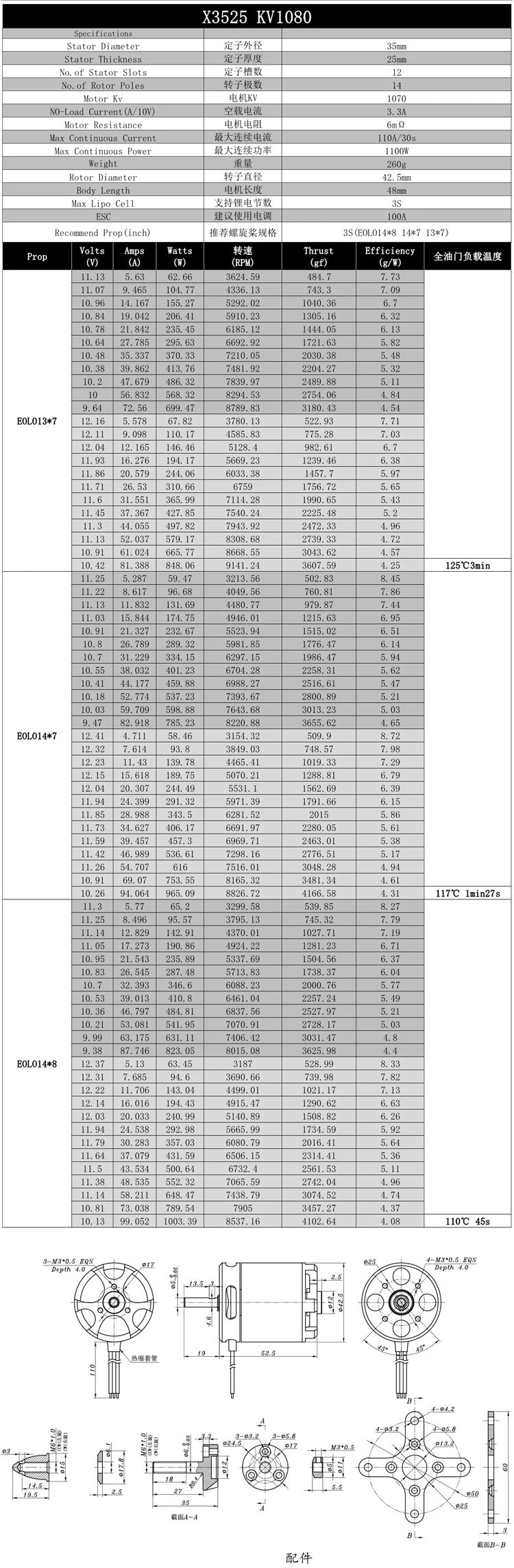

SUNNYSKY X3525 III KV465 KV550 KV650 KV810 KV1080 Brushless Motor for RC Drone ============================================================ Description X3525 Ⅲ: Features: 1.N48UH Magnets, 0.2mm Air gap, Coil with high copper space factor, Ultimate power. 2.Original NSK bearing,Low noise and friction factor, more stable and smooth. 3.The new type of propeller base is designed with more stable performance andmore convenient disassembly. 4.Around the stator end cover is hollowed design, and the heat dissipation area is increased, so the heat dissipation is better. 5.Hidden motor shaft design is adopted to protect motor shaft more effectively. Description: 1.This is a brushless motor for Fixed - Wing 3D RC drone parts accessories. 2.Anti-slip: Overlapping curve to increase friction force and prevent propellers from slipping. 3.Excellent workmanship quality guarantees power saving and high efficiency,bring you stimulated flight. Specifications: Brand name: SUNNYSKY Model:X3525 Ⅲ Item name: Brushless Motor KV:465KV Color:Blue Stator Diameter:35mm Stator thickness:25mm NO. of Statpr Arms:12 NO. of Roter Poles:14 NO-Load Current:1.07A/10V Moter Resistance:26mΩ Max Continuous Current:84A/30s Max Continuous Power:2100W Rotor diameter:42.5mm Length of motor (excluding shaft length):48mm Shaft diameter:6mm Motor Size:42.5mm/1.66in x 67mm/2.61in Max Lipo Cell:6S Recommended ESC:60-80A Recommended Prop(inch):EOLO14*7 14*8 15*8 15*10 Weight:259g/pcs TECHNICAL SPECIFICATIONS • Model:X3525 Ⅲ • Weight:259g/pcs • KV:465KV AVAILABLE OPTIONS KV465 KV550 KV650 KV810 KV1080 China Mainland PRODUCT INFORMATION Brand: SunnySky Category: Brushless Motor Wholesale Price: US $99.62 ————————————————————————————————————————
