SUNNYSKY X2212 III V3 RC Airplane Brushless Motor - image 1 of 6
1 / 6

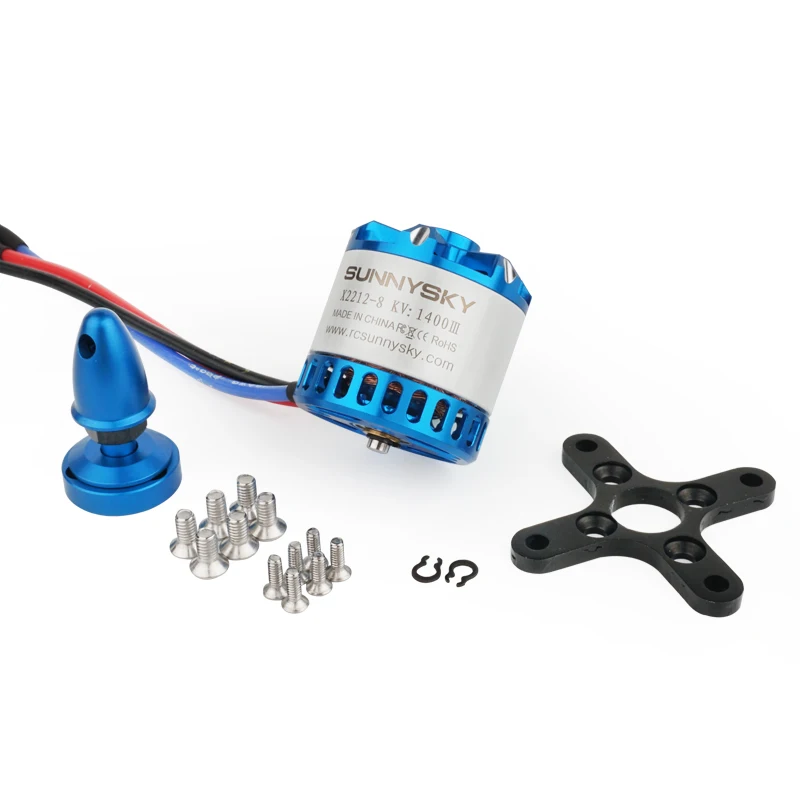

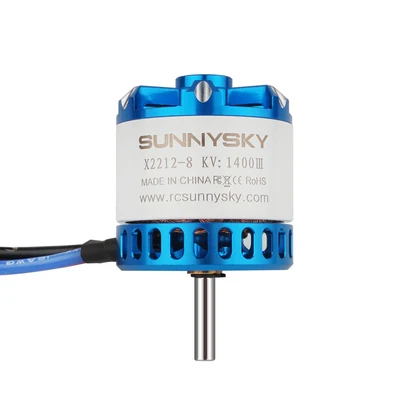

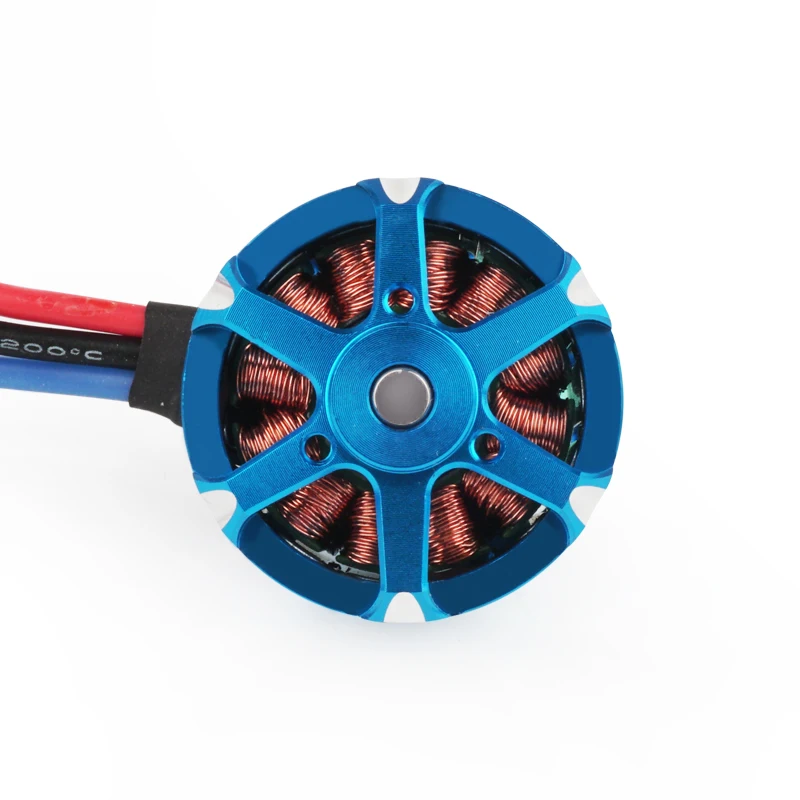

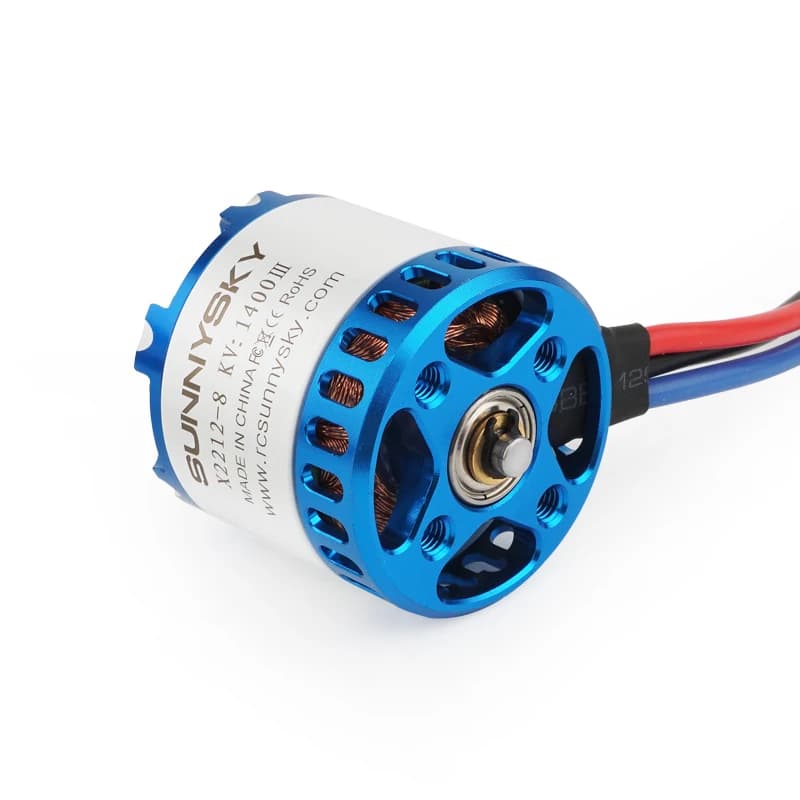

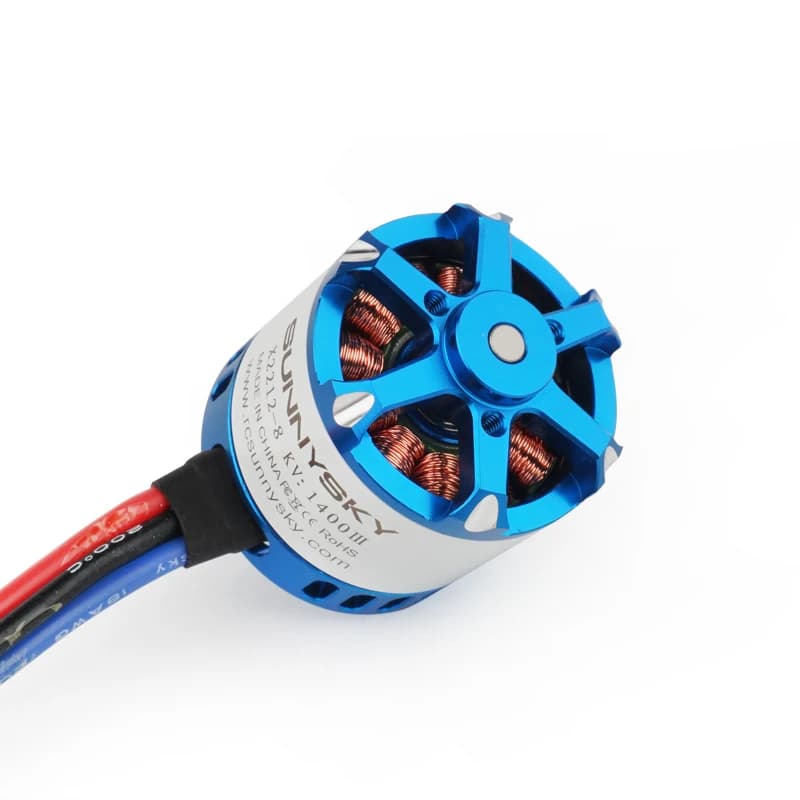

SUNNYSKY X2212 III V3 RC Airplane Brushless Motor

SunnySky

From US $22.95
Est. US $22.95 / unit (1-9 pcs)
$20 @ 10+ pcs$19 @ 100+ pcs

Description

SUNNYSKY X2212 III V3 RC Airplane Brushless Motor ================================================= Motor Model / KV X2212-III/ KV980 X2212-III/ KV1250 X2212-III/ KV1400 Stator/Rotor Poles 12N14P 12N14P 12N14P Internal resistance Motor size Long-Sleeve:φ27.5*46.0mm Short-Sleeve:φ27.5*32.5mm Long-Sleeve:φ27.5*46.0mm Short-Sleeve:φ27.5*32.5mm Long-Sleeve:φ27.5*46.0mm Short-Sleeve:φ27.5*32.5mm Shaft diameter 3.175mm 3.175mm 3.175mm 20AWG 100mm 20AWG 100mm 20AWG 100mm Motor weight(wire included) Motor weight(wire excluded) No data No data No data Rated operational voltage No-load current 0.6A/10V 0.8A/10V 1A/10V Maximum continuous power Maximum continuous current 26A/30S 35A/30S 37A/30s ESC recommended use 20-30A 30-40A 30-40A Propeller size recommended use APC9047/9045/8038/1038/1047 APC9047/9060/8060/7060 APC9047/9045/8038/7060/8060 AVAILABLE OPTIONS ShortShaft KV980 ShortShaft KV1250 ShortShaft KV1400 ShortShaft KV2450 LongShaft KV980 LongShaft KV1250 LongShaft KV1400 PRODUCT INFORMATION Brand: SunnySky Category: Brushless Motor Wholesale Price: US $22.95 ————————————————————————————————————————

Share this product
Select options
Variant

Product Details



Motor Model / KV X2212-III/ KV980 X2212-III/ KV1250 X2212-III/ KV1400
Stator/Rotor Poles 12N14P 12N14P 12N14P
Internal resistance 92mΩ 54mΩ 43mΩ

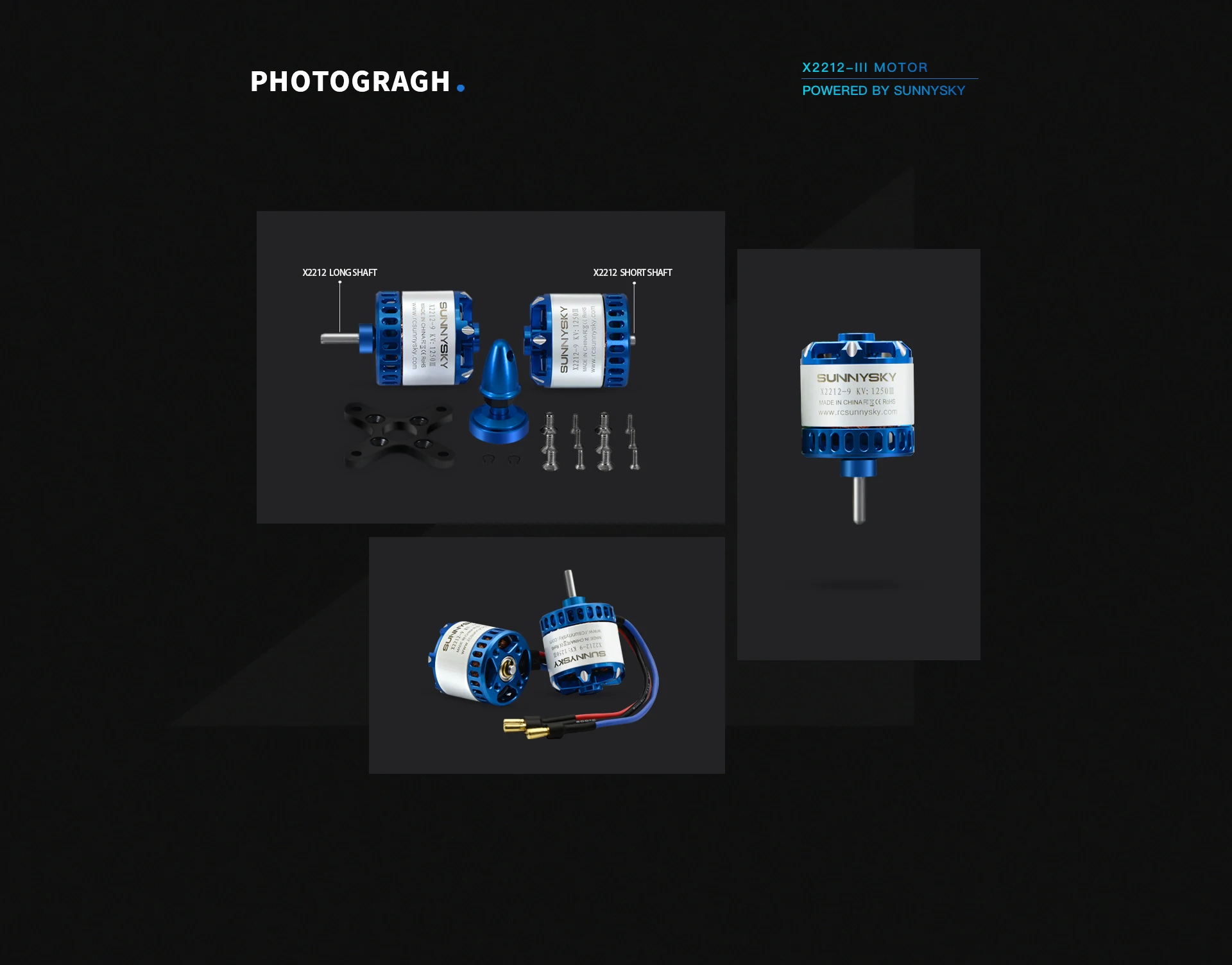

Motor size Long-Sleeve:φ27.5*46.0mm
Short-Sleeve:φ27.5*32.5mm		 Long-Sleeve:φ27.5*46.0mm
Short-Sleeve:φ27.5*32.5mm		 Long-Sleeve:φ27.5*46.0mm
Short-Sleeve:φ27.5*32.5mm
Shaft diameter 3.175mm 3.175mm 3.175mm
AWG 20AWG 100mm 20AWG 100mm 20AWG 100mm
Motor weight(wire included) 57g 59g 57g
Motor weight(wire excluded) No data No data No data
Rated operational voltage 3-4S 3-4S 3-4S
No-load current 0.6A/10V 0.8A/10V 1A/10V
Maximum continuous power 385W 518W 560W
Maximum continuous current 26A/30S 35A/30S 37A/30s
ESC recommended use 20-30A 30-40A 30-40A
Propeller size recommended use APC9047/9045/8038/1038/1047 APC9047/9060/8060/7060 APC9047/9045/8038/7060/8060
