FOXEER F722 Mini V4 Flight Controller ICM42688 OSD Black Box 16M BEC DC5V/2.5A 2-6S Lipo for RC FPV Freestyle Drone

Foxeer

From US $65.29
Est. US $65.29 / unit (1-9 pcs)
$60 @ 10+ pcs$57 @ 100+ pcs

Description

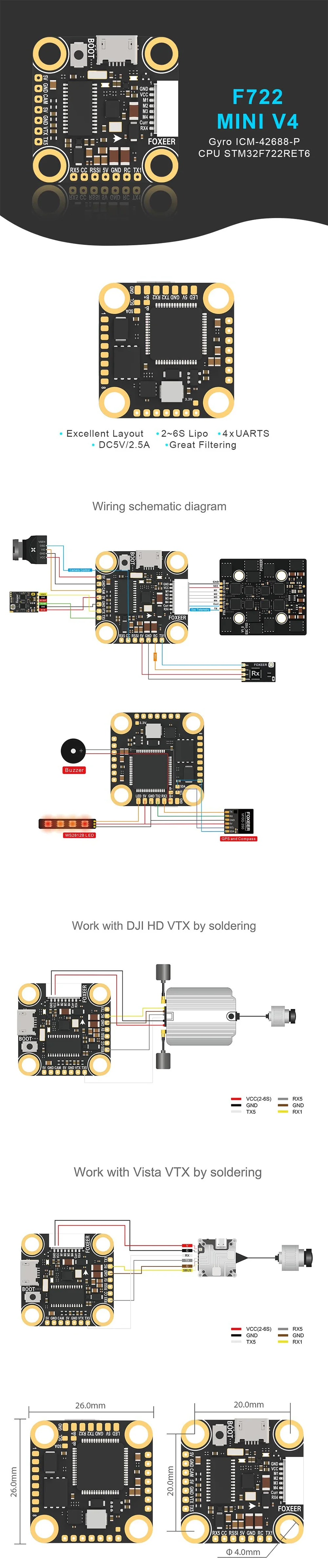

FOXEER F722 Mini V4 Flight Controller ICM42688 OSD Black Box 16M BEC DC5V/2.5A 2-6S Lipo for RC FPV Freestyle Drone ============================================================ FOXEER F722 Mini V4 Flight Controller ICM42688, OSD, Black Box 16M, BEC DC5V/2.5A, 2-6S Lipo for RC FPV Drone Specifications Model: Foxeer F722 V4 Mini ICM42688 CPU: STM32F722RET6 Power Supply: 2~6S Lipo BEC Output: DC5V/2.5A OSD: BF OSD Black Box: 16M Flash Memory UART: 4 Set ESC Telemetry: RX4 Buzzer: YES Smart Audio: YES LED: 1 Set 2812 LED USB: Micro USB Fireware: FOXEERF722V4(BetaFlight) Size: 26X26mm Mounting Hole: 20X20mm,Φ4mm Weight(g): 4g Working Temperature: -20℃ ~ +55℃ Working Humidity: 20 ~ 95% Storage Temperature: -20℃ ~ +70℃ Package Includes: 1PCS FC, 4PCS Rubbers Columns TECHNICAL SPECIFICATIONS • Model: Foxeer F722 V4 Mini ICM42688 • CPU: STM32F722RET6 • OSD: BF OSD • USB: Micro USB • Size: 26X26mm • UART: 4 Set • Package Includes: 1PCS FC, 4PCS Rubbers Columns AVAILABLE OPTIONS Black Gray Blue Red PRODUCT INFORMATION Brand: Foxeer Category: FPV Drone Wholesale Price: US $65.29 ————————————————————————————————————————

Share this product
Select options
Variant

Product Details

FOXEER F722 Mini V4 Flight Controller ICM42688, OSD, Black Box 16M, BEC DC5V/2.5A, 2-6S Lipo for RC FPV Drone
Specifications
  • Model: Foxeer F722 V4 Mini ICM42688
  • CPU: STM32F722RET6
  • Power Supply: 2~6S Lipo
  • BEC Output: DC5V/2.5A
  • OSD: BF OSD
  • Black Box: 16M Flash Memory
  • UART: 4 Set
  • ESC Telemetry: RX4
  • Buzzer: YES
  • Smart Audio: YES
  • LED: 1 Set 2812 LED
  • USB: Micro USB
  • Fireware: FOXEERF722V4(BetaFlight)
  • Size: 26X26mm
  • Mounting Hole: 20X20mm,Φ4mm
  • Weight(g): 4g
  • Working Temperature: -20℃ ~ +55℃
  • Working Humidity: 20 ~ 95%
  • Storage Temperature: -20℃ ~ +70℃
  • Package Includes: 1PCS FC, 4PCS Rubbers Columns
