1/2/5 Pieces CADDX Ratel Pro 1500TVL 9.5g Super WDR 4.5V-27V NTSC/PAL CMOS FPV Starlight Night Vision Blacklight Camera - image 1 of 1
1 / 1

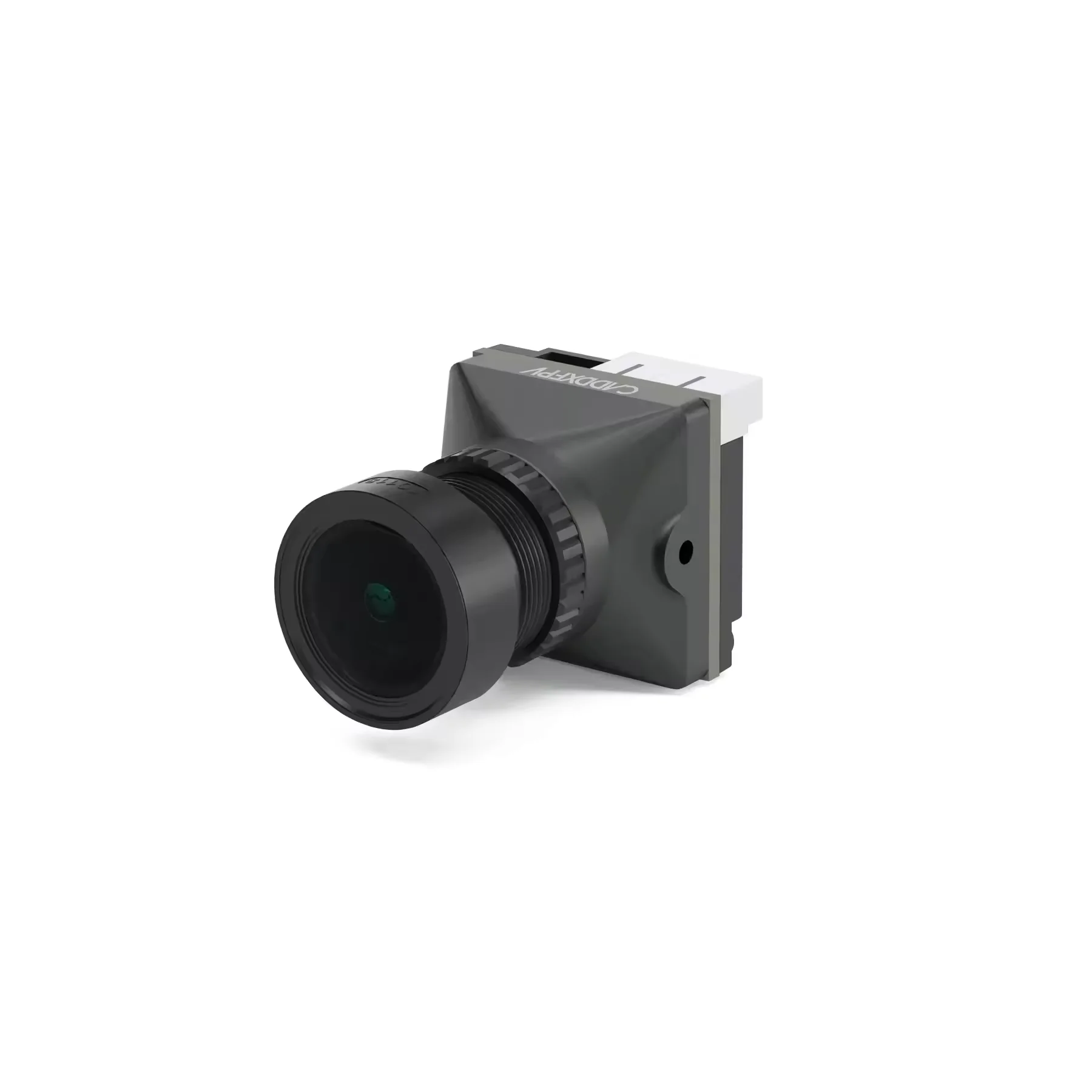

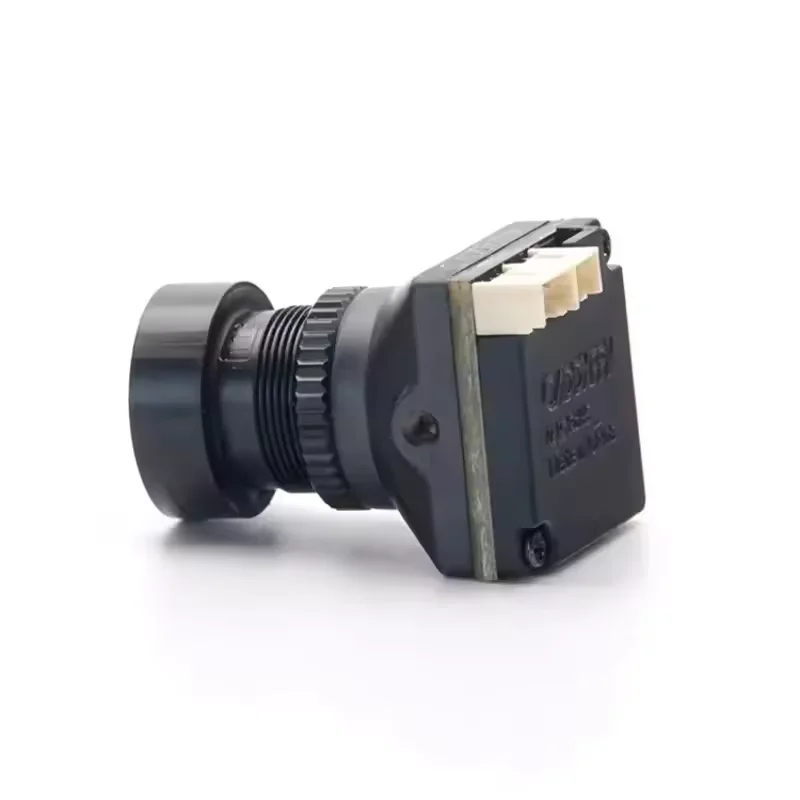

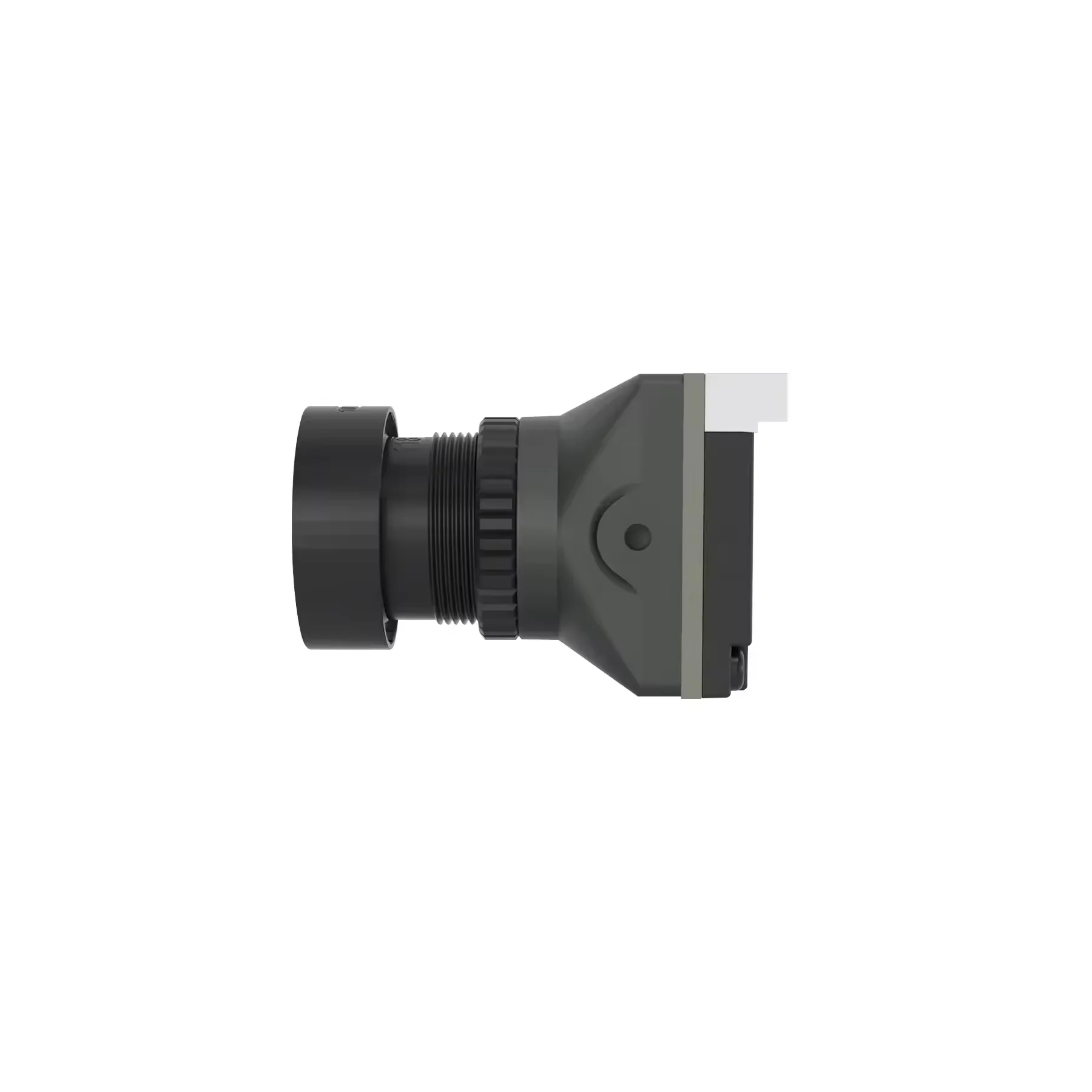

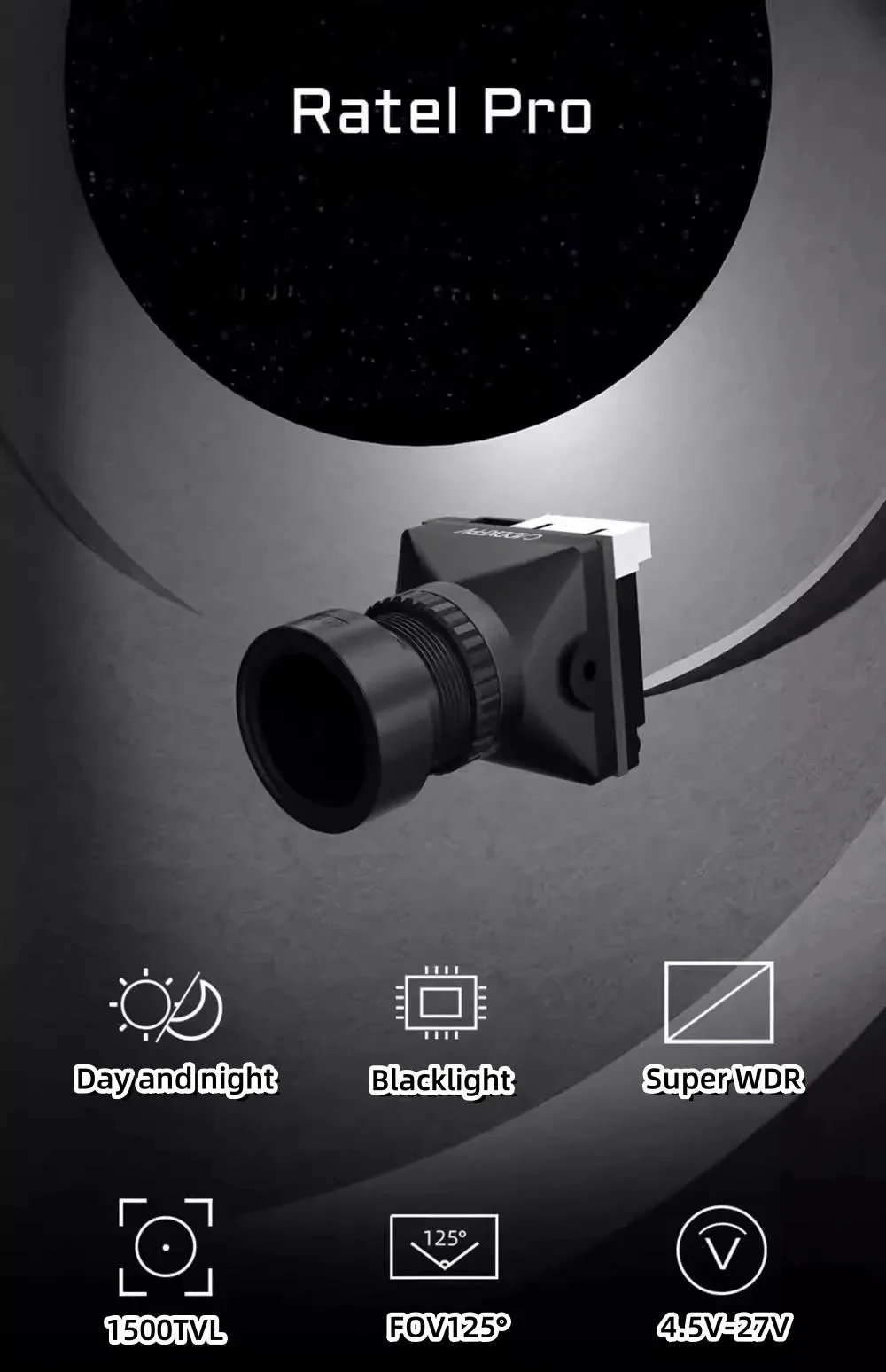

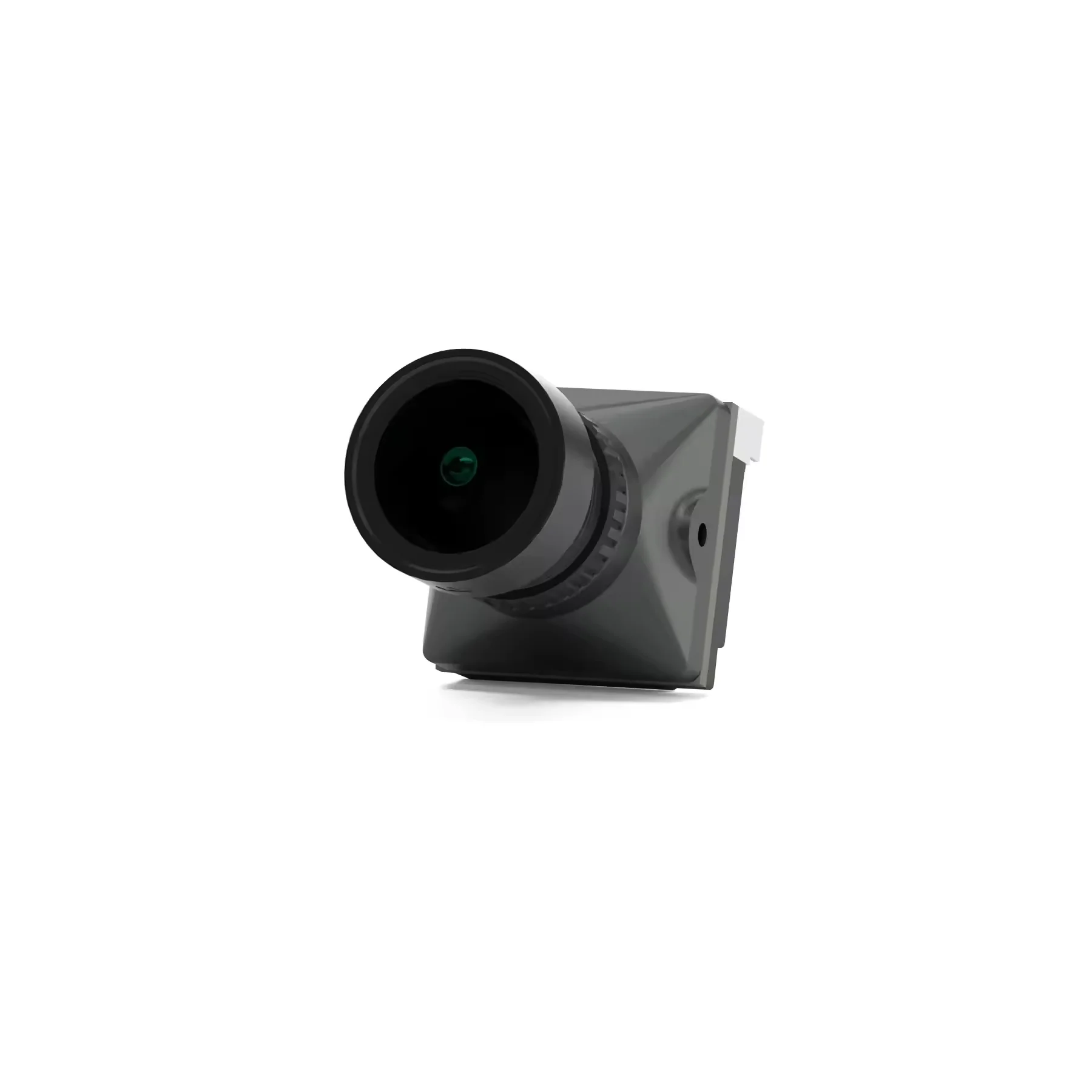

1/2/5 Pieces CADDX Ratel Pro 1500TVL 9.5g Super WDR 4.5V-27V NTSC/PAL CMOS FPV Starlight Night Vision Blacklight Camera

Caddx

From US $50.51
Est. US $50.51 / unit (1-9 pcs)
$47 @ 10+ pcs$44 @ 100+ pcs

Description

1/2/5 Pieces CADDX Ratel Pro 1500TVL 9.5g Super WDR 4.5V-27V NTSC/PAL CMOS FPV Starlight Night Vision Blacklight Camera ============================================================ Ratel PRO Image Sensor 1/1.8" Inch sensor Horizontal Resolution 1500TVL TV System NTSC & PAL (changeable) 16:9 & 4:3 (changeable) Super WDR （HDR) Min. Illumination 0.00001 lux Synchronization Internal Electronic Shutter PAL: 1/50~100,000; NTSC: 1/60~100,000 S/N Ratio >60dB (AGC OFF) Video Output OSD manual Support Language （ENGLISH/中文/繁中文/Русский/ESPANOL/ITALIANO/ FRANCAIS/POLSKIM/ PORTUGUES/日本语） Day/Night Auto/Color/B&W/EXT Dimensions 19mm*19mm Wide Power Input DC 4.5-27V Work Temperature -20℃~+60℃ Work Humidity 20%~80% Weight Package Included: 1x Caddx Ratel Pro Camera 1x Menu Board 1x 2Pin Silicon Cable 1x 3Pin Silicon Cable 1x 1.5mm Allen Wrench 1x Warranty Card AVAILABLE OPTIONS Black Gray Blue Red PRODUCT INFORMATION Brand: Caddx Category: FPV Drone Wholesale Price: US $50.51 ————————————————————————————————————————

Share this product
Select options
Variant

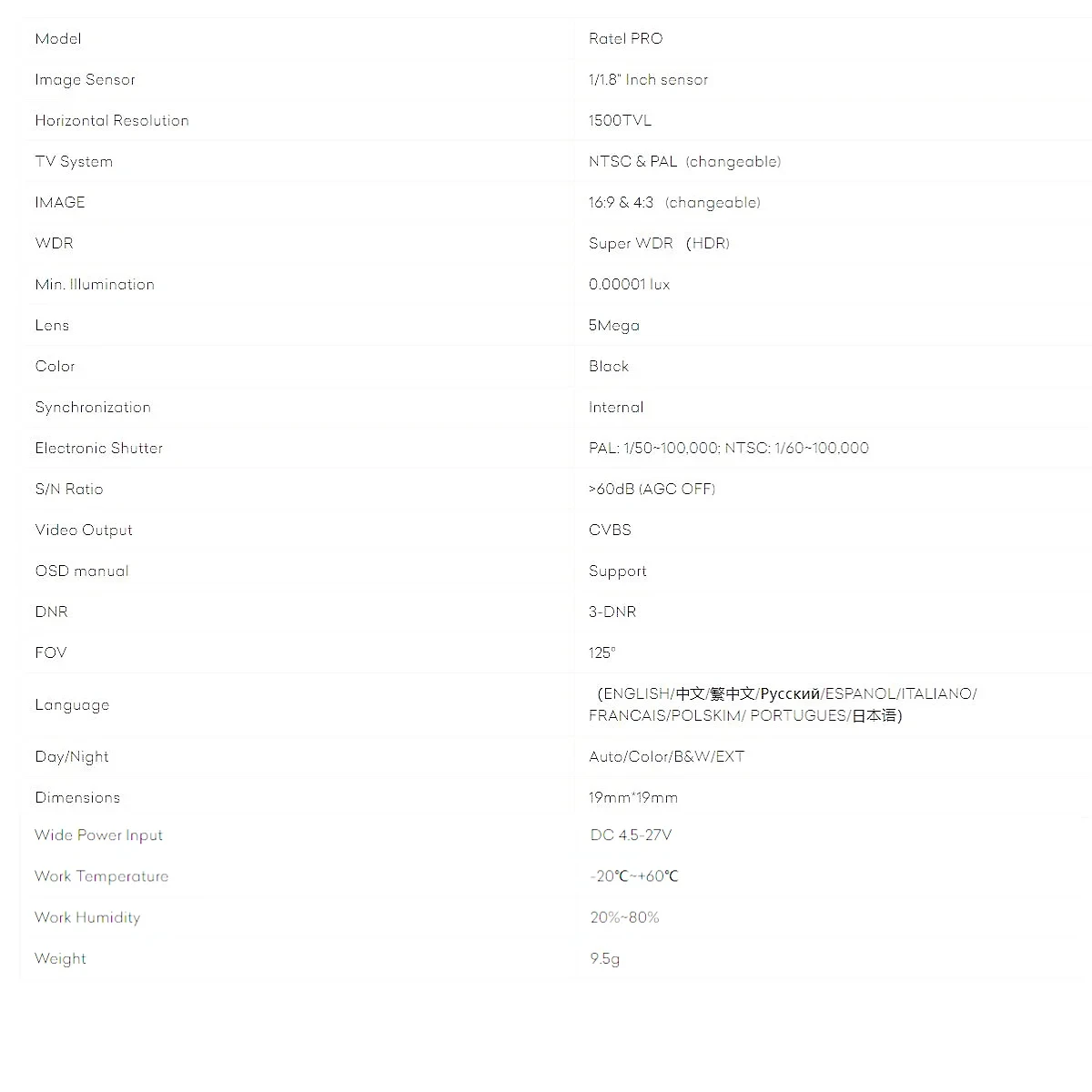

Product Details


Model

Ratel PRO

Image Sensor

1/1.8" Inch sensor

Horizontal Resolution

1500TVL

TV System

NTSC & PAL  (changeable)

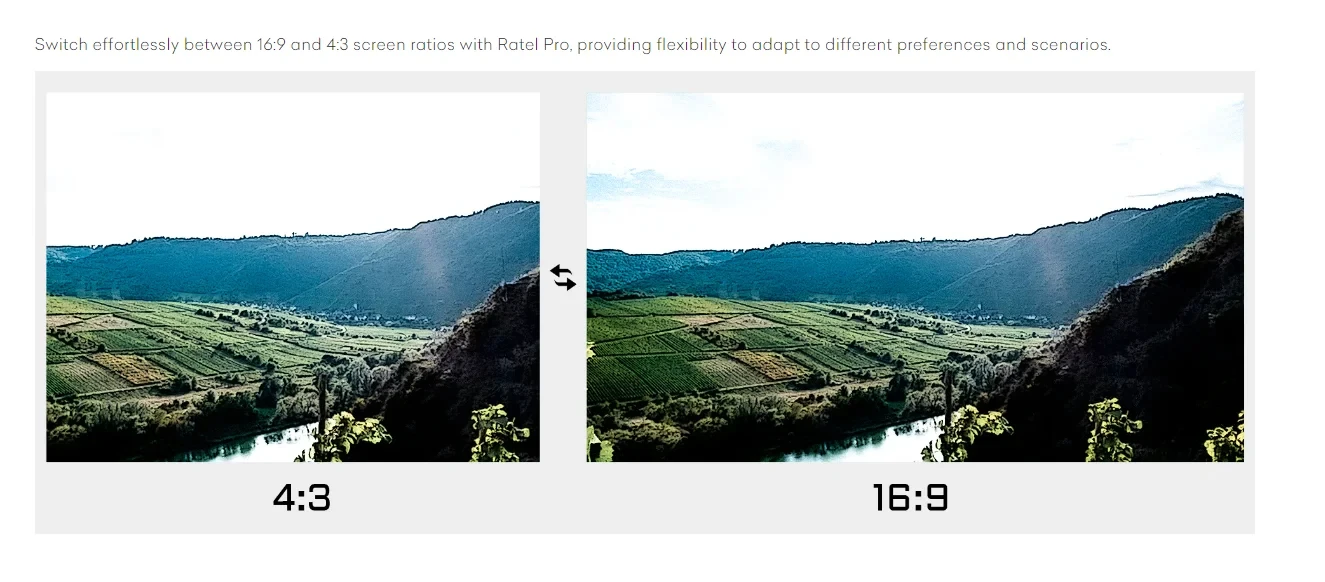

16:9 & 4:3   (changeable)

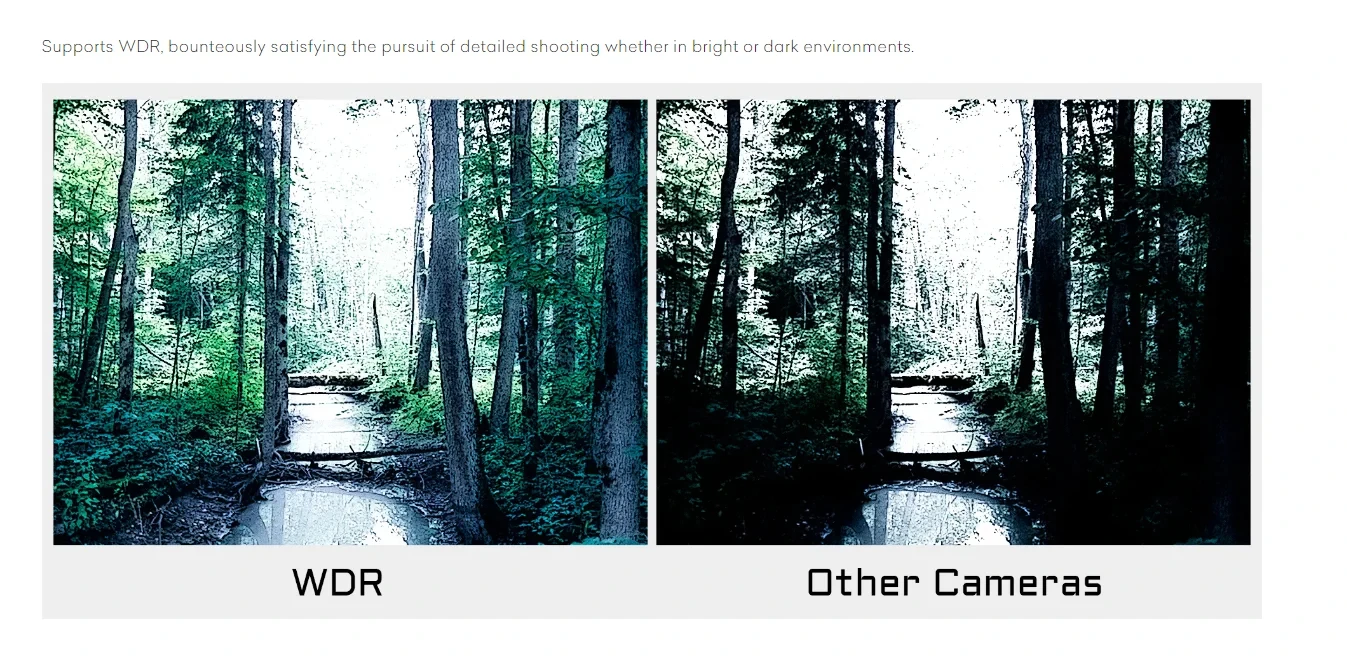

WDR

Super WDR （HDR)

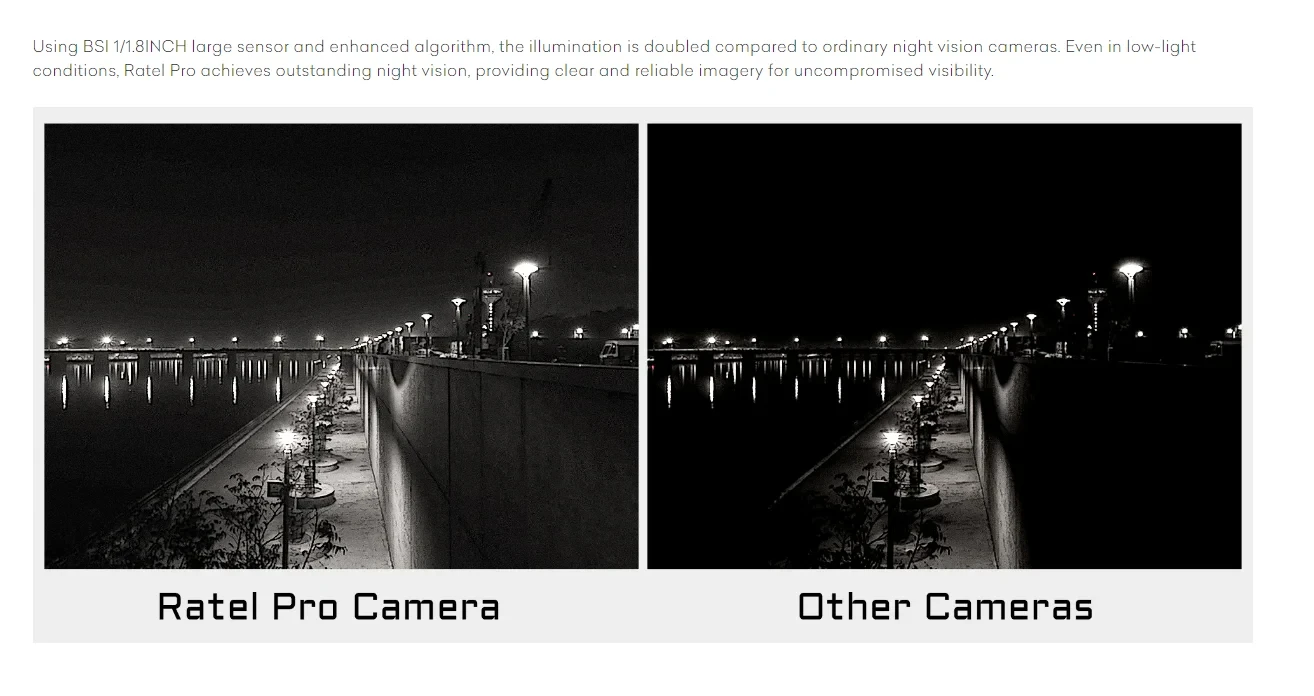

Min. Illumination

0.00001 lux

Lens

5Mega

Color

Black

Synchronization

Internal

Electronic Shutter

PAL: 1/50~100,000; NTSC: 1/60~100,000

S/N Ratio

>60dB (AGC OFF)

Video Output

CVBS

OSD manual

Support

DNR

3-DNR

FOV

125°

Language

（ENGLISH/中文/繁中文/Русский/ESPANOL/ITALIANO/ FRANCAIS/POLSKIM/ PORTUGUES/日本语）

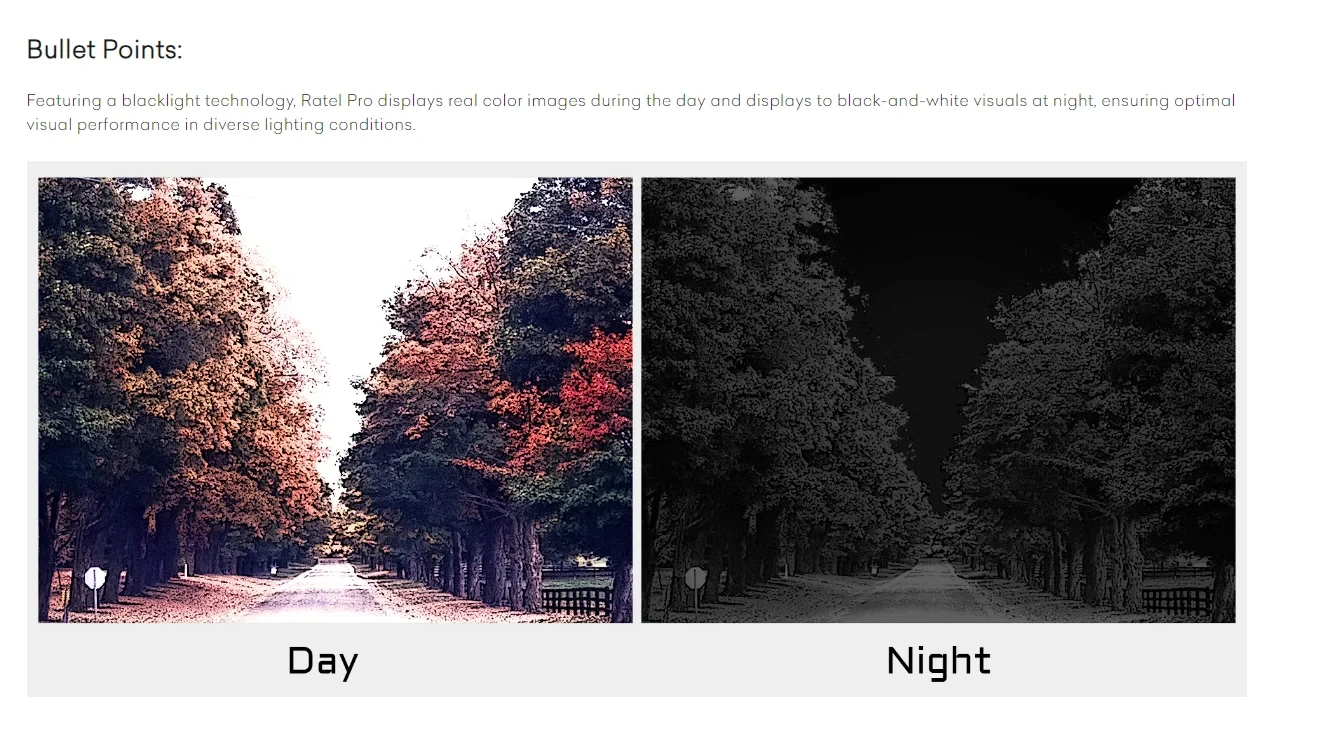

Day/Night

Auto/Color/B&W/EXT

Dimensions

19mm*19mm

Wide Power Input

DC 4.5-27V

Work Temperature

-20℃~+60℃

Work Humidity

20%~80%

Weight

9.5g

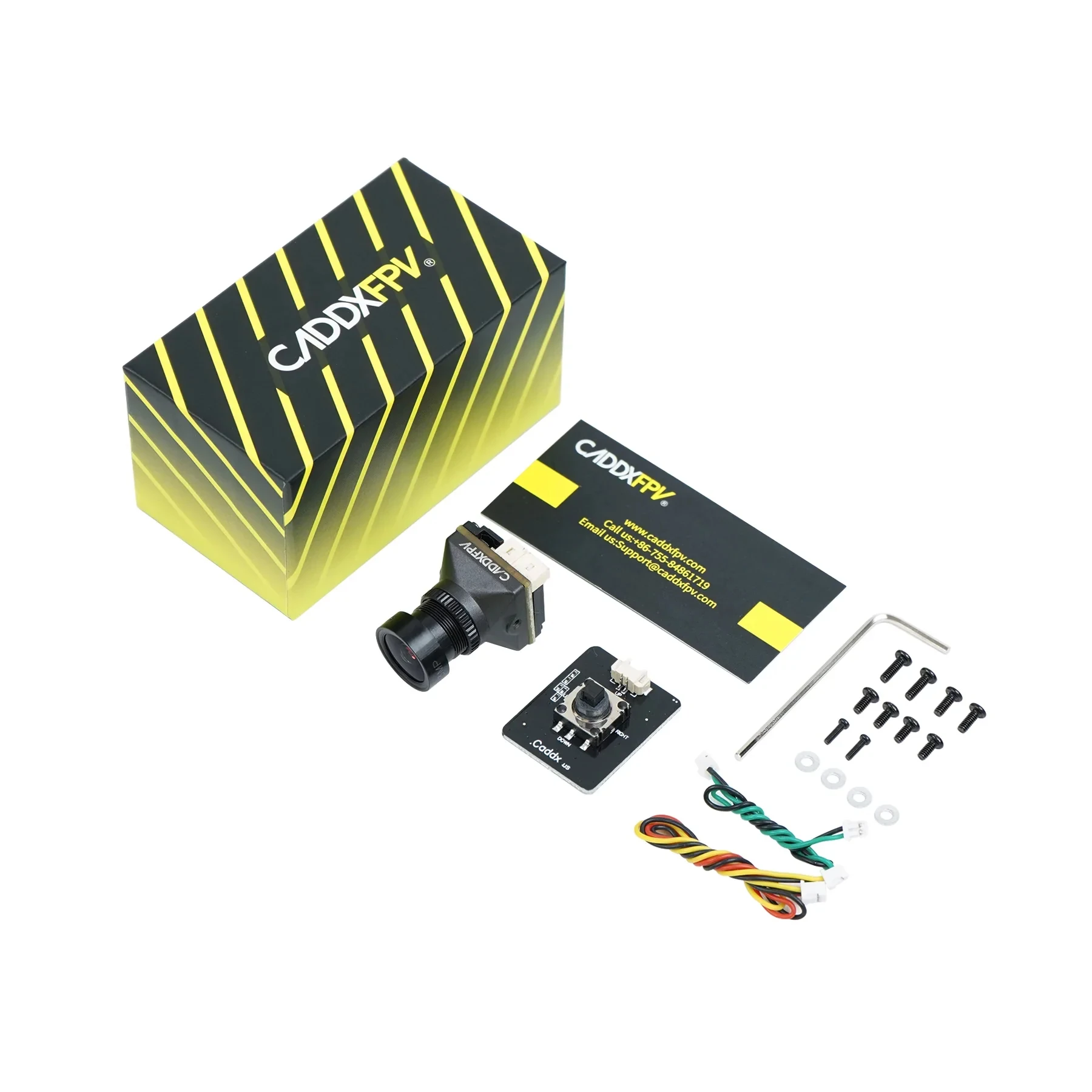

Package Included:

1x Caddx Ratel Pro Camera

1x Menu Board

1x 2Pin Silicon Cable

1x 3Pin Silicon Cable

1x 1.5mm Allen Wrench

1x Warranty Card
