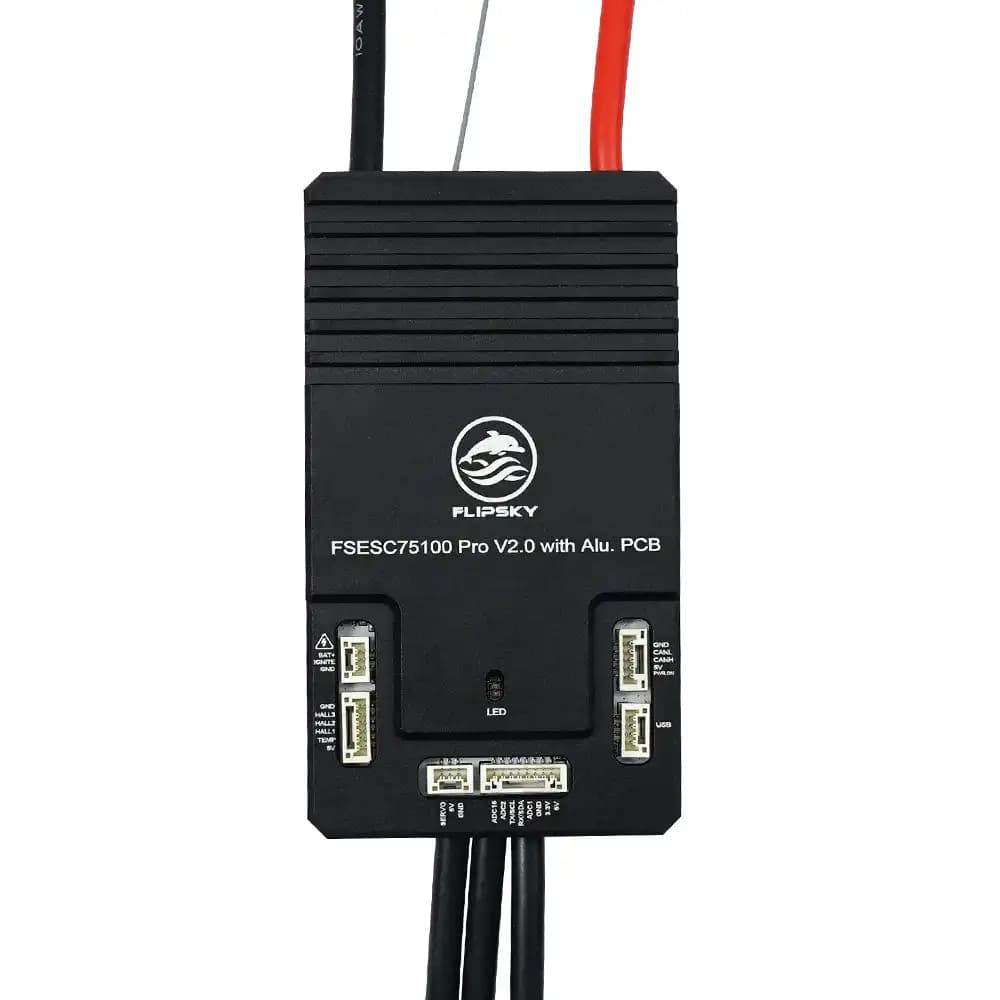

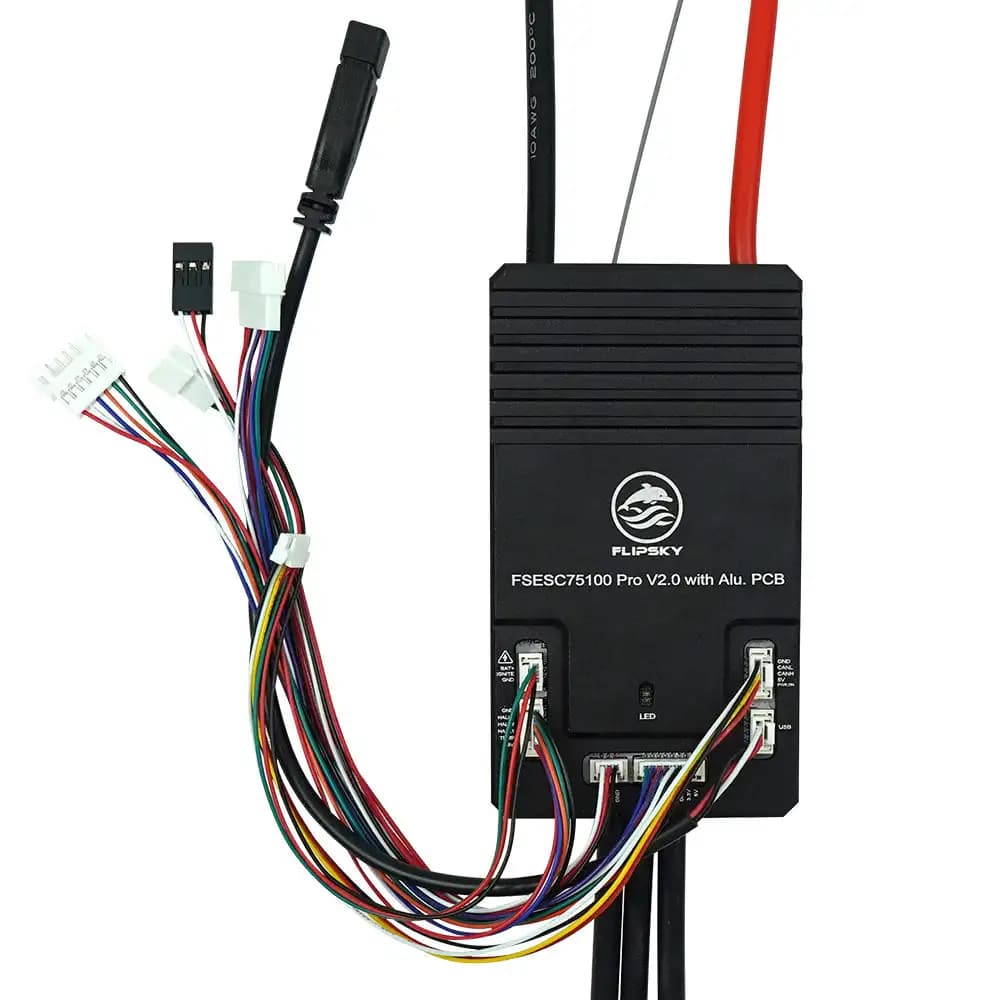

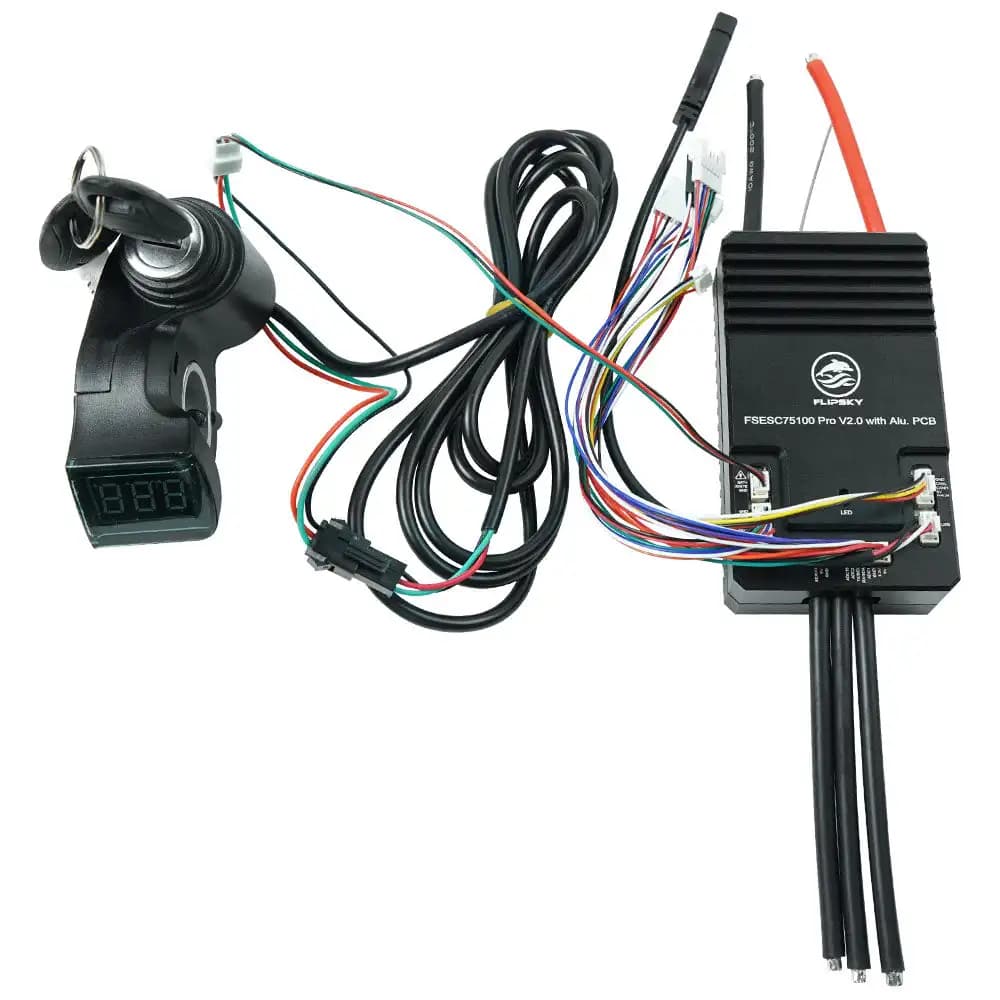

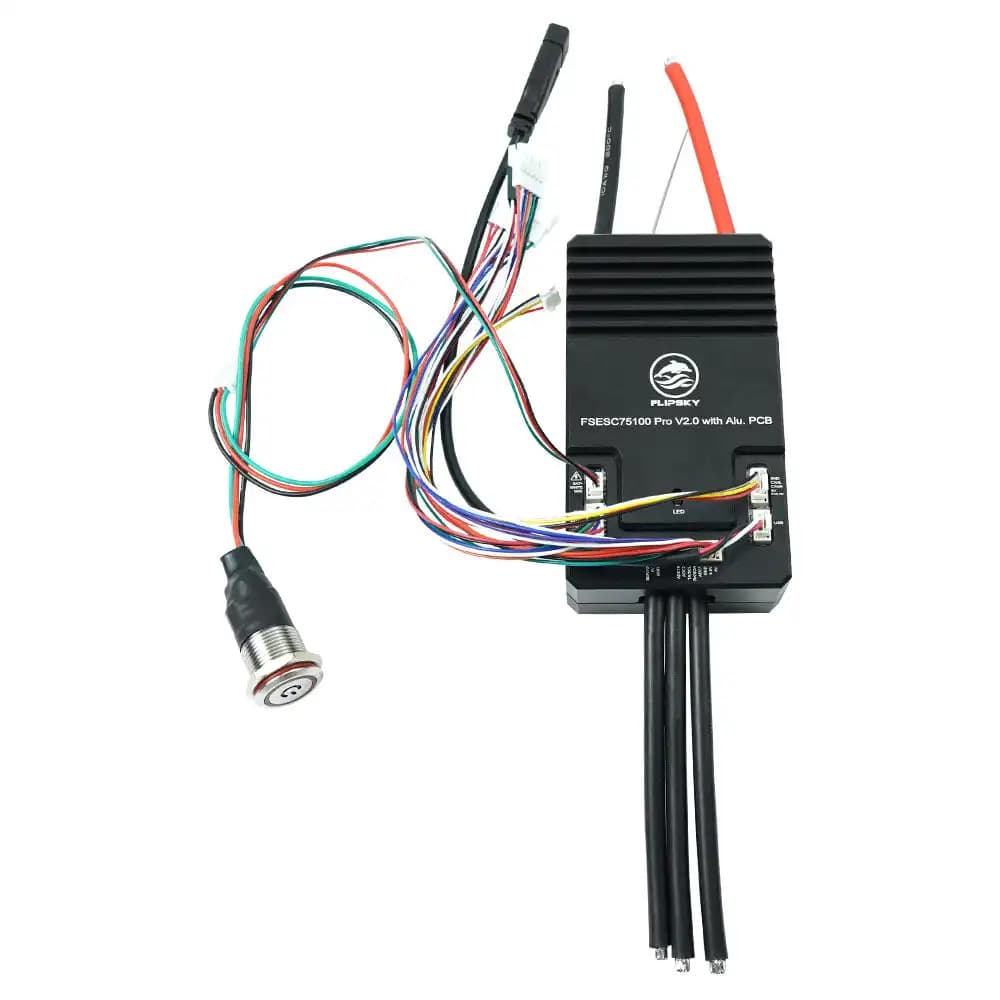

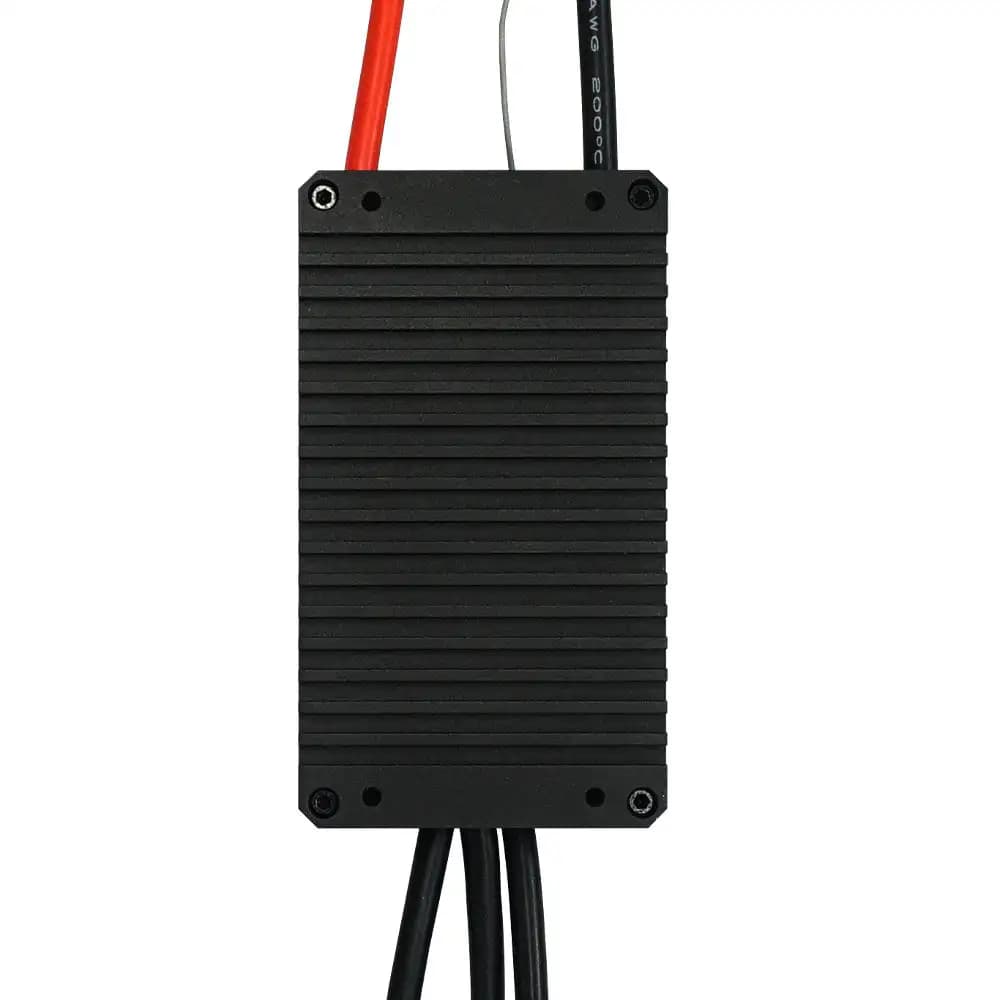

Flipsky 75100 Pro V2.0 with Aluminum PCB Based on VESC $101.99$199.98 -49%4 sold4 × $25.5 with no interestSee previewSimilar items - image 1 of 6
1 / 6

Flipsky 75100 Pro V2.0 with Aluminum PCB Based on VESC $101.99$199.98 -49%4 sold4 × $25.5 with no interestSee previewSimilar items

HGLRC

From US $101.99
Est. US $101.99 / unit (1-9 pcs)
$94 @ 10+ pcs$89 @ 100+ pcs

Description

Flipsky 75100 Pro V2.0 with Aluminum PCB Based on VESC $101.99$199.98 -49%4 sold4 $25.5 with no interestSee previewSimilar items ============================================================ Firmware: 6.02 (firmware update supported) Size: L103mm*W58mm*H27.7mm Voltage:14-84V (4-20S) Current:100A Continuous BEC:5V@1.5A Support BLDC square wave mode control and FOC sine wave mode ERPM:150000 Control Interface Ports:USB,CAN,UART Supported Sensors:ABI，HALL，AS5047，AS5048A Input Set Support:PPM，ADC，NRF,UART Wire Size: 10AWG(75100 Pro) Programmable: Yes Regenerative Capacity: Yes Phase Filter: Yes Power Switch Button: Red integrates Bluetooth module function The maximum peak current is 150A the absolute maximum current is recommended to be set to 200A Wiring diagram: TECHNICAL SPECIFICATIONS • Size: L103mm*W58mm*H27.7mm • Voltage:14-84V (4-20S) • Current:100A Continuous • Firmware: 6.02 (firmware update supported) AVAILABLE OPTIONS With Power Button With Key Switch PRODUCT INFORMATION Brand: HGLRC Category: FPV Drone Wholesale Price: US $101.99 ————————————————————————————————————————

Share this product
Select options
Variant

Product Details

Spec:

  • Firmware: 6.02 (firmware update supported)
  • Size: L103mm*W58mm*H27.7mm
  • Voltage:14-84V (4-20S)
  • Current:100A Continuous
  • BEC:5V@1.5A
  • Support BLDC square wave mode control and FOC sine wave mode
  • ERPM:150000
  • Control Interface Ports:USB,CAN,UART
  • Supported Sensors:ABI，HALL，AS5047，AS5048A
  • Input Set Support:PPM，ADC，NRF,UART
  • Wire Size: 10AWG(75100 Pro)
  • Programmable: Yes
  • Regenerative Capacity: Yes
  • Phase Filter: Yes
  • Power Switch Button: Red
  • integrates Bluetooth module function
  • The maximum peak current is 150A
  • the absolute maximum current is recommended to be set to 200A

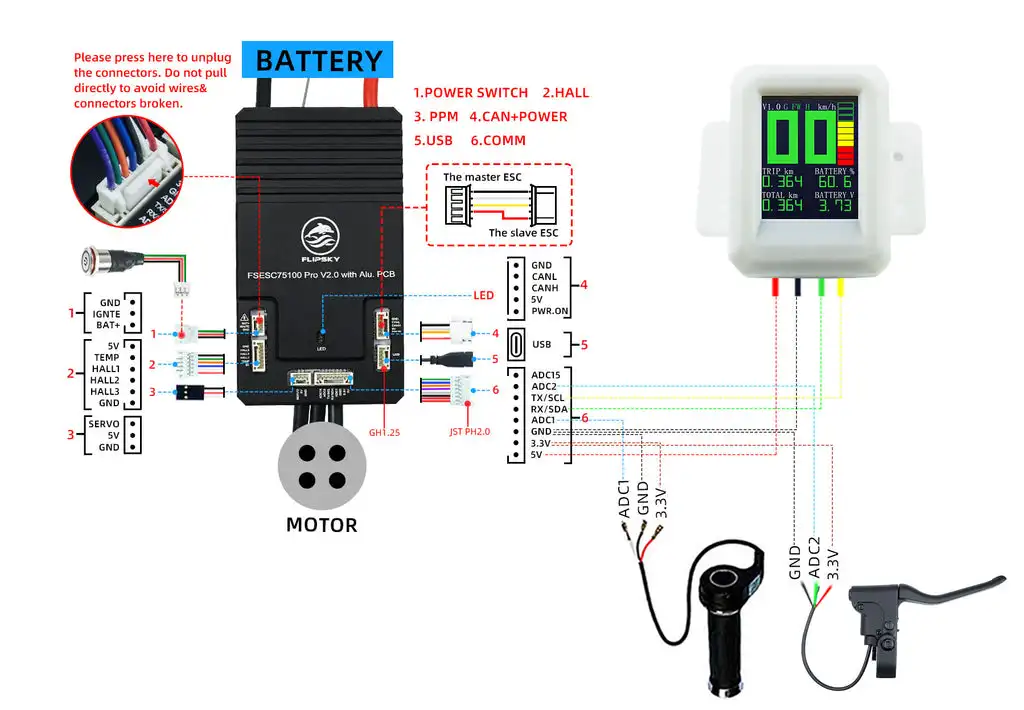

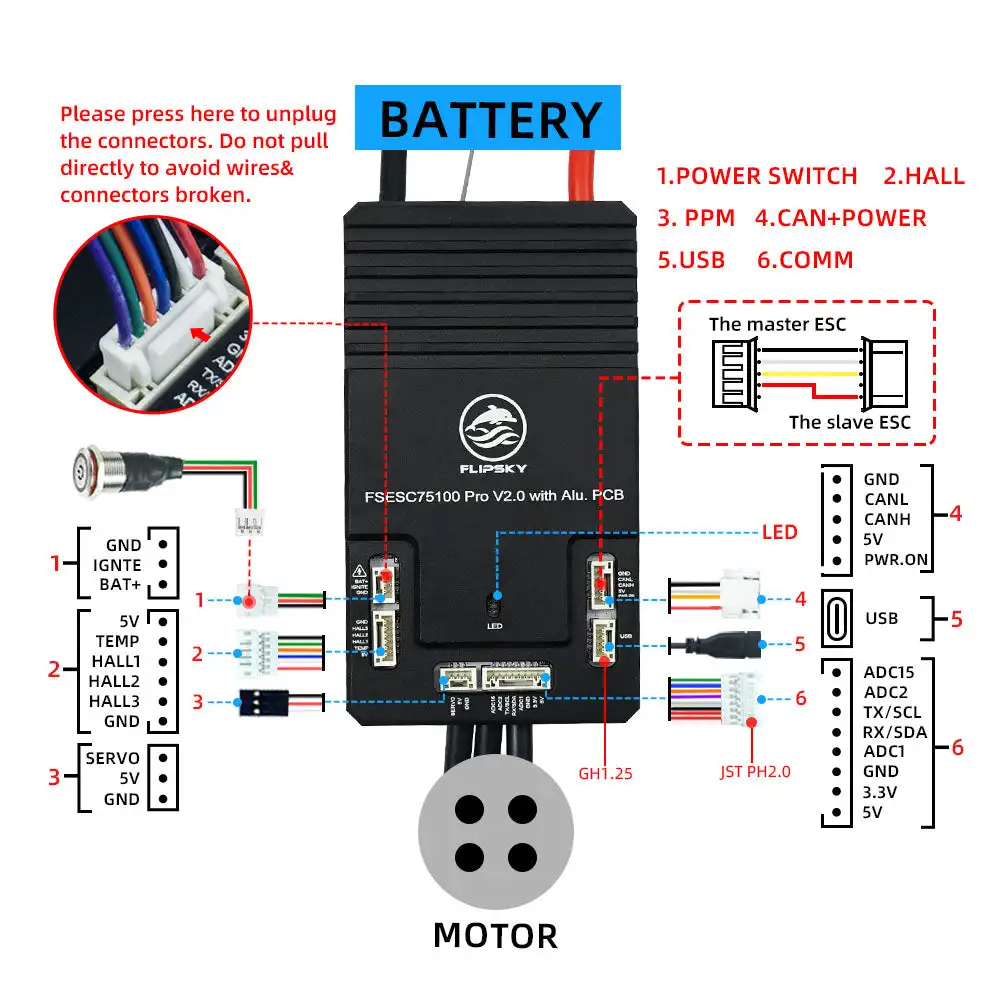

Wiring diagram:

Flipsky 75100 Pro V2.0 With Aluminum PCB Based on VESC For Electric Skateboard / Scooter / Ebike Speed Controller
